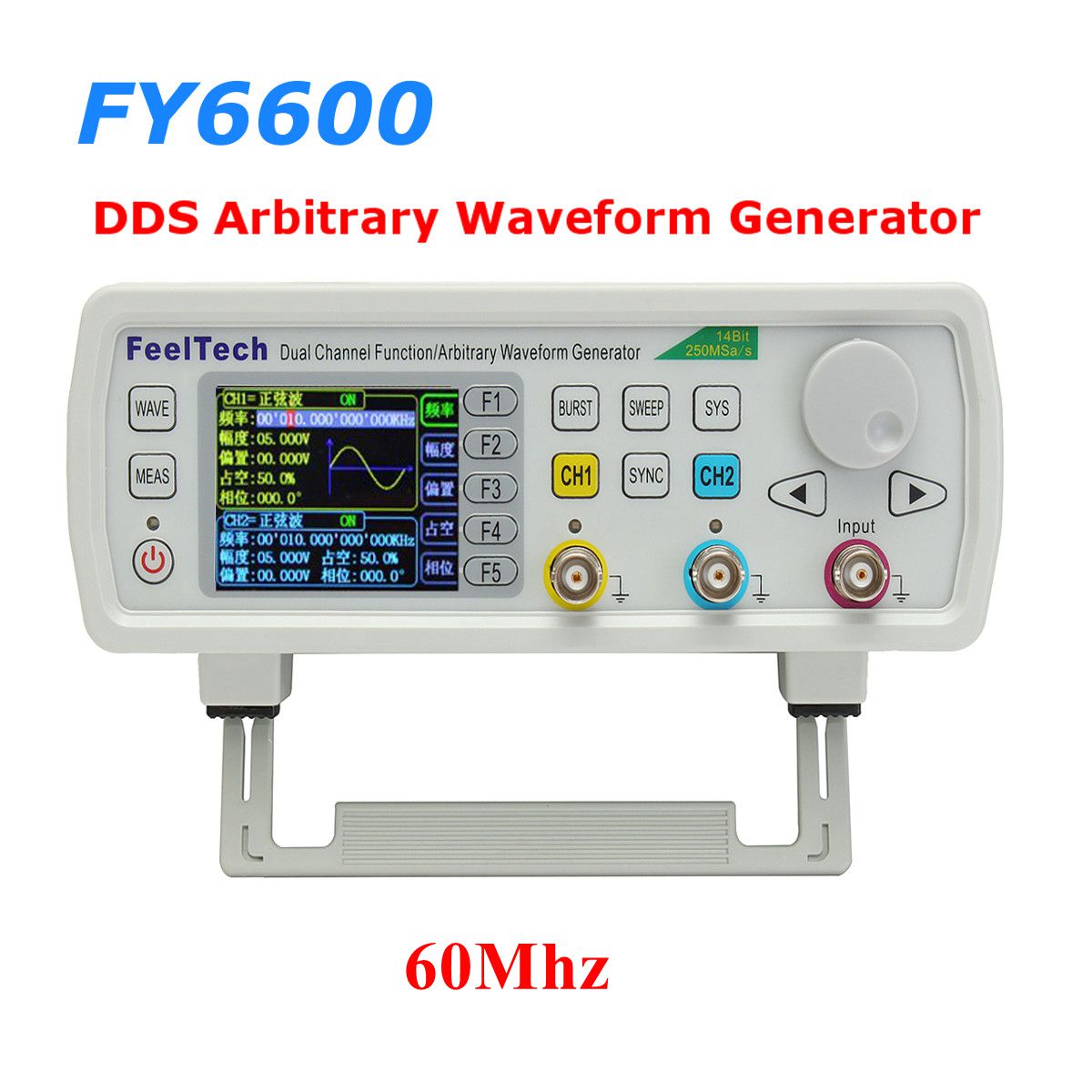

FY6600 Digital 30MHz 60MHz Dual Channel DDS Function Arbitrary Waveform Signal Generator Frequency Meter
FY6600 Digital 30MHz 60MHz Dual Channel DDS Function Arbitrary Waveform Signal Generator Frequency Meter
$109.99
Ex Tax: $109.99
- Stock: In Stock
- Model: MZ008911
- Weight: 579.00g
- SKU: MZ008911
Description:
1. The device uses a professional 14-bit high-speed D/A chip, and a 250MSa/s sampling rate. An active crystal oscillator as the benchmark makes the output waveform more exquisite, stable, and precise. Signal output range:1mVpp~20Vpp.
2. Bias level can be adjusted arbitrarily. A dual-channel wave appears. practical VCO function. Every function has separate operation interface. The data displays succinct and clear, simple operation, and convenient usage.
3. The FY6600 Series dual channel function/arbitrary waveform generator is a signal generator that integrates a function signal generator, pulse signal generator, sweeper meter, counter, and frequency meter with high performance, cost performance, and multi-function.
4. The device uses a large-scale FPGA integrated circuit and high-speed MCU microprocessor. The internal circuit uses an active crystal oscillator as the benchmark, high stability.
5. Surface mount technology has greatly improved the anti-interference and service life of the instrument.
6. The device has a completely separate dual DDS signal and TTL level output. It is not only for the user to preset 33 commonly used waveform signal but also provide users with 64 sets of custom waveform storage space.
7. The instrument has achieved a combination of ease of use, excellent technical indicators, and other functions in signal generation, waveform parameter measurement, and scanning and usage. It can help users quickly complete the task and it is the test and ideal measurement equipment for electronic engineers, electronic laboratories, production lines,s and teaching, and scientific research.

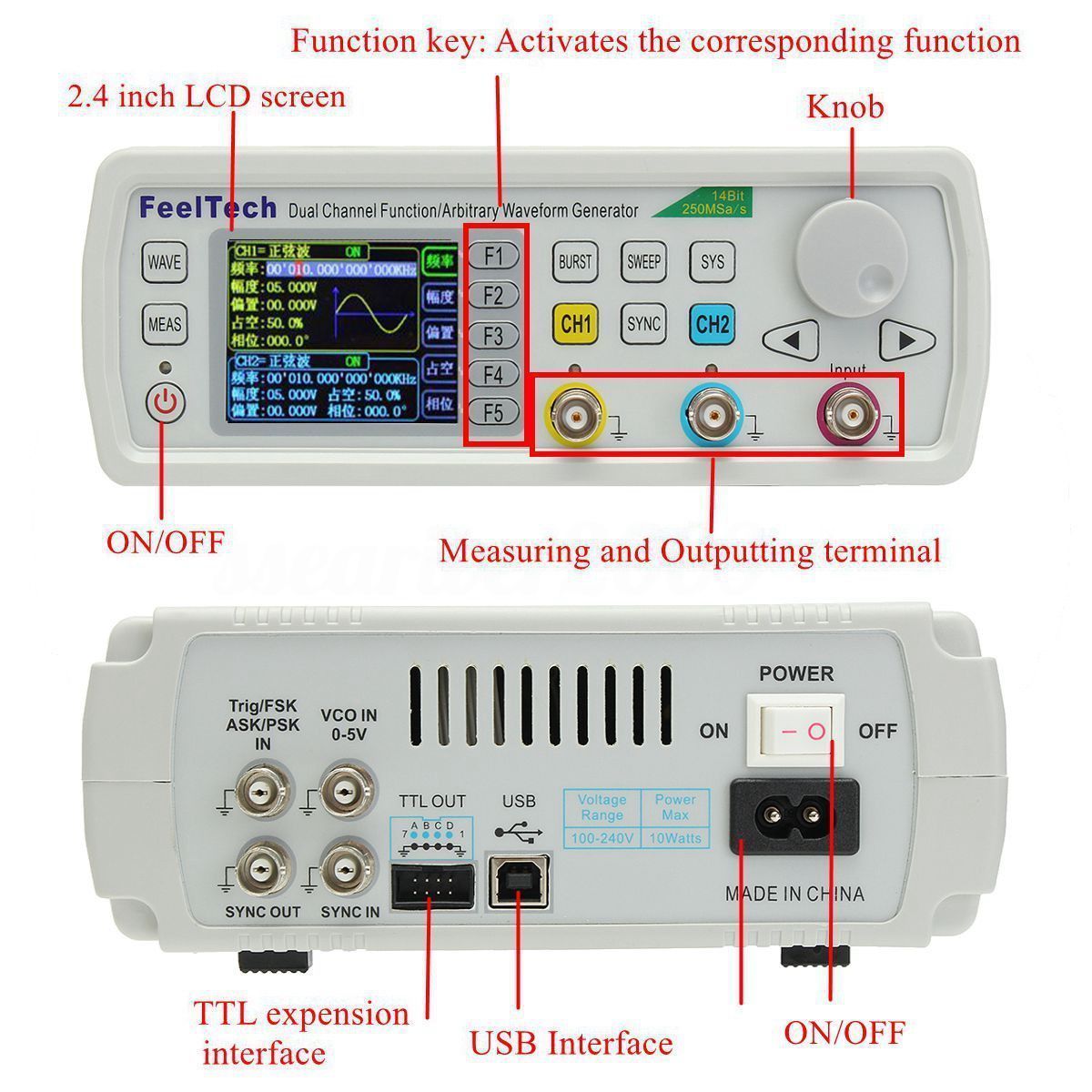

8. The FY6600 Series dual channel function/arbitrary waveform generator has the humanization keyboard layout and instructions. It provides a visional intuitive operation interface. The display interface uses a 2.4-inch TFT color display. High resolution:320*240, It can display all the parameters for dual channels simultaneously and prompt present key functions.
9. Abundant shortcut keys greatly simplify the complex operation process and enhance the instrument's operability.
Users do not need to spend a lot of time learning and being familiar with the instrument operation, they can skillfully use it.
Advantages:
- FY6600 uses a professional 14Bit high-speed D/A chip, rather than a few inexpensive resistors to build a 12-bit D/A resistor network. The higher the resolution, the smoother the detail waveform. Recommend: Observe the details for two schemes of sine wave during reducing the oscilloscope resolution range and time base. The waveform details and smoothness will immediately appear on the page.
- FY6600 series sampling rate upgrades to 250MSa/s, at the same frequency, waveform contour is more clear than the 200MSa/s sampling rate instrument in the same frequency.
- FY6600 series each waveform storage depth upgrades to 8192*14bits, and high-precision signal details can be restored. Wavelength is 4 times friend business.
- The industry's original practical VCO function.
- FY6600 series phase resolution can up to 0.1 degrees, and the user can more accurately control the delay for two signals.
- Signal output terminals use pure copper material, not plastic-wrapped zinc alloy material, the details are attitude.
- The instrument adopts imported long-life keys and comfortable touch.
- The first dual channel waveform displays in the LCD operation interface display simultaneously (non-friends imitates our 2015 version, only displays signal 1-way waveform)
- 4-way TTL output makes instrument application more widely;
- Small signal is particularly good,FY6600 can outputs1mVPP small signal, amplitude resolution is 1mV, and can be 1mVpp, 10mVpp, 100mVpp, 1Vpp and other different step value, the maximum range is 1mVpp~20Vpp electrodeless stepless regulation.
- A wider frequency range, the maximum frequency range is 1uHz~60MHz sine wave, squares wave maximum range is 1uHz~25MHz, the other wave frequency range is 1uHz~20MHz, the full range frequency resolution is 1uHz, the full range frequency shift, direct digital set;
- The rising edge time is as low as 7nS within the squares wave 5V, and the maximum output frequency can reach 25MHz;
-Waveform types are more abundant. The instrument is not only for the user to preset 33 common waveforms, but also provides users with a group of up to 64 (8192*14Bit) user-defined waveform storage space. Users can use PC software provided by our company editor to download. The impulse wave width not only supports the duty ratio adjust
Specifications:
Model: FY6600
Frequency: 30Mhz, 60Mhz(optional)
Screen display: 2.4" TFT
Color: Grey
Size: 194 x 178 x 69mm

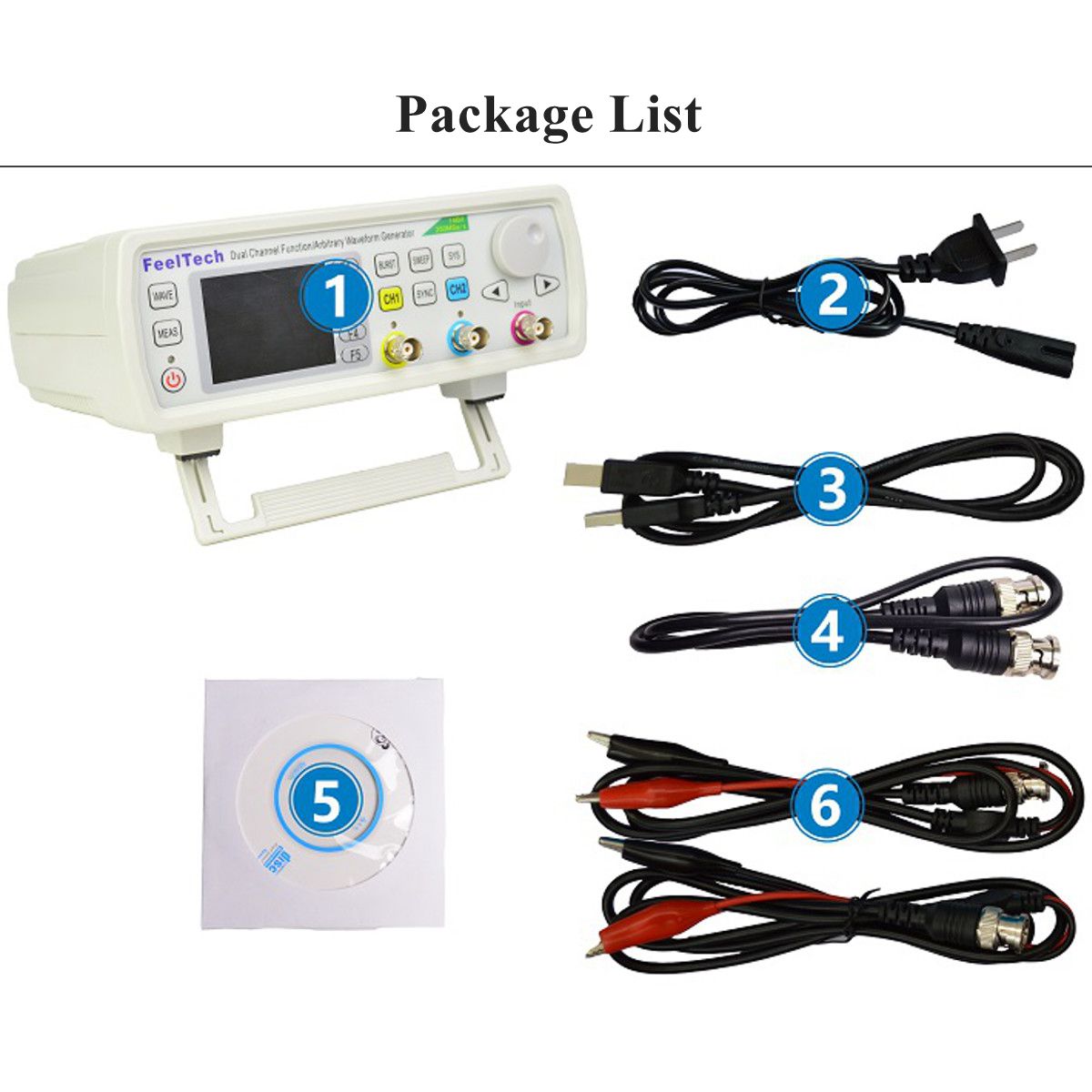

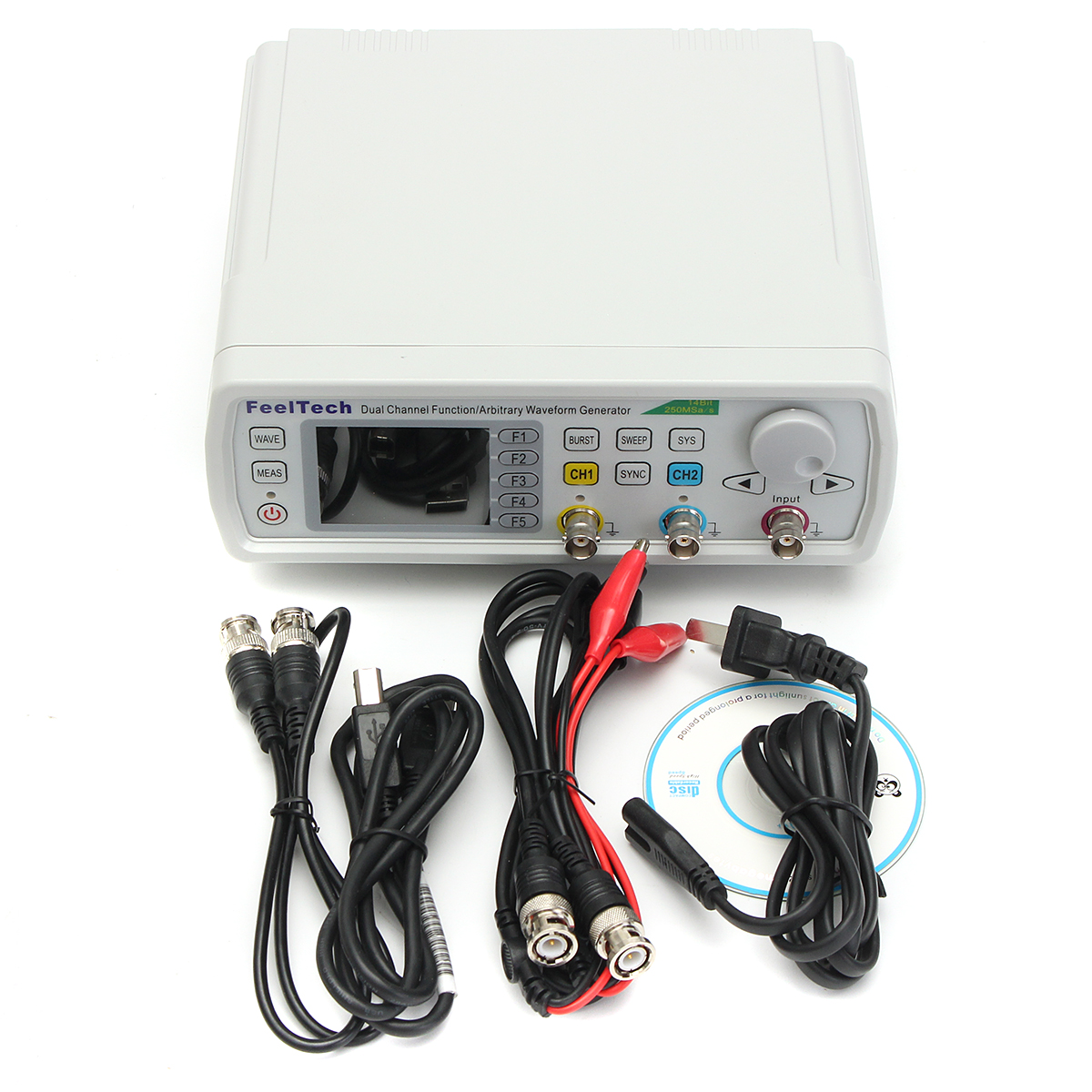

Packaged included:
1 x FY6600 main unit
1 x Power cable(EU Plug)
1 x USB wire
1 x BNC wire
1 x CD
1 x Q9 Clip wire
>>You can Contact us to download the English manual<<

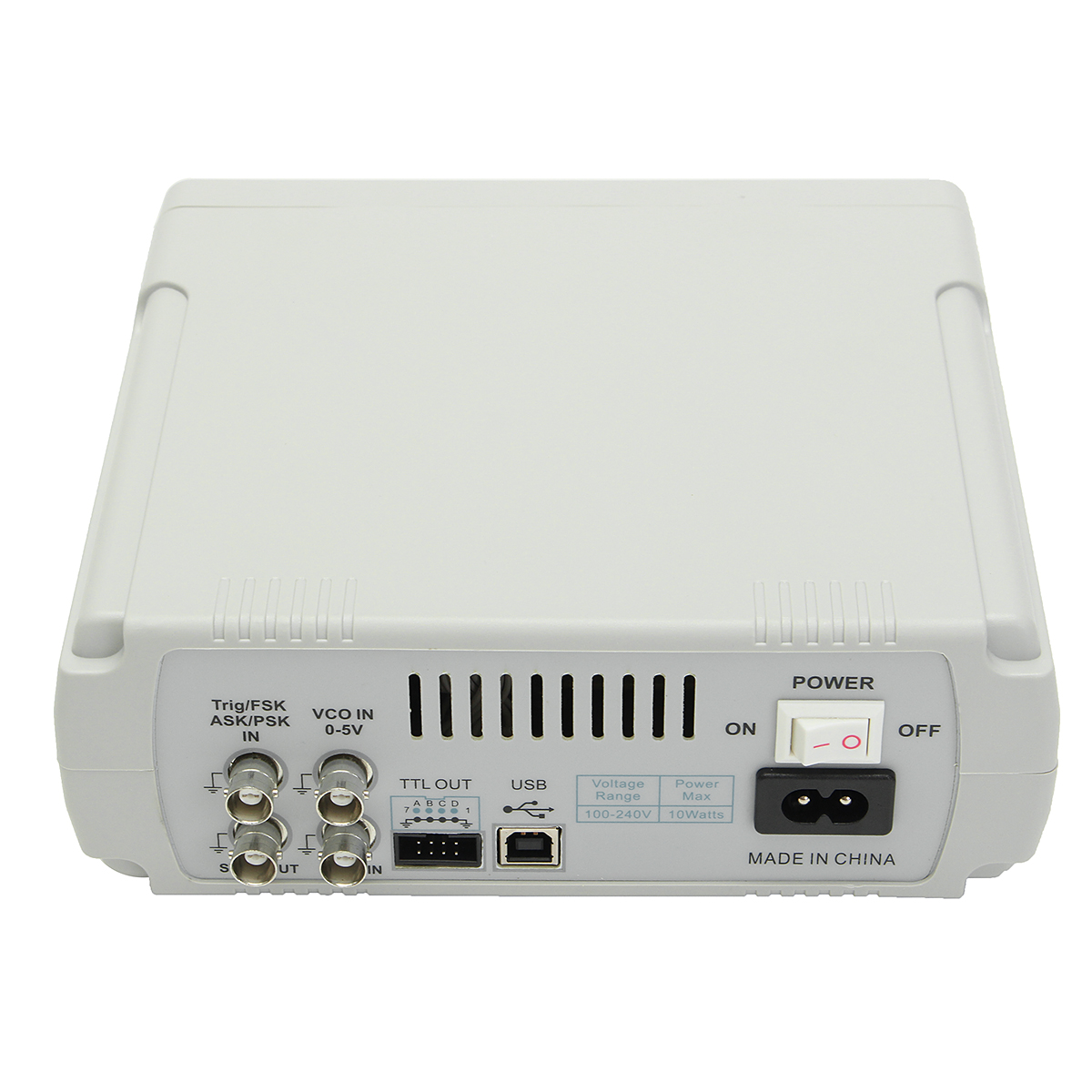

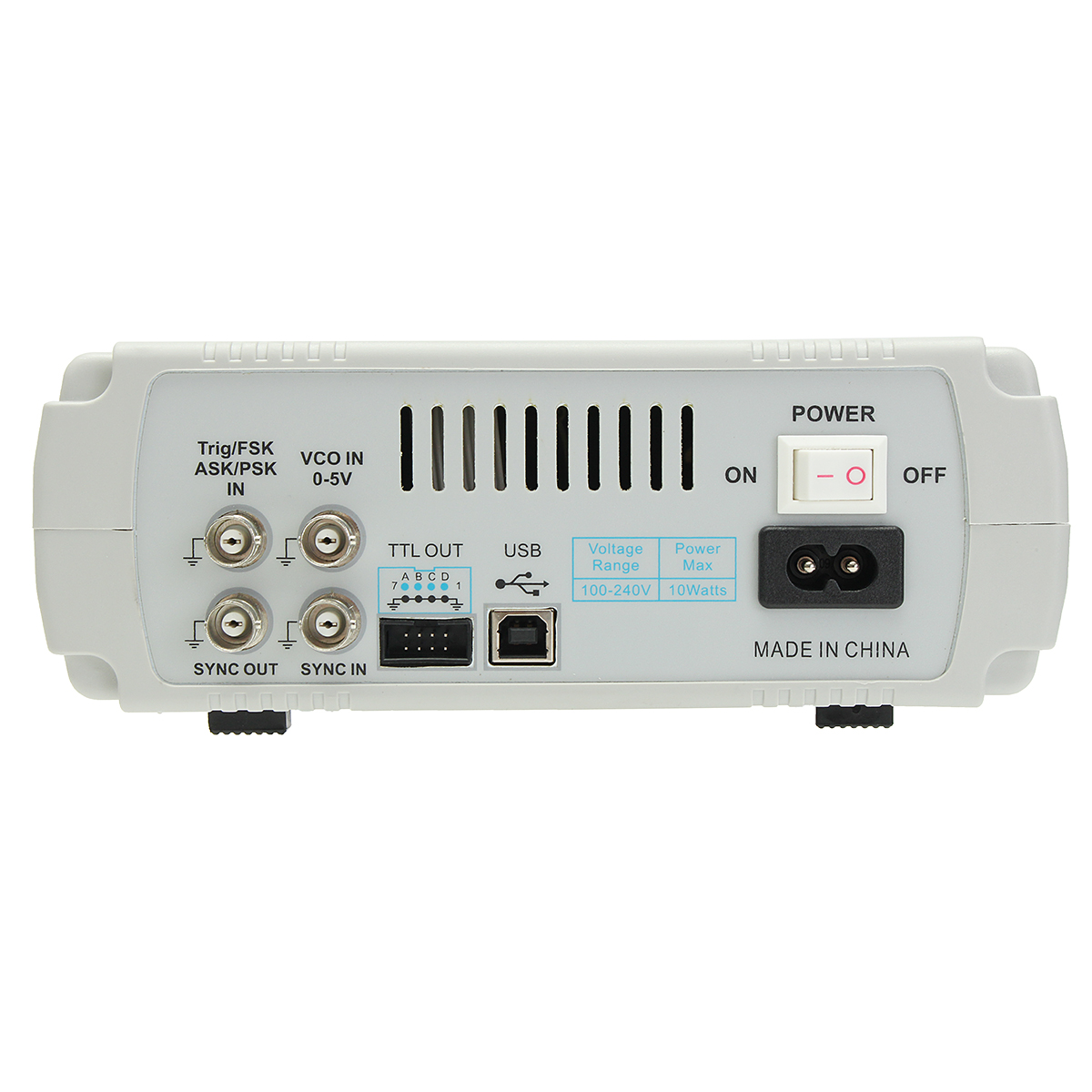

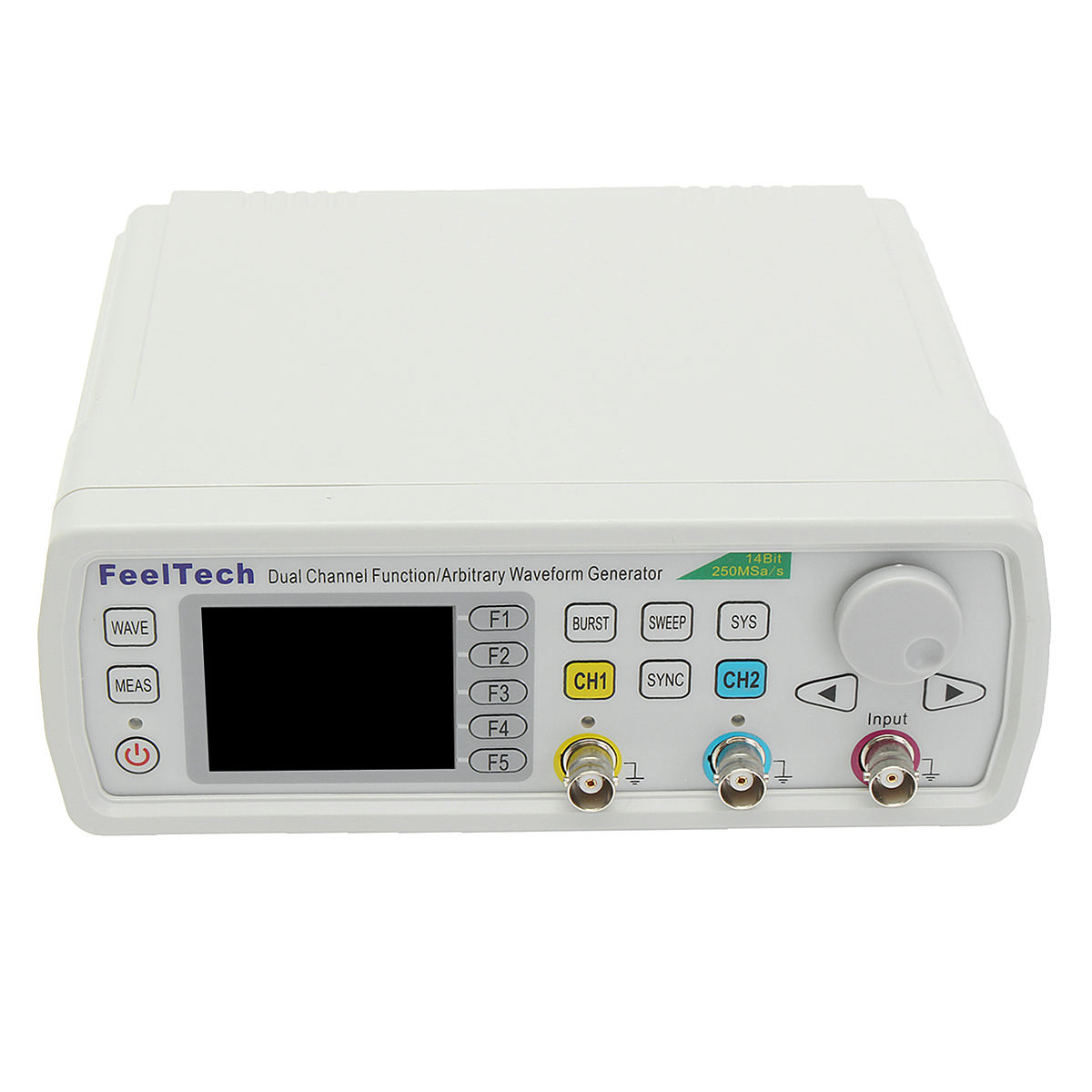

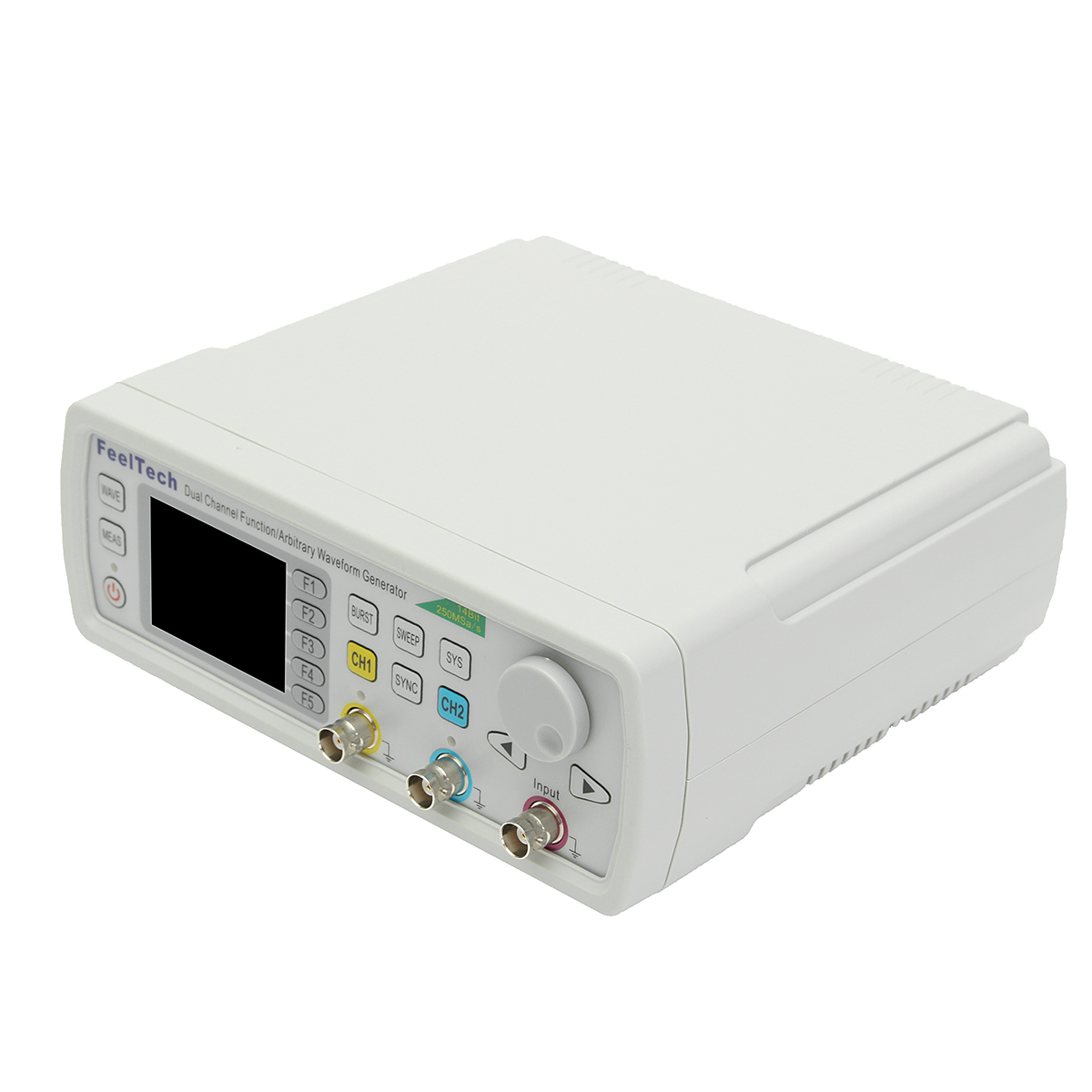

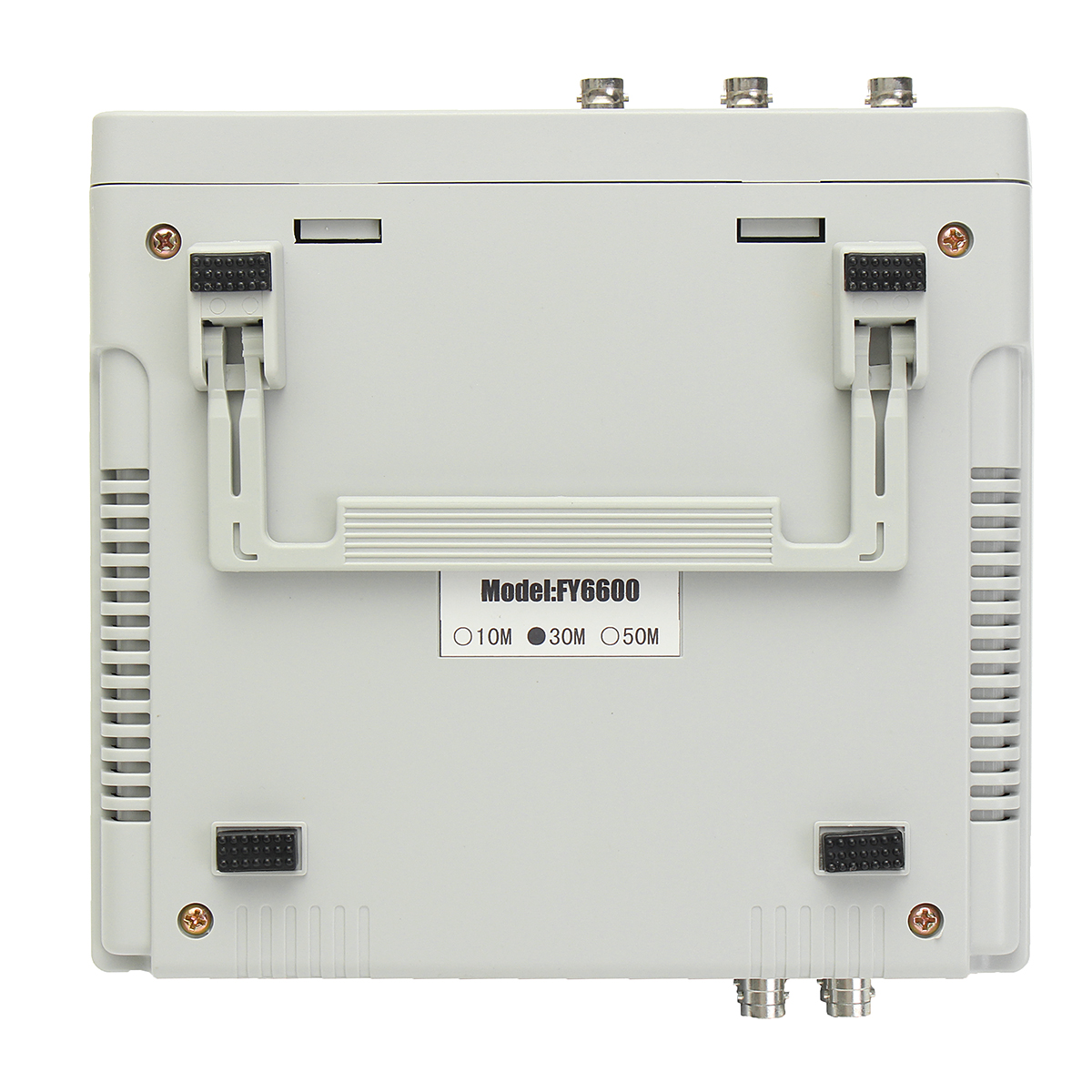

Detail Pictures:
