MSO5202D 2 in 1 Digital Oscilloscope 200MHz 2 Channels 1GSa/s + 16 Channels Logics Analyzer
MSO5202D 2 in 1 Digital Oscilloscope 200MHz 2 Channels 1GSa/s + 16 Channels Logics Analyzer
$652.99
Ex Tax: $652.99
- Stock: In Stock
- Model: MZ004823
- Weight: 590.00g
- SKU: MZ004823
Description:
Mixed Signal Oscilloscope; 200MHz Bandwidth; 1GSa/s Real Time Sample Rate;1MRecord Length; Large (7.0-inch) color display,WVGA (800x480); 16 channels Logics Analyzer, 500MSa/s sample rate; Power Trigger mode: edge/Rhythm width/line selectable video/slop/overtime etc.
Mixed Signal Oscilloscope; 200MHz Bandwidth; 1GSa/s Real Time Sample Rate;1MRecord Length; Large (7.0-inch) color display,WVGA (800x480); 16 channels Logics Analyzer, 500MSa/s sample rate; Power Trigger mode: edge/Rhythm width/line selectable video/slop/overtime etc.
Features:
16 channels logics analyzer + 2 channels oscilloscope + external trigger.

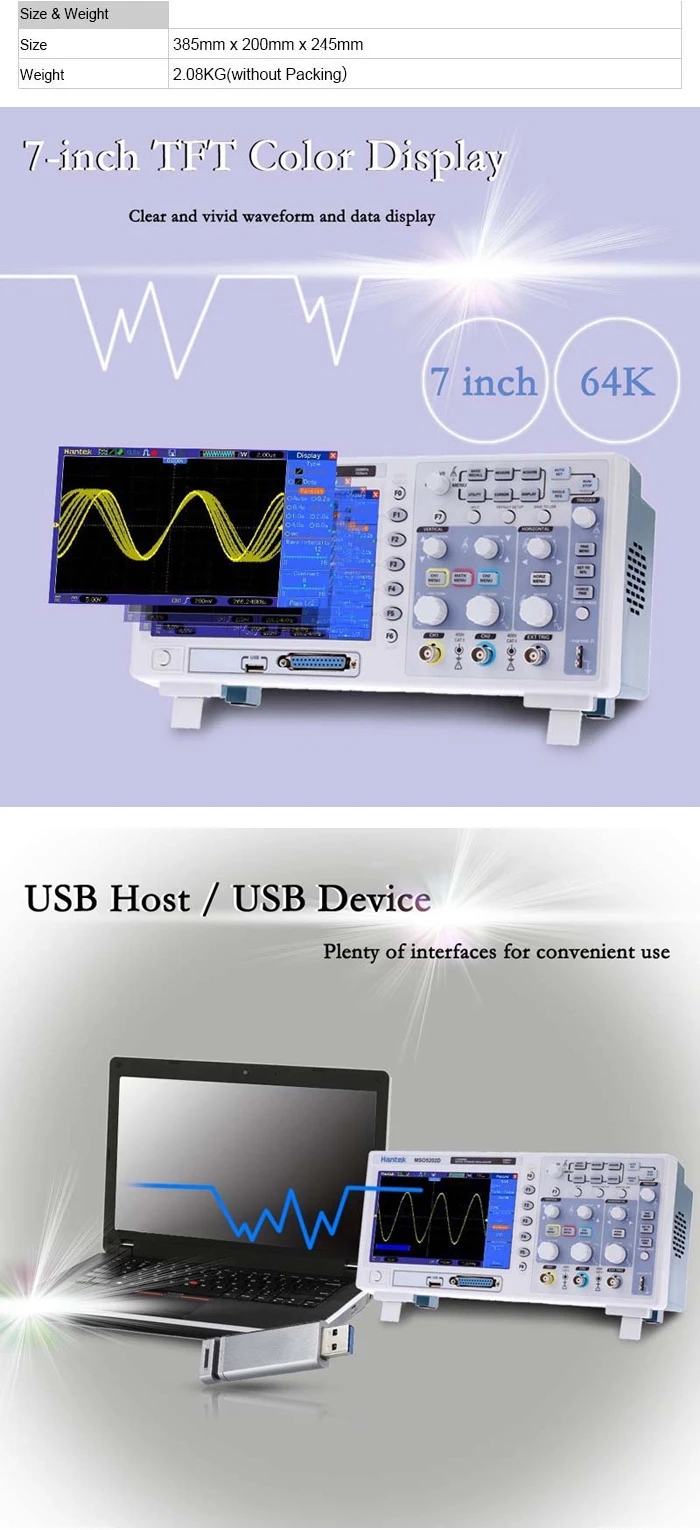

Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear waveform display.
1GSa/s real time sampling rate.
USB host, support flash memory card storage and USB interface system upgrade.
Ultrathin design, handy volume, easily portable.
Oscilloscope Function:
Bandwidth 200MHz.
Each channel record length up to 1M.
Real time sampling rate up to 1GSa/s.
Powerful trigger function.
32 kinds of automatic measurement function.
Logics Analyzer Function
16 channels divided into 2 groups which is able to setup threshold level individually.
Real time sampling rate up to 500MSa/s.
Powerful trigger function: edge, duration, rhythm width, code-type, queen, repeat.

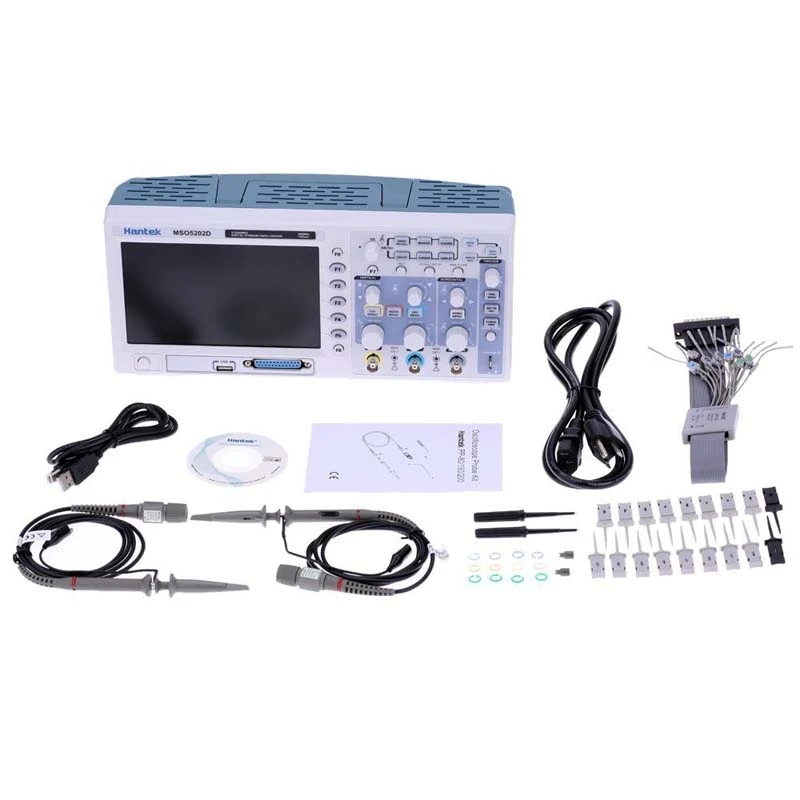

Package Included:
1 x Hantek MSO5202D 2 in 1 Digital Oscilloscope
1 x Full Set Accessories(Shown as pictures)

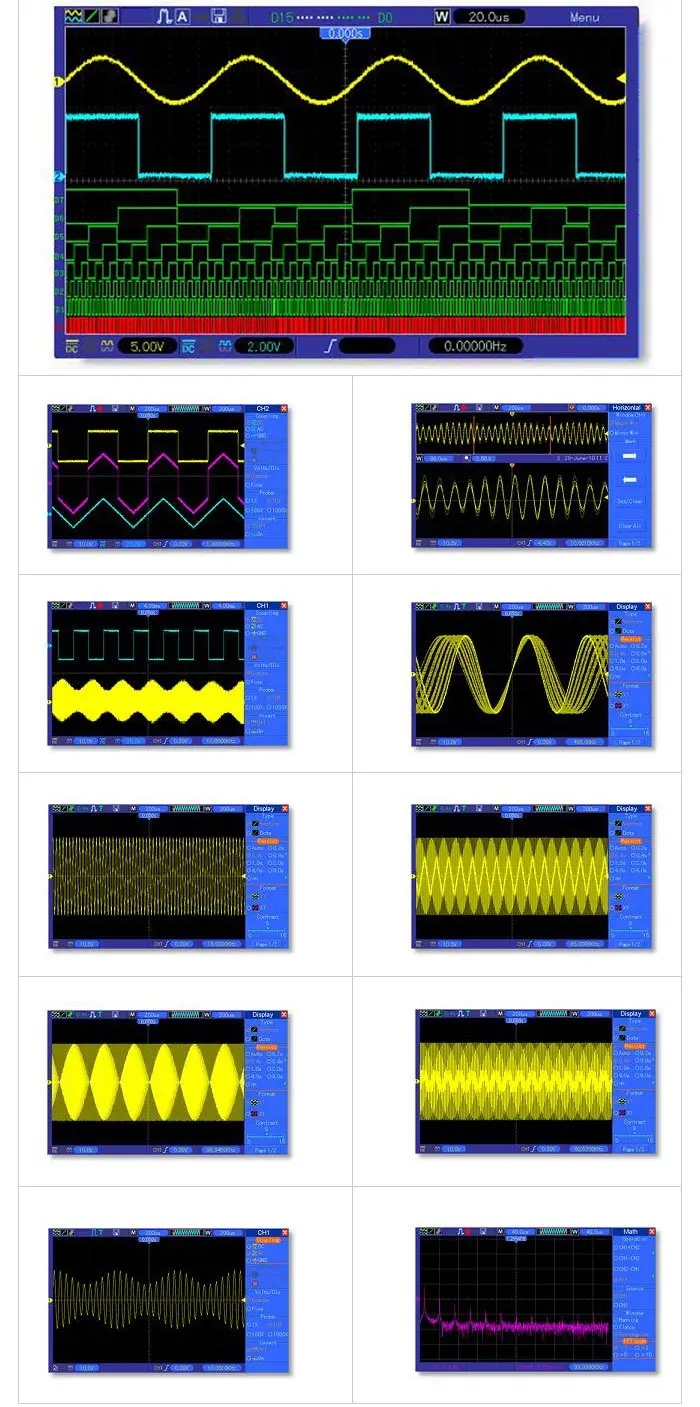

Detail Pictures:
Package Included:
1 x Hantek MSO5202D 2 in 1 Digital Oscilloscope
1 x Full Set Accessories(Shown as pictures)
Detail Pictures:
