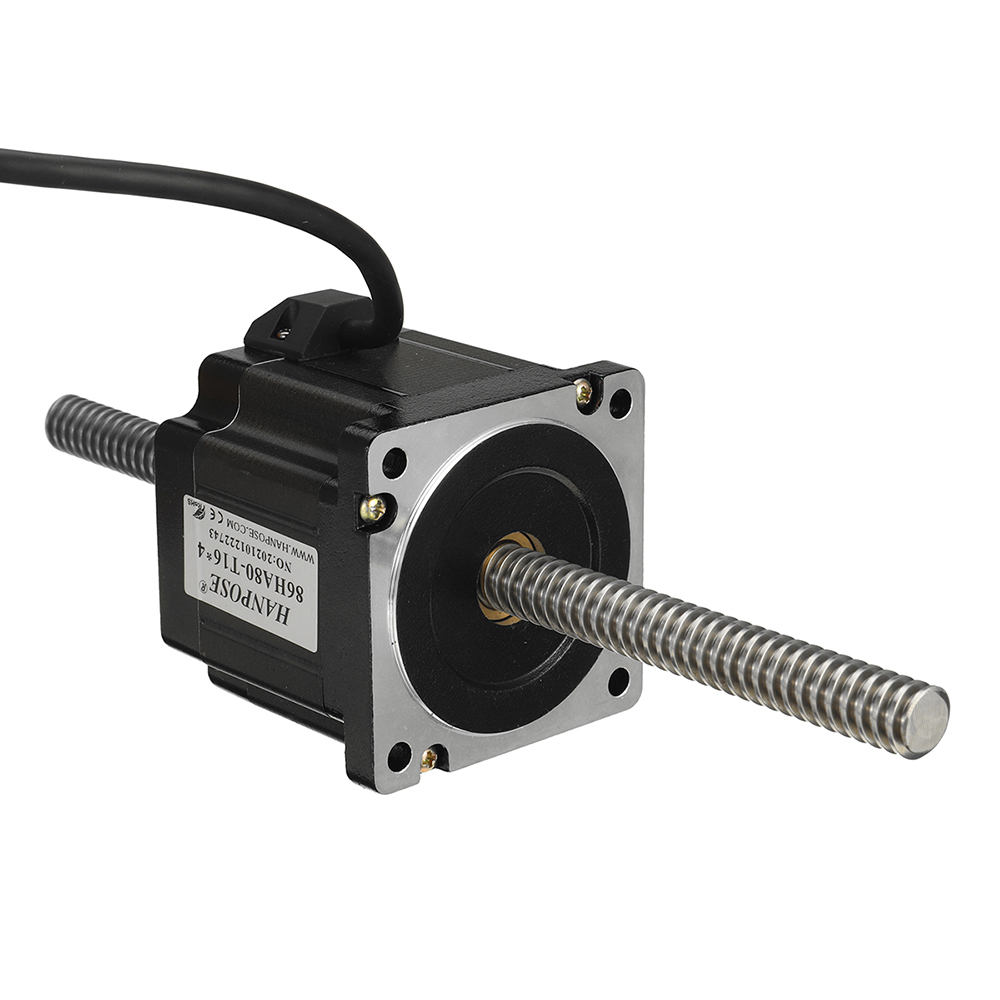

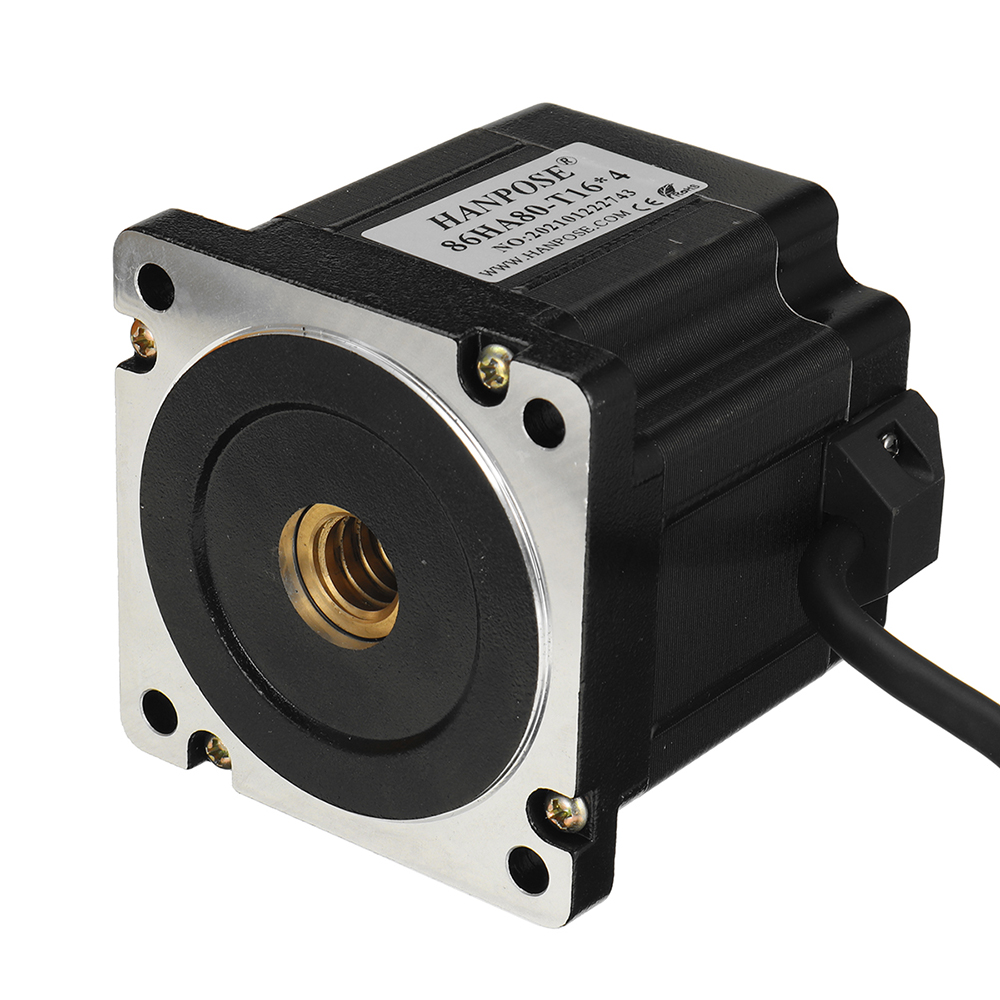

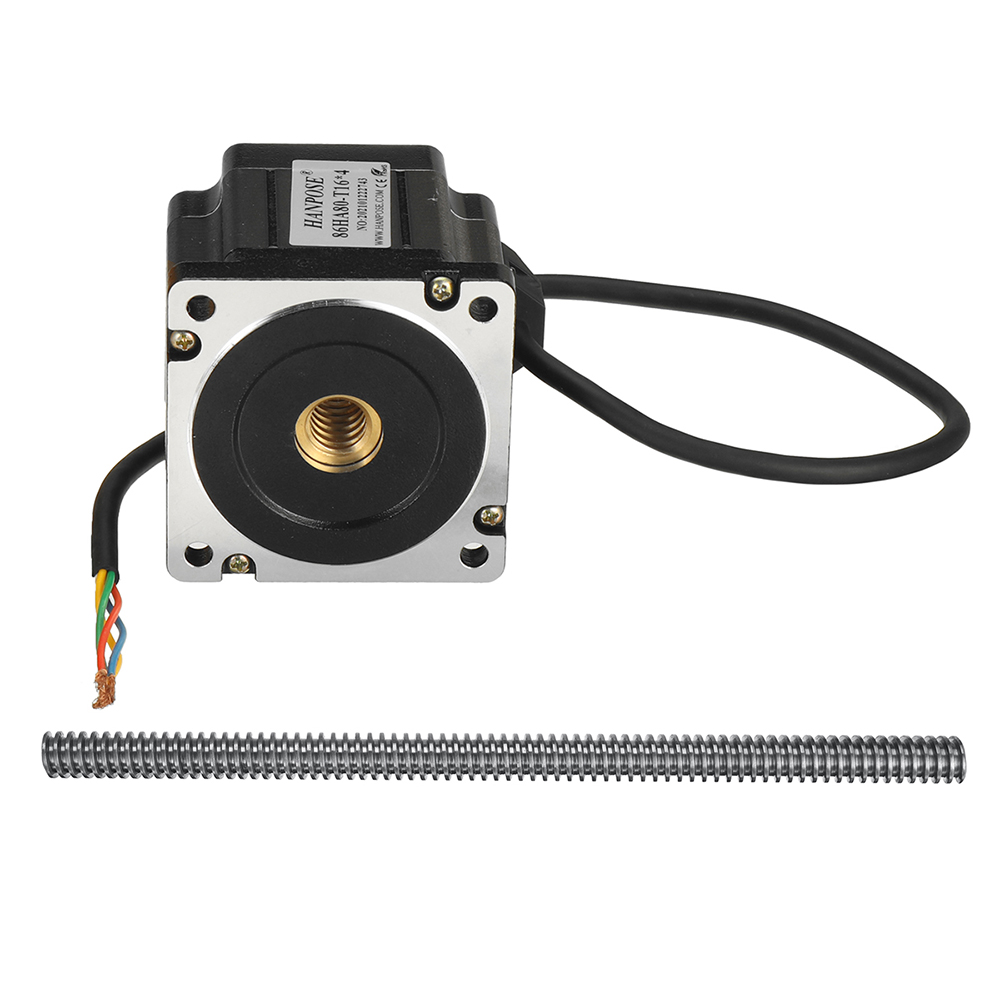

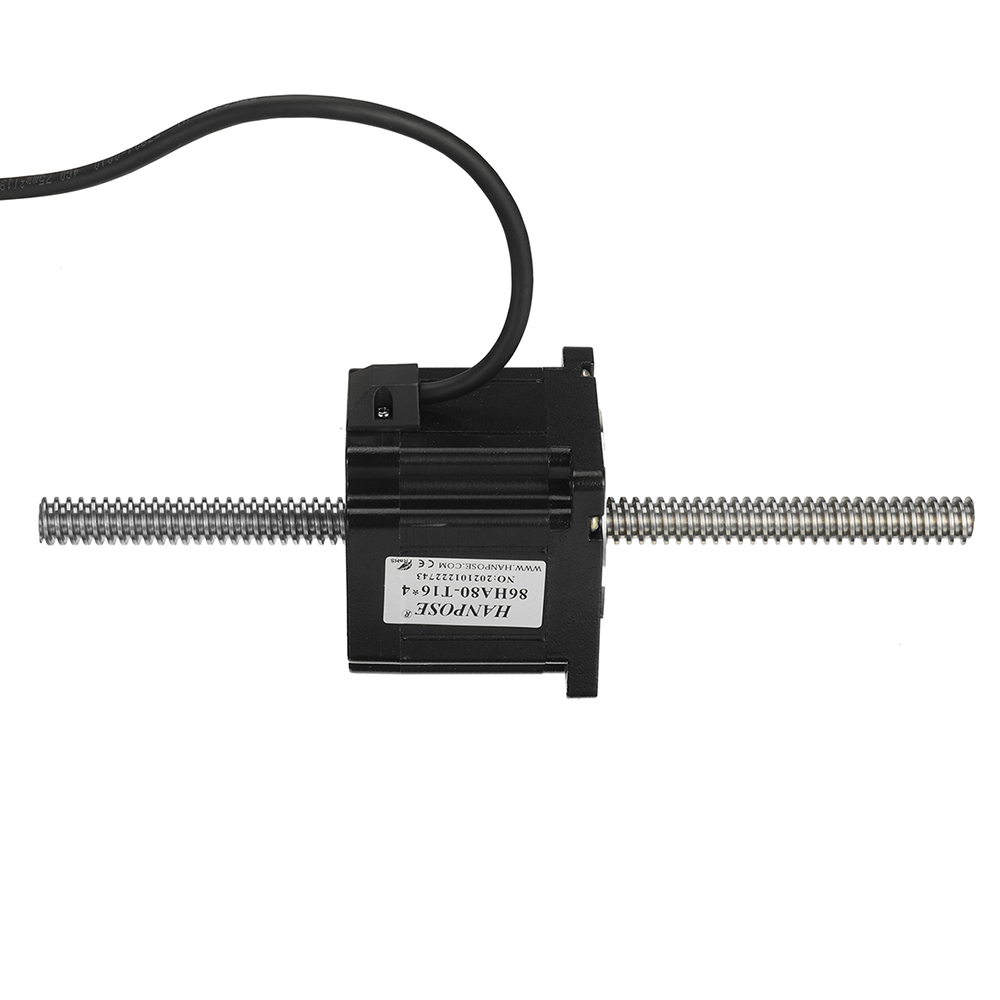

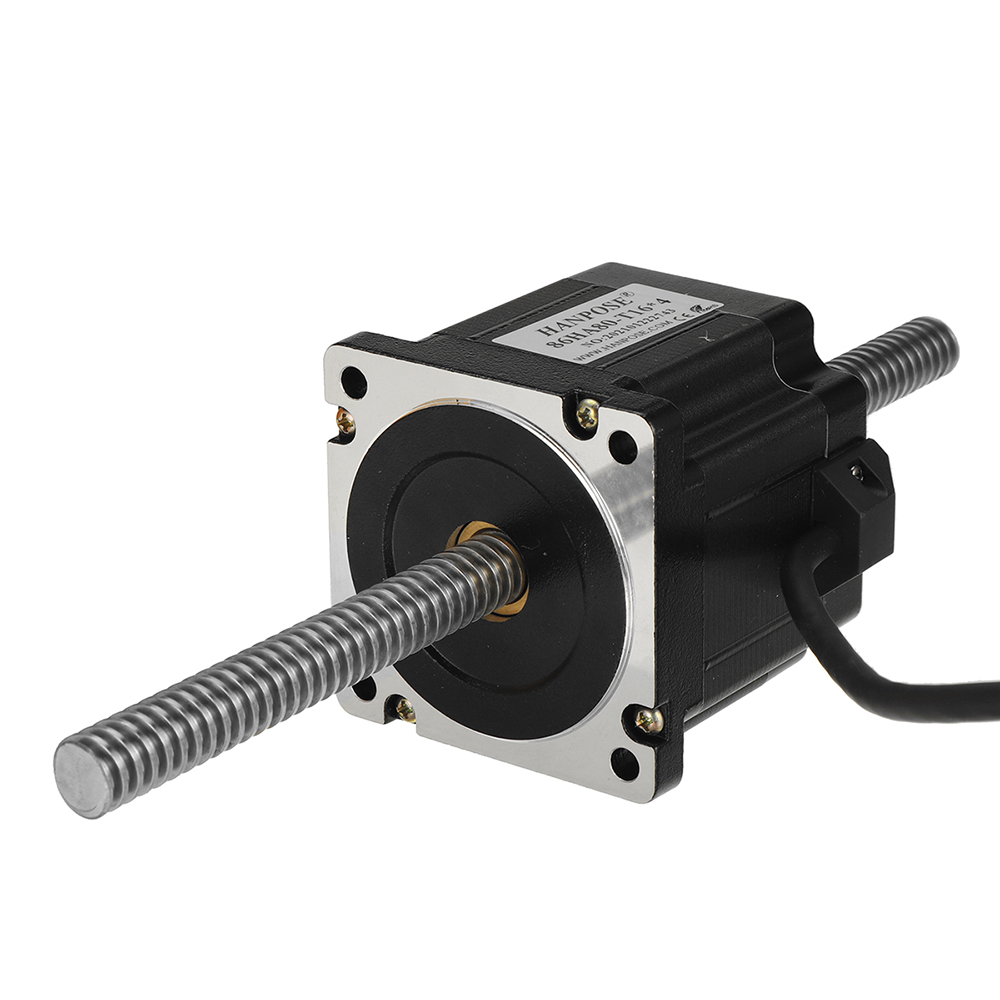

86 Series Through Type Screw Linear Stepper Motor Adjustable Forward and Reverse Motor
- Stock: In Stock
- Model: MZ008625
- Weight: 510.00g
- SKU: MZ008625
Specification:
Brand | HANPOSE |
Name | 86 through screw motor |
Model | 86HA118 |

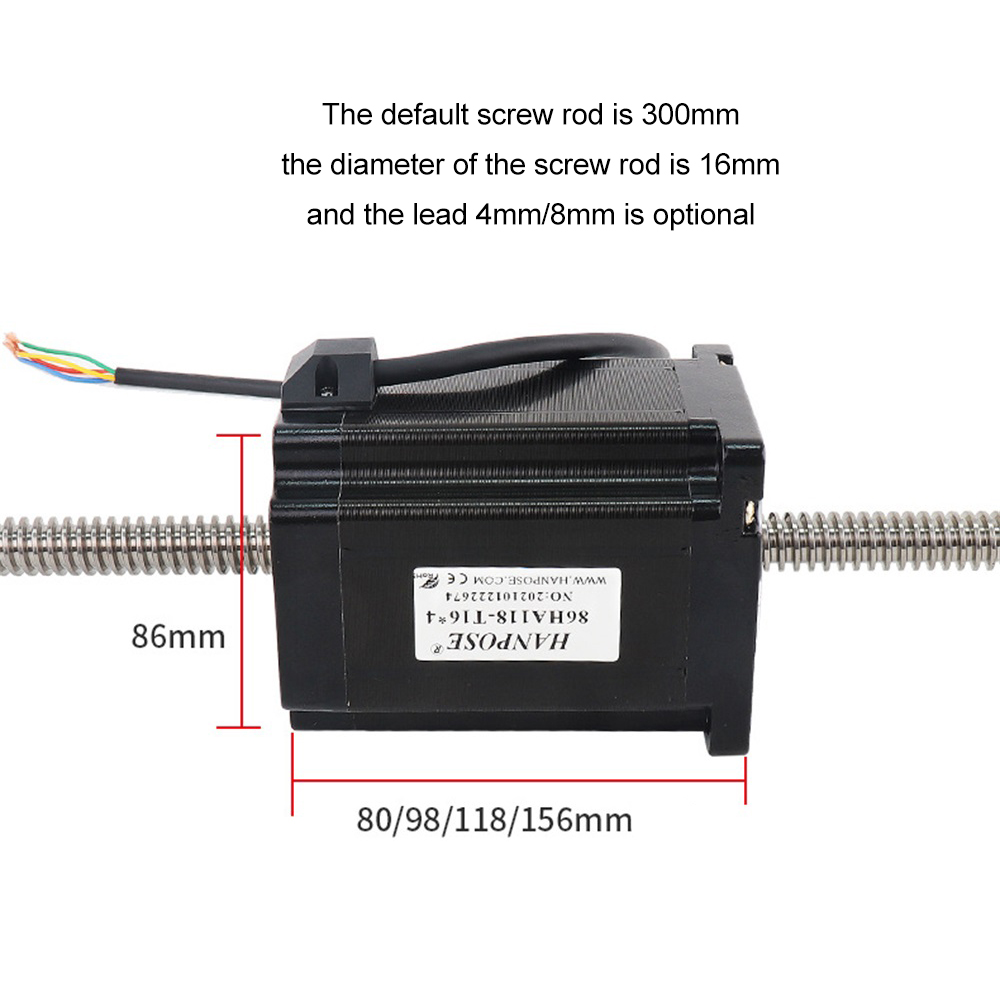

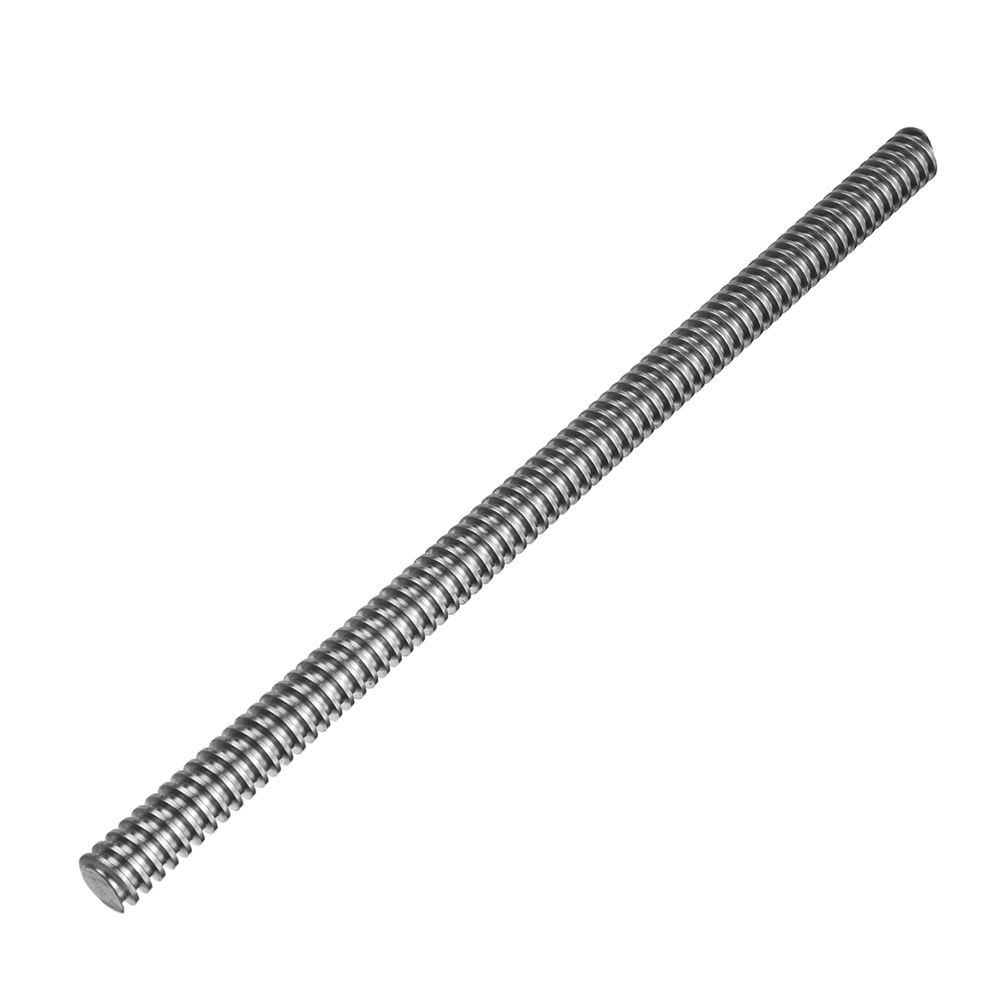

Screw length | 300mm |
Screw diameter | 16mm |
Lead | 4mm/8mm (optional) |
Size | 86mm*80/98/118/156mm (optional) |
Holding torque | 8N.m |
Motor phase number | 2 |
Rated voltage | 3.0V |
Step angle | 1.8° |
Rated inductance | 4.2mH±20% |
Rated phase current | 6.0A |
Rated resistance | 0.5Ω±10% |
Note:
1. The motor screw must not bear radial load.
2. The motor screw can not be clamped or squeezed by hard objects to avoid damage to the screw.
3. The motor screw has been coated with special grease, please contact the manufacturer if you need to refuel.
4. If you have any questions during use, please contact the manufacturer, please do not disassemble the motor privately.
5. The motor must be handled with care, please take the motor body when taking it, do not hold the lead wire by hand.

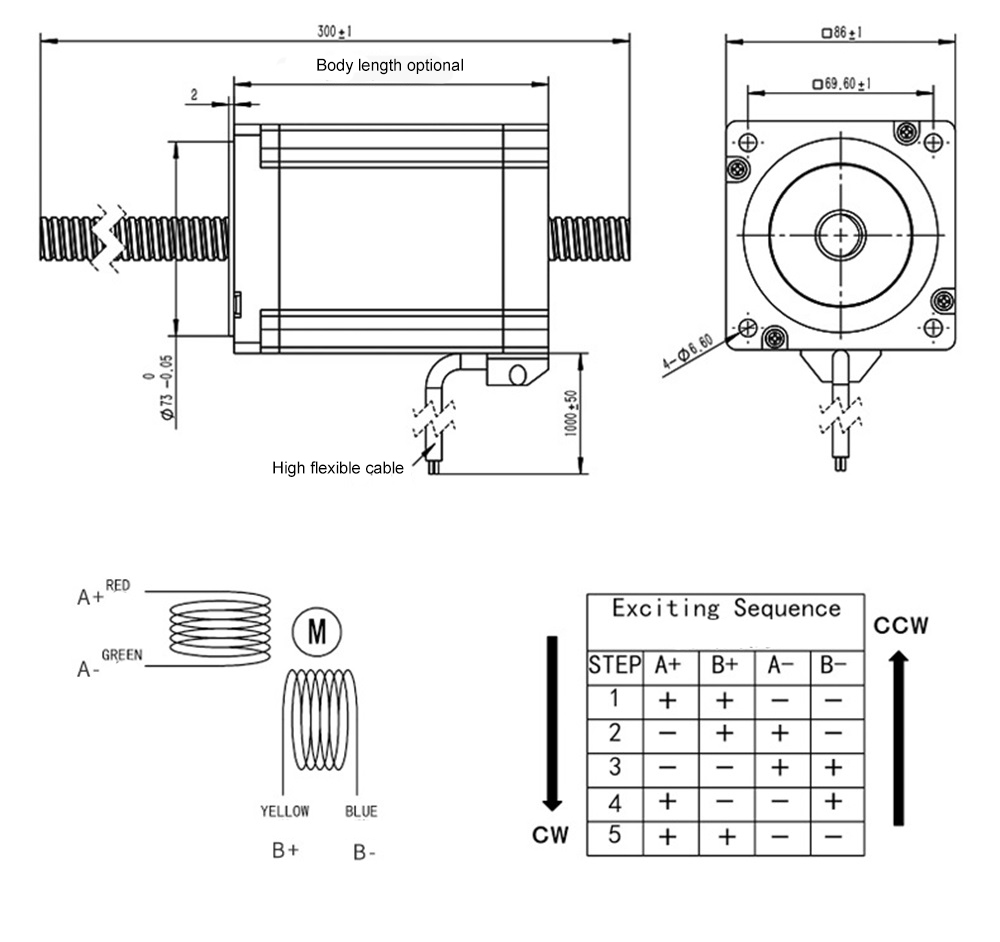

6.The sequences of motor wiring is: A+red wire, A-green wire, B+yellow wire, B-blue wire
Package Included:
1 x Stepping Motor
