DC 24V to DC 12V 720W 60A Power Converter DC Buck Module Aluminum Inverter Non-isolated IP68
DC 24V to DC 12V 720W 60A Power Converter DC Buck Module Aluminum Inverter Non-isolated IP68
$109.99
Ex Tax: $109.99
- Stock: In Stock
- Model: MZ004205
- Weight: 510.00g
- SKU: MZ004205
- UPC: 698587747519
Specification:
Feature:
Applicable voltage range:
►LED car display surveillance camera, router, ADSL cat, switch, LED light digital photo frame, electronic refrigerator, portable DVD, audio, security system, portable tools, printer network equipment, control equipment, various voltage parameters Industrial equipment.

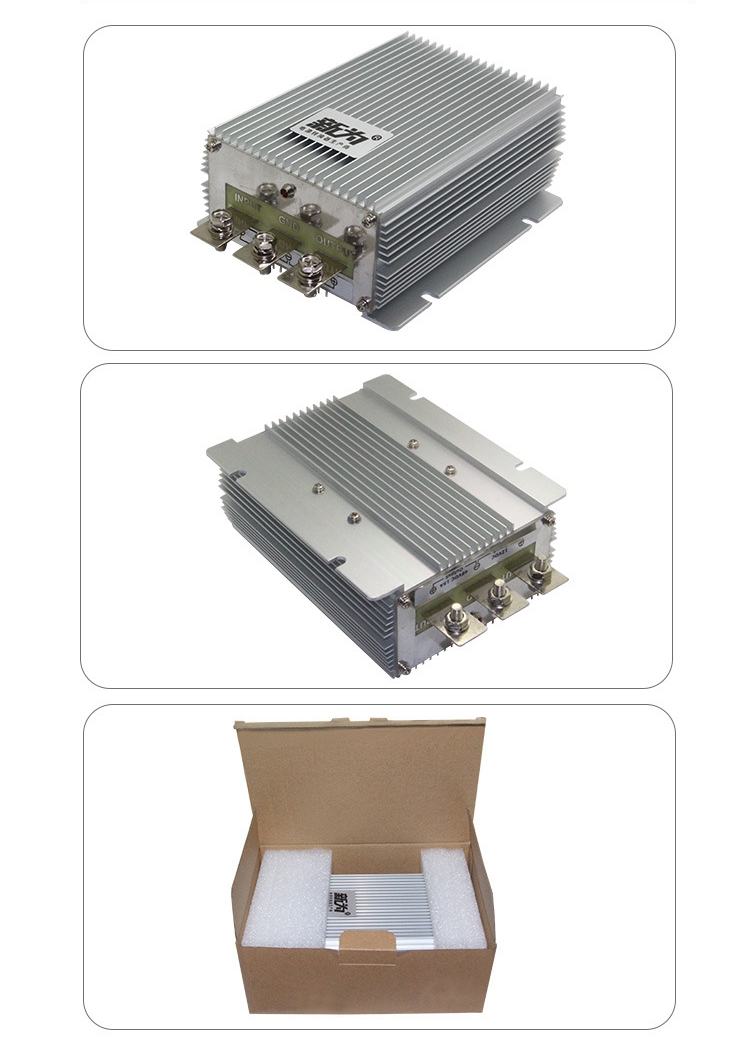

Package Included: 1 x Power converter
| Brand | XINWEI |
| Model | XW-24-12-720W |
| Module nature | Non-isolated BUCK |
| Input voltage | DC 24V (wide pressure 18V-36V) |
| Output voltage | DC 12V |
| Output current | 60A MAX 75A |
| Output power | 720W |
| Conversion efficiency | >93% |
| Ripple | <200MV |
| Low power consumption | 70MA |
| Working temperature | -30 ° C ~ +80 ° C industrial grade |
| Protection function | Over-current over-voltage and short-circuit protection |
| Installation line length | No line, current is too large, with copper busbar |

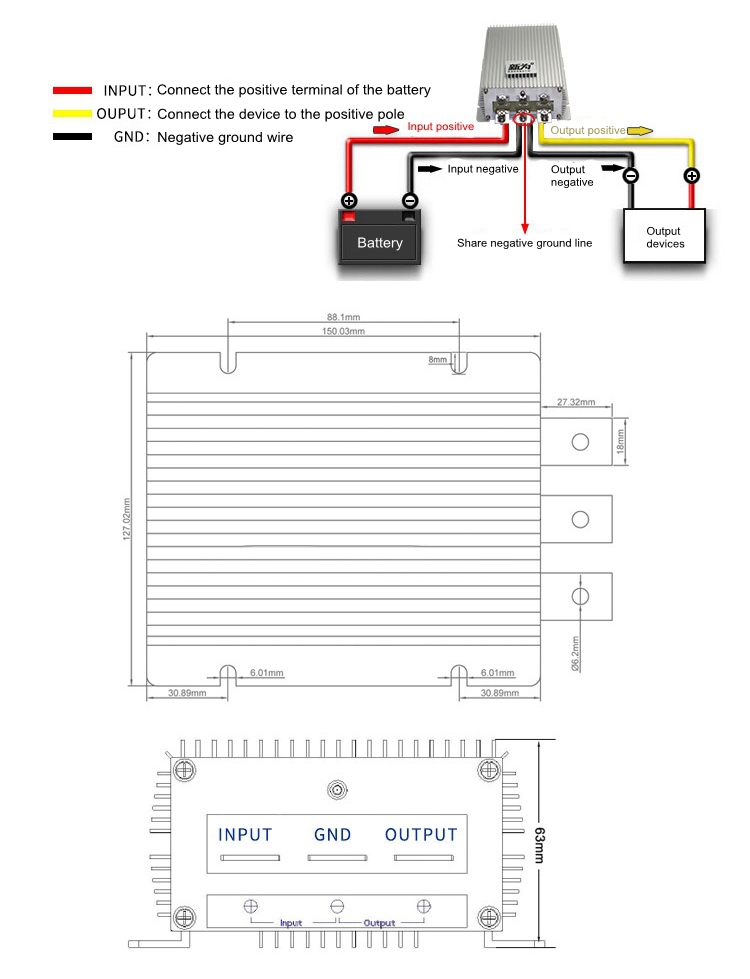

| Wiring instructions | INPUT (input positive) GND (common negative) OUPUT (output positive) |
| Waterproof rating | IP68 |

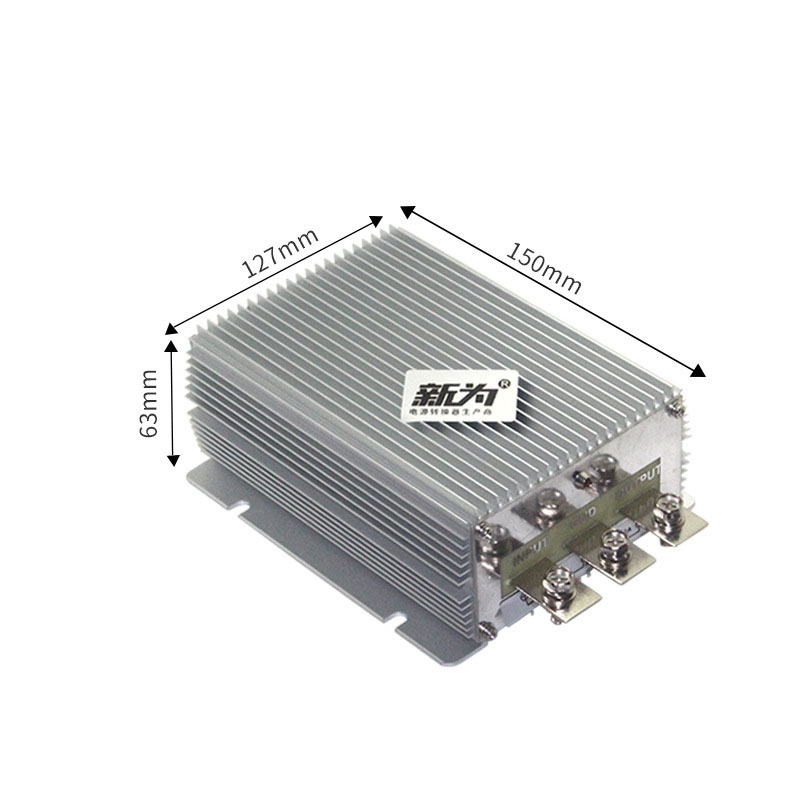

| Shell size (L*W*H) | 150* 127 * 63mm |
| Weight | 1.6KG |
Feature:
* The terminal is nickel-plated to prevent rust
* Organic silicone potting, IP68 protection, waterproof, moisture proof and dustproof
* Organic silicone potting, IP68 protection, waterproof, moisture proof and dustproof
* Made of high-quality aluminum profile housing, good heat conduction and heat dissipation
* Internal use of the original wellhead chip, with intelligent anti-overcurrent protection, overheat protection, short circuit protection, instantaneous absorption of high voltage protection, safer use.
Applicable voltage range:
►LED car display surveillance camera, router, ADSL cat, switch, LED light digital photo frame, electronic refrigerator, portable DVD, audio, security system, portable tools, printer network equipment, control equipment, various voltage parameters Industrial equipment.
Package Included: 1 x Power converter
