CMG-2420 20A 12V-24V LCD Display PWM Solar Panel Regulator Charge Controller with USB Port

Description:



CMG-2420 20A 12V-24V LCD Display PWM Solar Panel Regulator Charge Controller USB



Features:

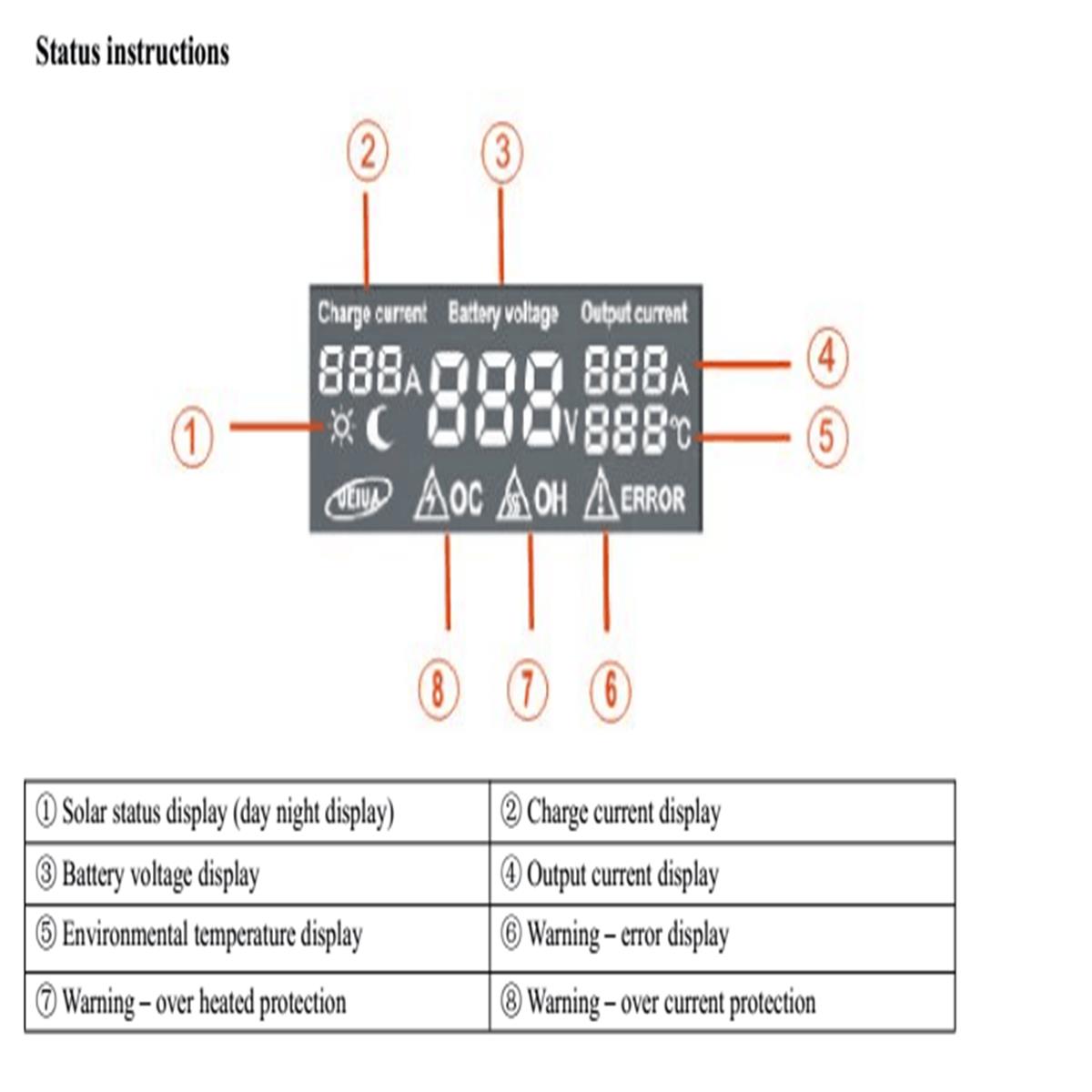

Wide LCD screen display
With output switch, intelligent control, easy to operate.
Power-efficient,Microcontroller digital accuracy
PWM charging mode(SOC)

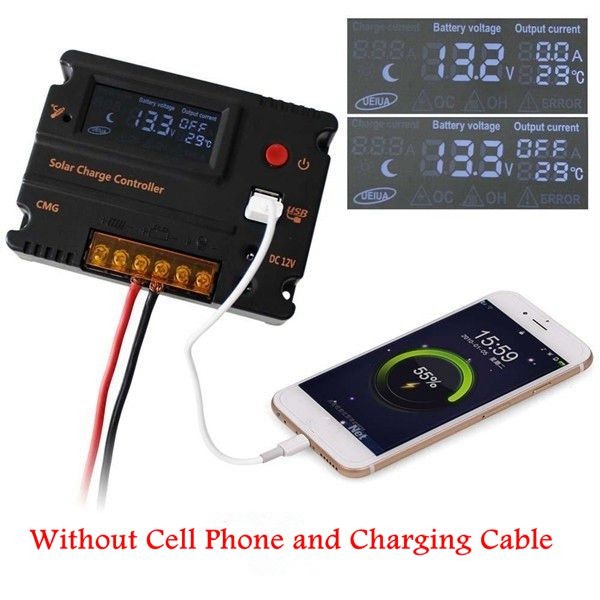

Available for DC lamp and phone charging
Use PWM&WPC mode, improve system efficiency and prolong the life span of the battery.



Specification:



Model: CMG-2420
Rated Discharge Current: 20A
USB Output Voltage: 5V
Total USB Output Current: 3A
DC Output Voltage: 12V
Total DC Output Current: 2A
Over Load, Short Circuit Protection: 1.5 times by rated current
Short Circuit Recovery Time: 10s
Open Circuit Voltage of Solar Panel: 40V
No load loss: 0.05W
Over Voltage Protection: 15V; ×2/24V
Float Chager Voltage: 14V; ×2/24V
Discharge Recovery Voltage: 12V; ×2/24V
Over Discharge Voltage: 10.5V; ×2/24V
Control Mode: Software Intelligent Control
Working Temperature: -35℃~+55℃

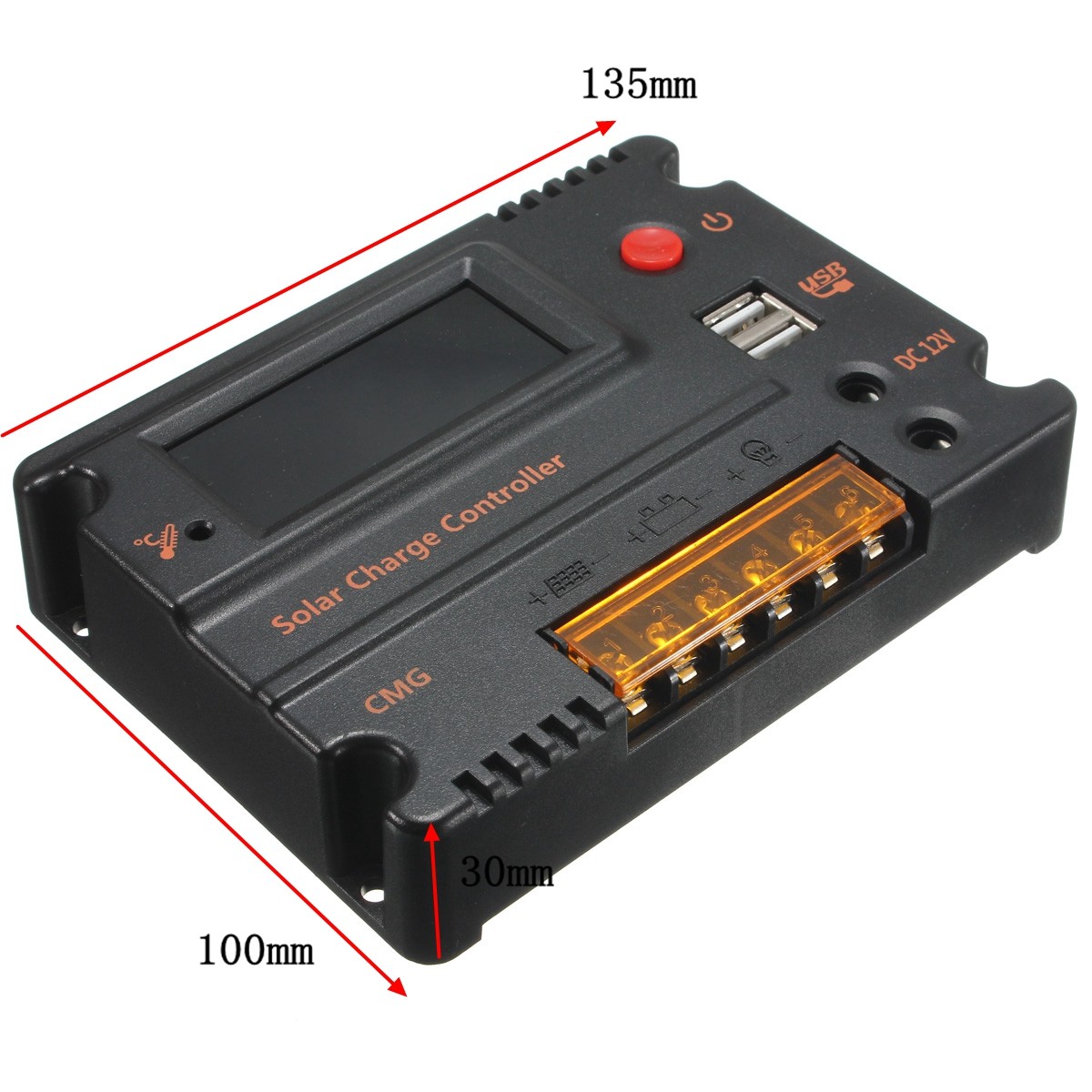

Dimension(L×W×H): 135 X 100 X 30 mm

Protection:
1. Over-load protection
2. Short circuit protection
3. Lightning protection
4. Under-voltage protection
5. Over-charging protection
6. Reverse Polarity protection

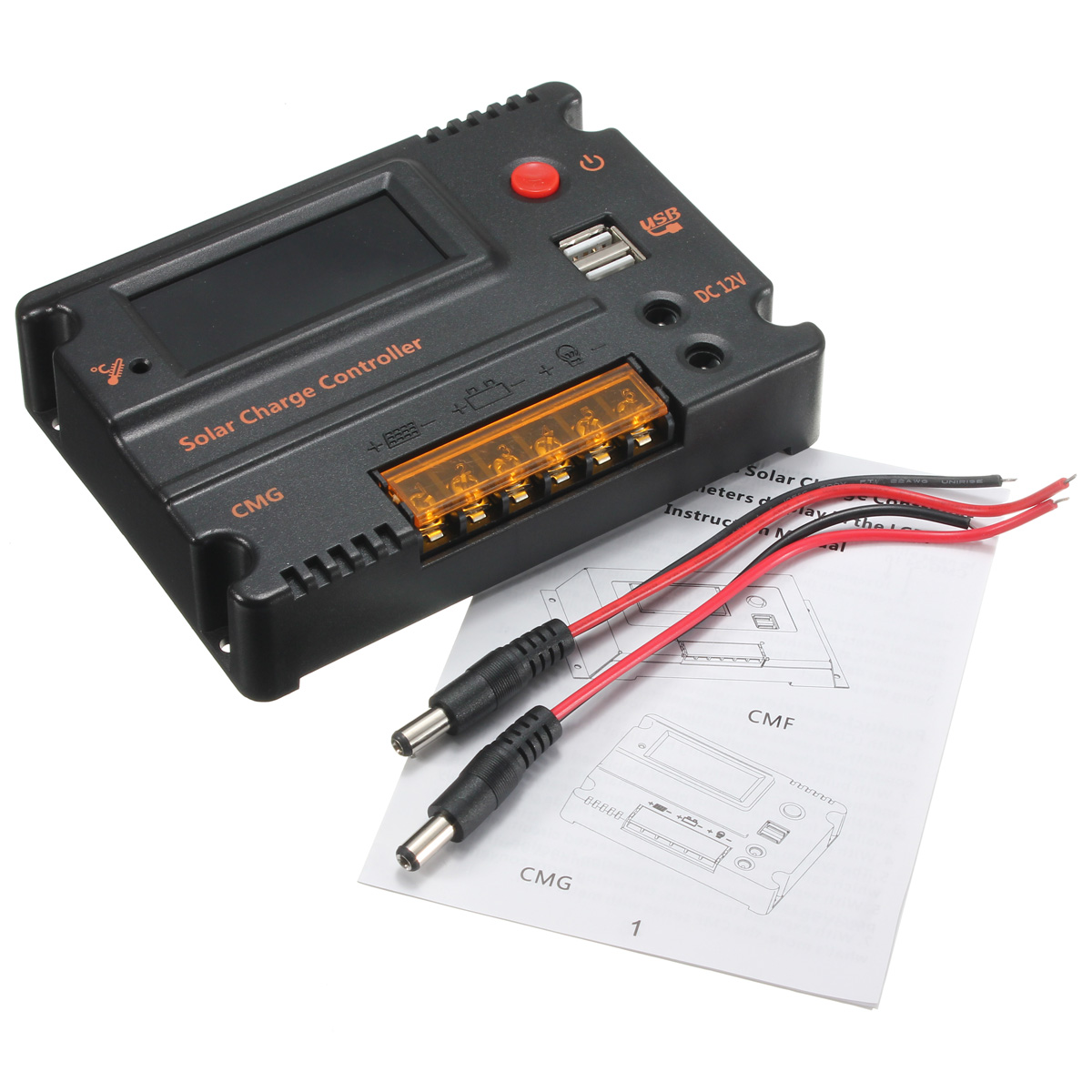

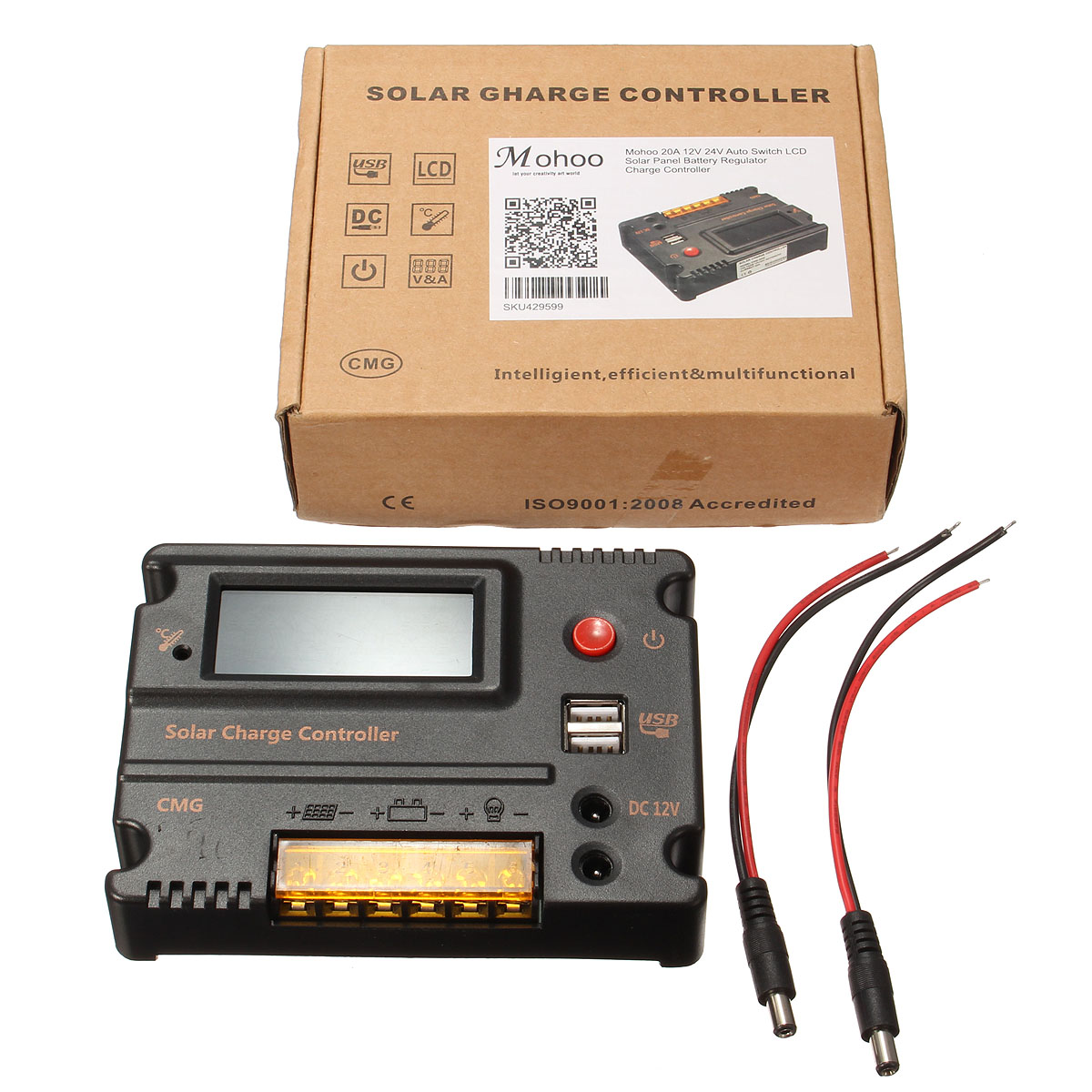

Package includes:



1 x Solar Charge Controller
1 x User Manual
2 x DC Cable

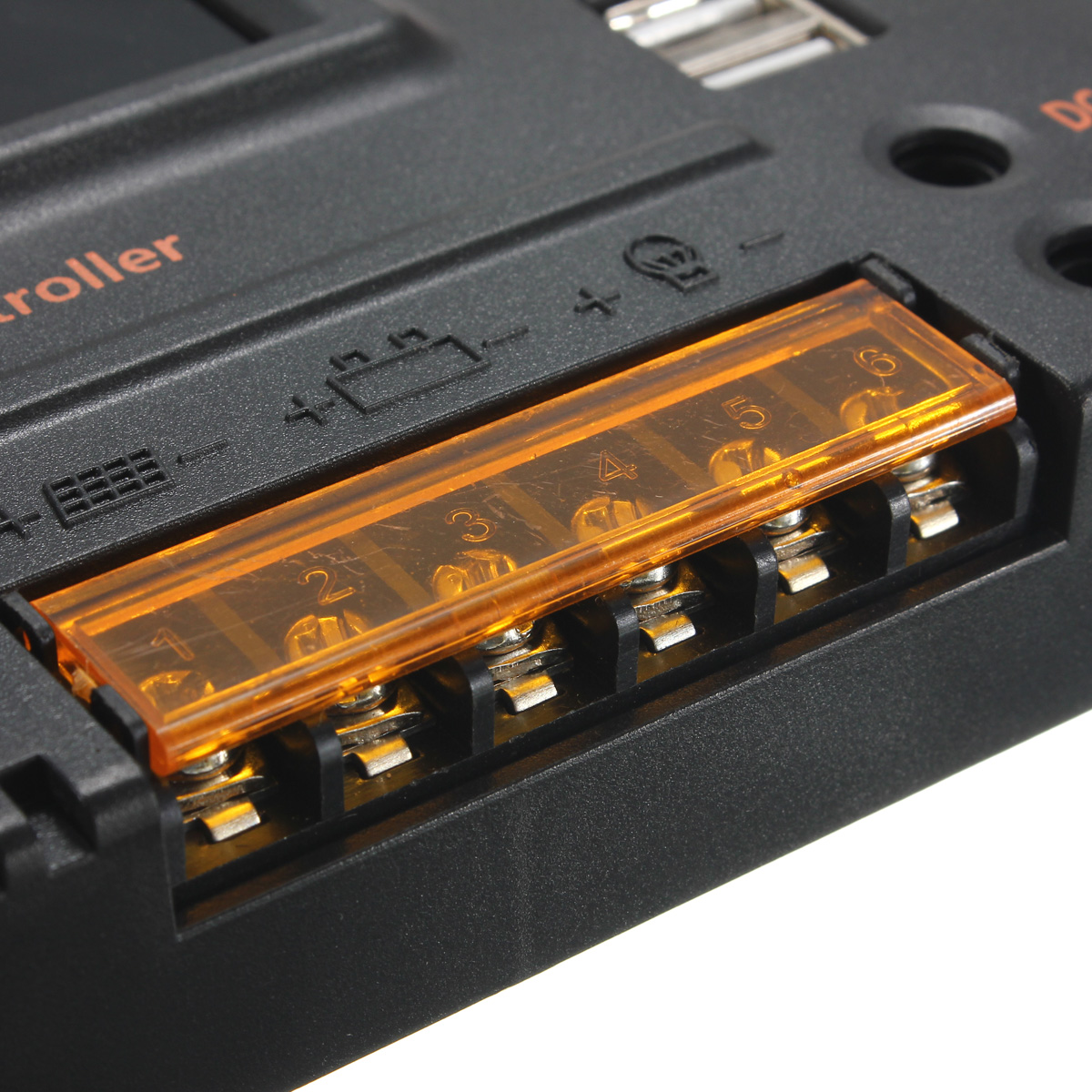

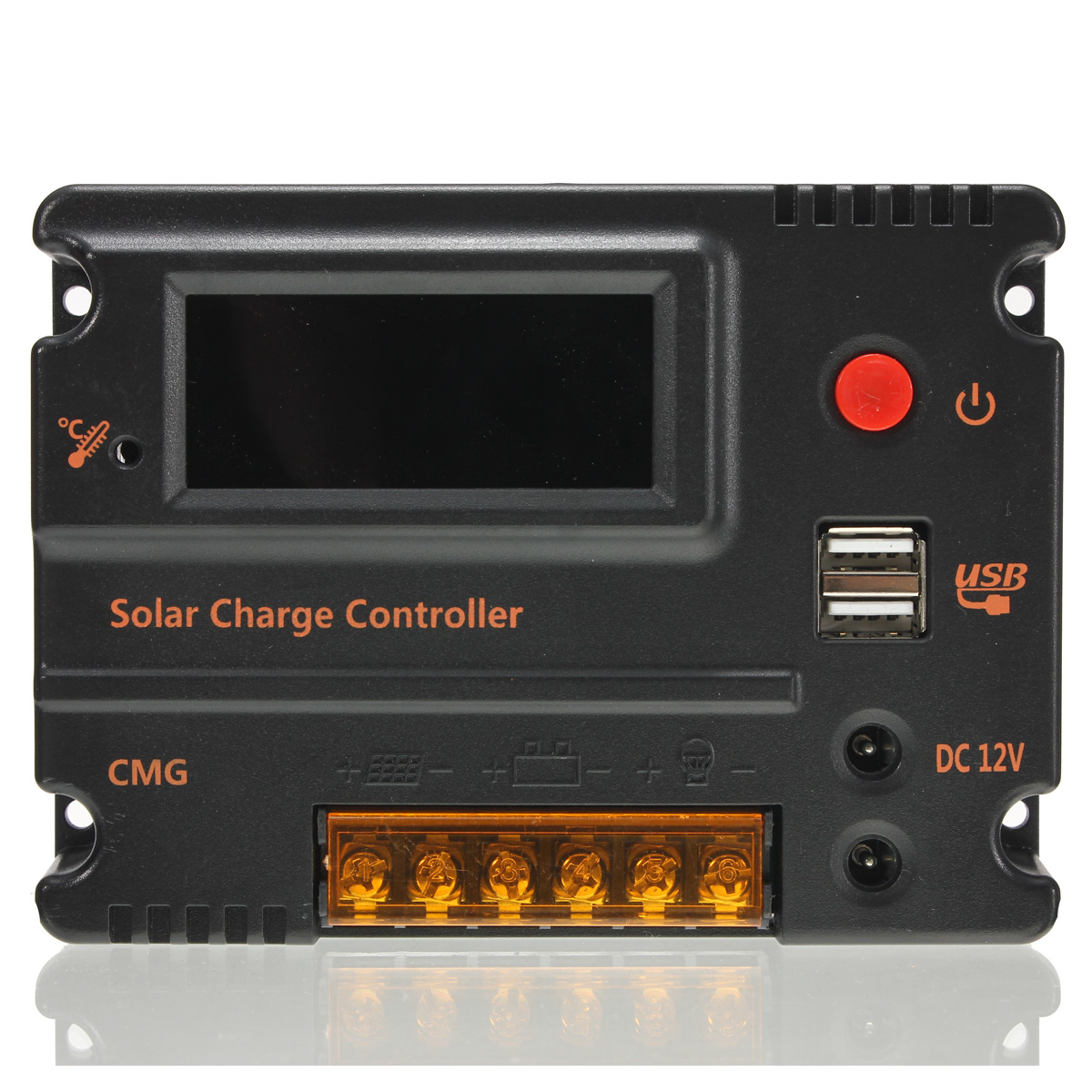

Details pictures:

,,,,,,,
