CHF-GW12T-N20VA Gear Motor DC 12V Encoding Worm Geared Motor
- Stock: In Stock
- Model: MZ006130
- SKU: MZ006130
Description:
Chihai CHF-GW12T-N20VA Gear Motor DC 12V Encoding Worm Geared Motor
Specifications:

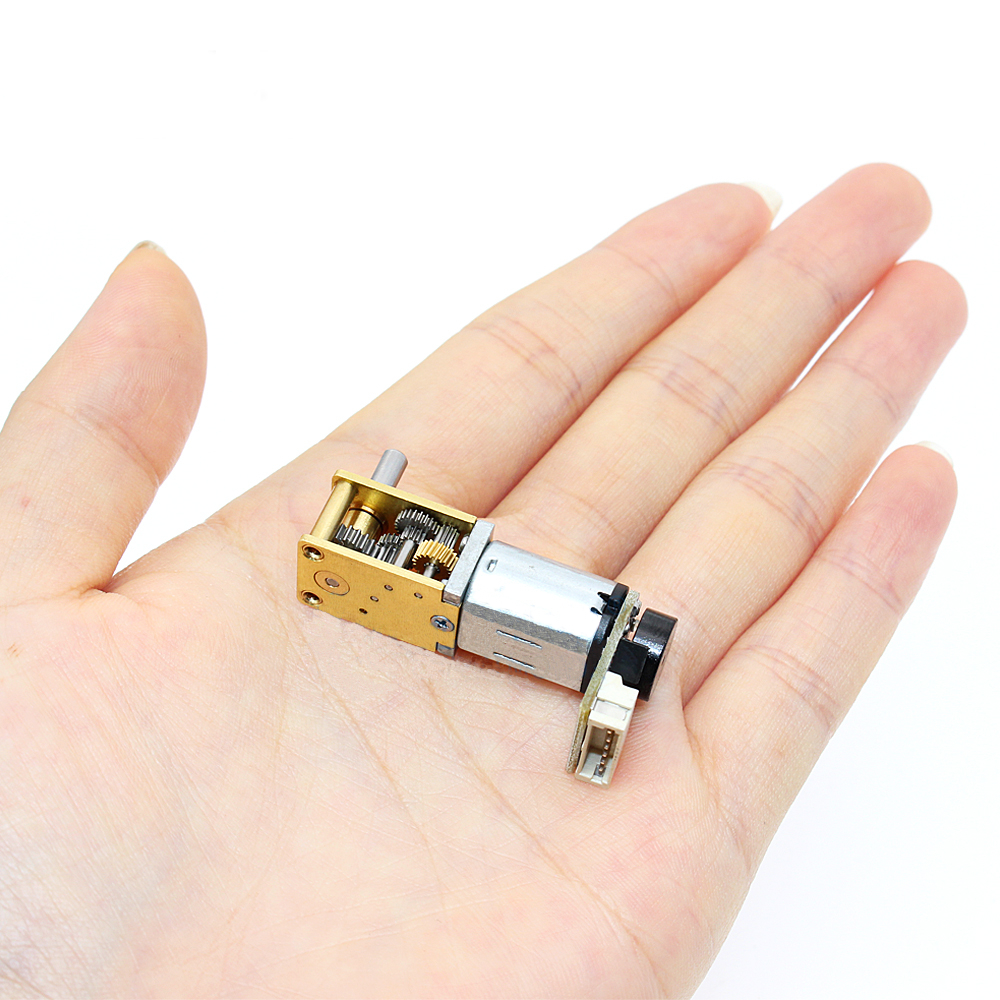

| Product Name | DC Worm Gear Motor |
| Model | CHF-GW12T-N20VA DC Worm Gear Motor |
| Size | 10*39mm (not include the shaft) |
| Shaft Length | 8mm D |
| Shaft Diameter | Φ3mm |
Thick | 2.5 D |
| Voltage | DC 3-12V |
| Power | 0.2W |
| Application | Intelligent robot, intelligent manipulator, intelligent furniture Intelligent focusing system, miniature head, etc |
| Quantity | 1 Pcs |
Encoders Conflg:
Type | AB dual phase incremental encoder |
Pulse Outputs Of Rotation | Basic pulse 7PPR × gear reduction ratio |
Holzer Power Supply Voltage | DC 3.3V/ DC 5.0 V |
Basic Function | With the pull-up shaping resistor, the single-chip microcomputer can be used |

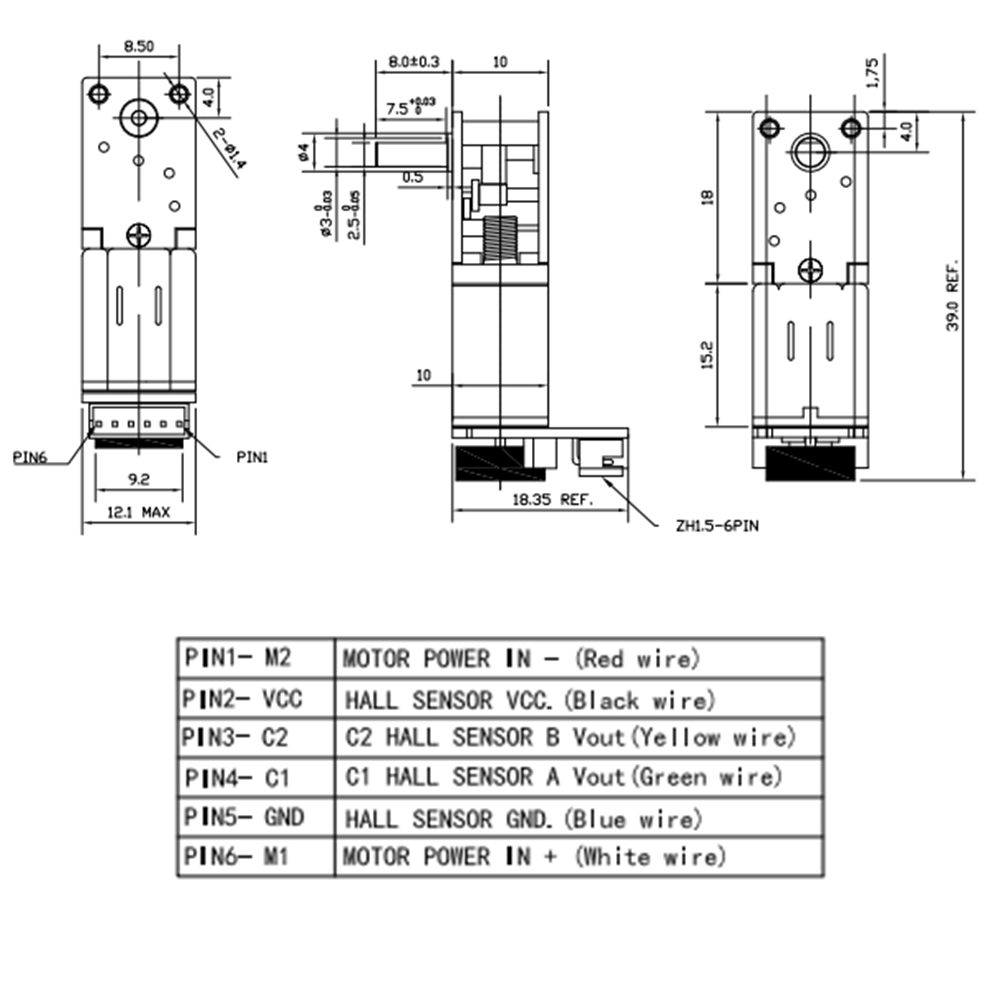

Encoder Interface Type | ZH1.5-6PIN (Standard wiring) |
Output Signal Type | Square wave AB phase |
Response Frequency | 100Khz |
Basic Pulse Number | 7 PPR |
Number Of Trigger Poles Of Magnetic Ring | 14 Poles (7 Pairs of poles) |
Model: CHF-GW12T-N20VA DC Worm Gear Motor |
Voltage: DC12.0V Power 0.2W (A35# Input the motor) |
Micro-gear construction, self-locking fuction is not recommended to use greater than 5.0kg.cm. The continuous rated load should not exceed 2.5kg.cm |
| Ratio | 118 | 238 | 300 | 603 |
| No-Load Current (mA) | ≤65 | ≤65 | ≤65 | ≤65 |
| No-Load Speed (rpm) | 200 | 100 | 78 | 39 |
| Rated Torque (Kg.cm) | 0.4 | 0.7 | 0.9 | 1.8 |
| Rated Torque (N.m) | 0.034 | 0.069 | 0.088 | 0.18 |
| Rated Speed (rpm) | 140 | 70 | 55 | 27 |
| Rated Current (A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| Stall Current (A) | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Stall Torque (Kg.cm) | ≤1.10 | ≤2.40 | Cant exceed 3.0kg.cm | Cant exceed 3.0kg.cm |
| HALL Signal (7×Ratio) | 826.469 | 1652.931 | 2112.082 | 4224.164 |
Features:
- All metal gears, wear-resistant, strong torsion resistance, long life, fast heat dissipation, and strong composite ability.
- Pure copper wire winding, the rotor part adopts pure copper group, low resistance, strong conductivity, and the motor torque is increased.
- Worm gears reduce speed, increase transmission ratio, have self-locking function, smooth transmission, and compact structure.
Package Included:
| 1 × | DC Worm Gear Motor |

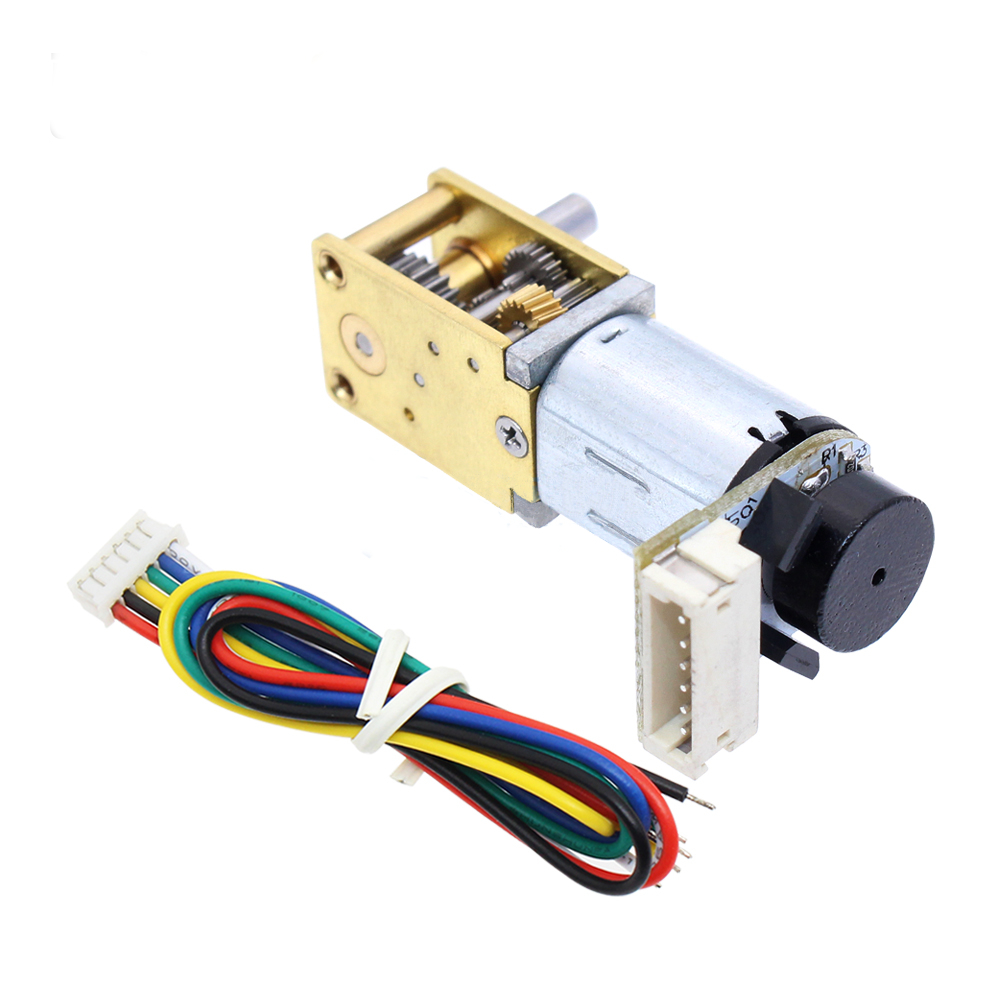

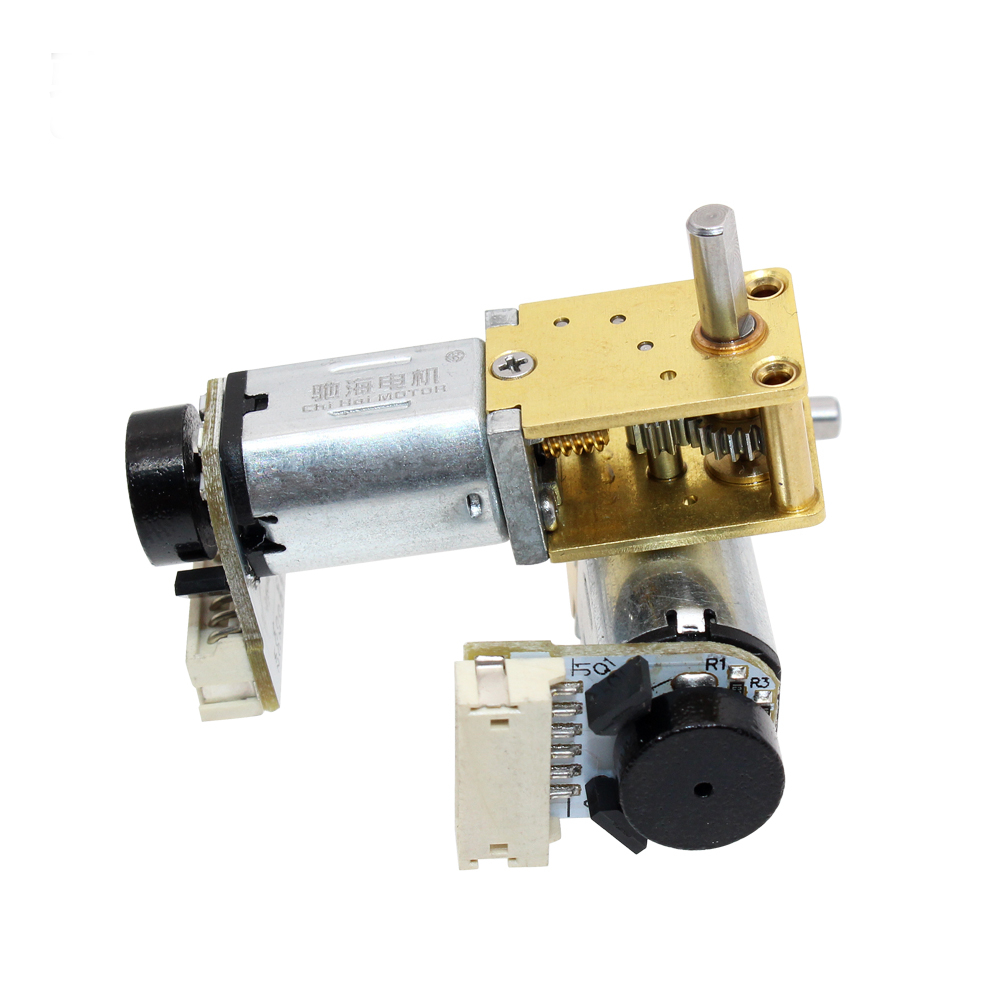

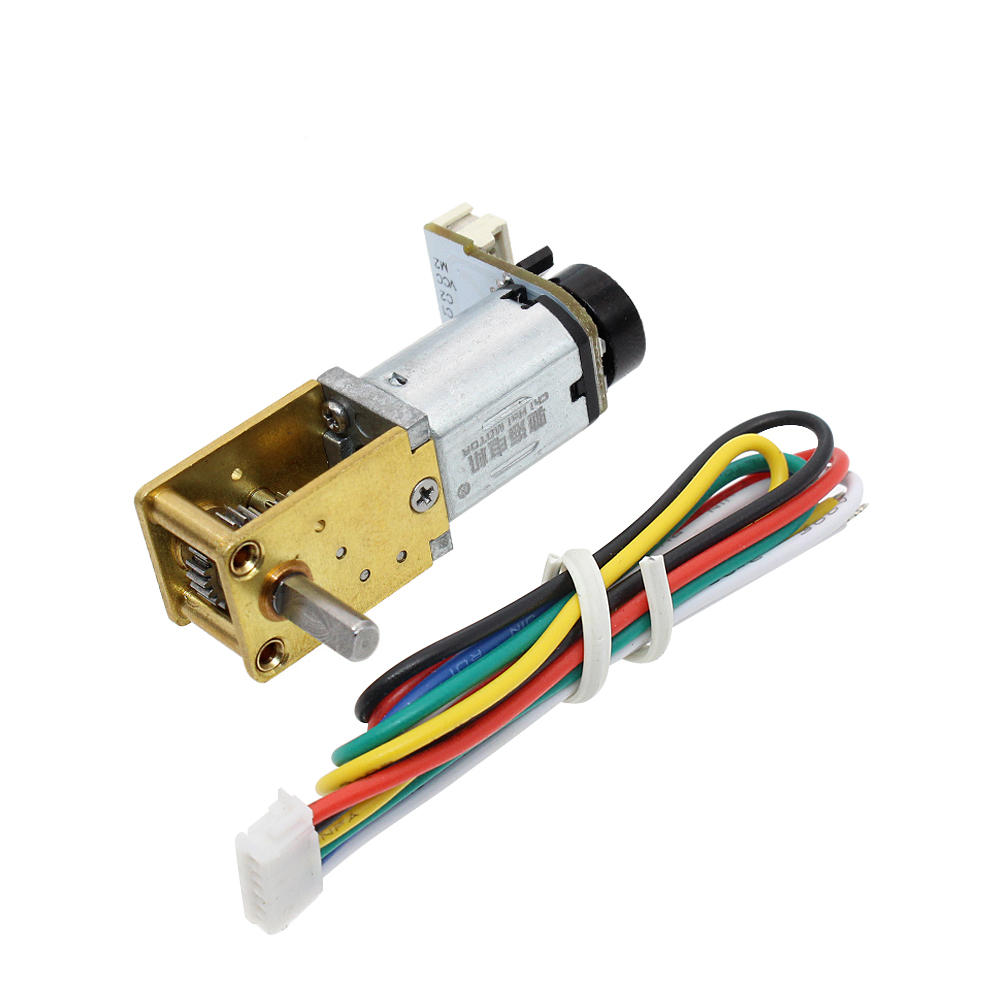

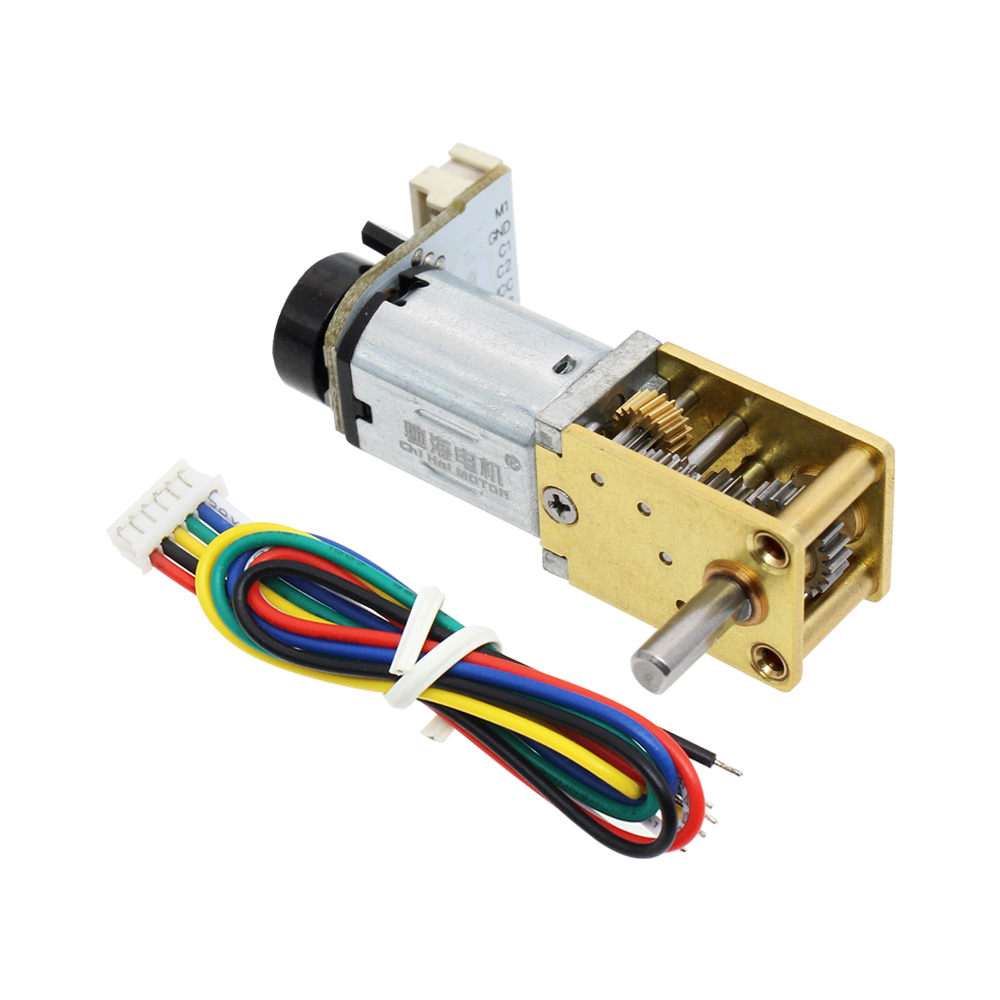

More Details:
