WIFI Smart CO2 Meter TVOC PM2.5 PM1.0 Temperature and Humidity Infrared Sensor Air Quality Monitor
WIFI Smart CO2 Meter TVOC PM2.5 PM1.0 Temperature and Humidity Infrared Sensor Air Quality Monitor
$109.99
Ex Tax: $109.99
- Stock: In Stock
- Model: MZ001323
- SKU: MZ001323
- UPC: 621240664632
Main Features
6-in-1 Multi-Detection: Simultaneously detects PM2.5, PM1.0, TVOC, CO2, temperature and humidity. Equipped with high-sensitivity laser particle sensor, laser TVOC sensor and high-precision NDIR CO2 sensor for accurate real-time readings.
Dual Calibration Modes: Supports automatic & manual calibration. Pre-calibrated manually at factory, and auto self-calibration runs during continuous monitoring to guarantee stable data.
Wi-Fi Tuya Smart APP Control: Built-in Wi-Fi module for remote connection with Tuya APP. Custom air quality alert thresholds and check real-time data anywhere anytime.

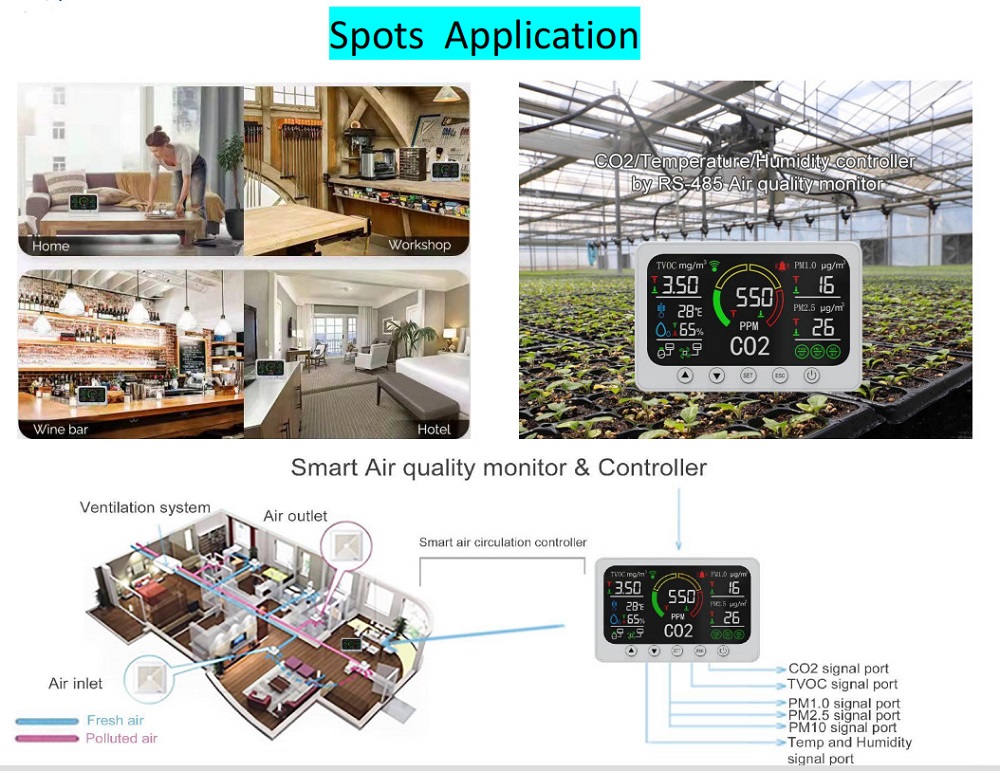

IoT Smart Scene Linkage: Create smart automation scenes in Tuya APP. The PT02 monitor can auto trigger connected smart devices like air purifiers, exhaust fans based on air quality changes.

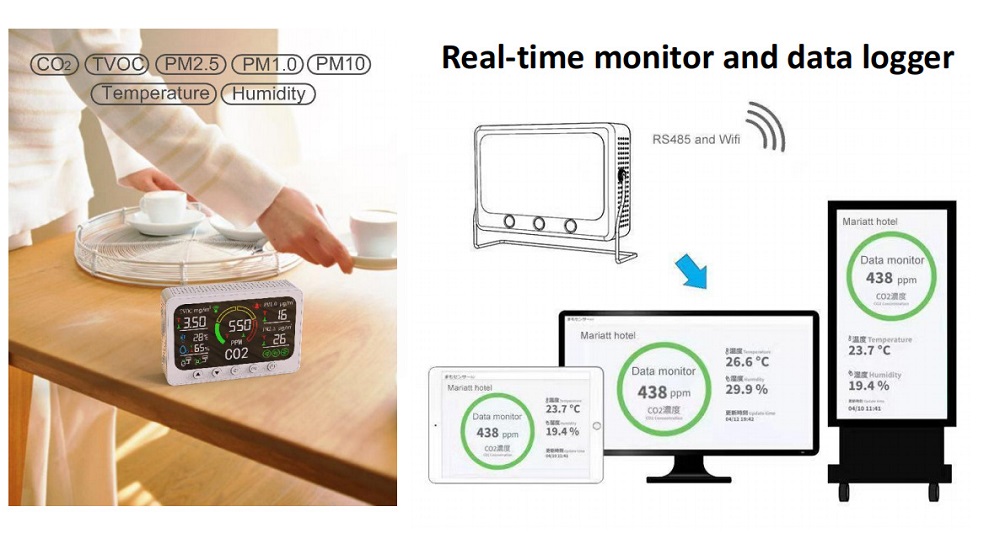

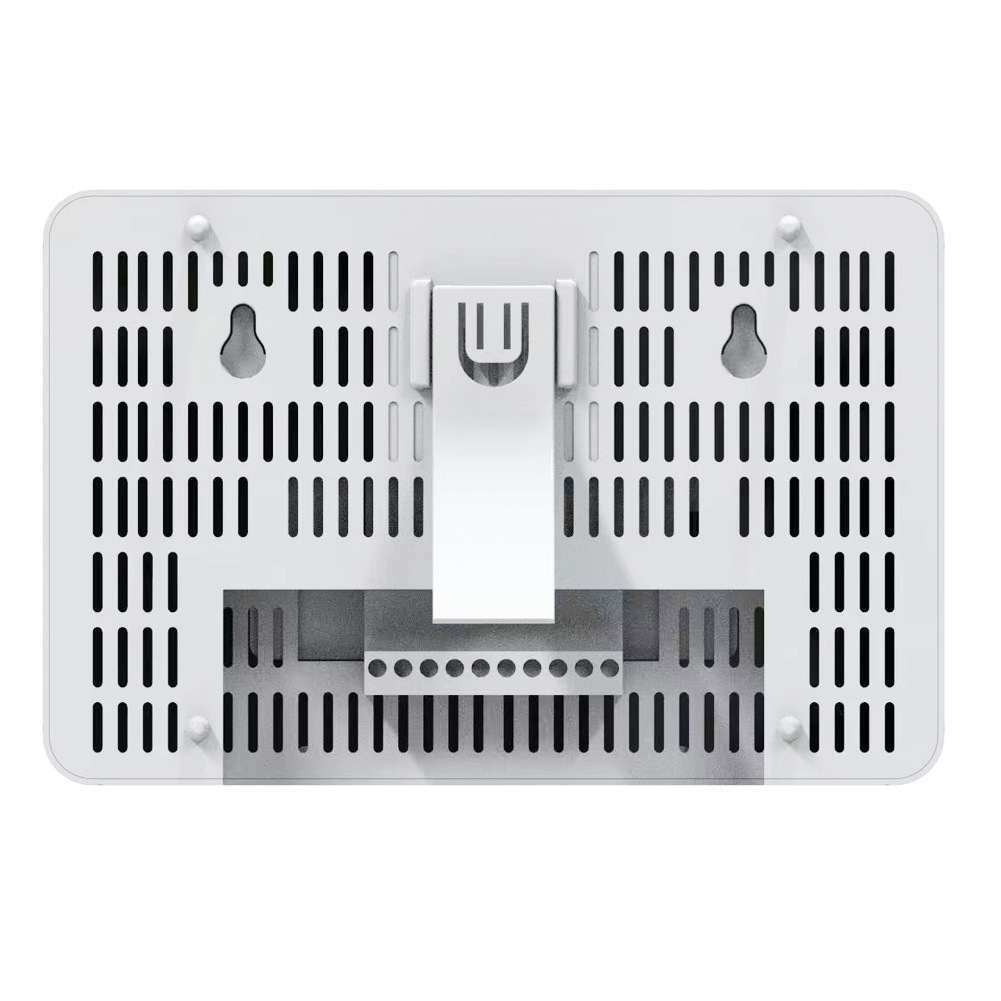

RS485 & Relay Signal Output: Rear panel reserved RS485 communication port for data export & data logging; relay port supports direct device control. Recommended for professional engineers only.

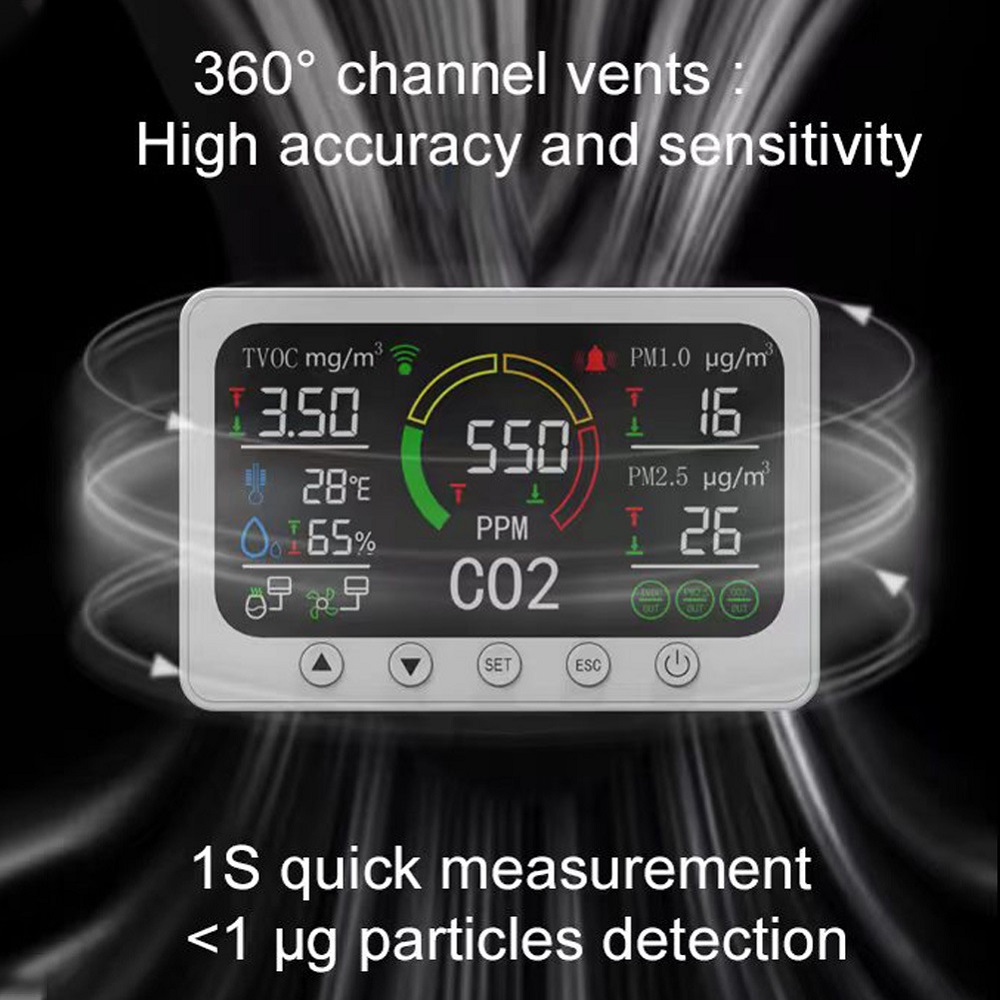

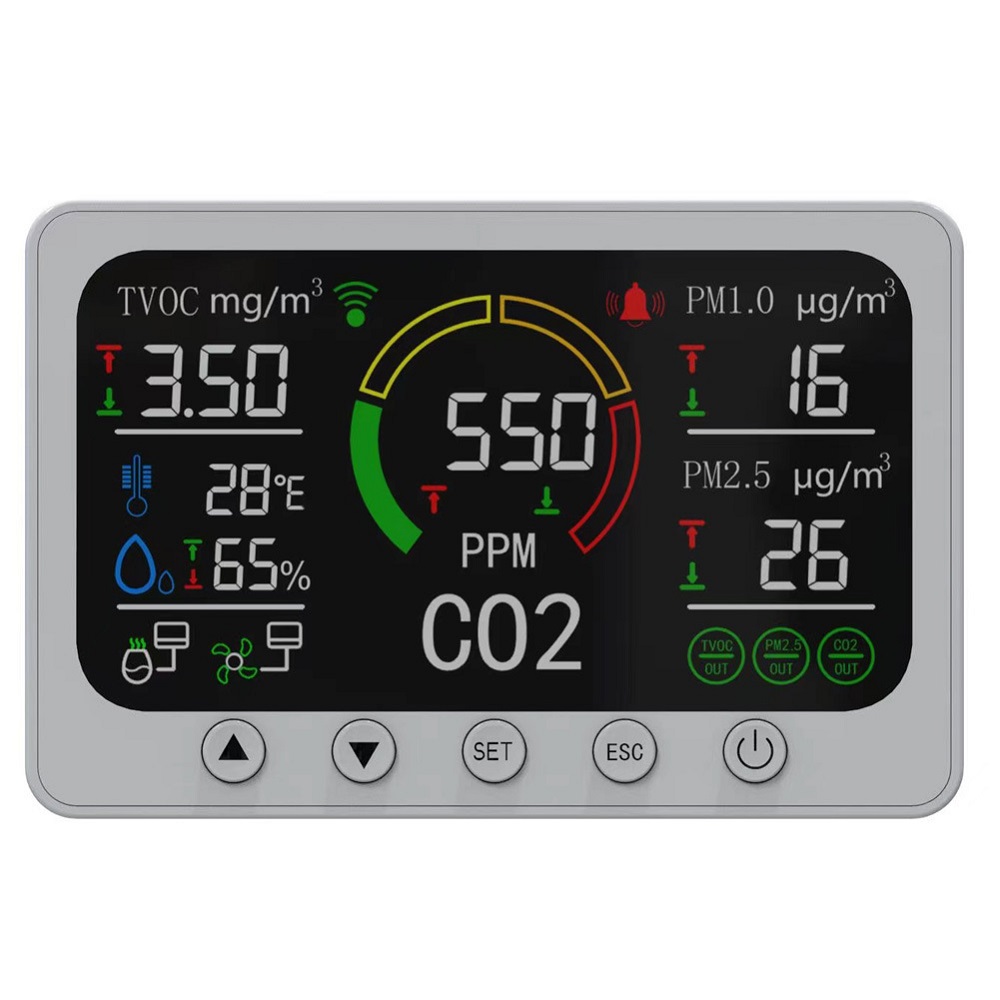

Large Color LCD Display: Intelligent colorful LCD screen with large clear digital readouts. Screen color changes to remind users when air quality exceeds safety thresholds.
Customizable CO2 Alarm: Default alarm triggers at 1500PPM CO2 to remind ventilation; users can manually set custom CO2 alarm threshold as needed.

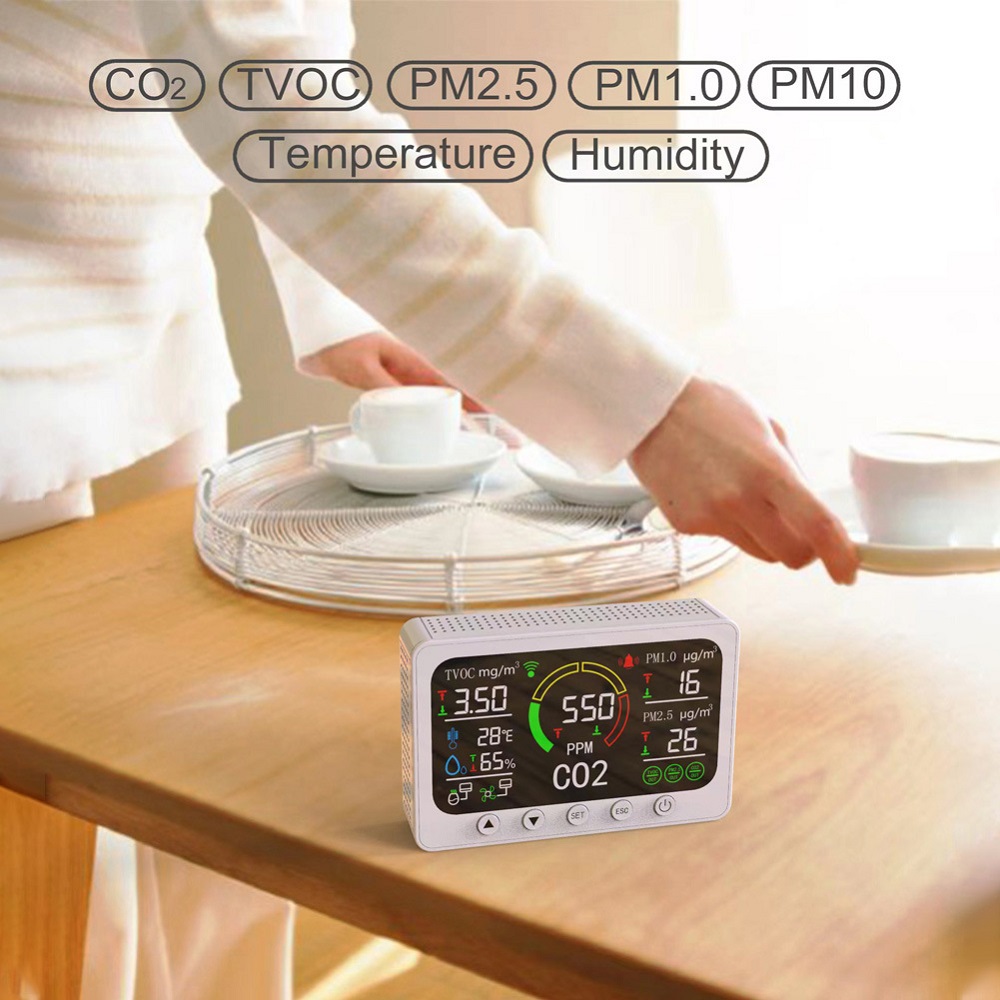

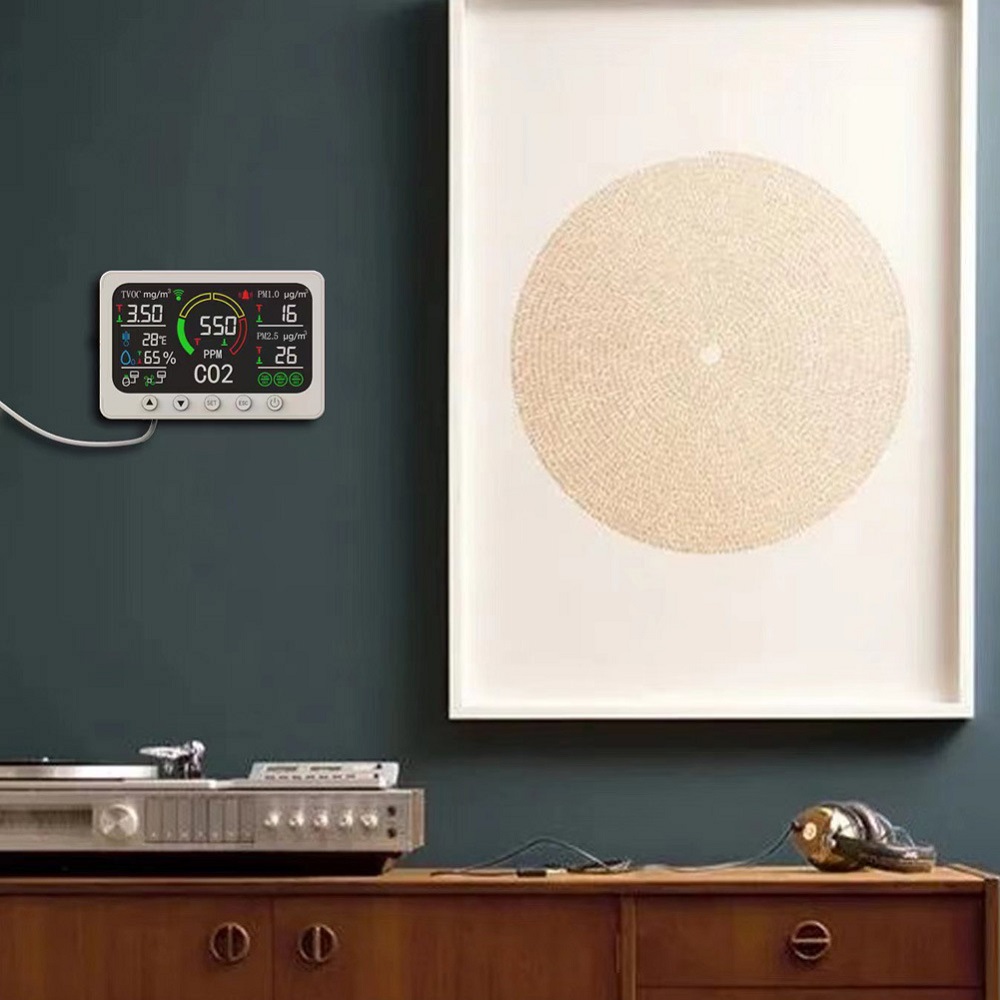

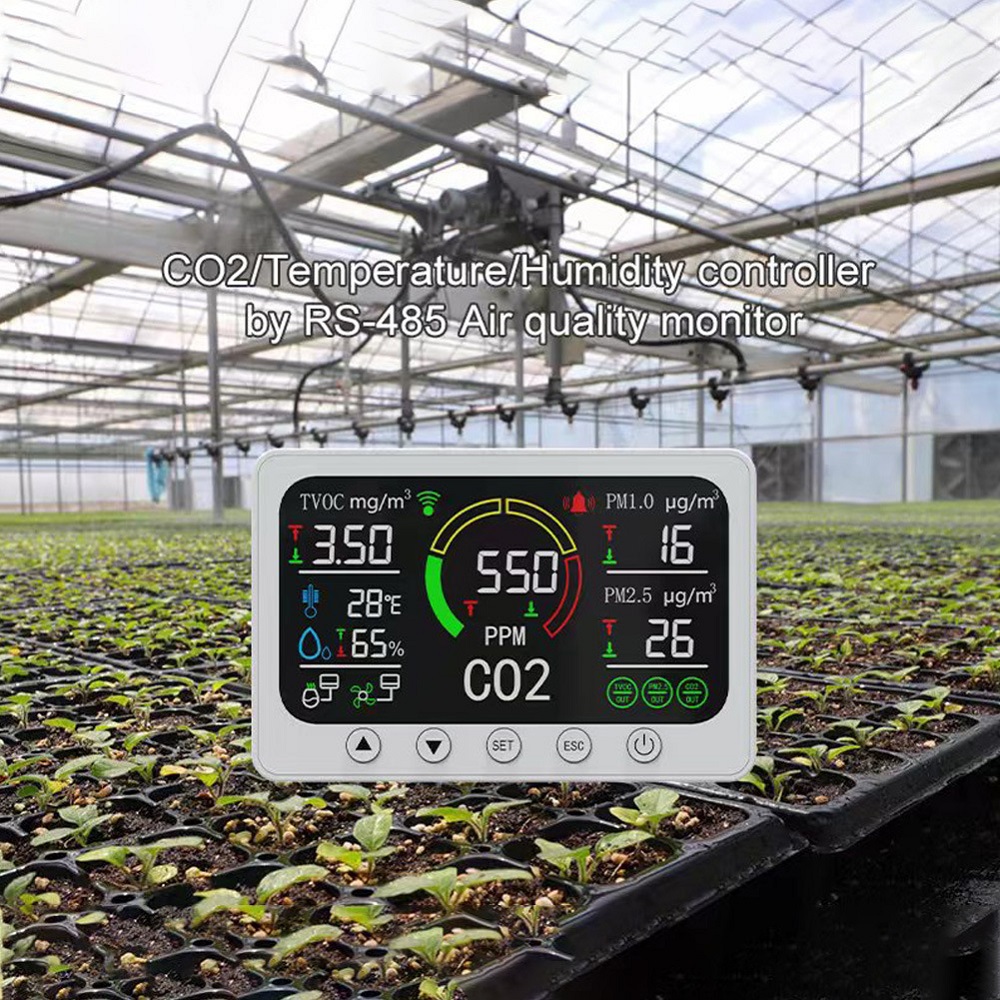

Wide Application Scenarios: Ideal for offices, bedrooms, living rooms, classrooms, laboratories, gyms and other indoor public & private spaces.

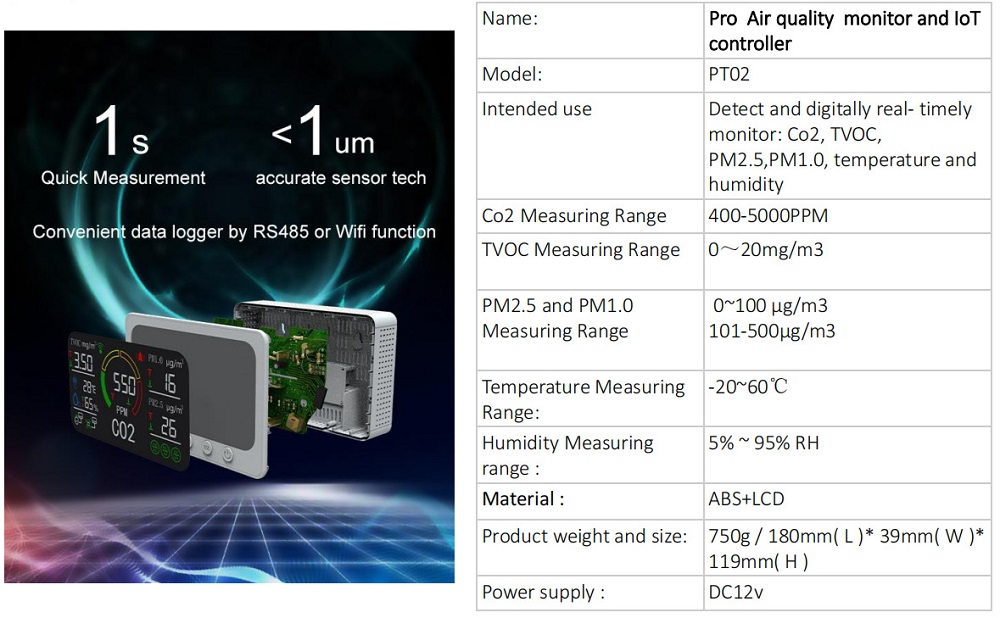

Specifications
| Product Name | Smart Air Quality Monitor Model PT02 | |
| Model | PT02 | |
| Detection Items | CO2, TVOC, PM2.5, PM1.0, Temperature, Humidity | |
| Measuring Item | Measuring Range | Resolution / Accuracy |
| CO2 | 400 ~ 5000 PPM | 1 PPM |
| TVOC | 0 ~ 9.99 mg/m³ | 0.05 mg/m³ |
| PM2.5 / PM1.0 | 0~100 ug/m³ / 101~500 ug/m³ | ±10 ug/m³ / ±10% FS |
| Temperature | -20℃ ~ 50℃ | ±2℃ |
| Humidity | 20% ~ 95% RH | ±5% RH |

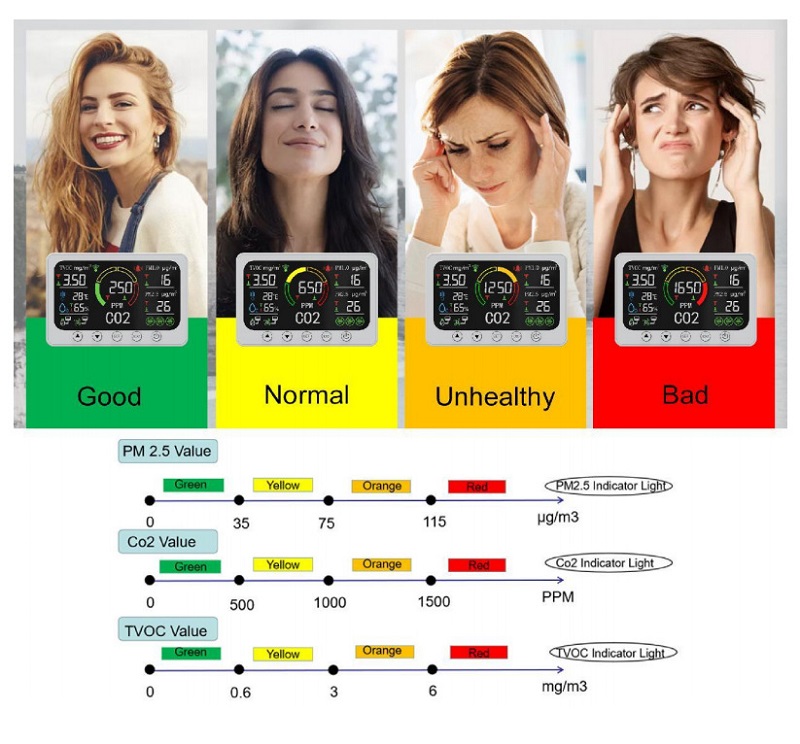

| CO2 Color Indicator | 0~499 PPM: Green Bar | 500~999 PPM: Yellow Bar | 1000~1499 PPM: Orange Bar | ≥1500 PPM: Red Bar |
| Audible buzzer alarm when CO2 over 1500PPM | ||
| TVOC Alarm Trigger | Buzzer alarm when value over 0.5 mg/m³ | |
| PM2.5 / PM1.0 Alarm Trigger | Buzzer alarm when value over 75 ug/m³ | |
| Housing Material | ABS Plastic + Color LCD Screen | |
| Power Supply | 12V 2A EU Power Adapter | |
| Product Dimension | 180(L) × 39(W) × 119(H) mm | |
| Net Weight | 500g | |
| Warm-up Time | ＜7 seconds | |

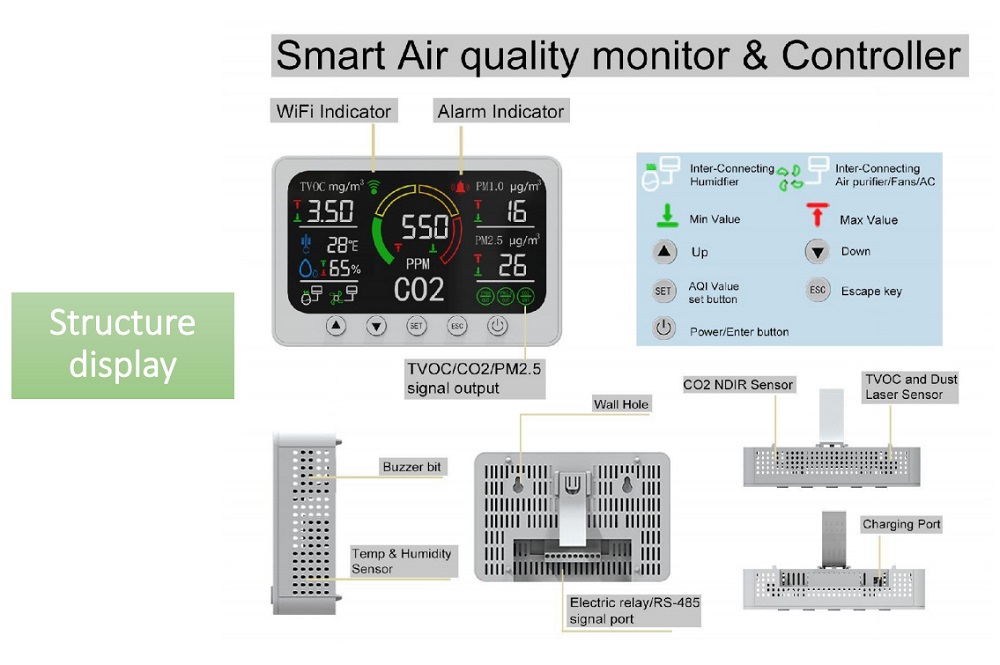

| Built-in Sensors | NDIR CO2 sensor, laser dust sensor, laser TVOC sensor, temp & humidity composite sensor | |
| Signal Output | RS485 data export + relay switch control | |
| Supported APP | Tuya Smart APP (Wi-Fi remote control) | |
Package Included
1 × PT02 Smart Air Quality Monitor Main Unit
1 × EU Power Adapter (Smart Socket optional)
