Moonzite Upgraded Aluminum Track Saw Parallel Guide Kit 1200mm Dual Scale
- Stock: In Stock
- Model: MZ003590
- SKU: MZ003590

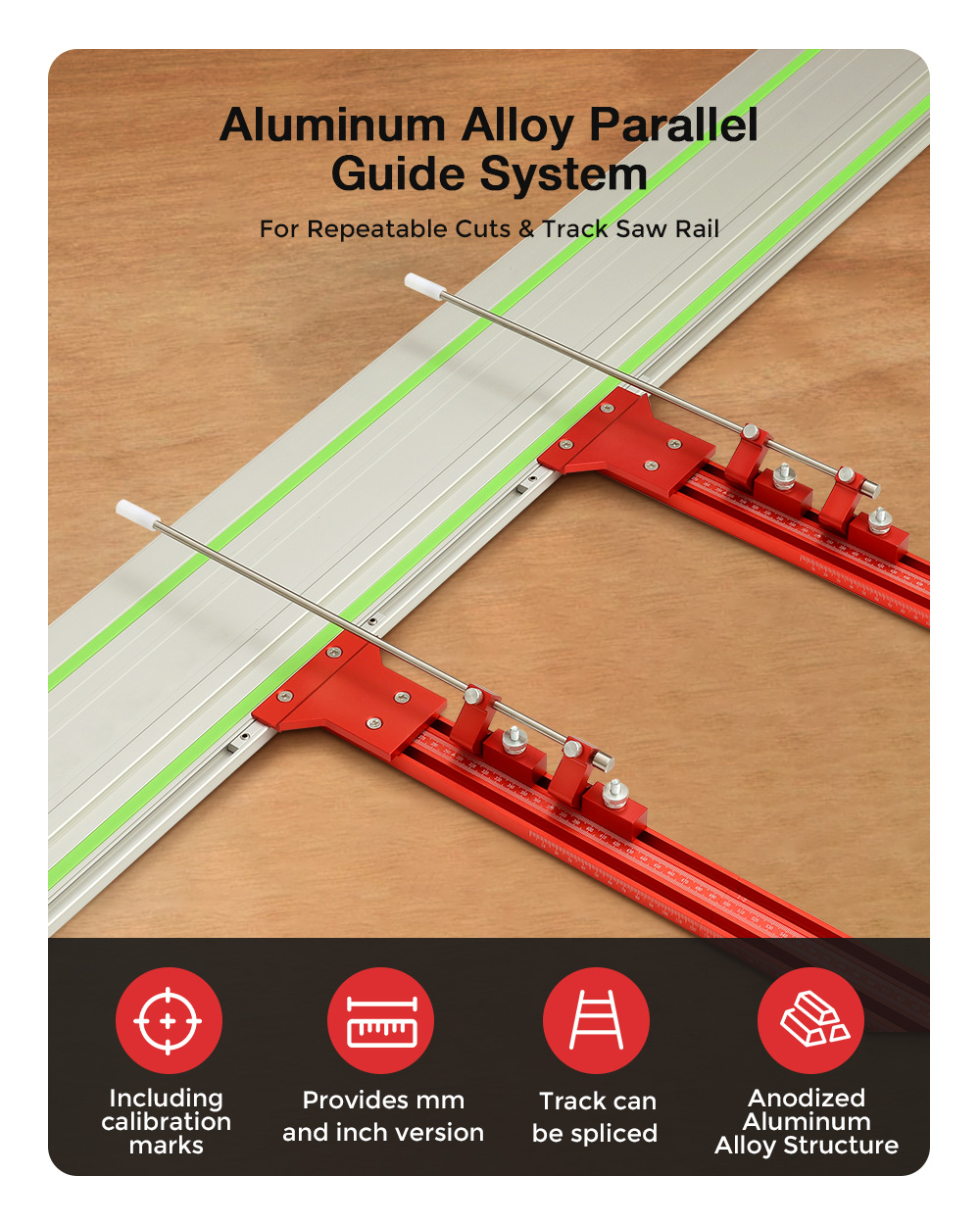

Moonzite Upgraded Aluminum Alloy Track Saw Parallel Guide System Kit
Moonzite upgraded spliced parallel guide jig adopts hard anodized aluminum alloy material, total assembled length 1200mm divided into four detachable 300mm segments. Dual laser etched millimeter and inch dual measuring scales, matched adjustable sliding limit stops realize repeat identical cutting. Wide flat screw contact base avoids scratch on original track saw rails. Full set of sliders, fixing screws, plugs and dedicated hand tools are all contained in one package, fast splice assembly without extra hardware. Universal parallel positioning accessory for standard track saws, ideal fixture for cabinet factories, furniture renovation and home DIY woodworking projects.
Disclaimer: This Moonzite aluminum parallel guide kit is third-party aftermarket woodworking jig. Festool only listed for compatibility reference, not OEM genuine affiliated product.
Core Product Advantages
- Hard anodized aluminum surface anti-abrasion and anti-oxidation

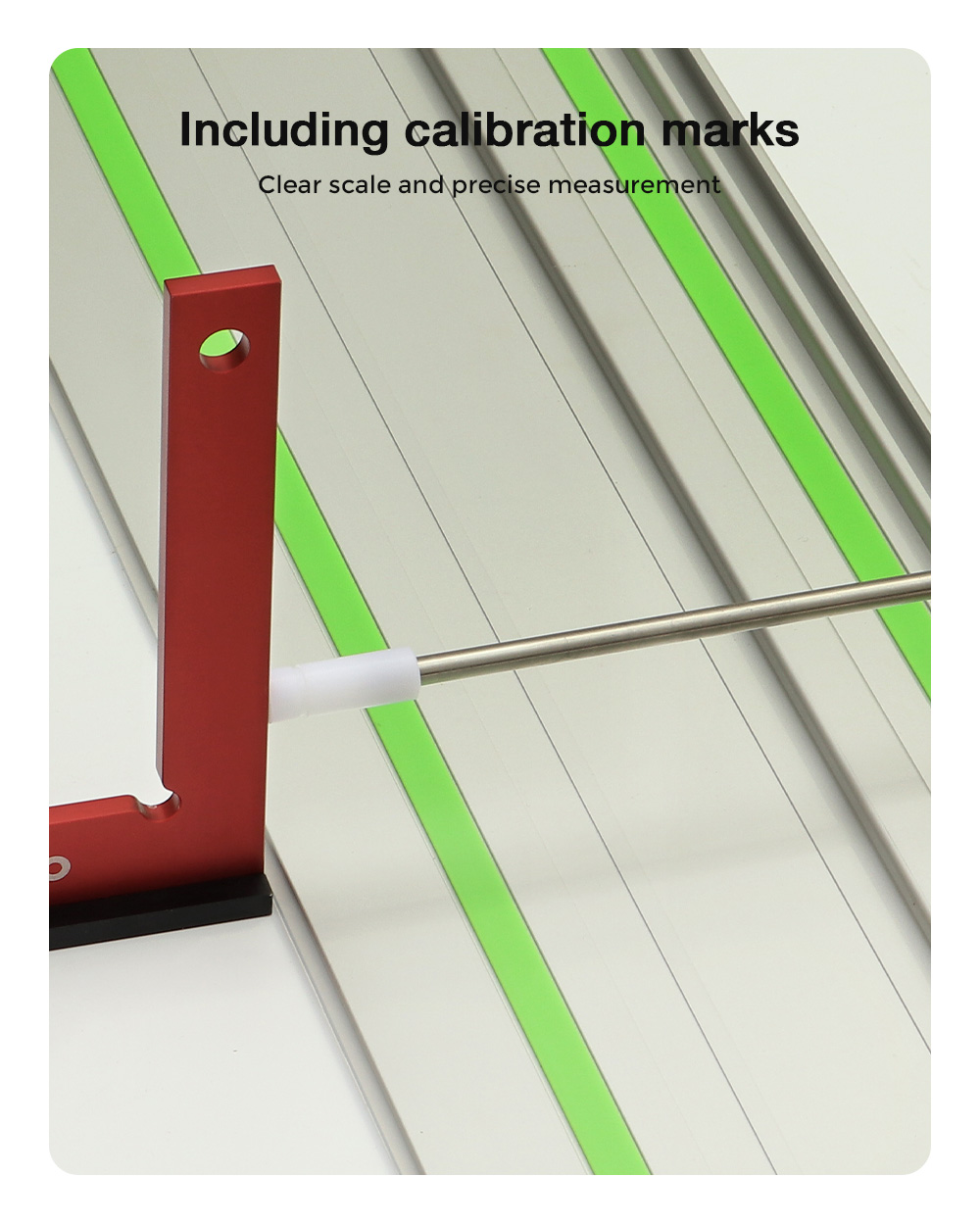

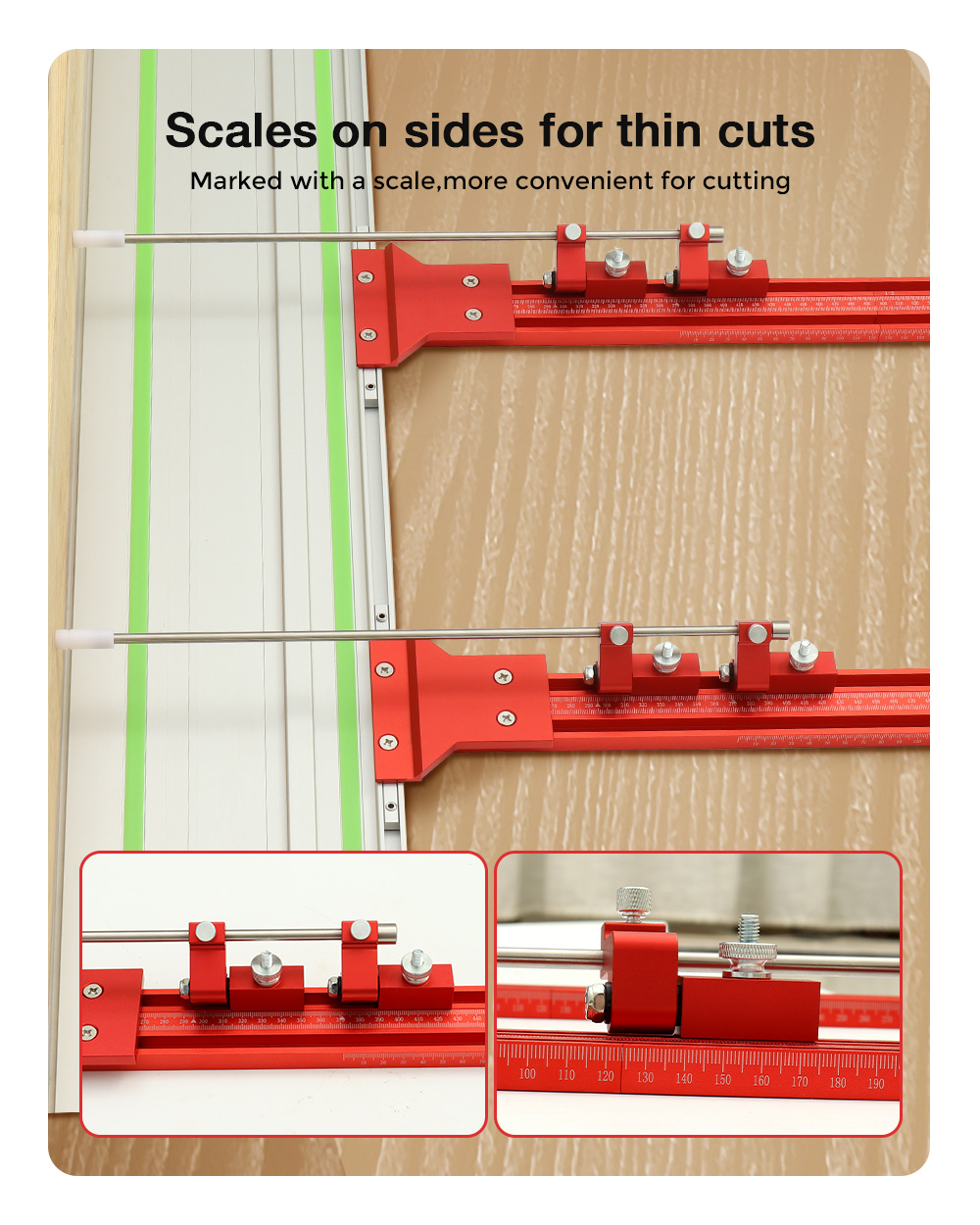

- Dual laser engraved inch & mm scale for multi-measure demand

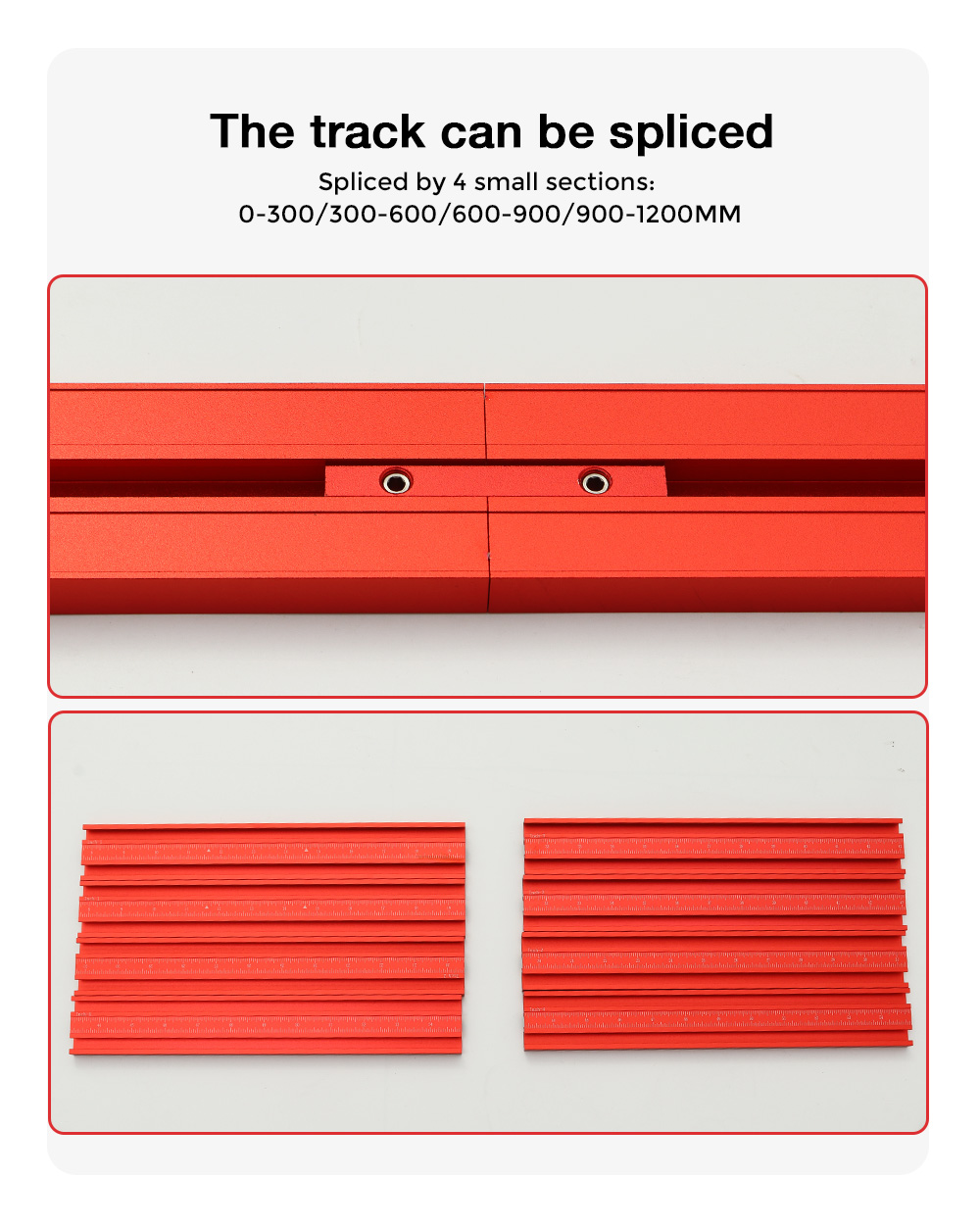

- Four-section split rail freely combine short or long cutting range

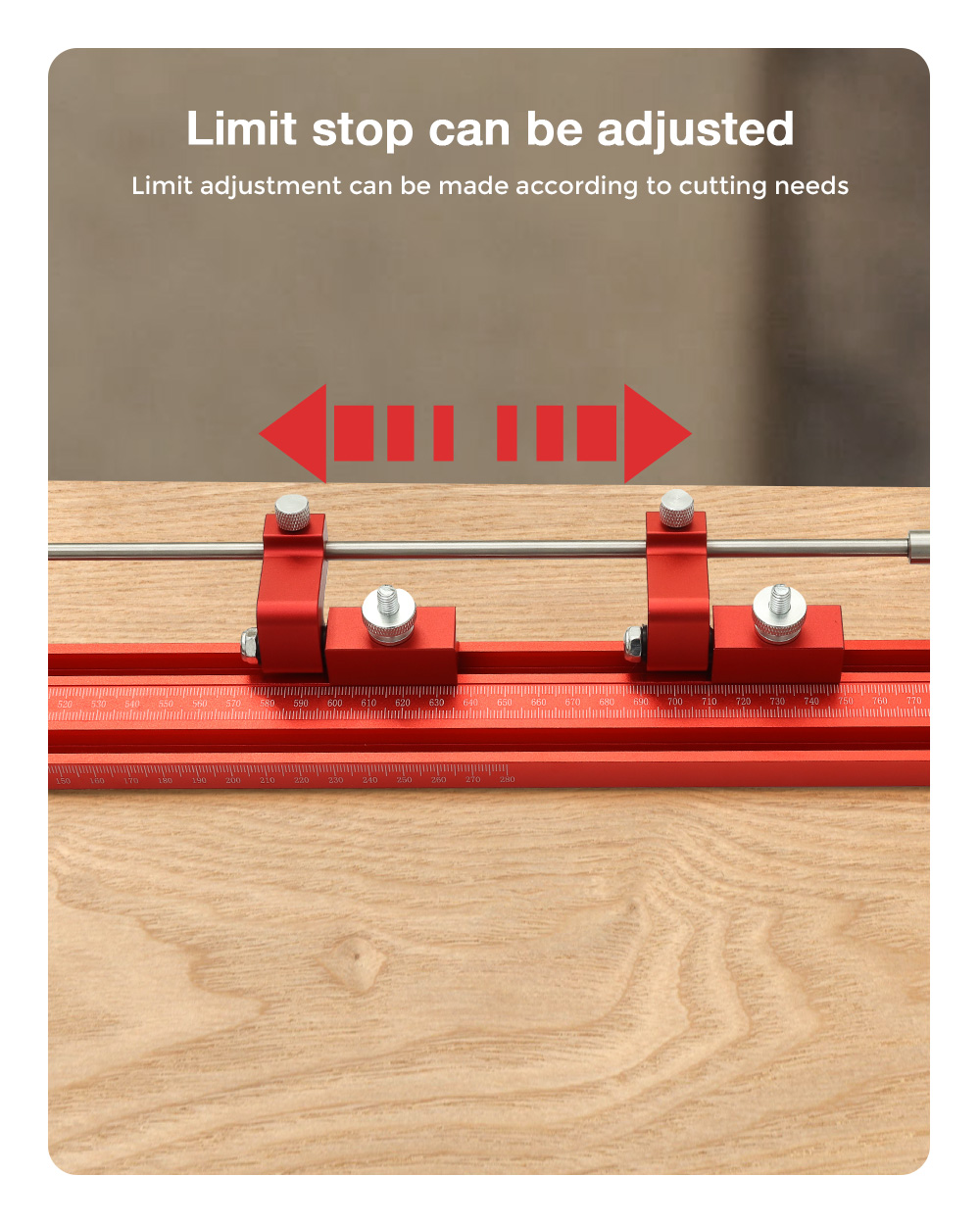

- Lockable sliding stop ensures consistent repeatable cuts
- Wide contact screw base protects original guide rail from scratch
- All matching sliders & tool accessories integrated inside kit
- Split lightweight structure easy storage and transport
- Precision parallel positioning lower cutting dimension error
Full Technical Specifications
| Parameter Item | Details |
|---|---|
| Brand | Moonzite |
| Model SKU | MZ003590 |
| Main Material | Anodized Aluminum Alloy |
| Total Spliced Length | 1200mm (4×300mm Segments) |
| Scale Format | Laser Inch + Millimeter Dual Scale |
| Main Color | Red |
| Outer Package Dimension | 398*288*77mm |
| Compatibility | Standard Track Saw Guide Rails |
| Pack Type | Complete Full Accessory Kit |

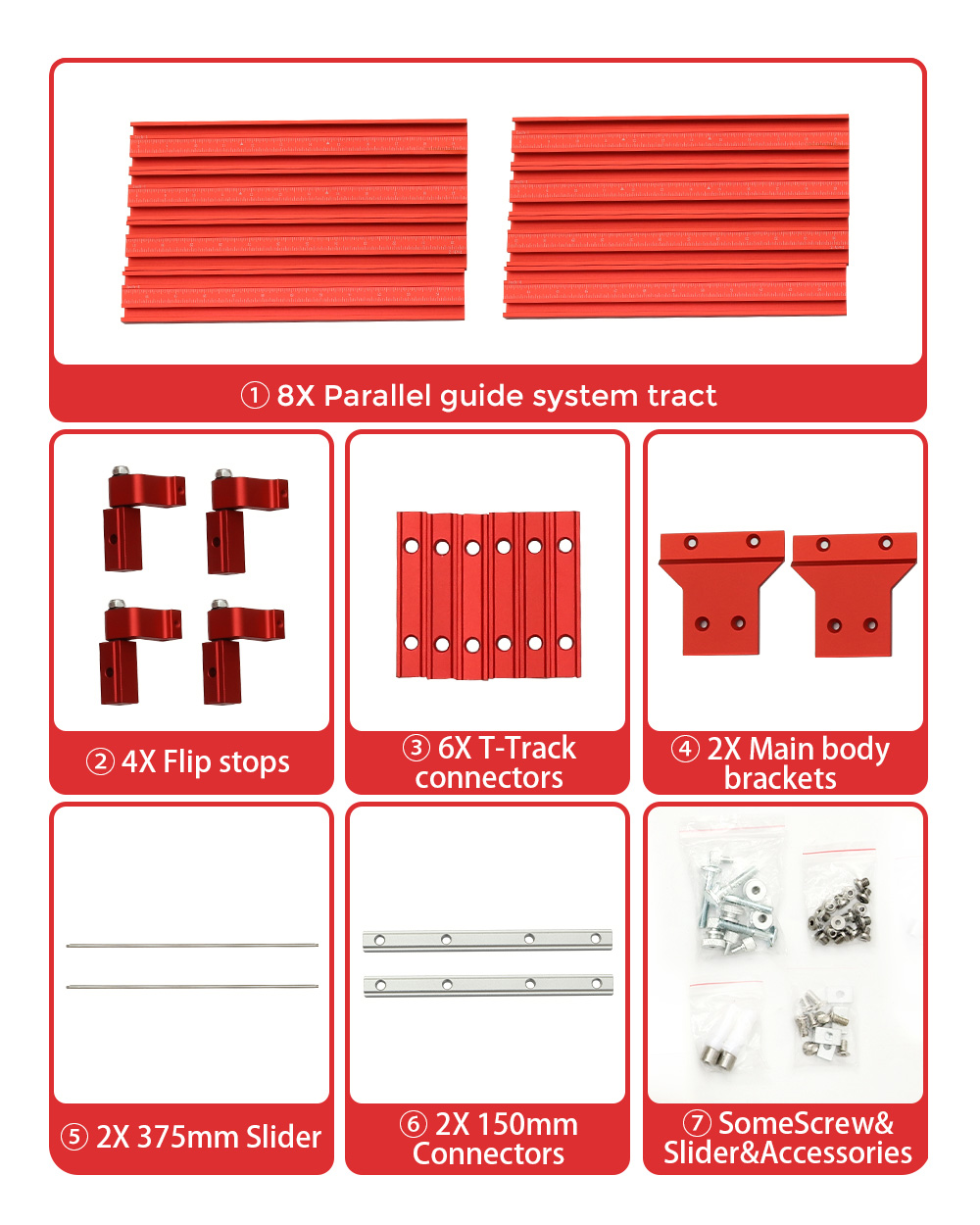

Complete Kit Parts List
- 2 x Main Guide Mount Brackets
- 8 x Dual Scale Spliced Tracks
- 2 x 375mm Sliders
- 4 x 17.8mm Sliders
- 6 x 63mm Sliders
- 2 x 153mm Sliders
- 4 x M16 Fixing Screws
- 4 x M10 Fixing Screws
- 2 x Blue Plastic Anti-wear Plugs
- 2 x Stainless Steel Connection Plugs
- 1 x Phillips Screwdriver
- 1 x Matching Hex Wrench
- 2 x Connection Link Boards
- 4 x Adjustable Limit Stops
- 1 x English Calibration & Safety Instruction Card
Application Scenarios
Custom cabinet factory batch sheet cutting, furniture renovation workshop processing, local professional carpentry shop daily jig, household DIY wood craft making, hobby track saw precision cutting.
Frequently Asked Questions
Q1: What’s the full assembled length of this parallel guide system?
A1: Total length 1200mm, separated into four independent 300mm spliced segments.
Q2: Does the guide have both metric and imperial measuring scales?
A2: Yes, permanent laser etching provides both millimeter and inch dual scale marks.
Q3: Will the fixing screws scratch my original track rail?
A3: Widened flat contact base disperses pressure to prevent rail surface scratch damage.
Wood Cutting & Calibration Safety Instructions
- Lock all spliced rail connectors tightly before starting cutting work.
- Evenly tighten limit stop screws to avoid sliding during processing.
- Firmly clamp workpiece to bench to prevent kickback hazard.
- Maintain safe distance between hands and moving saw blade.
- Regularly clear wood dust from slider grooves for precise positioning.
- Inspect aluminum rail for bending before long-hour continuous use.
- Store kit in dry ventilated space to avoid metal oxidation.
- Slight manual measuring deviation is within acceptable range.
