UTi690A 120*90 Infrared Thermal Imager -20~400℃ PC Software Analysis Industrial Thermal Imaging Camera Handheld USB Infrared Thermometer
- Stock: In Stock
- Model: MZ008272
- SKU: MZ008272
Congratulations! Thanks to the hard work of the Moonzite team, the UTi690A has been fully upgraded. For all customers who placed orders from January 13, 2022 onwards, the unit is equipped with an exclusive temperature compensation function to deliver higher measurement accuracy — this feature is not available on the UTi120S model.
The most cost-effective thermal imager you can buy is here!
Original Moonzite Latest 2021 Thermal Imaging Camera!
Boasting a smooth 25Hz frame rate and 120×90 infrared sensor resolution (display image up to 320×240), it delivers ultra-smooth, crisp thermal visuals. This is the best-value 25Hz thermal imager on the market!
Supports Chinese / English language switchable interface.
Key Features
- Infrared sensor resolution: 120 × 90
- Temperature measuring range: -20℃ ~ 400℃
- Temperature display modes: Center point measurement, auto hot/cold spot tracking
- Image storage: 16GB TF memory card included
- Multi-mode high/low temperature alarm: on-screen prompt, buzzer sound, LED flash warning
- Built-in laser positioning indicator + auxiliary LED fill light
- Three-layer durable protection: IP54 dustproof & waterproof, 2-meter drop resistance
- Supports PC thermal data analysis software
- 6 optional color palettes for thermal visualization
- Adjustable emissivity (0.01~0.99) for accurate multi-surface testing
- Up to 9+ hours continuous working time on single full charge
- Built-in 3.7V 2600mAh rechargeable lithium battery
- Standard 1/4" tripod screw hole on bottom for tripod mounting

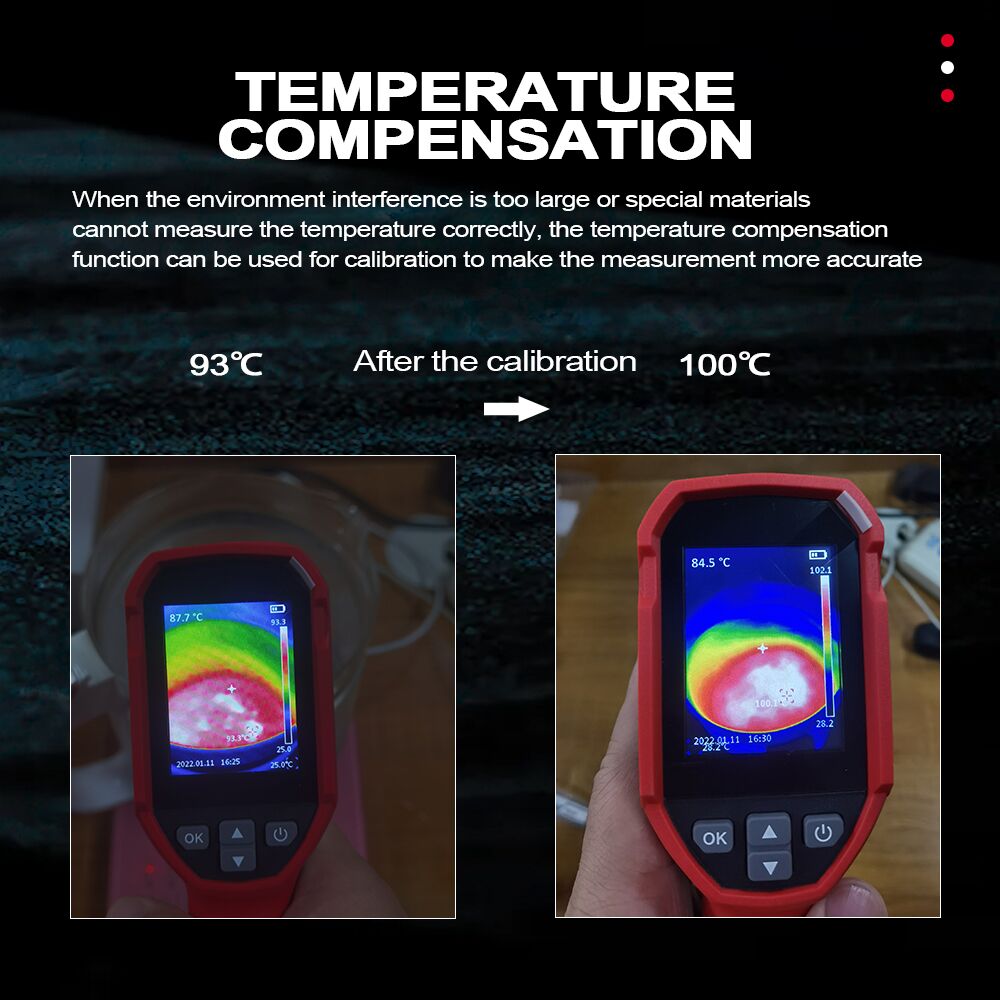

- Exclusive temperature compensation function (added on units manufactured after Jan 13, 2022)
Specifications
| Item | Parameter |
| Model | UTi690A |
| Temperature Range | -20℃ ~ 400℃ |
| Infrared Sensor Type | Uncooled infrared focal plane array |
| Display Screen | 2.4" TFT LCD |
| Response Time | ＜500ms |
| LCD Display Resolution | 320 × 240 |
| Infrared Pixels | 120 × 90 (10,800 total pixels) |
| Pixel Size | 17 μm |
| Color Palette Options | White Hot, Black Hot, Iron Red, Rainbow, High-Contrast Rainbow, Red Hot |
| Spectral Response Bandwidth | 8 ~ 14 μm |
| Field of View | 50° Horizontal × 38° Vertical |
| Optimal Test Distance | 50 cm |
| Temperature Resolution | 0.1℃ |
| Thermal Sensitivity (NETD) | ＜60 mK |
| Thermal Frame Rate | Up to 25Hz |
| Temperature Display Modes | Center point, auto hot & cold spot tracking |
| Temperature Units | °C / °F switchable |
| Emissivity | Default 0.95, adjustable from 0.01 ~ 0.99 |
| Auxiliary Functions | Laser target indicator + LED fill light |
| PC Analysis Software | Supported |
| Measurement Accuracy | ±2℃ or ±2% of reading (whichever is greater) |
| Data Interface | USB Type-C |
| Certifications | CE, UKCA, RoHS |
| Operating Ambient Temp | 0℃ ~ 50℃ (32℉ ~ 122℉) |
| Storage Temperature | -20℃ ~ 60℃ (-4℉ ~ 140℉) |
| IP Protection Grade | IP54 |
| Anti-Drop Standard | 2-meter free drop resistance |
| Tripod Mount | Standard 1/4" screw hole |
| Over-Temp Alarm | On-screen alert, LED flashing, buzzer sound |
| Auto Power-Off Timer | 5min / 10min / 30min / Disable; default 30 mins |
| Continuous Working Time | More than 9 hours |
| Full Charging Time | Less than 2.5 hours |
| Body Dimensions | 197 × 72 × 60 mm |
Package Included
- 1 × UTi690A Thermal Imaging Camera
- 1 × USB Type-C Data Cable
- 1 × 16GB TF Memory Card
- 1 × User Manual
- 1 × Retail Packing Box
>> Please contact us to get Chinese & English user manuals download link <<
>> Please contact us to download PC thermal analysis software <<
