AUA-15F Mini Fiber Fusion Splicer FTTH Fiber Optical Hot Melt Optical Fiber Welding Machine ARC Welders
- Stock: In Stock
- Model: MZ001169
- Weight: 540.00g
- SKU: MZ001169
Description:

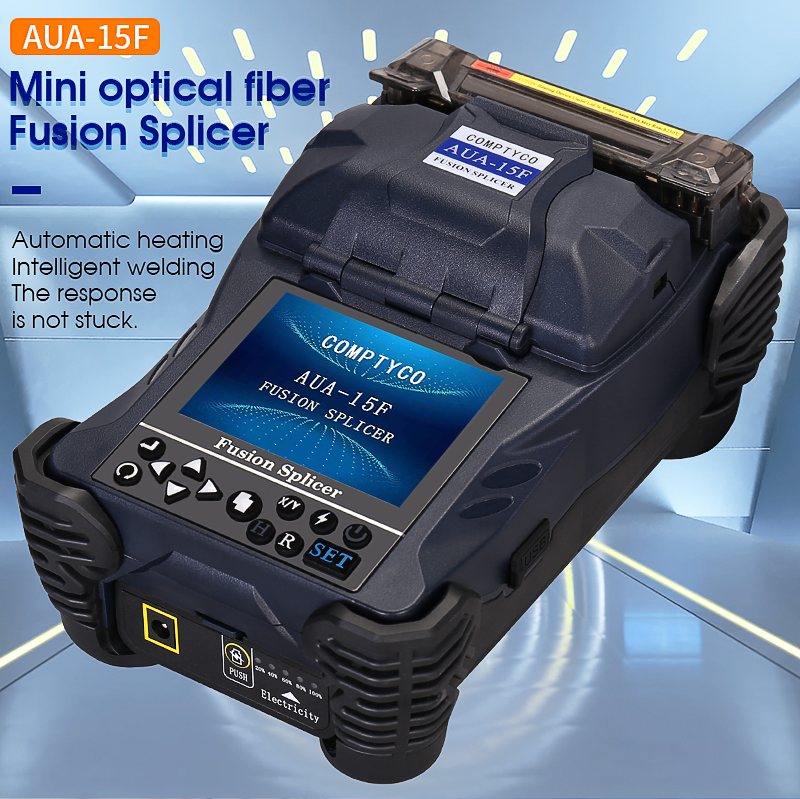

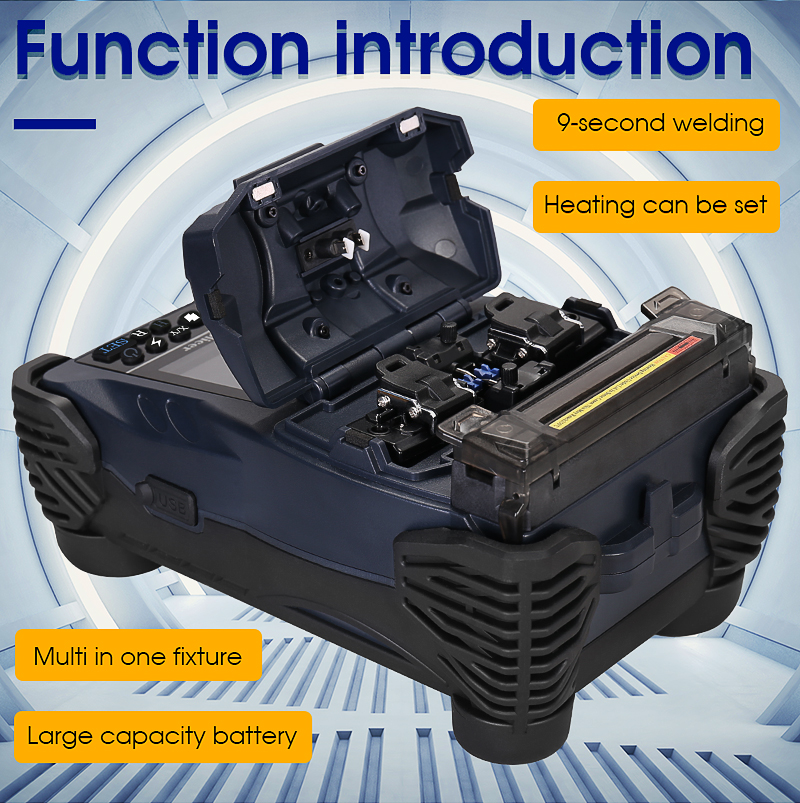

Automatic heating .Intelligent welding .The response is not stuck.

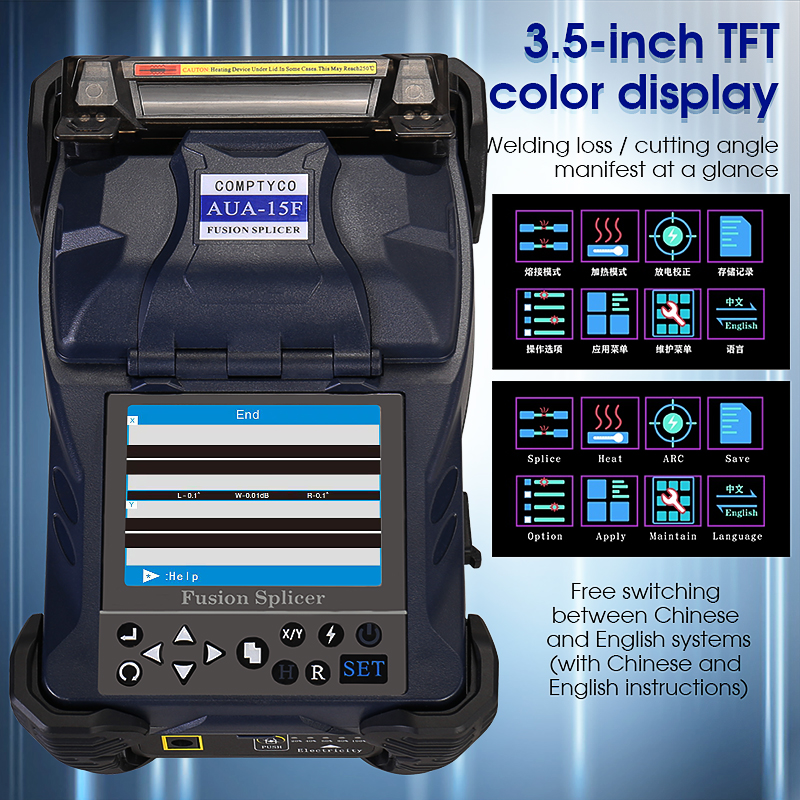

3.5-inch TFT color display Welding loss / cutting angle manifest at a glance
Free switching between Chinese and English systems (with Chinese and English instructions)

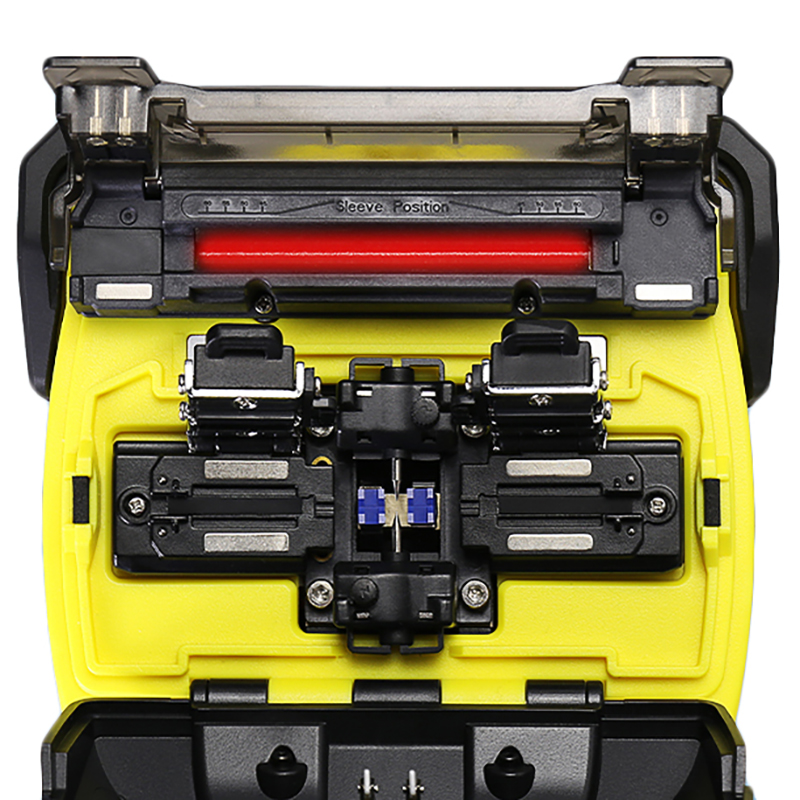

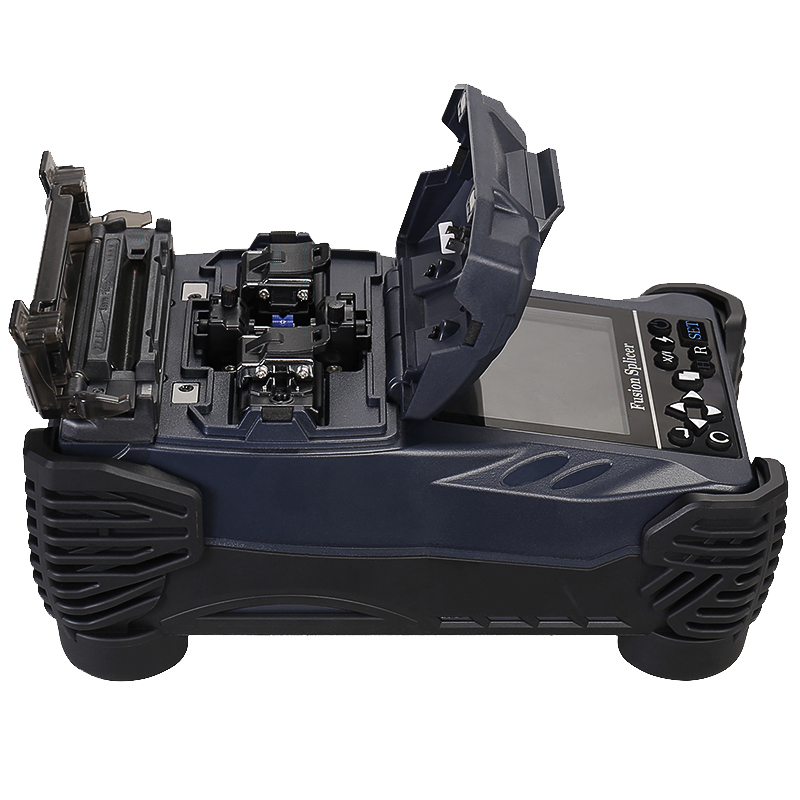

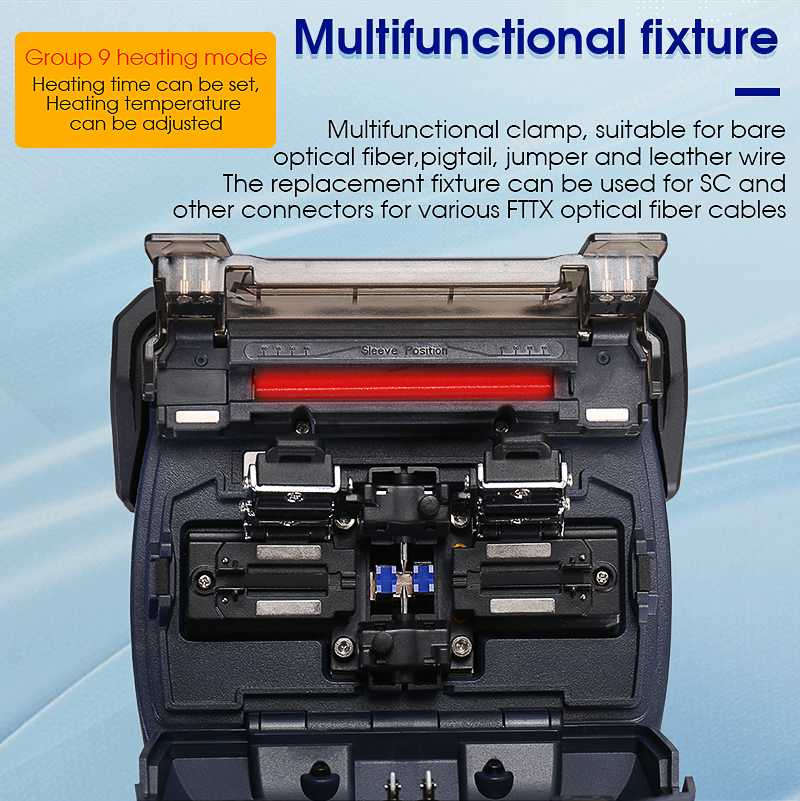

Multifunctional clamp, suitable for bare optical filber,pigtail, jumper and leather wire
The replacement fixture can be used for SC and other connectors for various FTTX optical fiber cables

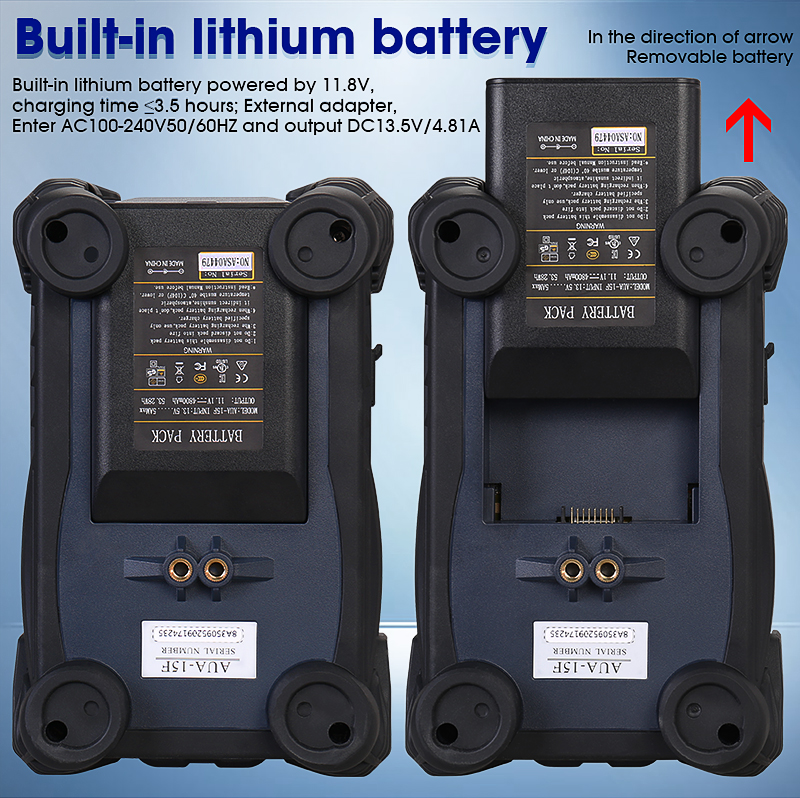

Built-in lithium battery powered by 11.8V, charging time≤3.5 hours; External adapter,
Enter AC 100-240V50/60HZ and output DC13.5V/4.81A

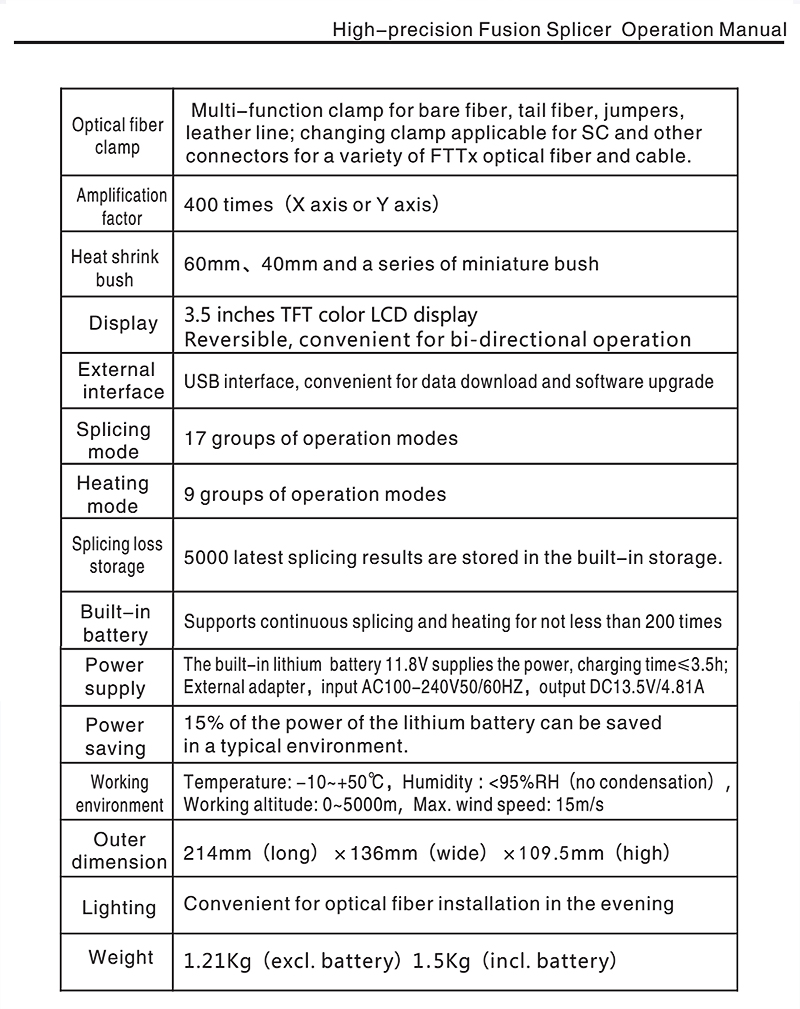

Optical fiber clamp | Multi-function clamp for bare fiber, tail fiber, jumpers,leather line; changing clamp applicable for SC and other connectors for a variety of FTTx optical fiber and cable |
Amplification factor | 400 times (X axis or Y axis) |
Heat shrink bush | 60mm、40mm and a series of miniature bush |

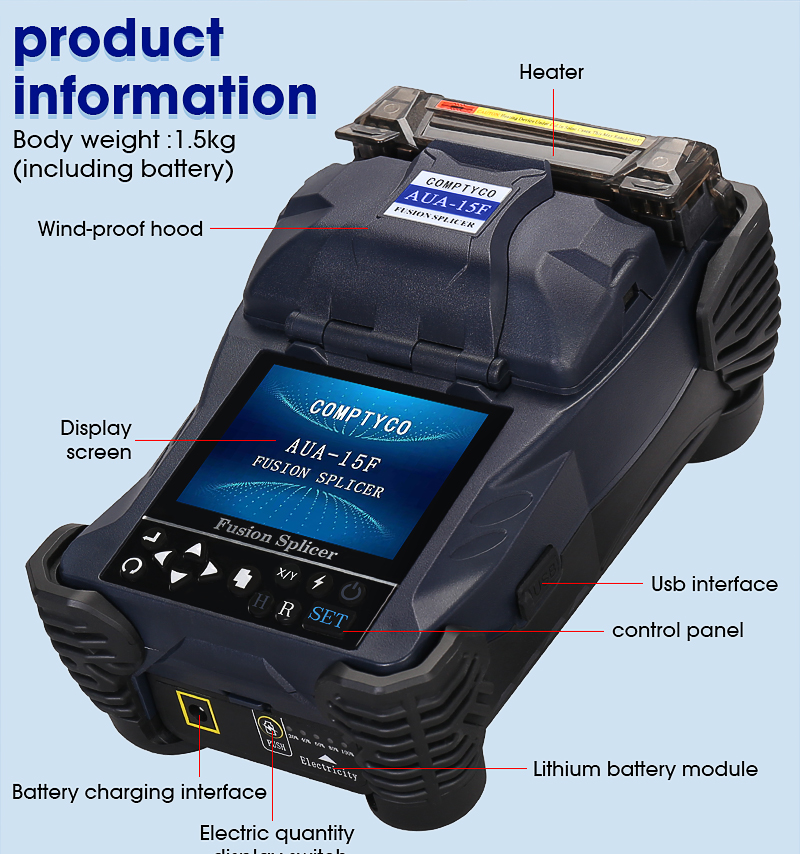

| Display | 3.5 inches TFT color LCD display Reversible, convenient for bi- directional operation |
External interface | USB interface, convenient for data download and software upgrade |
Splicing mode | 17 groups of operation modes |
Heating mode | 9 groups of operation modes |
Splicing lossstorage | 5000 latest splicing results are stored in the built-in storage |
Built- -in battery | Supports continuous splicing and heating for not less than 200 times |
| Power supply | The built-in lithium battery 11.8V supplies the power, charging time≤3.5h; External adapter, input AC100-240V50/60HZ, output DC13.5V/4.81A |
Power saving | 15% of the power of the lithium battery can be saved in a typical environment |
Working environment | Temperature: -10~+50C, Humidity : <95%RH (no condensation) , Working altitude: 0~5000m, Max. wind speed: 15m/s |

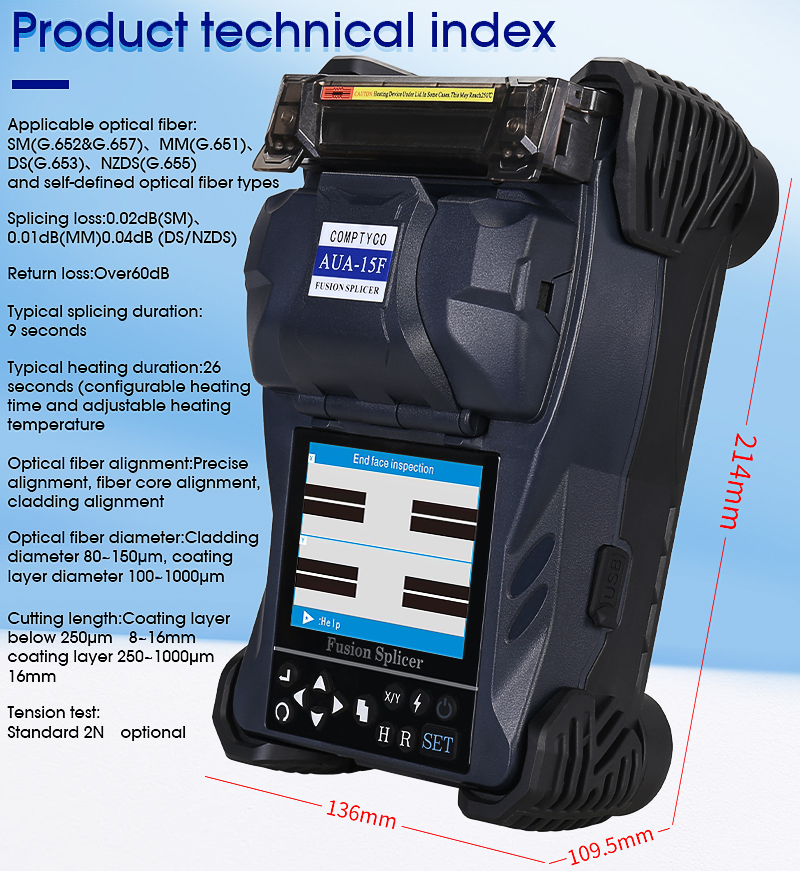

Outer dimension | 214mm (long) x 136mm (wide) x 1 09.5mm (high) |
| Lighting | Convenient for optical fiber installation in the evening |
| Weight | 1.21Kg (excI. battery) 1.5Kg (incl. battery) |

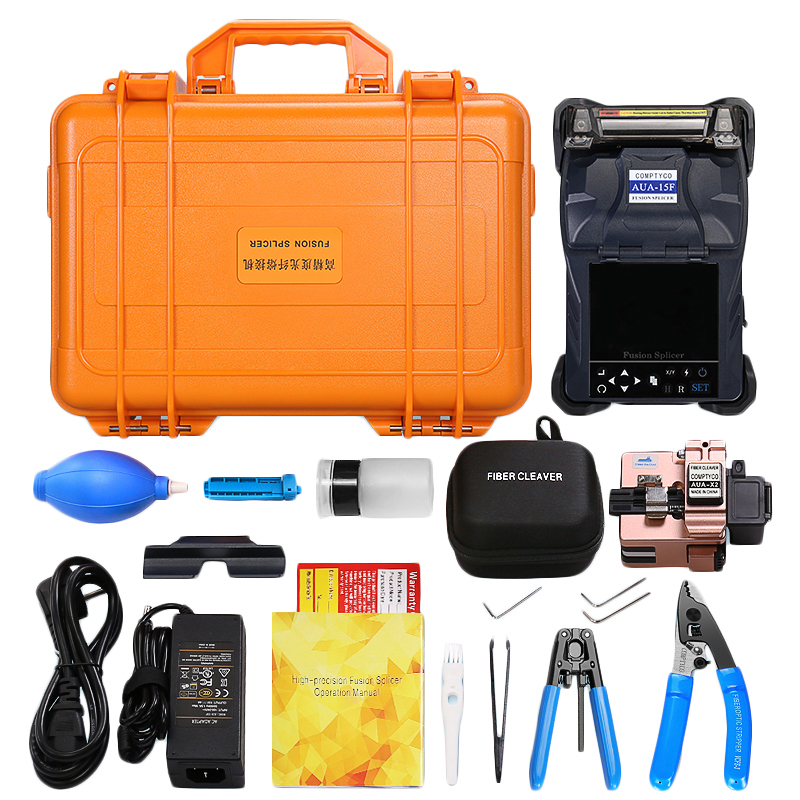

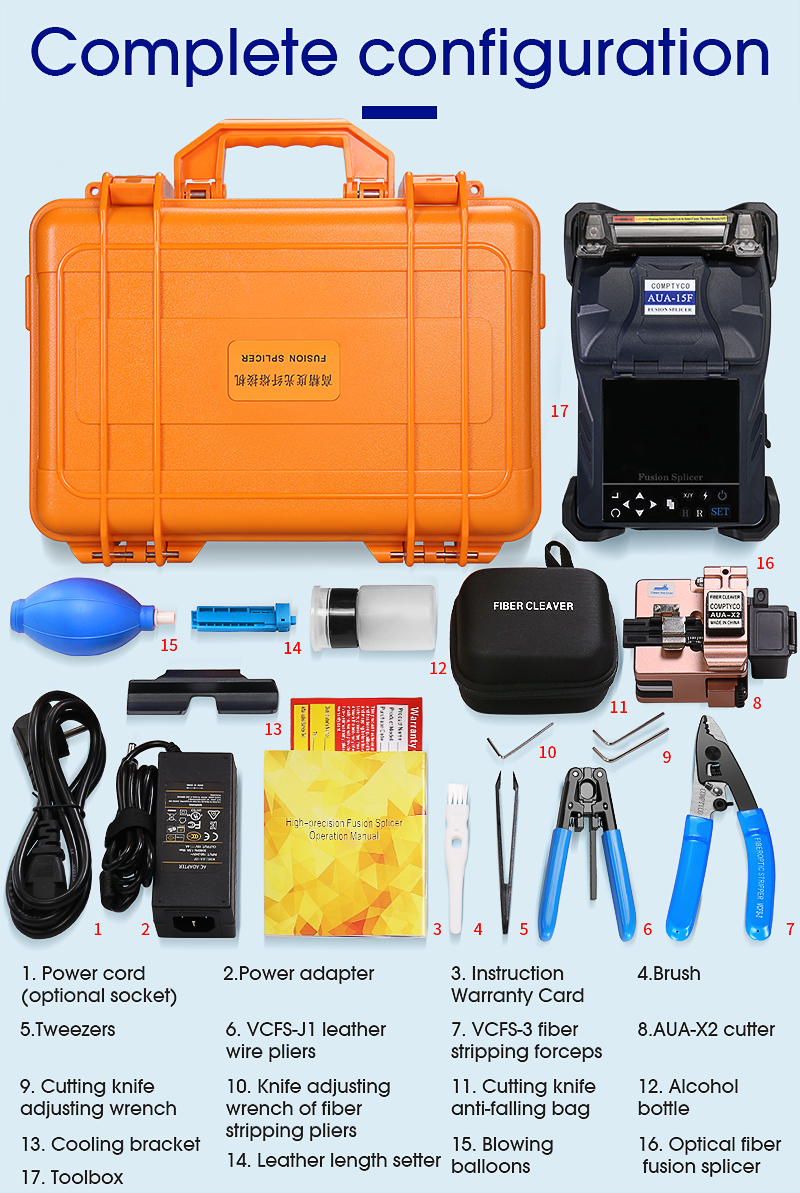

Package Included:
| 1X | Mini optical filber Fusion Splicer |
