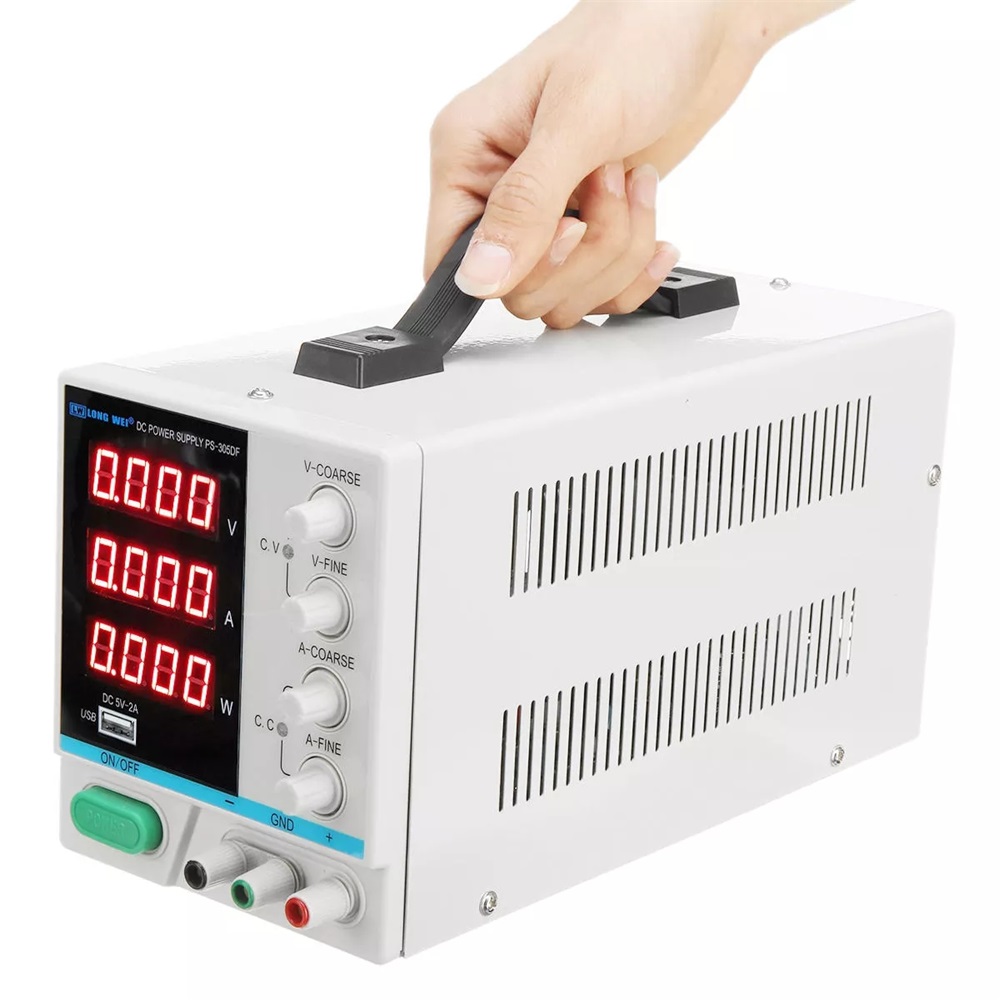

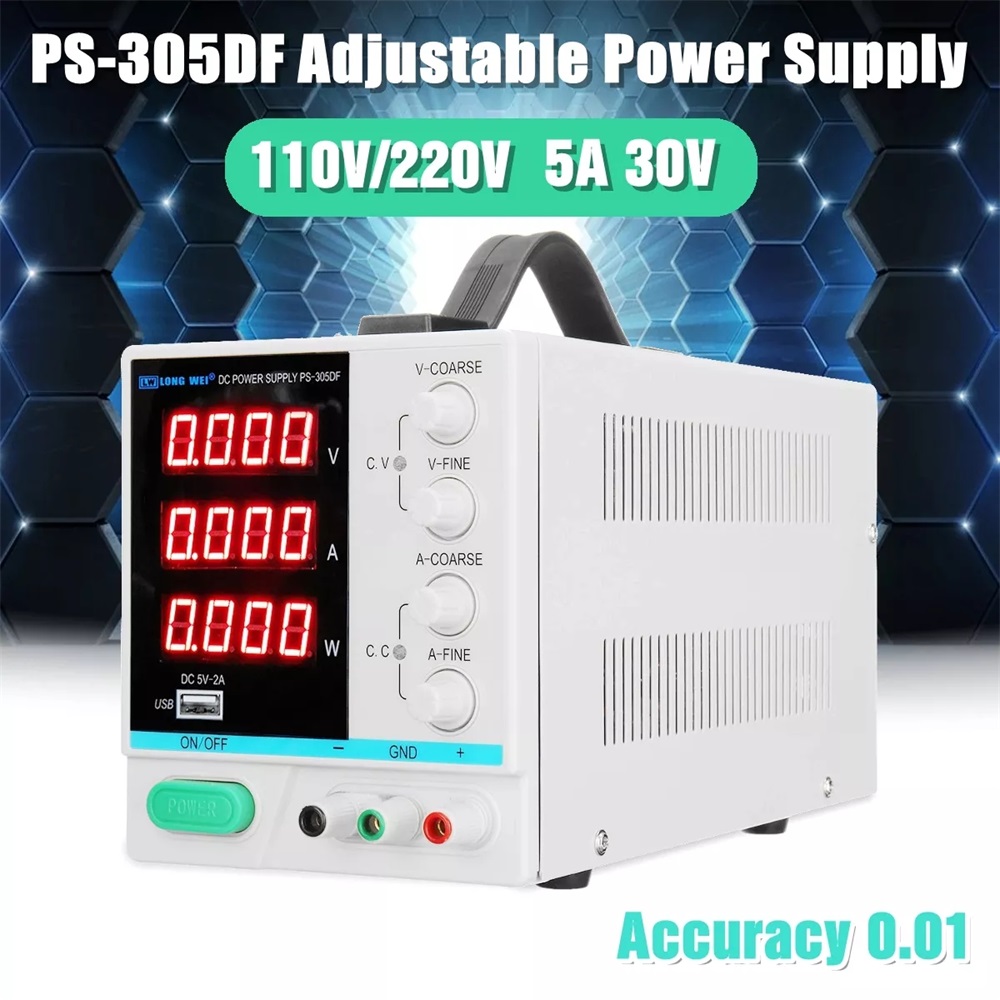

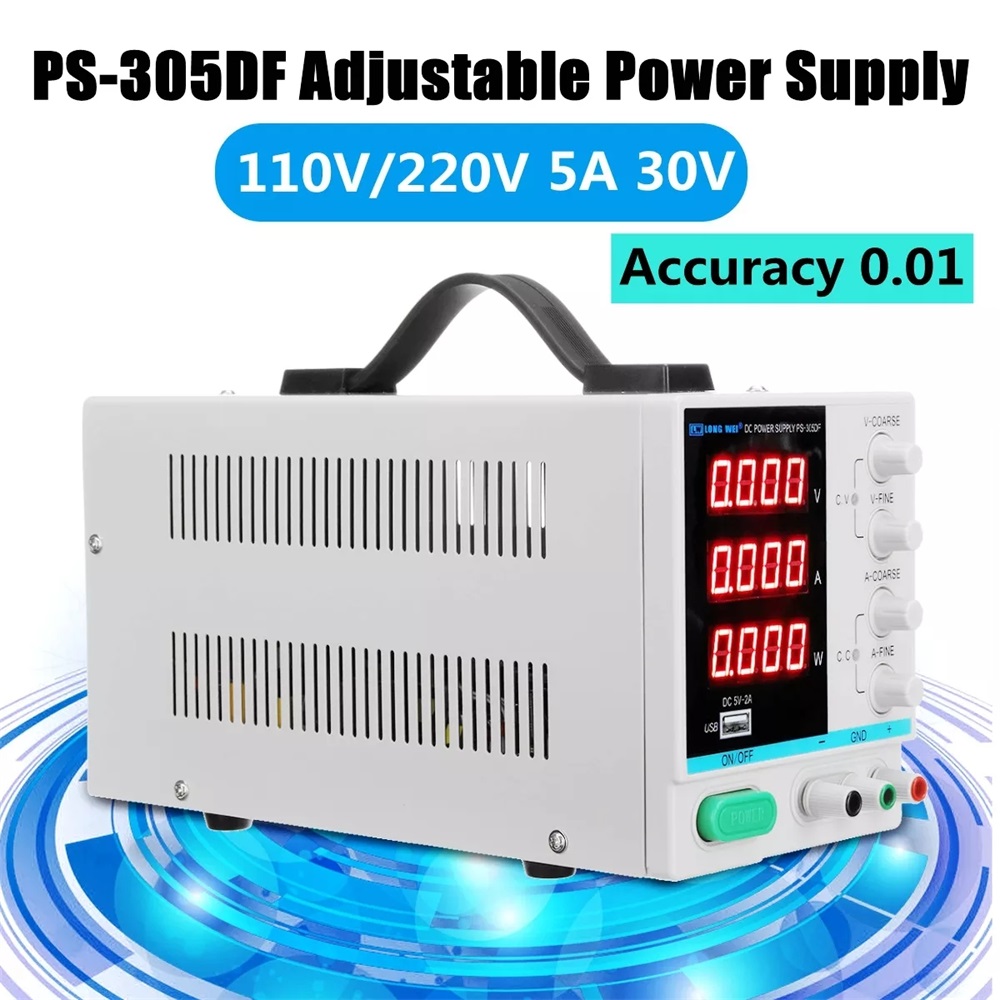

PS305DF DC Power Supply 4 Digtal Display 30V 5A Adjustable Switching Power Supply w/ USB Interface
PS305DF DC Power Supply 4 Digtal Display 30V 5A Adjustable Switching Power Supply w/ USB Interface
$115.99
Ex Tax: $115.99
- Stock: In Stock
- Model: MZ001896
- SKU: MZ001896
Specifications:
| Brand | LONG WEI |
| Model | PS-305DF |

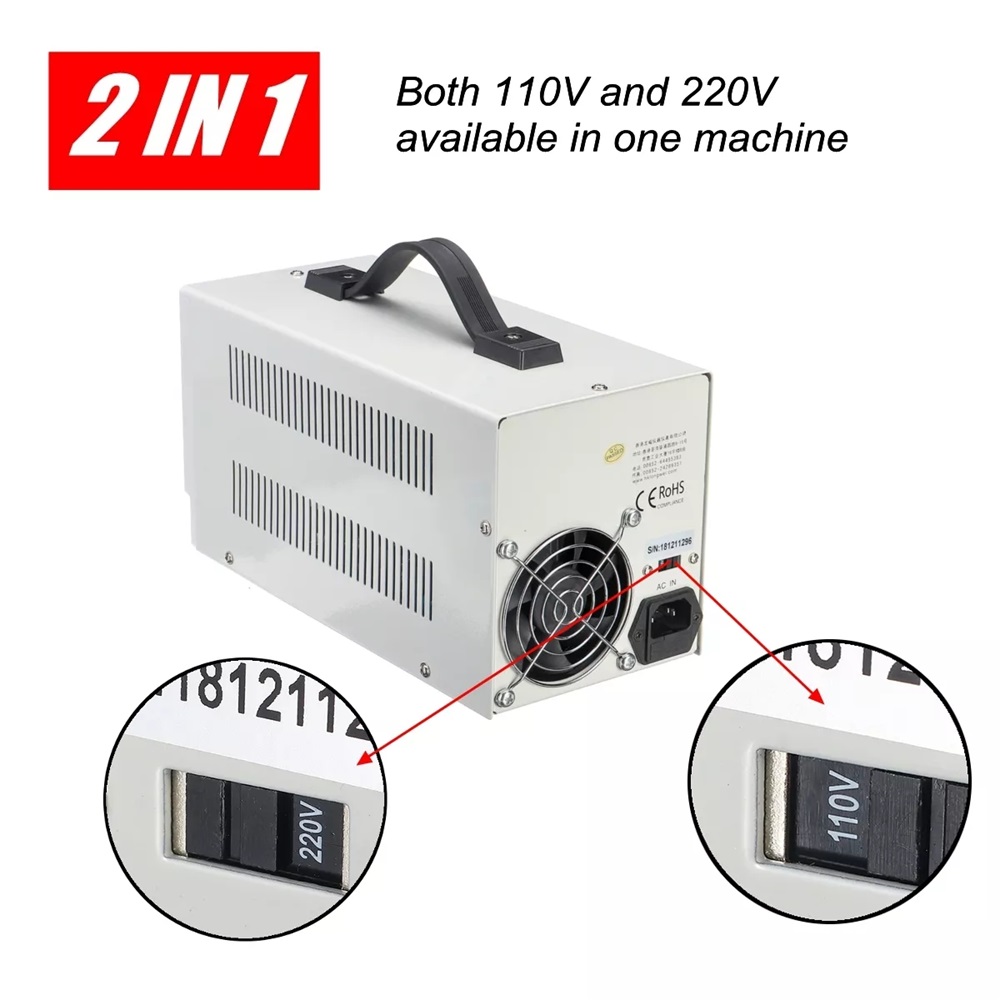

| Input voltage | 220V±10%@50Hz, or 110V±10%@60Hz, manual switching |
| Output Voltage | 0-30V |
| Current | 0-5A |
| Working environment | Temperature: -10 ° C ~ 40 ° C Relative humidity: <80% |
| Storage conditions | Temperature: -20 ° C ~ 80 ° C Relative humidity: <70% |
| Power effect |
CV ≤ 0.1% + 10mV , CC≤0.1%+10mA |
| Load effect |
CV≤0.1%+5mV , CC≤0.1%+10mV |
| Ripple and noise |
CV≤10mV r.m.s. , CC≤20mA r.m.s. |
| Display mode | 4-digit LED digital display |
| Display accuracy | ±0.1% ± 1 word |
| Size | 285*128*145mm |
Pressure test:
Input-output: 1.5KVAC/1 minute
Input - Housing: 1.5KVAC / 1 minute
Output - Housing: 500VAC / 1 minute
Grounding resistance: <20mΩ

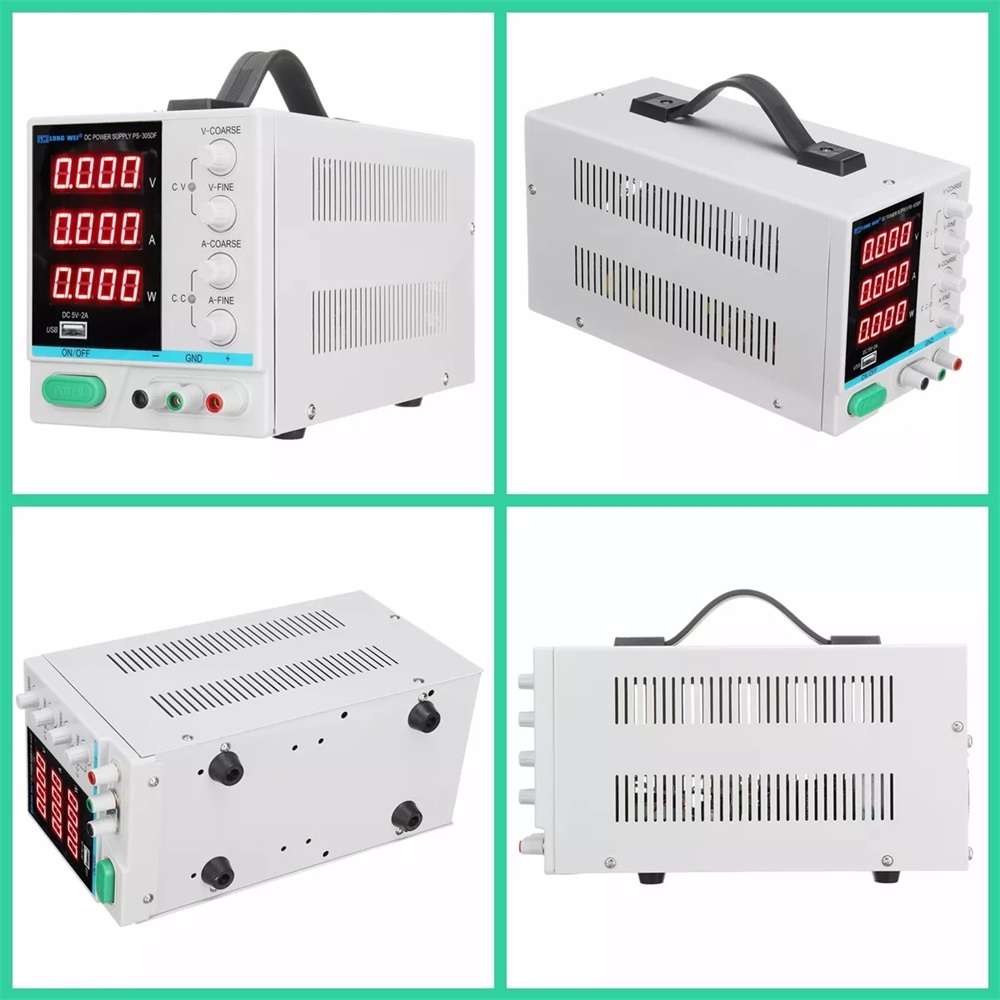

Appearance size: length 285mm* width 128mm* height 145mm (excluding protruding parts)

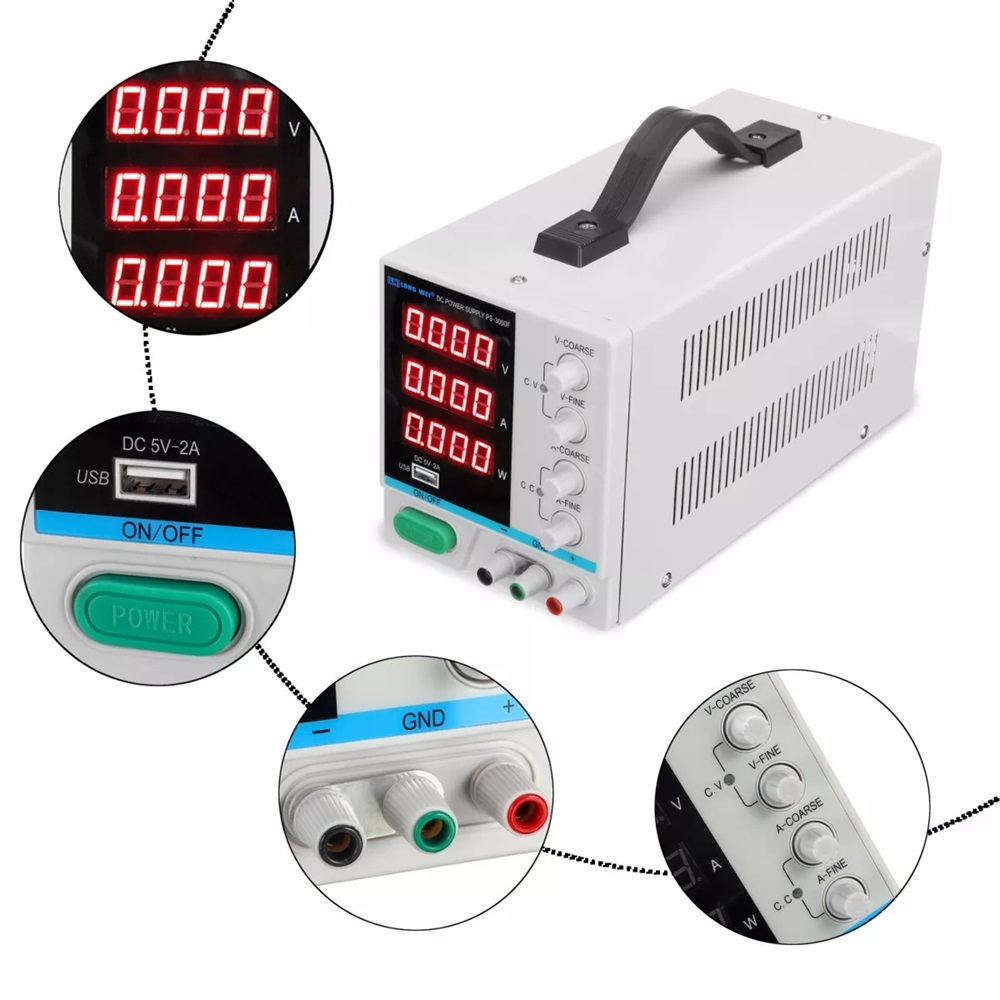

Features:
-- Provide 5V2A USB interface
-- 4-digit number shows current voltage and power
-- Single output, high precision, high reliability, low ripple and noise
-- There are many protection functions such as temperature, overload and current limiting.

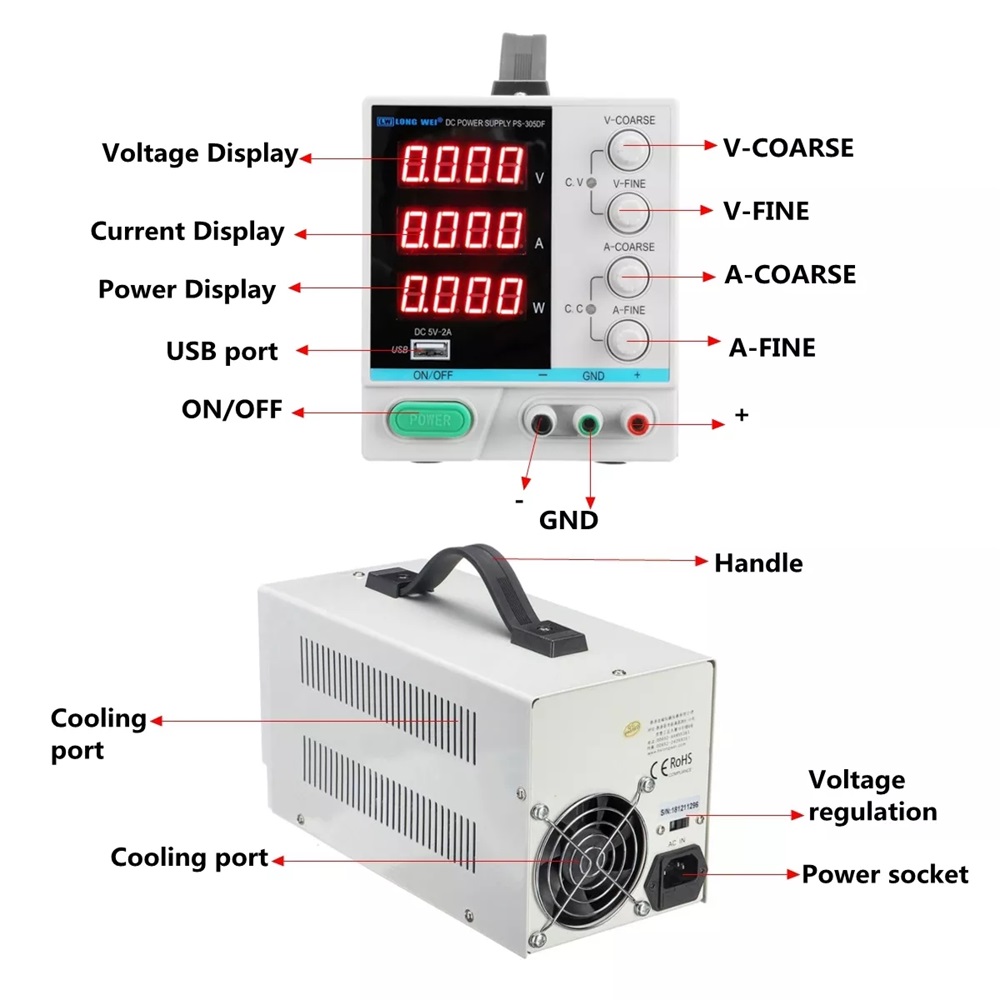

-- With voltage / current coarse adjustment knob, can adjust the voltage / current value accurately
Application range:
-- For teaching experiments, research
-- For the repair of communication equipment
-- Other areas that require DC regulated power supplies
-- Testing and aging for electronic production line products

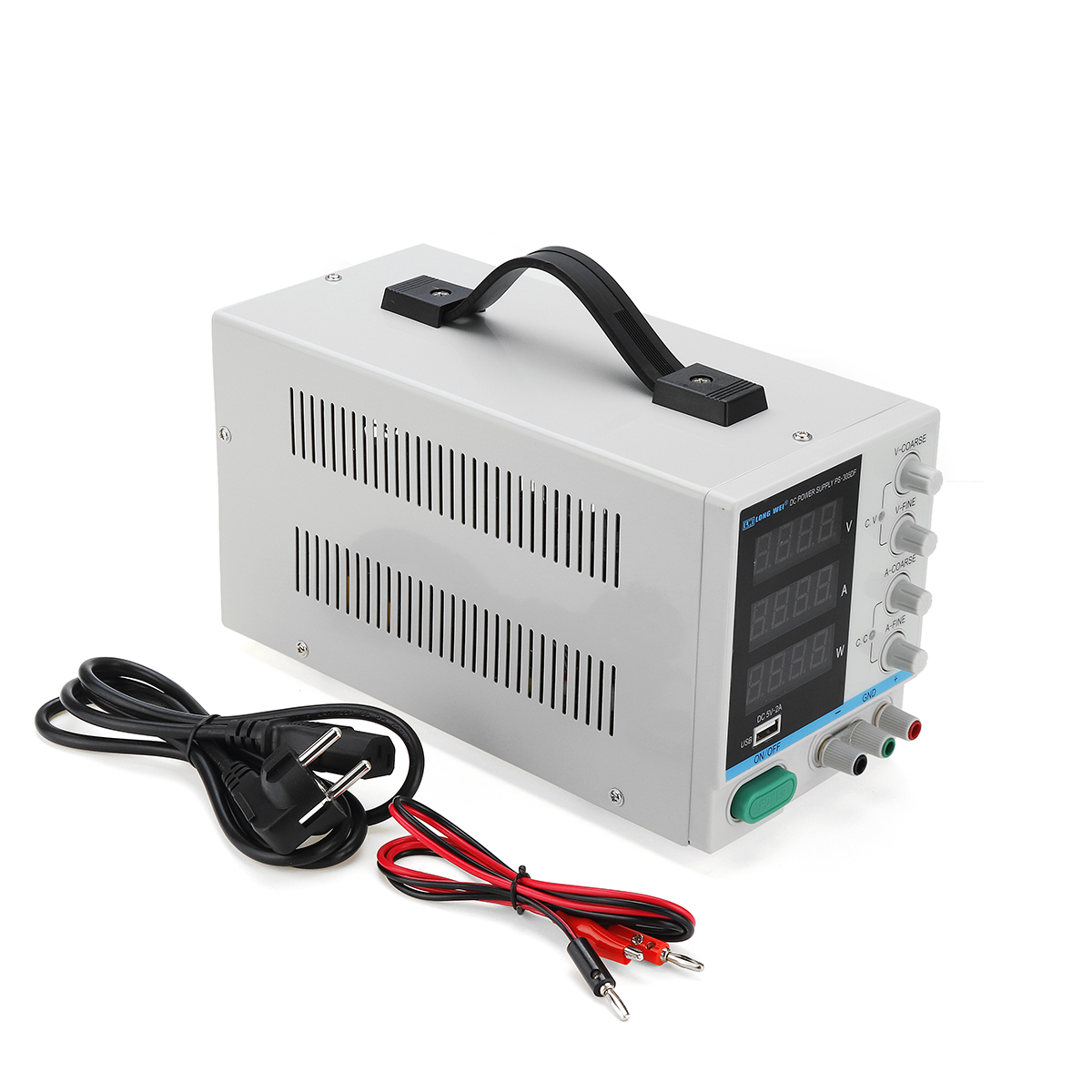

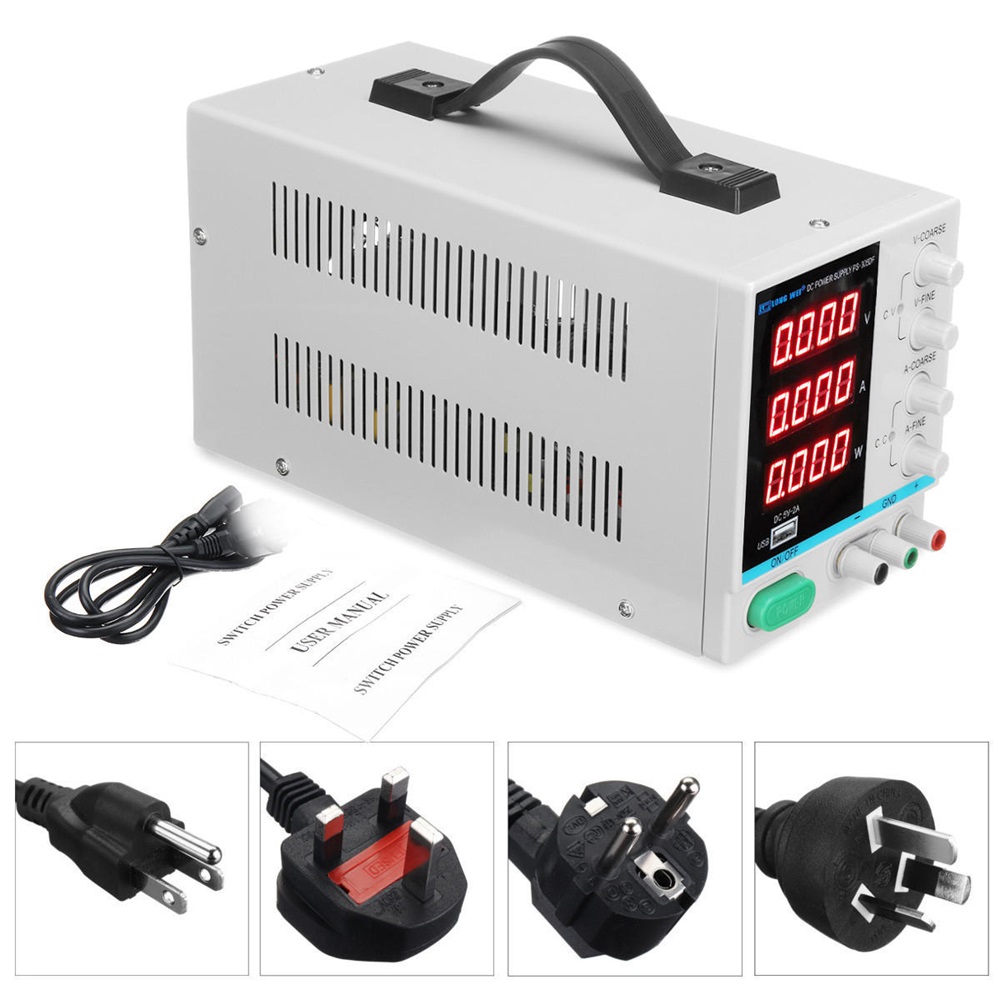

Package Included: 1 x DC Power Supply
1 x Power Cord
Package Included: 1 x DC Power Supply
1 x Power Cord
