New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery

New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
Hot
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
New PortaPack H2 And HackRF One SDR Software Defined Radio 1MHz-6GHz Assembled with Antennas Built-in Rechargeable Battery
$272.99
Ex Tax: $272.99
  • Stock: In Stock
  • Model: MZ003718
  • SKU: MZ003718
  • UPC: 621240664342
Hardware Configuration:

-3.2 inches TFT 240 * 320 screen
-Navigation switch
-Audio output
-Microphone input
-DC 2.1 interface
-4-layer gold plate
-ROSH process

Add a PortaPack to your software defined radio HackRF, and leave your laptop behind! The PortaPack connects to your HackRF and adds an LCD touchscreen, navigation controls, headphone jack, real-time clock, micro SD card slot.

Just add a USB battery, and you're ready to explore radio spectrum wherever you are. The PortaPack firmware works with the fast ARM processors in your HackRF. No computer is needed (except for firmware reprogramming).

Functions:

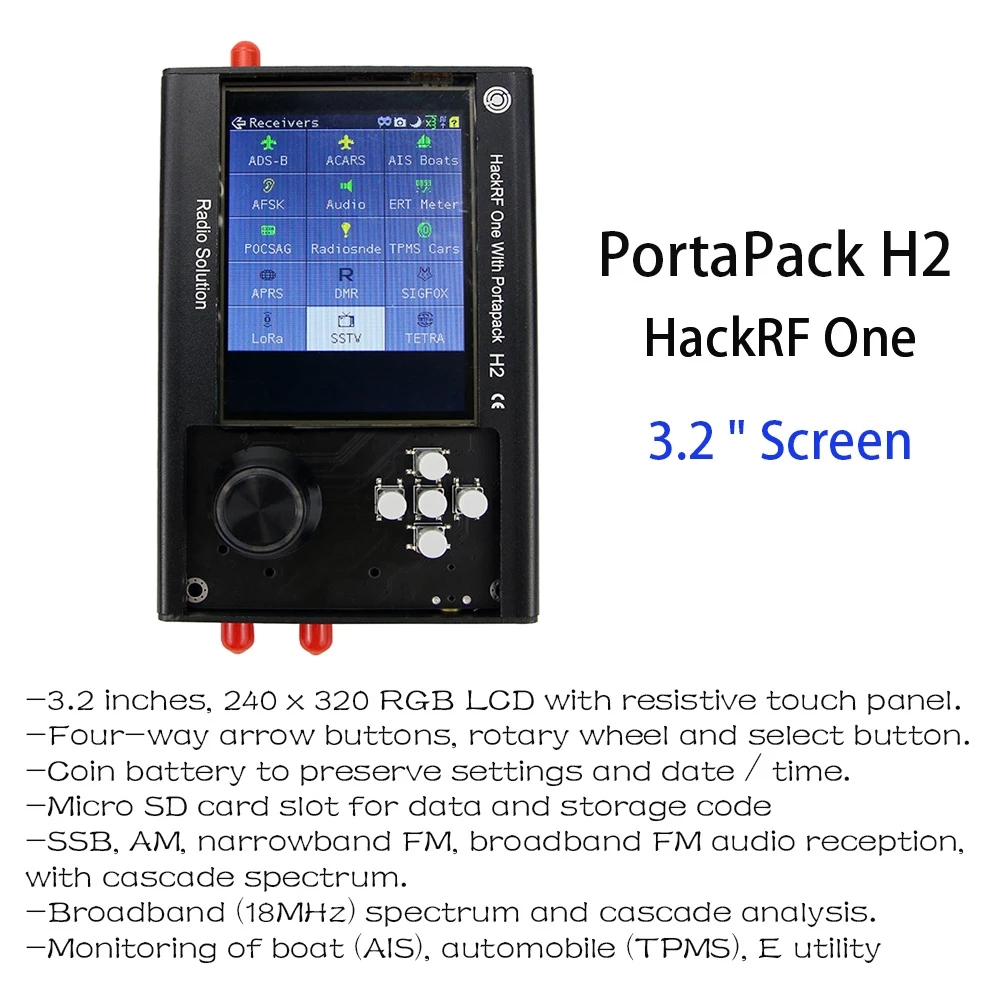

-3.2 inches, 240 x 320 RGB LCD with resistive touch panel.
-Four-way arrow buttons, rotary wheel and select button.
-Coin battery to preserve settings and date / time.
-Micro SD card slot for data and storage code
-SSB, AM, narrowband FM, broadband FM audio reception, with cascade spectrum.
-Broadband (18MHz) spectrum and cascade analysis.
-Monitoring of boat (AIS), automobile (TPMS), E utility counter transponder (ITRON ERT).
-HackRF mode runs HackRF firmware for use with the SDR host computer software.
-Calibration PPM for more accurate tuning.
-Sleep mode saves energy by turning off the display only.

Features:

-Your HackRF will continue to work with the computer-based SDR software when you put the PortaPack in "HackRF mode".

-PortaPack is only compatible with the HackRF Unio. It is not compatible with the first HackRF Jawbreake design. If you have an RF shield installed on your HackRF, the PortaPack should be fine.

-PortaPack and HackRF of Un will not replace your handheld ham radio receiver. Reception sensitivity varies from band to band, but will not perform as well as a real ham radio receive

-Built-in rechargeable lithium battery

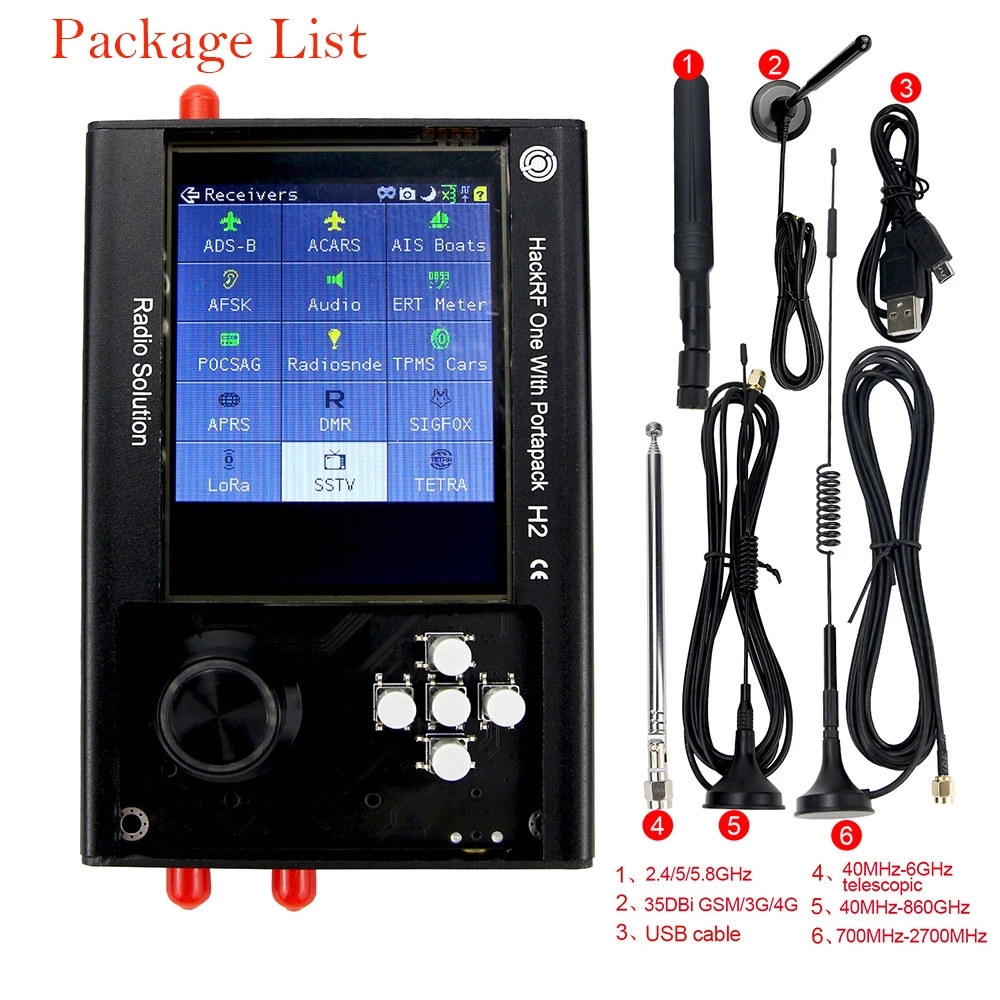

Package Includes:

-1 x SRD Radio (PortaPack H2+HackRF)
-1 x Data Cable
-5 x Antennas

Note:
-The product is assembled.
-The battery is included.
