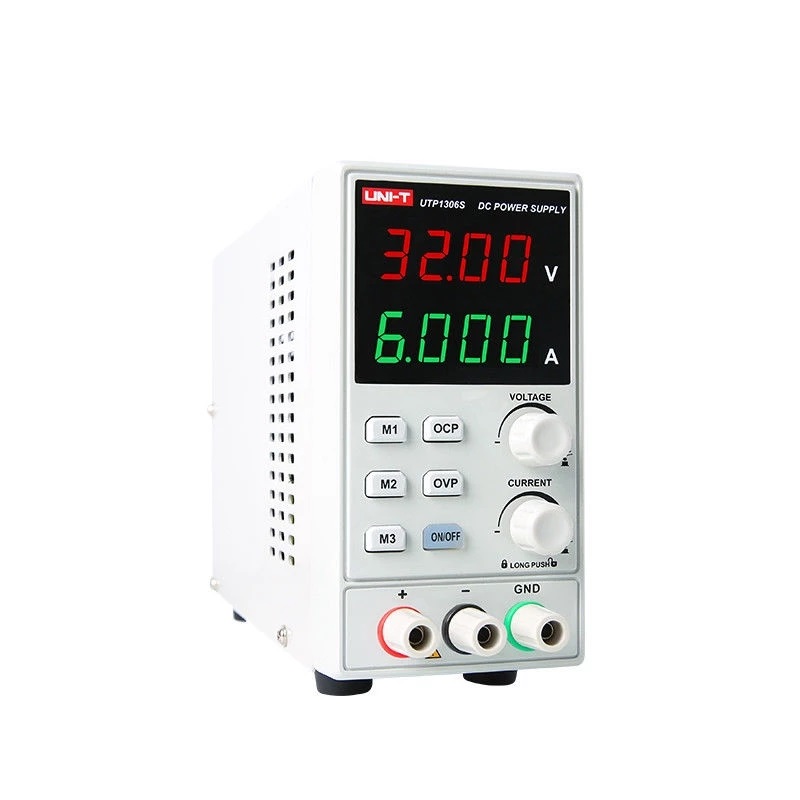

UTP1306S 32V 6A DC Power Supply Single Channel 4Bits 220V Input Regulated Switch Adjustable DC Power Supply for OVP Mobile Phone Repair
UTP1306S 32V 6A DC Power Supply Single Channel 4Bits 220V Input Regulated Switch Adjustable DC Power Supply for OVP Mobile Phone Repair
$88.99
Ex Tax: $88.99
- Stock: In Stock
- Model: MZ005133
- Weight: 561.00g
- SKU: MZ005133
Features:
UTP1306S DC Power Supply series are single-channel linear DC power supplies with low ripple/noise, overload protection and constant voltage/current features.
Specification:
Brand: Moonzite
Model: UTP1306S
LED Display: 4 digits
Input voltage: 220V(can shift)±10%
Output voltage: 0 ~ 32V
Output current: 0 ~ 6A
Output Power: 192W
Load regulation rate voltage: <0.5%+10mV
Load regulation rate current: <0.5%+3mA
Power regulation rate voltage: <0.3%+5mV
Power regulation rate current: <0.5%+3mA
Set resolution voltage: 10mV
Set resolution voltage current: 1mA
Readback resolution voltage: 10mV
Readback resolution current: 1mA
Setting accuracy current:<0.5%+3mA
Ripple and noise voltage: 10mVrms
Ripple and noise current: 5mArms
OVP: 0-32V±0.2%FS
OCP: 0-6A±0.2%FS
Operating environment: 0-40°,<80%RH
Storage environment: -15-70°,<80%RH
Weight: 1541g
Size: 230 x 79 x 150mm
Color: white

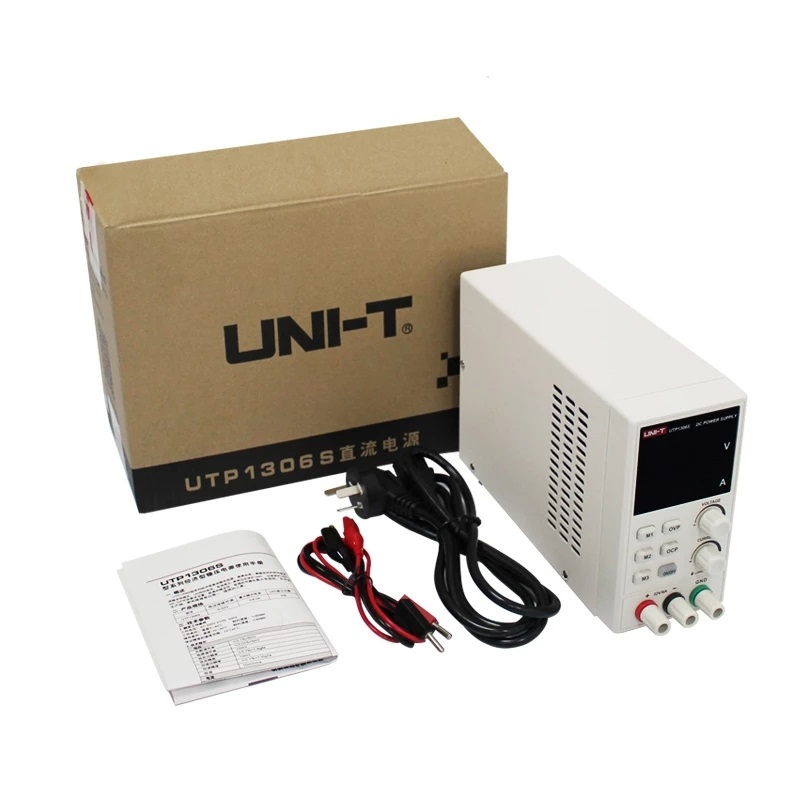

Package included:
1 x UTP1306S DC Power Supply
1 x Adapter
2 x Test cable
