T2L 256*192 Thermal Imager Camera Infrared Thermometer Imager Industrial Tester Imaging Camera for Mobile Phone Android
T2L 256*192 Thermal Imager Camera Infrared Thermometer Imager Industrial Tester Imaging Camera for Mobile Phone Android
$319.99
Ex Tax: $319.99
- Stock: In Stock
- Model: MZ009359
- Weight: 576.00g
- SKU: MZ009359
>>Note: PC notebook, you need to connect with a data cable, and then open a software.<<
T2L Xtherm APP - Google Play
Tipes: The following mobile phone models are not compatible with this product:
SMS A41 、SMS A13 、SMS A31 、SMS Note 10 、
SMS S21 、SMS S20 、SMS A12 、SMS A32 、
SMS A11
Description:
T2L adopts InfiRay® high-performance infrared tester with a small size, light weight, low power consumption, and strong performance.
After connecting to the mobile phone, It is plug and play to open the new infrared vision. It can be widely used in various application scenarios, such as professional testing instruments/meters/circuits, moisture leakage/wall cracking/floor heating fault, and hotel camera checking.
Support the mainstream mobile phone systems, and some systems are not tested.
Specification:
Model: T2L
Resolution: 256×192
Pixel Pitch: 12μm
Focus Mode: Manual
Frame Rate: 25Hz
Operating Temperature: -10℃～+50℃
Measuring Range: -20℃~+120℃
Measuring Accuracy: ±3℃ or ±3% of the reading (The larger one shall prevail.)
Temperature Correction: Manual/Auto
Power Consumption: <350mW
Weight: 18g
Dimension: 26×26×26.6mm
Support System: Android 6.0 and above
Image Enhancement: Digital Detail Enhancement (DDE)
Image Correction: Manual
Palette: White hot/Black hot/Iron red/Rainbow/High-contrast rainbow/Iron gray
Secondary Development: Provide SDK for enterprise customers
Temperature Statistics: Support max/min/center temperature display and temperature statistics of point, line, and area
Video Storage: Support taking and saving photos and videos
Software Update: Support online software updating
Package Included:
1 x Thermal Imager
1 x Type-C Cable
1 x Manual
1 x Packing Box
>>Please Contact us to download the CE certificate<<
>>Please Contact us to download Windows SDK demo<<
Common Problem:
1.
Q: Why can't the image of OPPO, VIVO, IQOO mobile phone be displayed after connecting?
A: The method is as follows: mobile phone settings option ― search bar ― input OTG ― after finding the option, set it to the on state.
2.
Q: If it is an old mobile phone, how to connect the thermal imager if the interface is Micro?
A: Need to use Type-C female port to Micro male port adapter to use, and must support OTG function.
3.
Q: Can the Apple version and the Android version be compatible?
A: No. These are two completely different systems, and the interface hardware is essentially different, so they cannot be used universally through adapters.

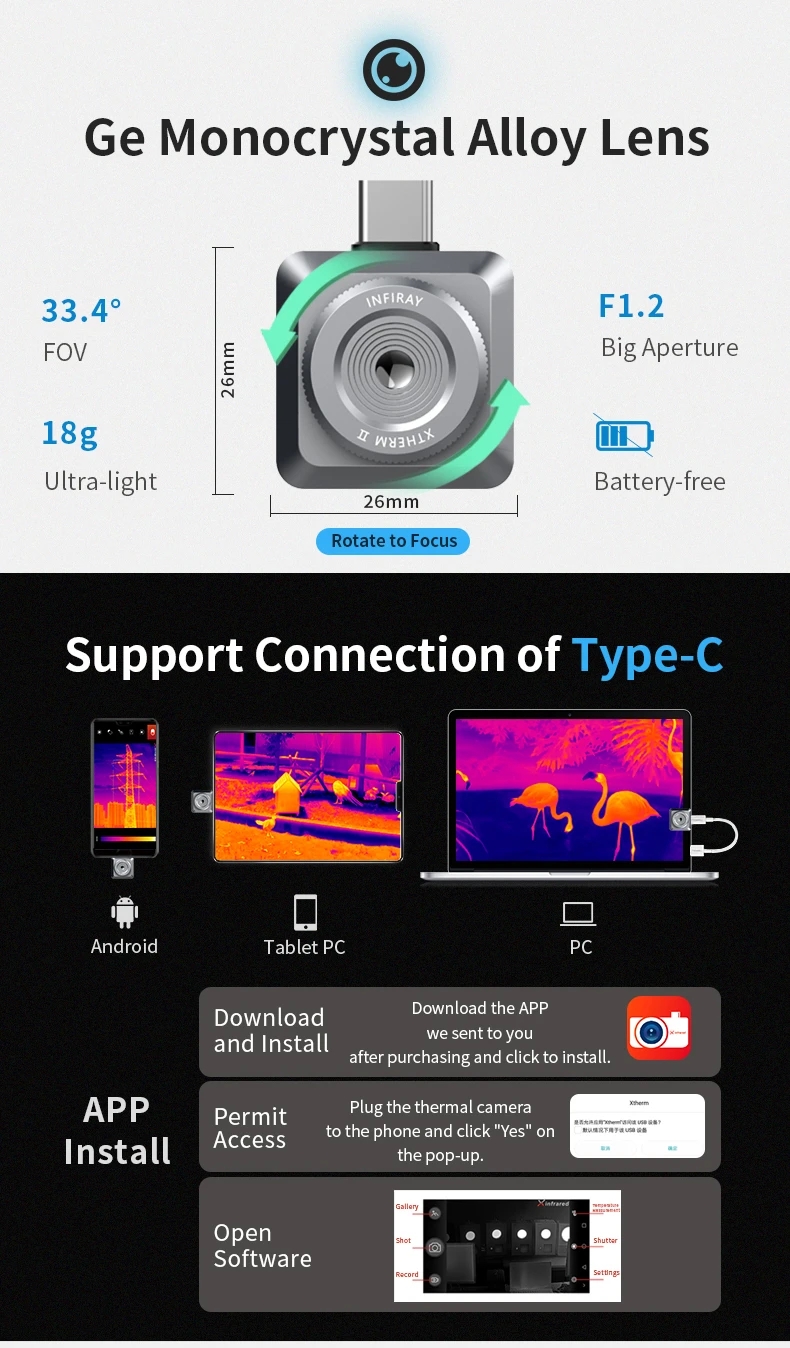

Details Pictures:
