2.8Inch Tinysa Spectrum Analyzer MF/HF/VHF UHF Low 0.1MHz-350MHz High 240MHz-960MHz Signal Generator
2.8Inch Tinysa Spectrum Analyzer MF/HF/VHF UHF Low 0.1MHz-350MHz High 240MHz-960MHz Signal Generator
$89.99
Ex Tax: $89.99
- Stock: In Stock
- Model: MZ005036
- Weight: 588.00g
- SKU: MZ005036
- UPC: 681877469871
Features:

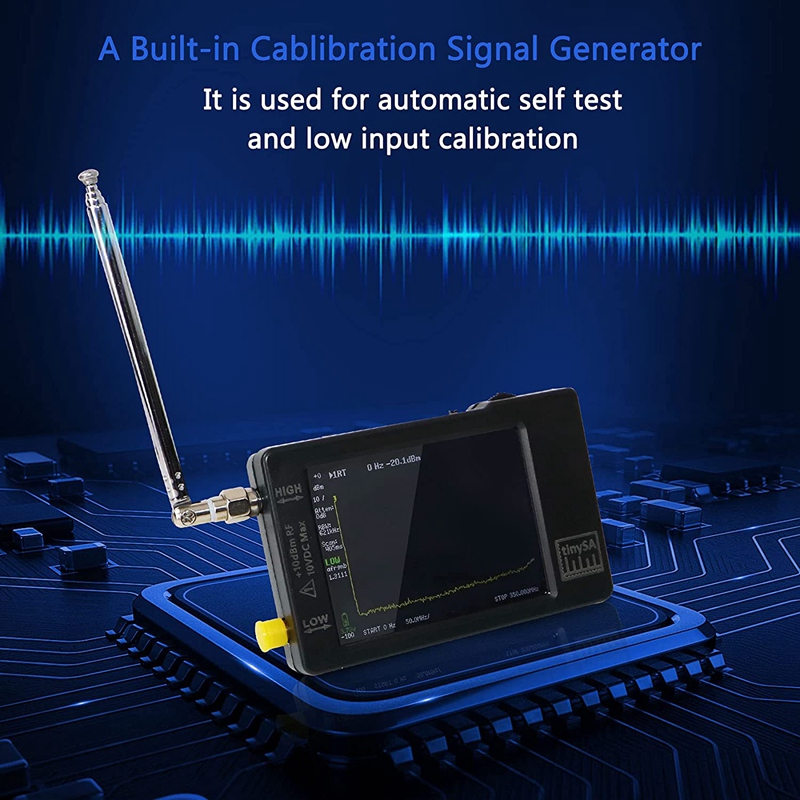

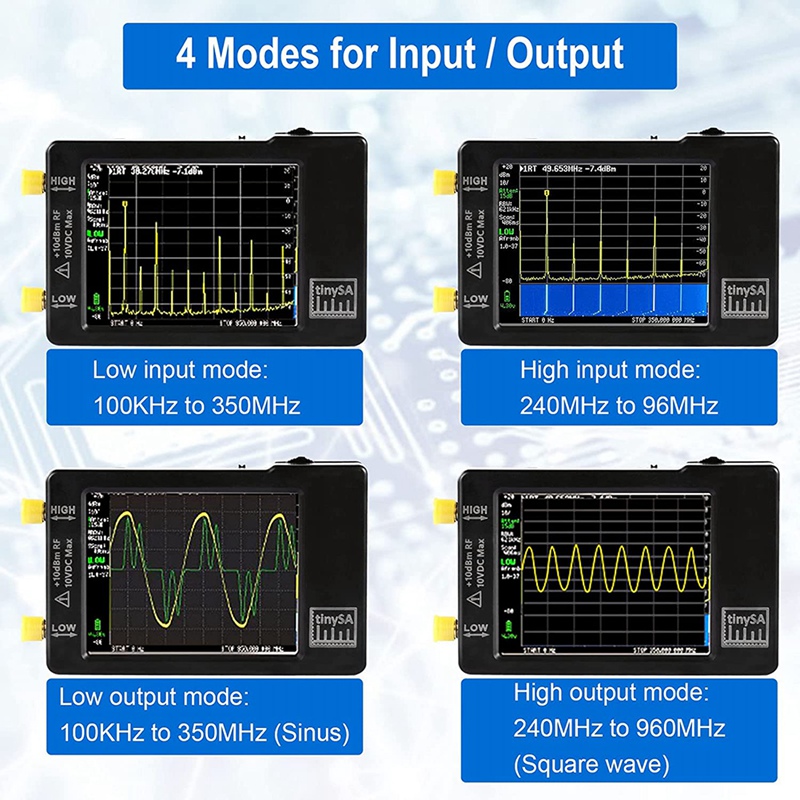

Bulit-in Calibration Signal Generator: When not doing spectrum analyzer, it can be used as signal generator with two frequency outputs,MF/HF/VHF sinus output for 0.1MHZ-350MHz and UHF square waves output for 240MHz-960MHz. It is used for automatic self test and low input calibration.

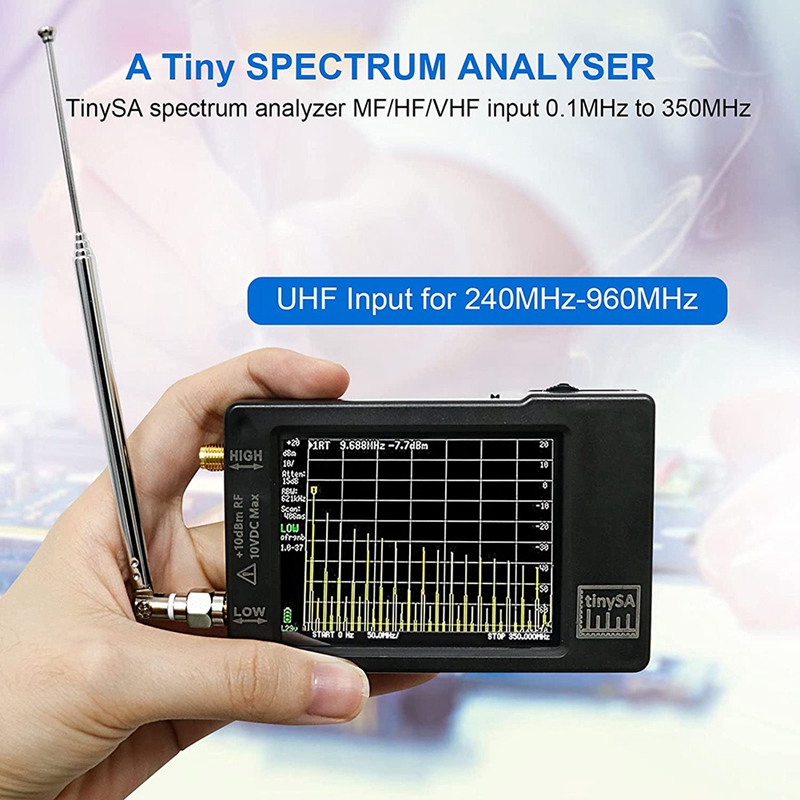

Input Frequency Range: This Spectrum Analyzer with two inputs ,high quality MF / HF / VHF Input for 0.1MHZ-350MHZ and lesser quality UHF Input for 240MHZ- 960MHz.

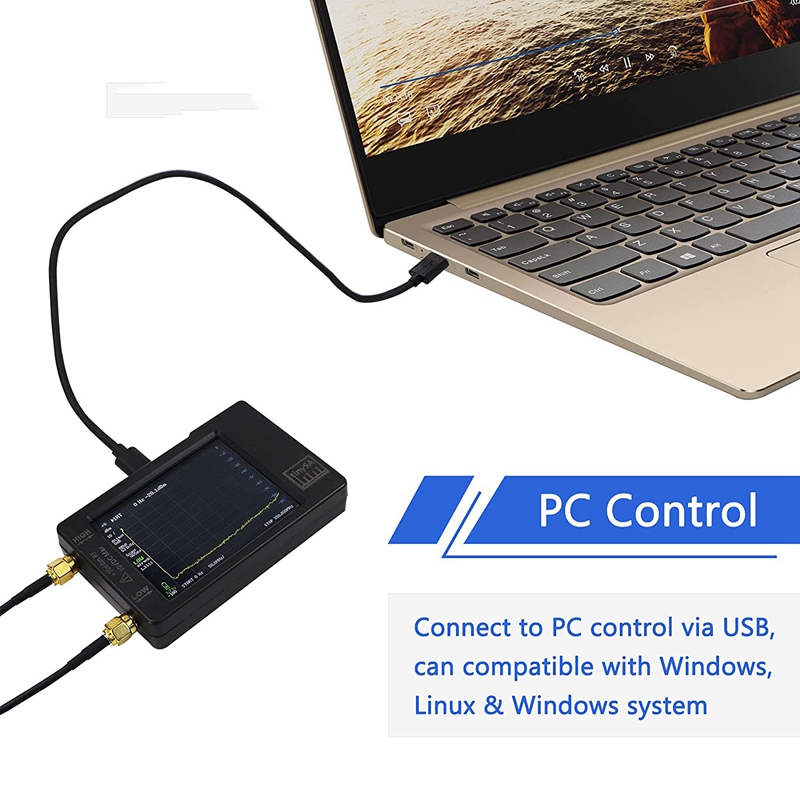

PC Control: This spectrum analyzer can be connected to PC through USB, and realizes the serial over USB (CDC) protocol, which can call a large number of commands. After connecting the PC, the driver will be downloaded automatically.
ESD Protection Function: The latest version 3.1, new ESD protection function, installed diodes,so that it has more sensitive response performance, efficient anti-static level, better quality, longer service life.
Specification:

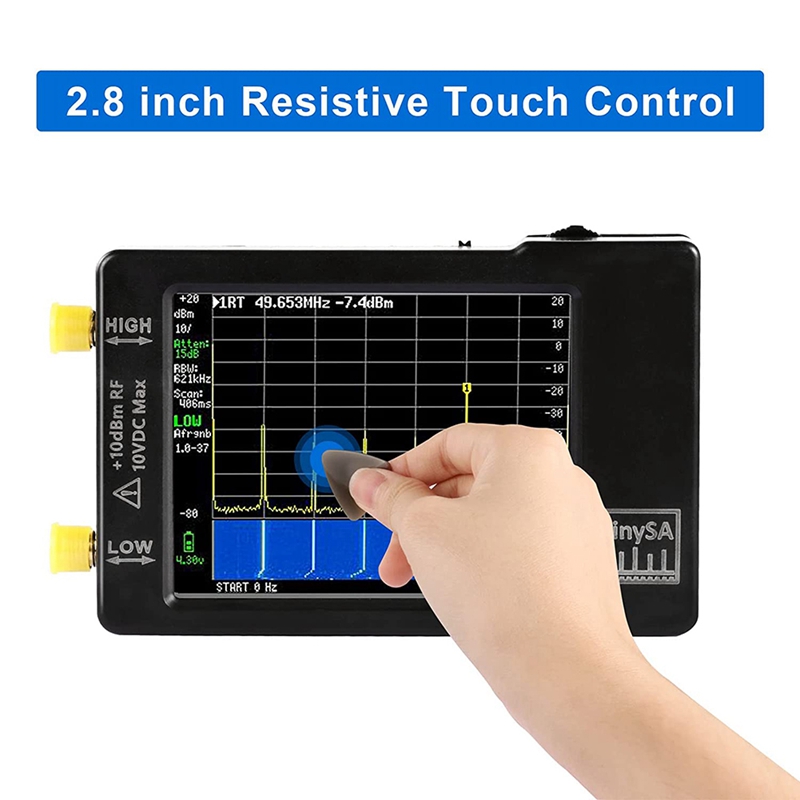

Display: 2.8", 320x240, resistive touch
Low input port (high performance): 100kHz - 350MHz
High input port (performance limited): 240MHz - 960MHz
Resolution filter: from 3kHz to 600kHz
Low output port (sine wave): 350MHz
Low Output Port Power: -76dBm to -7dBm
High output port (square waves): 240MHz - 960MHz
High output port power: -32dBm to 16dBm
Scan points displayed: max 290
Fastest sweep time from 0-350MHz: 405ms
Minimum zero sweep width time: 1.8ms
Low input port display average noise level: -146dBm/Hz (-111dBm@3kHz RBW)
High input port display average noise level: -163dBm/Hz (-128dBm@3kHz RBW)
Phase noise (10kHz): -83dBc/Hz
Phase noise (100kHz): -98dBc/Hz
Low input port 1dB compression point: -2dBm
High input port 1dB compression point: -6dBm
Low input port third-order cross-tuning cut-off point: +24dBm
Frequency Error:<2ppm
Frequency stability:<1ppm
Communication interface: USB type-C (communication mode: CDC serial)
Power supply: USB 5V 150mA.
Built-in 650mAh battery, 300mA max charging current

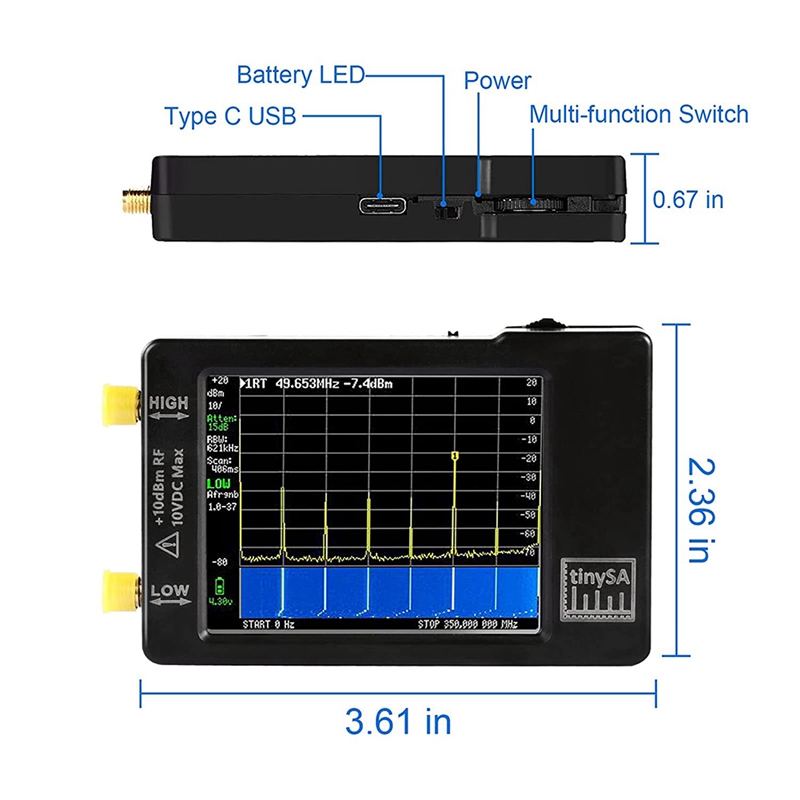

Dimensions: 58.7mm x 91.3mm x 17.1mm (excluding protrusions)
Low input mode specification:
Input frequency range: 100kHz to 350MHz
Front attenuator: 0dB-31dB in 1dB manual and automatic input attenuation steps
Absolute maximum input level: +10dBm without attenuation
Damage level: +20dBm
Third order modulation (IIP3) input cut-off point: +24dBm at 0dB attenuation
1dB compression point: +2dBm at 0dB attenuation
Resolution: 0.5dB+/-1dB
Minimum discernible signal: -102dBm@30kHz RBW.
Phase noise of -90dB/Hz at 100kHz, -115dB/Hz at 1MHz
Spurious noise is below -70dBm when using 30kHz resolution bandwidth B.
Resolution filters of 3, 10, 30, 100, 300 and 600 kHz can be selected manually. Automatic selection of one of 57 resolution filters.
On-screen resolution of 51, 101, 145 or 290 measurement points.
Scanning speed of over 1000 points/sec using the maximum resolution filter.
Automatic optimisation of the actual scan points to ensure that the entire scan range is covered regardless of the resolution bandwidth selected.
Spurious rejection option for assessing whether certain signals are internally generated or actually present in the input signal.
High input mode specification: (high input mode is low IF reception achieved using a second receiver, without pre-mirror and spurious filter)
Input frequency range: 240MHz to 960MHz
The input impedance is frequency dependent and deviates from 50 ohms.
Strong input signals outside the 240MHz to 960MHz range cause in-band signal distortion due to the absence of an input band filter.
Absolute maximum input level of +10dBm without attenuation.
Third order modulation product (IIP3) with an input cut-off point of -5dBm.
1dB compression point at -6dBm with no attenuation.
Resolution of 0.5dB and frequency linearity of +/-1dB.
Absolute power level accuracy of +/- 1dB after power level calibration.
Minimum discernible signal using a resolution bandwidth of 30kHz - 115dBm.
Frequency accuracy equal to the selected resolution bandwidth
No spur dynamic range when using a resolution bandwidth of 50dB at 30kHz
Manually selectable resolution filters at 3, 10, 30, 100, 300, 600kHz Automatic selection of one of 57 resolution filters.
Selectable 25dB to 40dB frequency dependent input attenuator. Activating this attenuator increases the power level error to +/- 10dB.
Screen resolutions of 51, 101, 145 or 290 measurement points.
Scanning speed of over 1000 points/sec using the maximum resolution filter.
Automatic optimisation of the actual scan points to ensure coverage of the entire scan range, regardless of the resolution bandwidth selected.
Limitations:
As the tinySA's internal components have been carefully selected to get a balance between performance and cost, you must be aware that the tinySA has significant limitations compared to professional spectrum analysers.
The internal phase noise sets a clear lower limit for phase noise measurements.
The minimum resolution bandwidth of 3kHz prevents more detail of the spectrum from being seen.
Very limited mirror rejection for high inputs (240MHz to 960MHz) and only one level of optional built-in attenuator makes complex signals difficult to resolve.
The optional input attenuator for the high inputs is frequency dependent and varies between 25dB and 40dB.
At lower resolution bandwidths (below 30kHz) the scanning speed can be slow.
Performance limitations of shields and filters may cause some mirroring and spurious to be visible. tinySA offers a spurious cancellation menu which can be set for spurious reduction by experienced users, but care needs to be taken with possible uncertainties.
Below 0.1MHz, sensitivity begins to decrease.
Below 1MHz, it is recommended that AGC is disabled and LNA is enabled where possible to obtain the best possible measurement quality.
Note:
The tinySA is not an SDR receiver and does not provide any receive demodulation!
The tinySA is not a frequency sweeper and does not provide a tracking source output, if a sweep function is required use the NanoVNA!

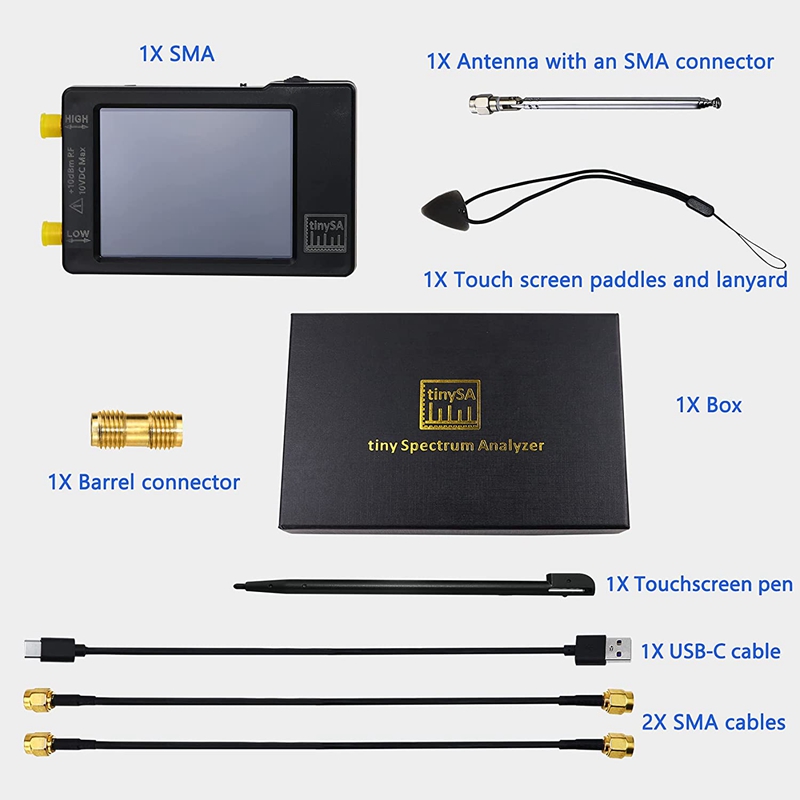

Package included:
1 x Tiny Spectrum Analyzer(Built-in 650mA battery)
2 x 20cm RF Cable
1 x USB-C Cable
1 x SMA Telescopic Antenna
1 x SMA Female to Female Connector
1 x Contactscreen Pen
1 x Contact screen paddles and lanyard
