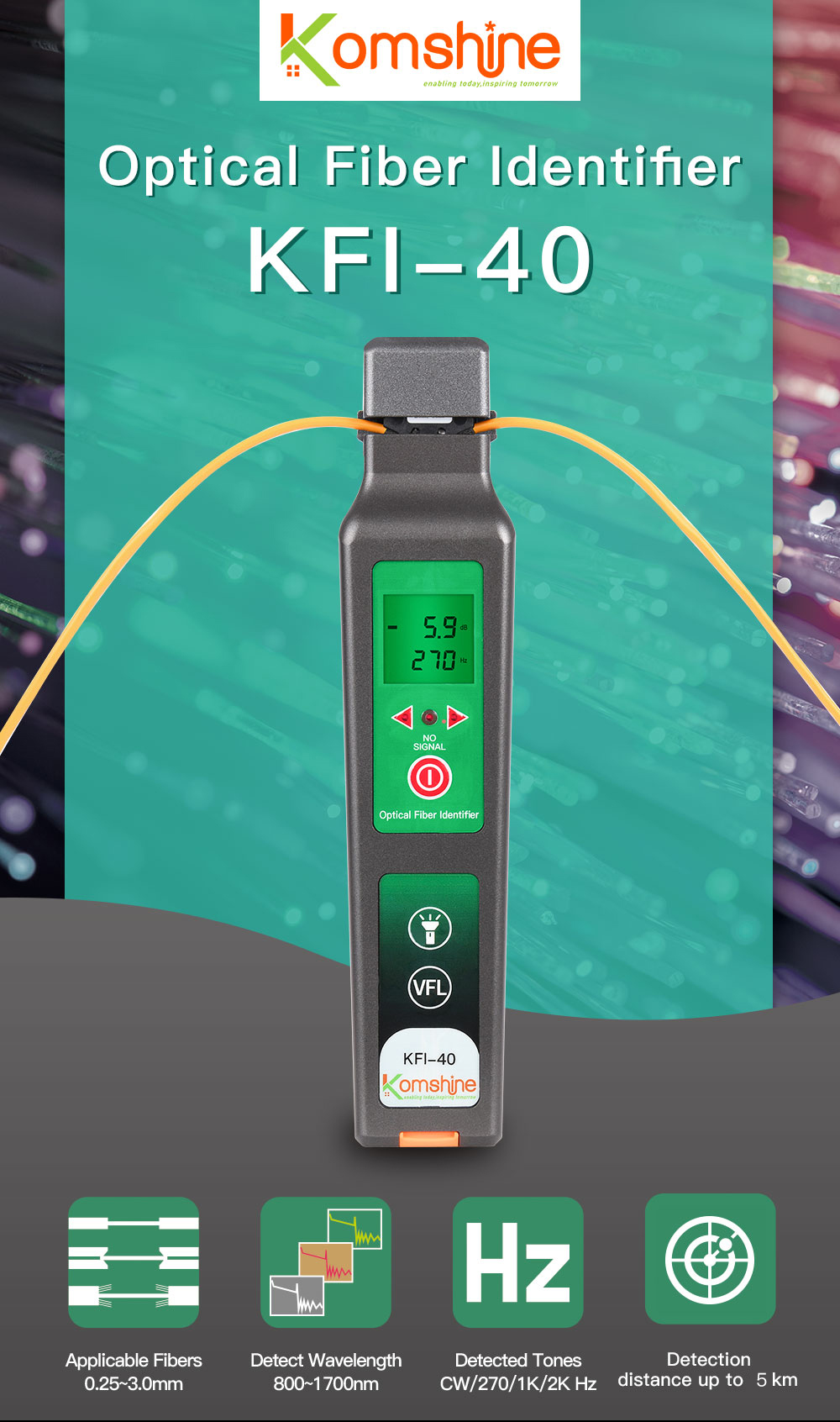

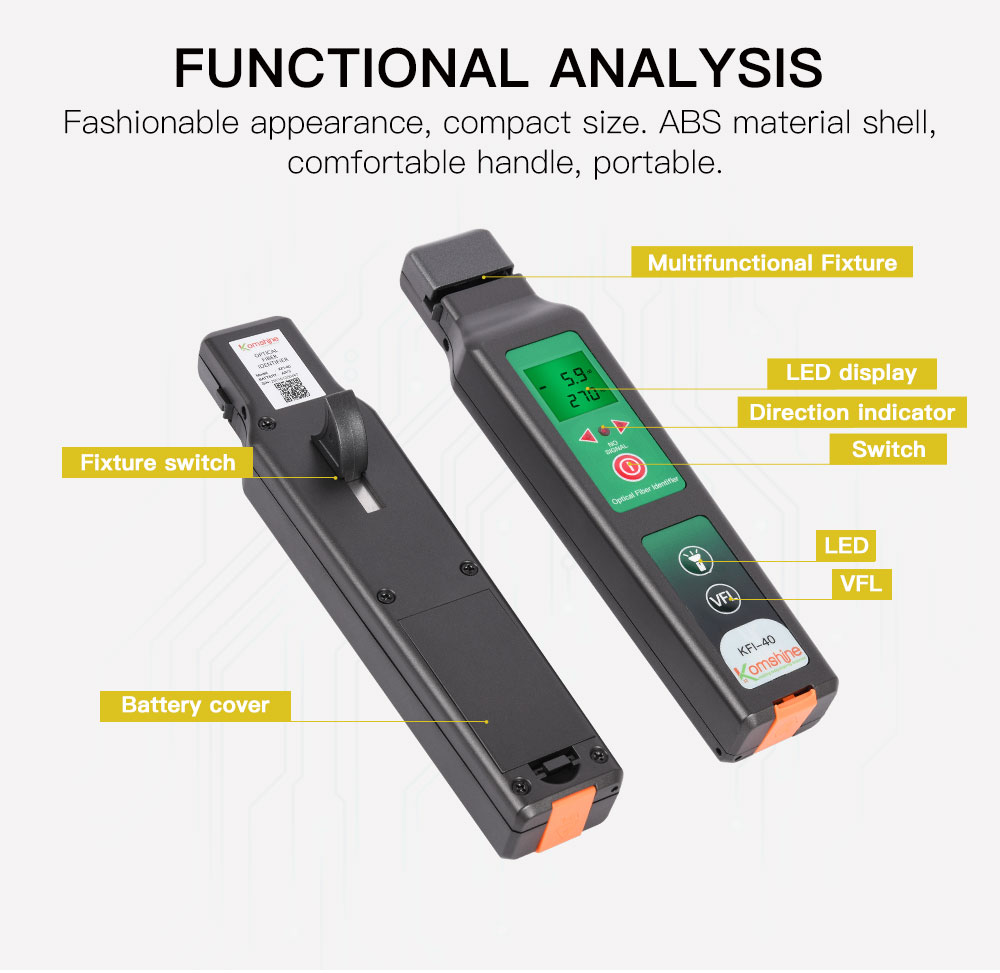

KFI-40 Fiber Optical Identifier with Built 750nm-1700nm SM and MM Optical Fiber Identifier Handheld Fiber Cable FTTH Testing Tool
- Stock: In Stock
- Model: MZ004523
- Weight: 553.00g
- SKU: MZ004523
Features:
* Indicate the signal directions and power in fiber
* Indicate the signal presence or absence(Live or dark fiber)
* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
* Displays the relative core power

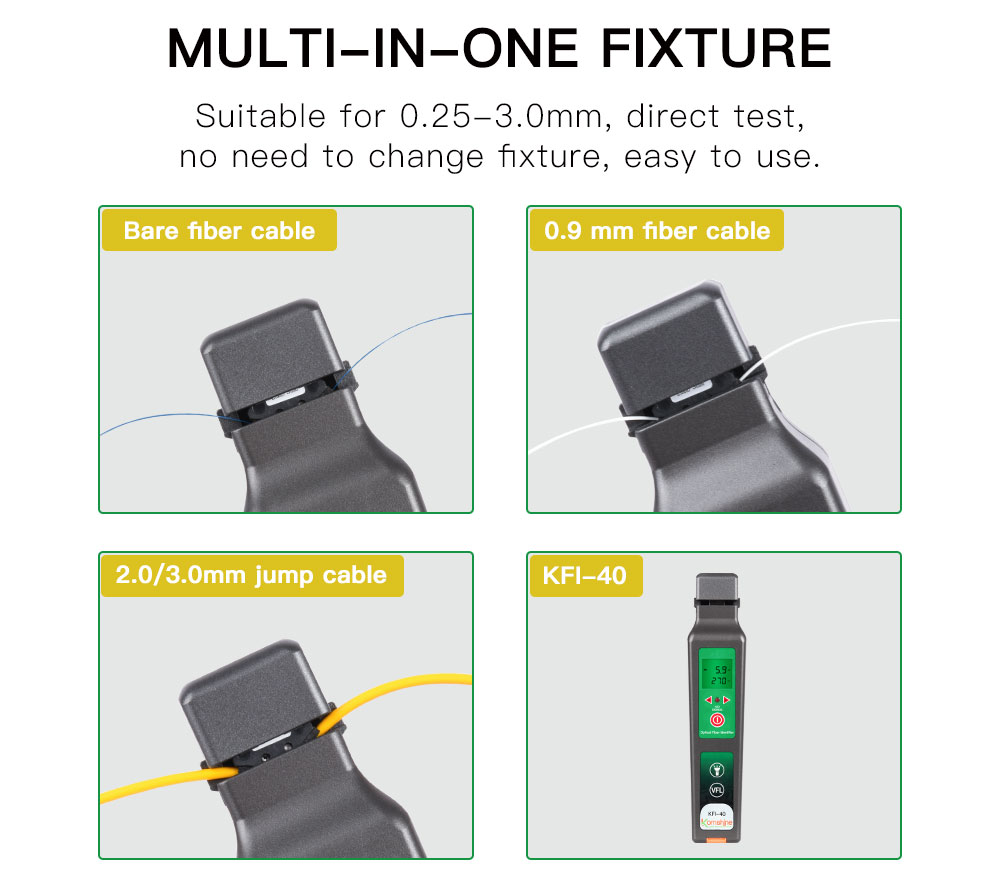

* Don't need to replace adaptor
* Lower power indication

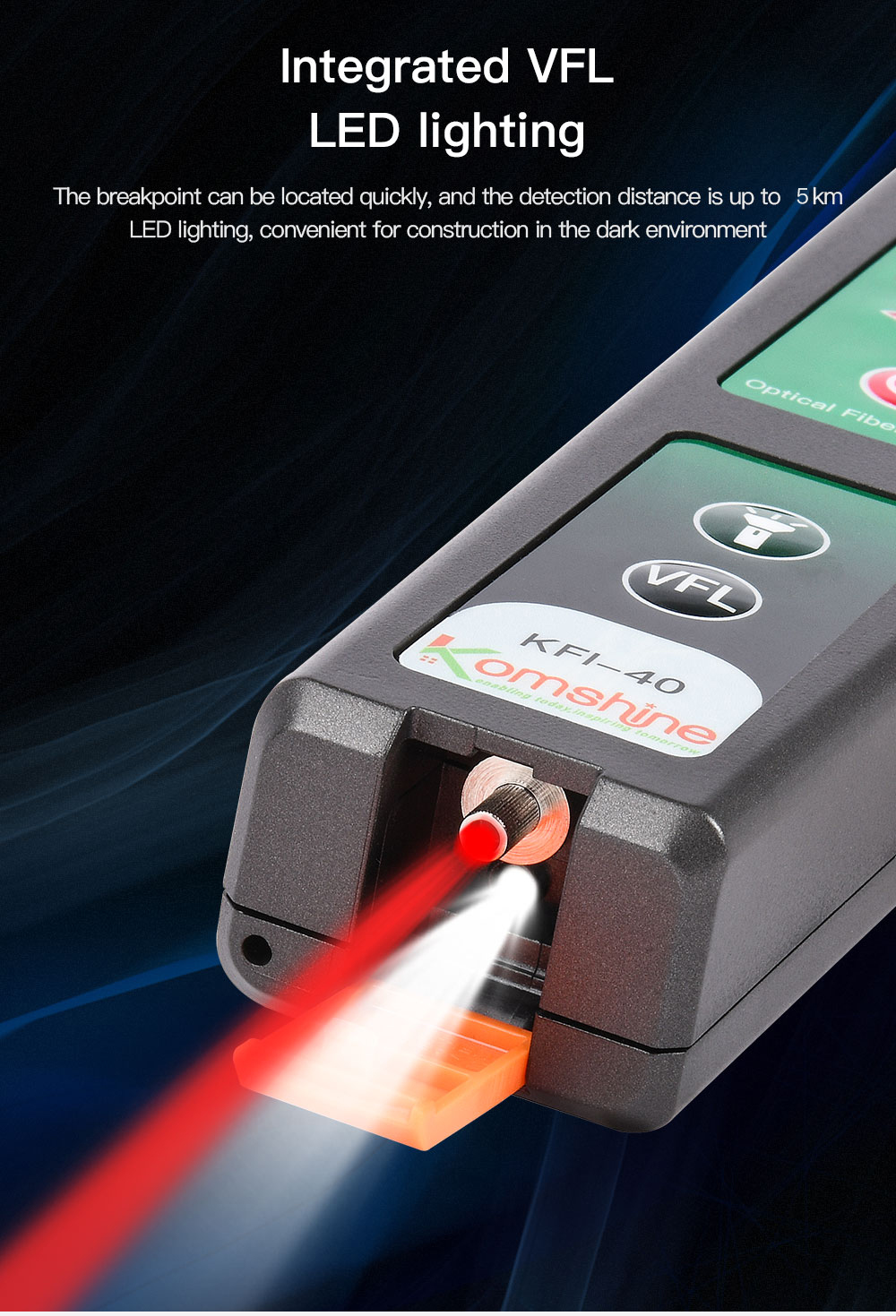

* Build in VFL function

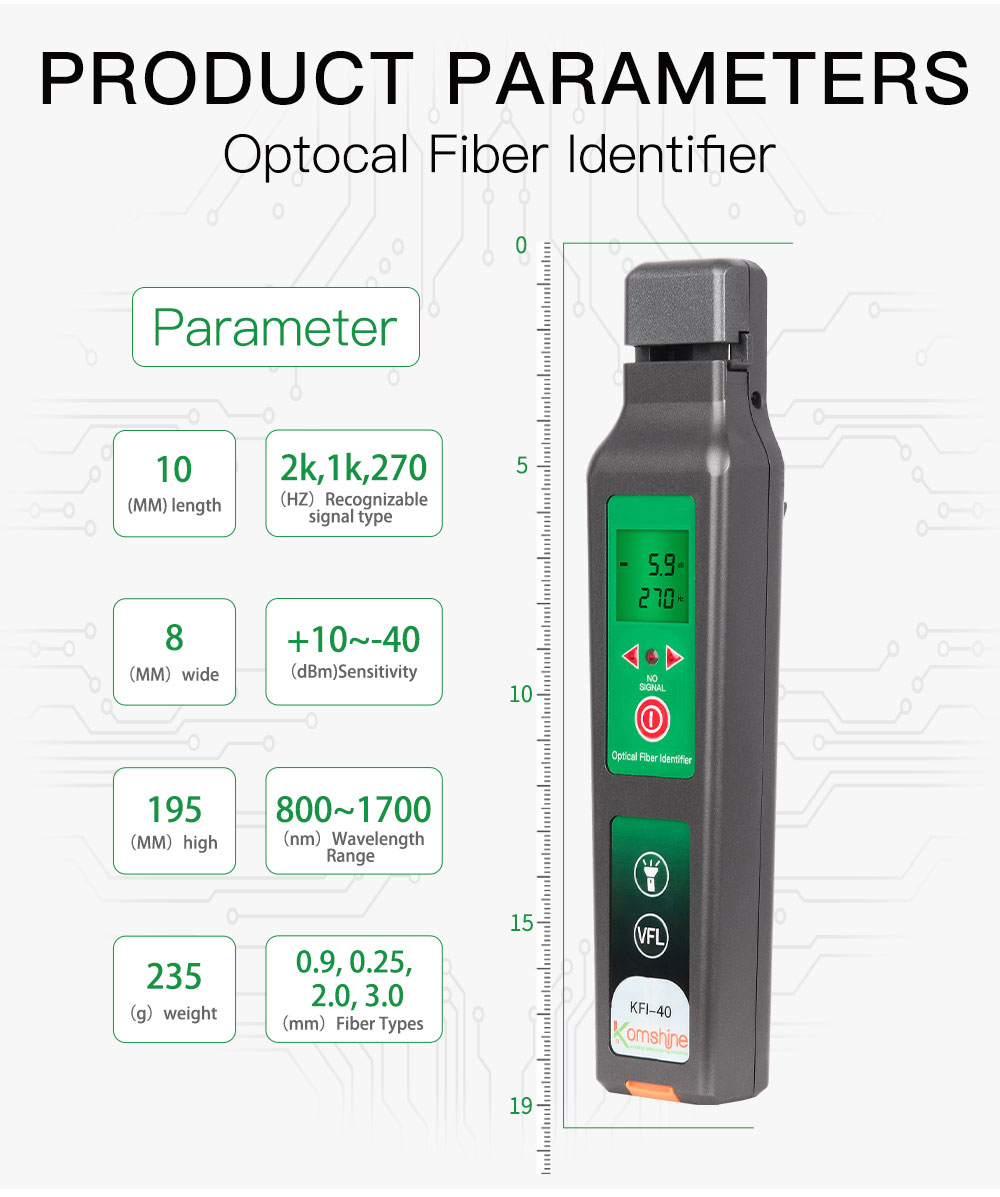

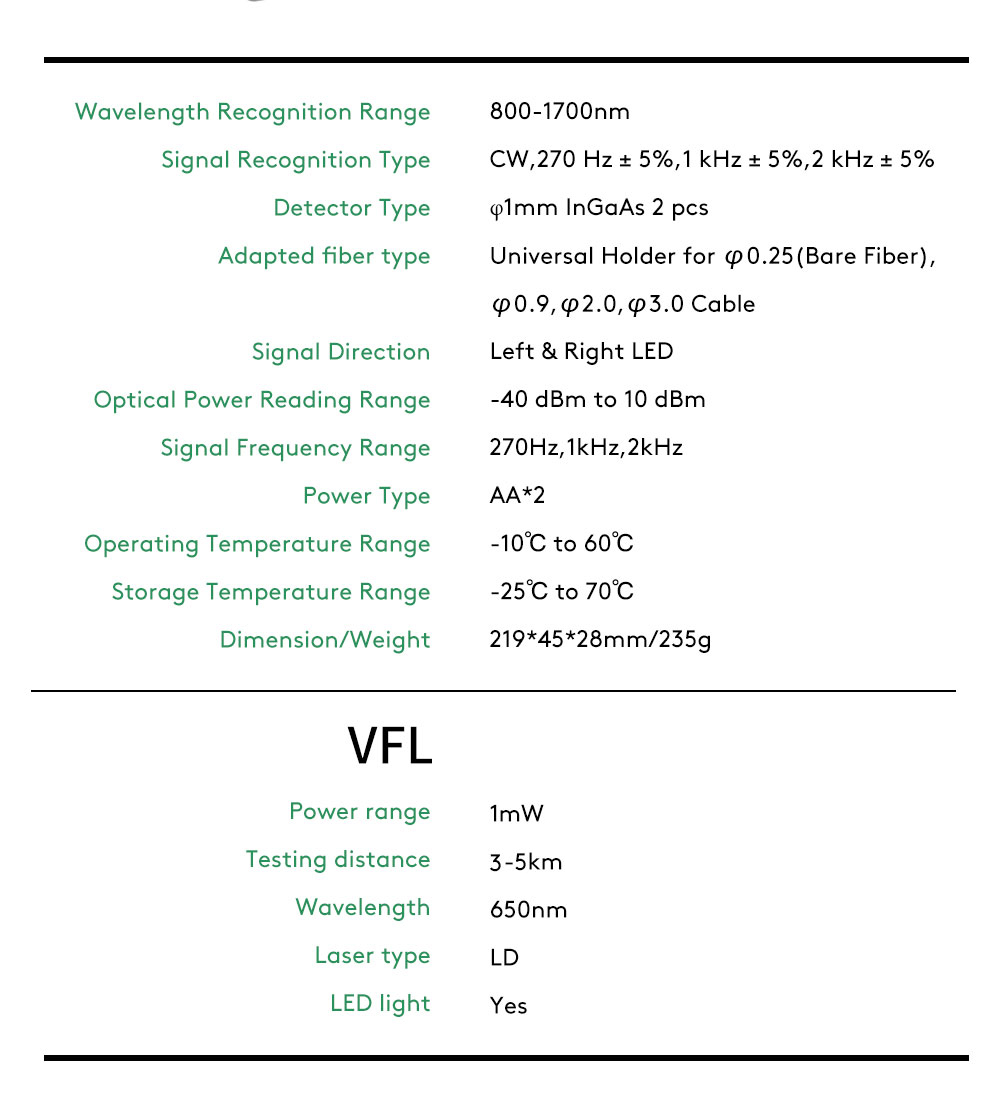

Specification:
Identified Wavelength Range | 750nm-1700nm |
Insertion Loss | 1.0dB |
Fiber Type | ＜3mm Fiber |
Identified Signal Type | 270Hz/1KHz/2KHz |
Display Type | LED |
Detector Type | 1mm InGaAs |
Minimum detection power | -35dBm(1550nm) -30dBm(1310nm) |
Alkaline Battery | 2*AA Battery |
Battery Life | ＞60H |
Operating Temperature | 0~+50℃ |
Storage Temperature | -20~+60℃ |
Weight | 150g |
Dimension | 230*43*48mm |
Other Functions | Power Measurement |
Auto-off function |

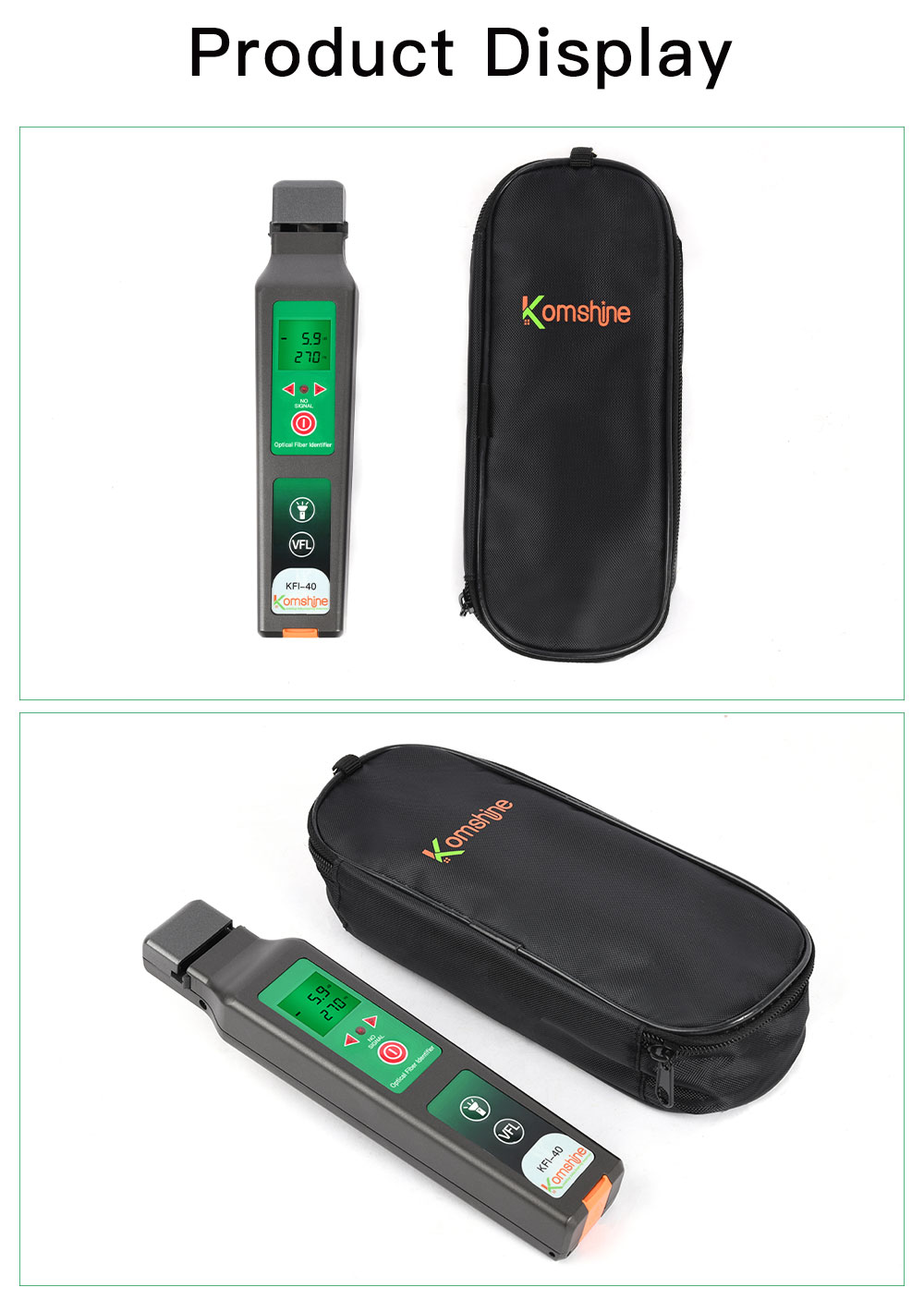

1 x Carry Bag
