HD-3200C 8MP Ahd Monitor CCTV Checker Mini Monitor for Camera Checker CCTV POE Surveillance Camera CCTV Checker Monitor Video Camera Checker
HD-3200C 8MP Ahd Monitor CCTV Checker Mini Monitor for Camera Checker CCTV POE Surveillance Camera CCTV Checker Monitor Video Camera Checker
$209.99
Ex Tax: $209.99
- Stock: In Stock
- Model: MZ004902
- Weight: 575.00g
- SKU: MZ004902
- UPC: 669424572762
Description:
Basic Information

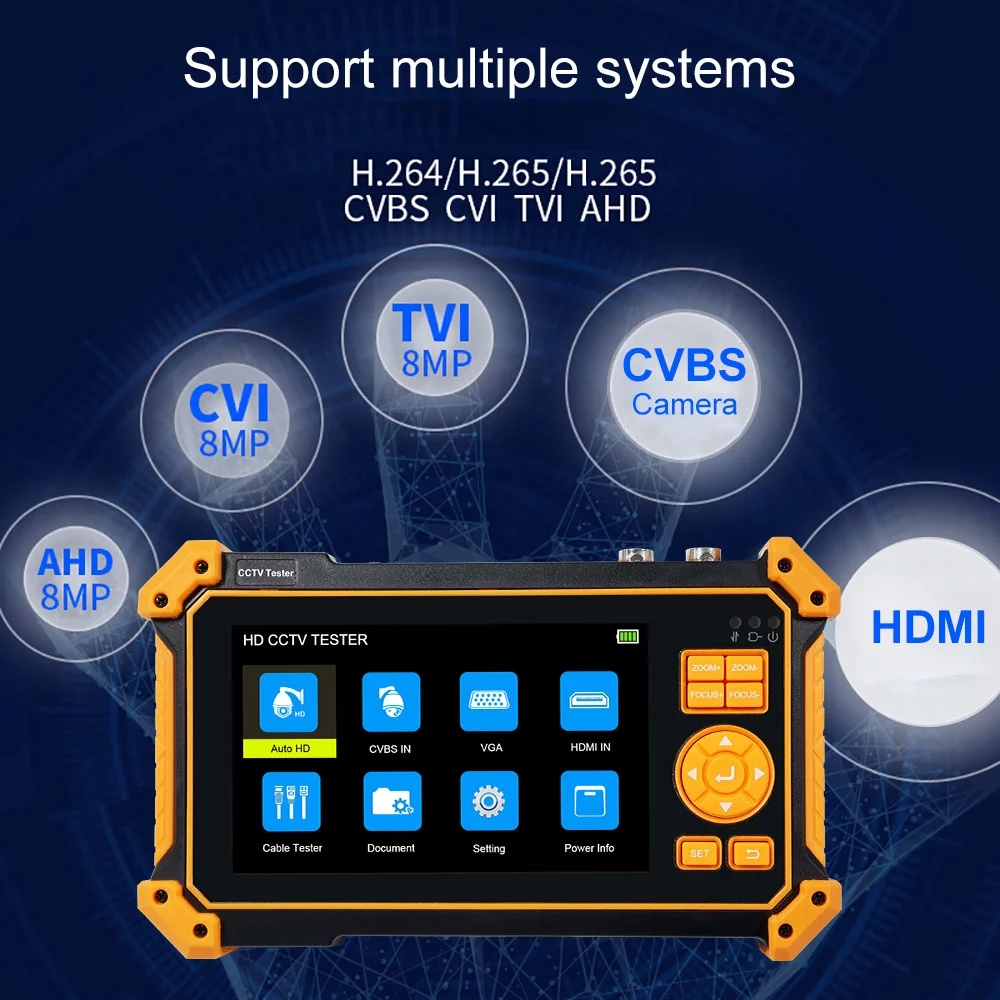

5 inch CVBS CVI TVI AHD 4 IN 1 CCTV Checker
● 8MP CVI/ TVI/ AHD camera Check
● 8MP EX-SDI, HD-SDI, 3G-SDI Check*
● VGA input, support 1920 x 1200P 60FPS
● HDMI input, support 4K 30FPS
● Analog camera Check, PAL/NTSC auto adapt
● Auto HD, auto recognize HD coax camera type and resolution
● DC12V 1A power output
● DC 5V 1A power output, support reading USB disk
● UTP cable Check, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Features-Camera Check

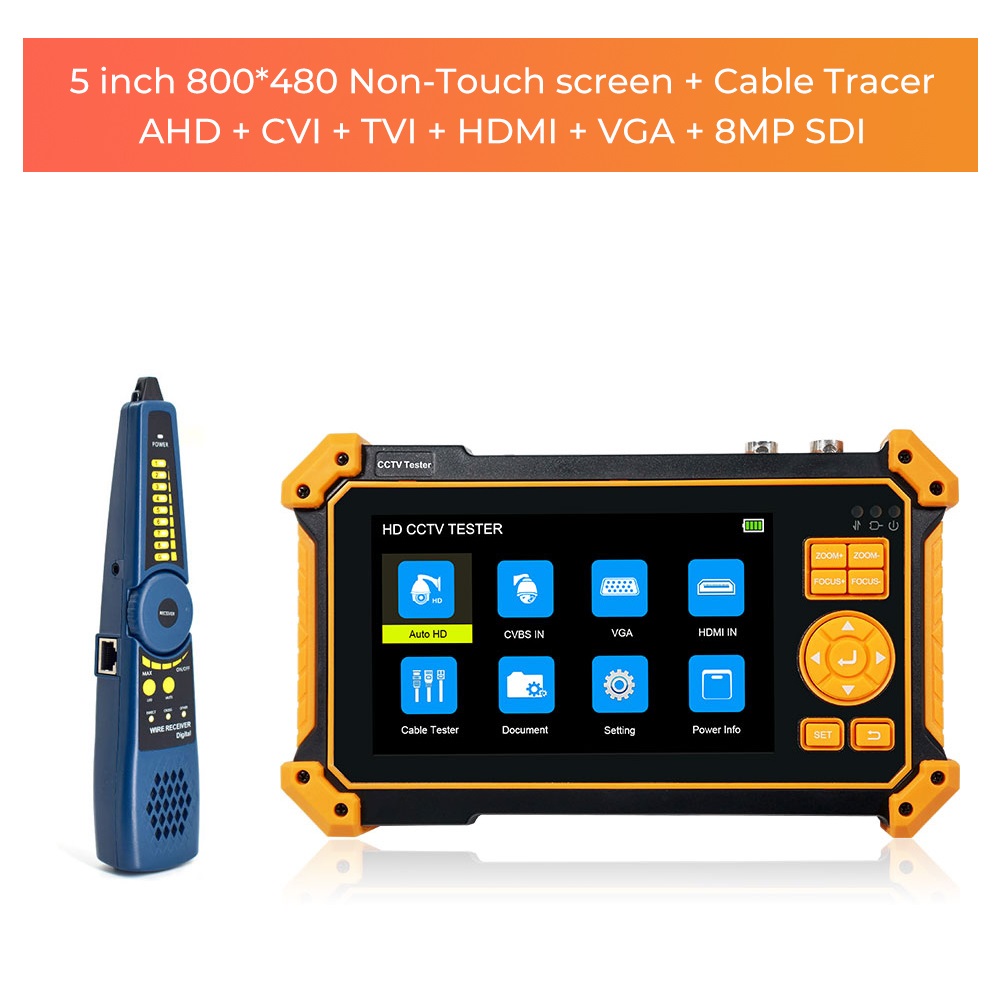

● 5 inch TFT-LCD screen, 800*480 resolution

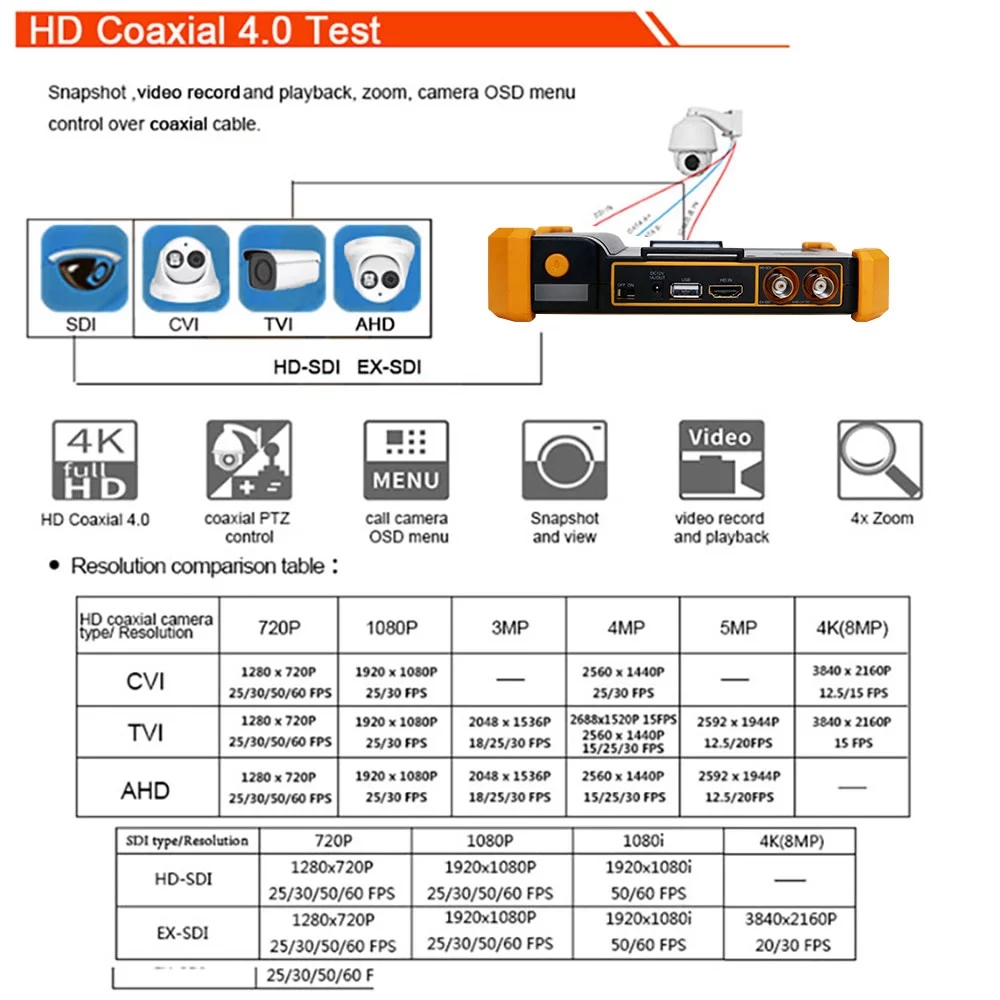

● 8MP TVI Check, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
● 8MP AHD Check, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● 8MP CVI Check, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● 8MP EX-SDI Check, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD menu*
● HD-SDI Check, 1920 x 1080P 25/30/50/60 FPS, coaxial PTZ & call OSD menu*
● 3G-SDI Check, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD menu*
● Auto HD app, auto recognizes HD coax camera type and resolution, support coaxial PTZ & call OSD menu
● VGA input, up to 1920 x 1200P 60FPS, Check and debug DVR/XVR
● HDMI Input, up to 4K 30FPS, Check and debug DVR/XVR
● Analog camera Check, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Features-Cable Check
● Improvement cable Checker , UTP cable, telephone cable etc order and connectivity Check. If special number, need customized. Can detect the near-end, mid-end and far-end fault point of RJ45 cable plug

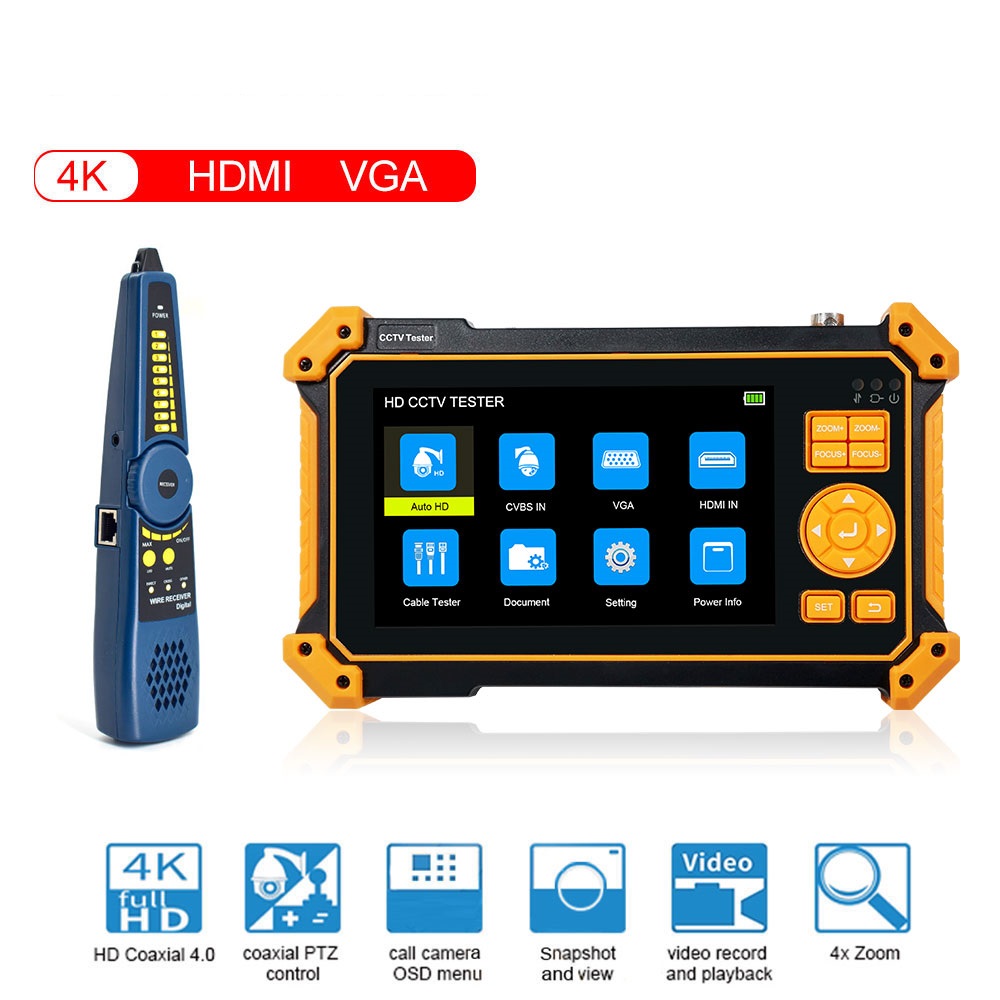

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the messy cables. Cable search and UTP cable can Check at the same time
Package included:
1 x CCTV Checker
Details picture:
