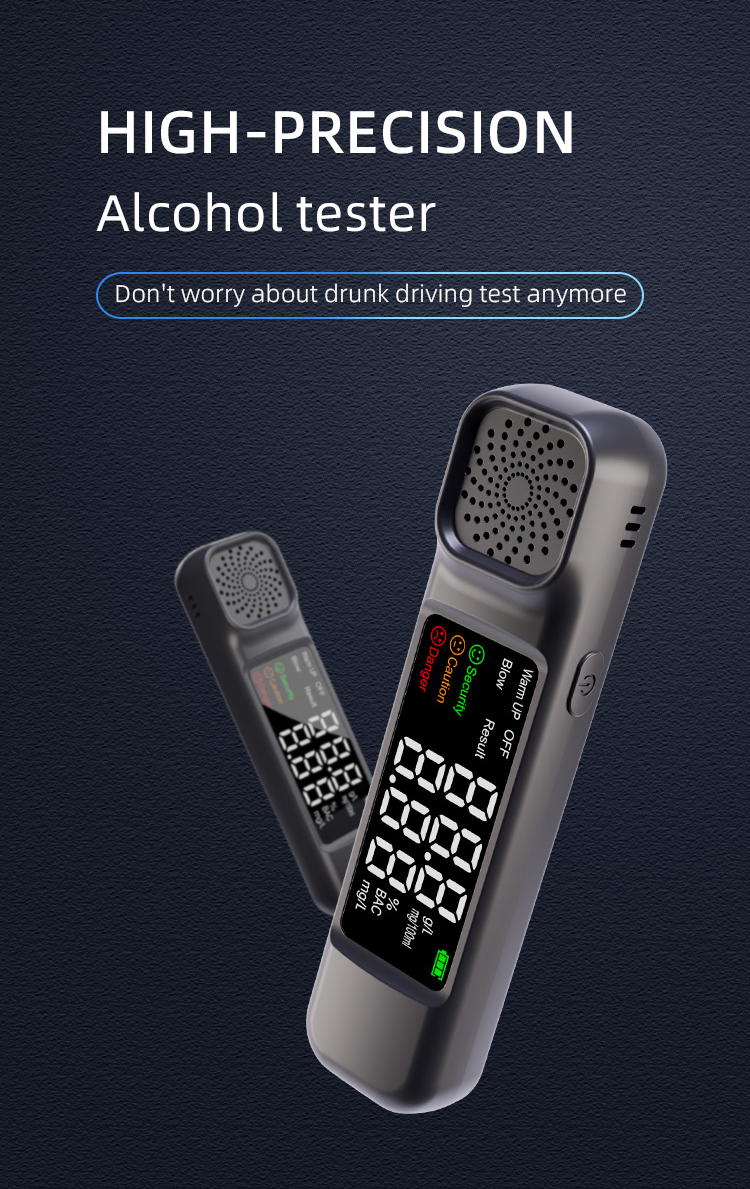

ZN-AT68 0-0.95mg/L LED Display Alcohol Tester Blowing Type High Accuracy Alcohol Concentration Tester for Checking DUI
ZN-AT68 0-0.95mg/L LED Display Alcohol Tester Blowing Type High Accuracy Alcohol Concentration Tester for Checking DUI
$16.99
Ex Tax: $16.99
- Stock: In Stock
- Model: MZ004141
- Weight: 571.00g
- SKU: MZ004141

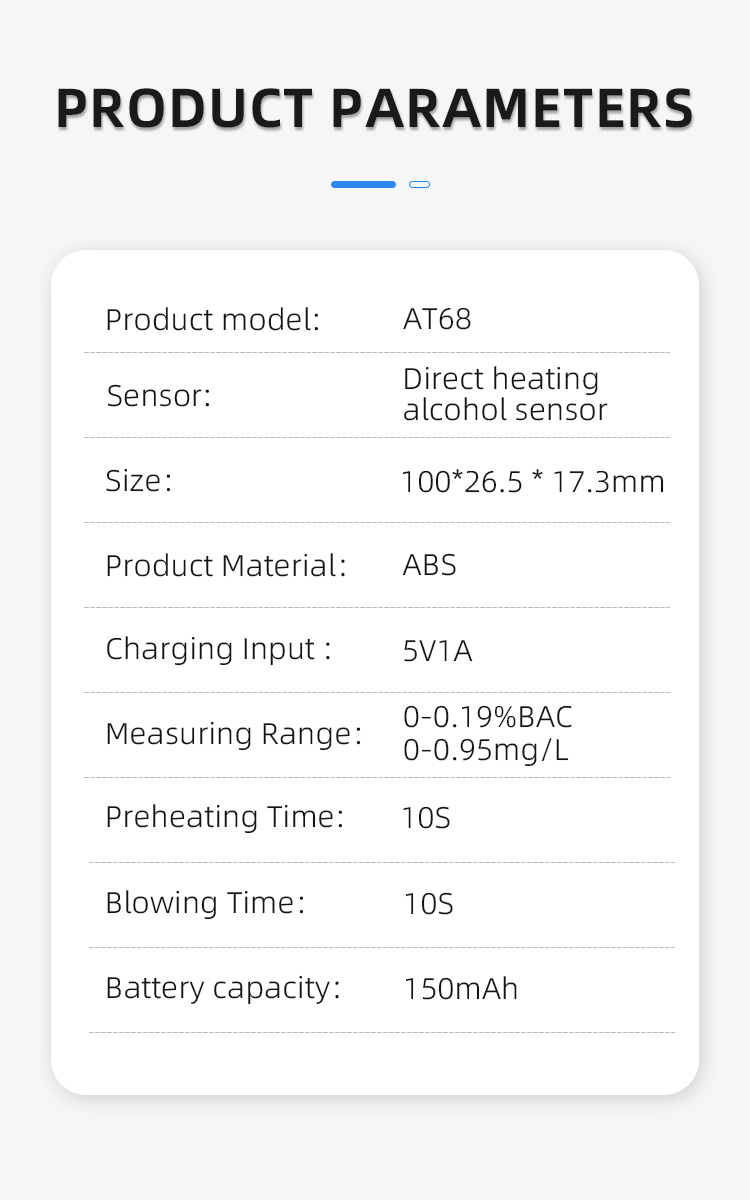

Specification:
Model: AT68
Sensor Type: Semiconductor type sensor

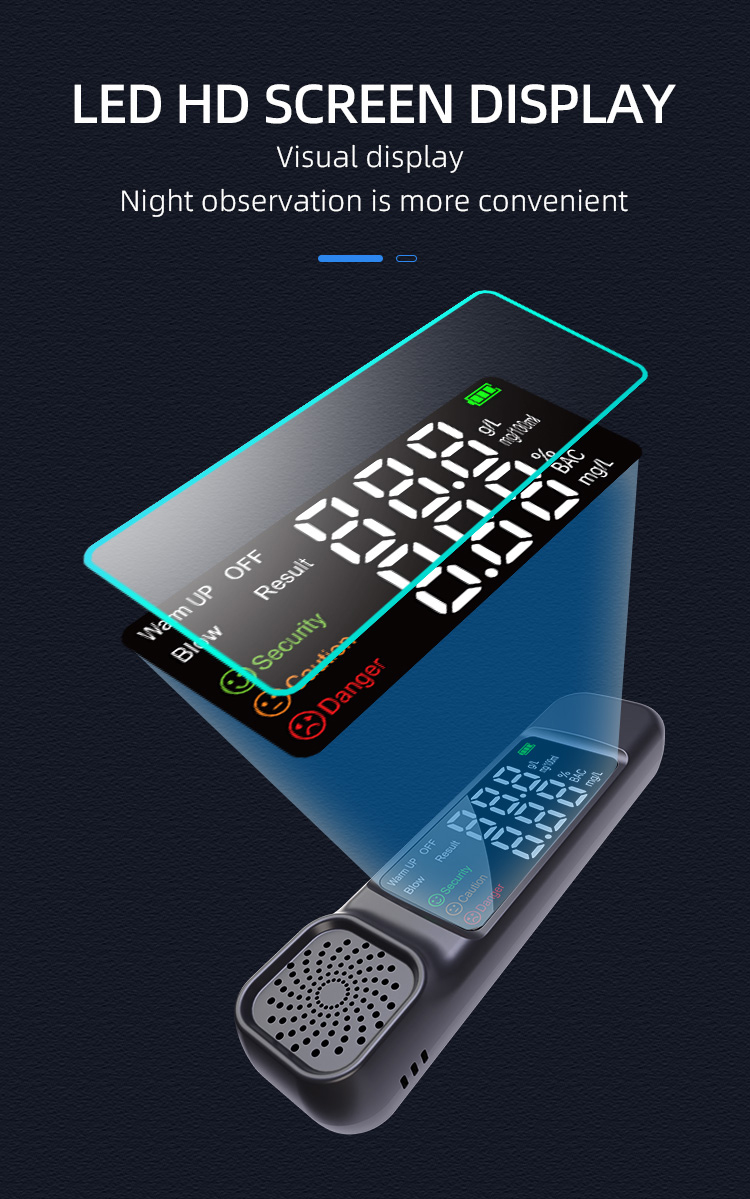

Display: LED display
Housing material: ABS plastic
Test range: 0.00-0.19% BAC (0-0.95mg/l)
Measurement units: mg/l(BrAC), m/l(BAC), %BAC, mg/100ml
Measurement mode: Quick check, automatic detection
Measurement time: 10 seconds
Power supply: Built-in rechargeable lithium polymer battery
Battery used: 3.7V 150mAh
Power adapter requirement: DC5V 1A
Charging current: 180mA
Operating temperature: 0-45°C
Warm-up time: 10 seconds
Blow time: within 10 seconds, >4 seconds required
Reaction time: less than 5 seconds
Product size: 100 x 26 x 18mm
Product weight: 35g
Package size: 120 x 45 x 32mm
Package weight: 78g
Reference standard:
BAC: Blood Alcohol Concentration (BAC)
BrAC: Breath Alcohol Concentration
Drinking and driving: The blood alcohol content in the body is greater than or equal to 0.15mg/l and less than 0.25mg/l.
DUI: Blood alcohol content greater than or equal to 0.25mg/l.
Instructions for use:
1. Power on: Press and hold the power on button for 1 second, after a beep, the LCD screen of the tester will start. 2.
2. Preheat: The "Preheat" character appears on the display and the number in the upper left corner starts counting down from 10 to 00. 3.
3. Blow test: After the "warm-up" is completed, the tester enters the "blow" state and the blow character appears on the display, with the numbers counting down from 10 to 00. Blowing within this countdown time, the machine senses the gas, the buzzer "beep" prompted to stop blowing. 4.
4. Display of results: The test results are read on the display. Press and hold the power button for 1s to switch the unit, i.e. the unit flashes after the value, press and hold again for 1s to exit.
5. 10s after the test result is displayed the unit automatically switches off. Switch on again for the next test.

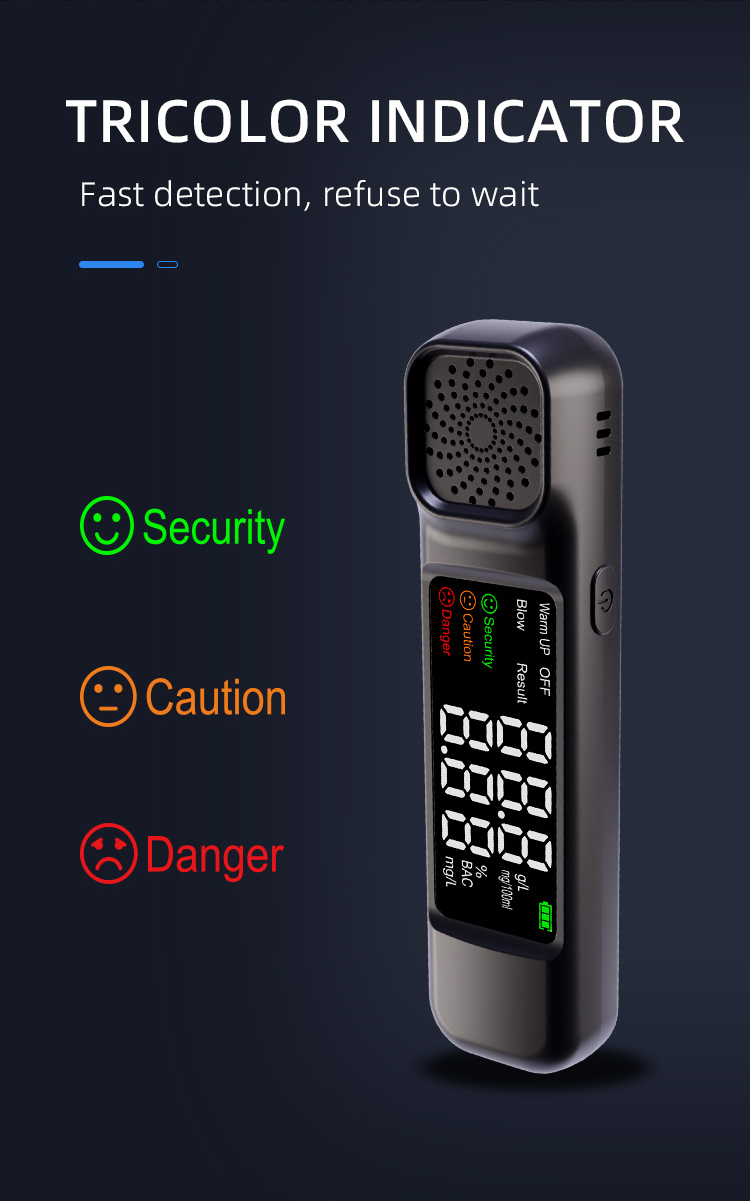

Test result description:
1. If the result of alcohol concentration is 0mg/L, the warning light will not respond.
2. If the alcohol concentration is >0mg/L and <0.15mg/L, a "safe" character appears on the display and the green warning light flashes.
3. If the alcohol concentration is ≥0.15mg/L and <0.25mg/L, a "warning" character appears on the display and the yellow warning light flashes, accompanied by a "beep" tone.
4. If the result of alcohol concentration is ≥0.25mg/L, the character "Danger" appears on the display, the red warning light flashes and a "beep" beeps.
Package included:
1 x Alcohol Tester
1 x Instruction manual
1 x Data cable
