M4070 LCD 5 Digits Display High Precision LCR Bridge Tester Automatic Range Capacitance Inductance Meter
M4070 LCD 5 Digits Display High Precision LCR Bridge Tester Automatic Range Capacitance Inductance Meter
$69.99
Ex Tax: $69.99
- Stock: In Stock
- Model: MZ008345
- Weight: 508.00g
- SKU: MZ008345
Features:
-This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance. Fully auto-ranging designed and large LCD display with backlight. High resolution, up to 5 digit display , most finest resolution: 0.01pF, 0.001uH, 0.01R; High stability and measurement range for L/ C/ R.
-USB charging with rechargeable battery inside; USB PC program, can take record and pass and fail component sorting function.
-M4070 LCR meter is auto-ranging component tester, which can drive up to 500 KHz. Suitable for small value capacitor and inductor measurement, provides very stable and high resolution measurement up to 5 digits.
-Meter can measure 0.00pF to 100.00mF capacitance, 0.000uH to 100.00H and 0.00Ω to 10.000MΩ.
-This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance.
Specification:
LCR Testing Parameter: Main Parameter: L / C / R
Testing frequency: C: 10 to 500Khz & L: 10 to 360Khz
Testing Method: Auto select LC and RC Oscillation
Calibration: Power on auto calibrate with internal reference capacitor
Testing voltage:~1.5Vrms
Best Tolerance: L: 1% +1 Digit, C: 1% +1 Digit, R: 0.5% +1 Digit
LCD update or Testing time (* vary on component value):(e.g. 100mF Capacitor Less than 30s)
Range Selection: Automatically
Zeroing: Open / short circuit

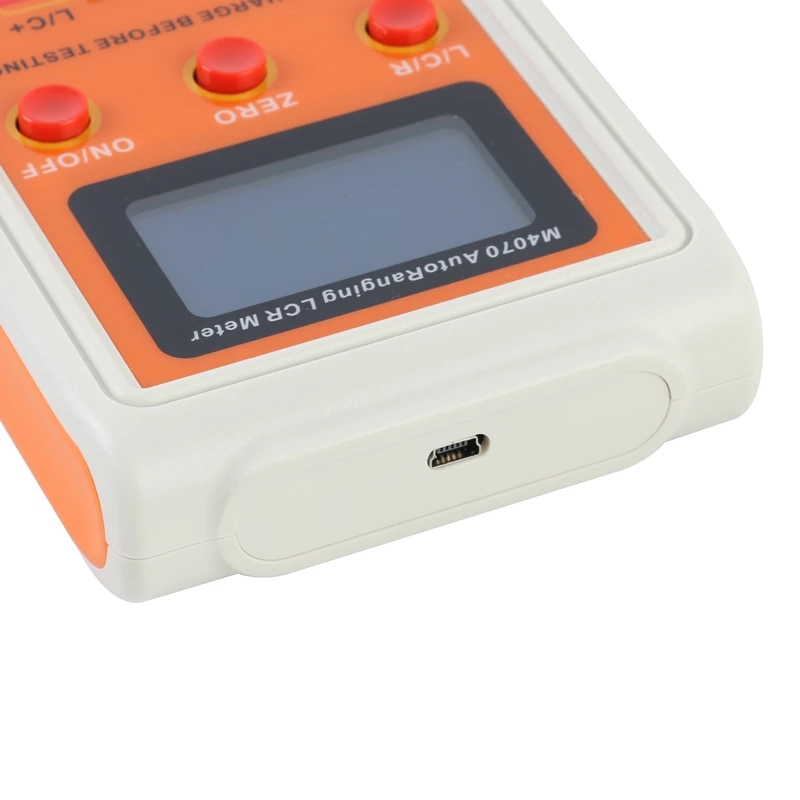

Terminal: Mini-USB(Virtual Com Port)
LCD Display: 128 X 64 Dot Matrix, with back-light
Fuse Protection: 200mA
Charging terminal: Mini-USB (500mA)
Battery: internal 3.7V Li-polymer
Number of Testing Terminal: Main 3, Secondary 4
Reading Display: Max. 99999
Color: Orange

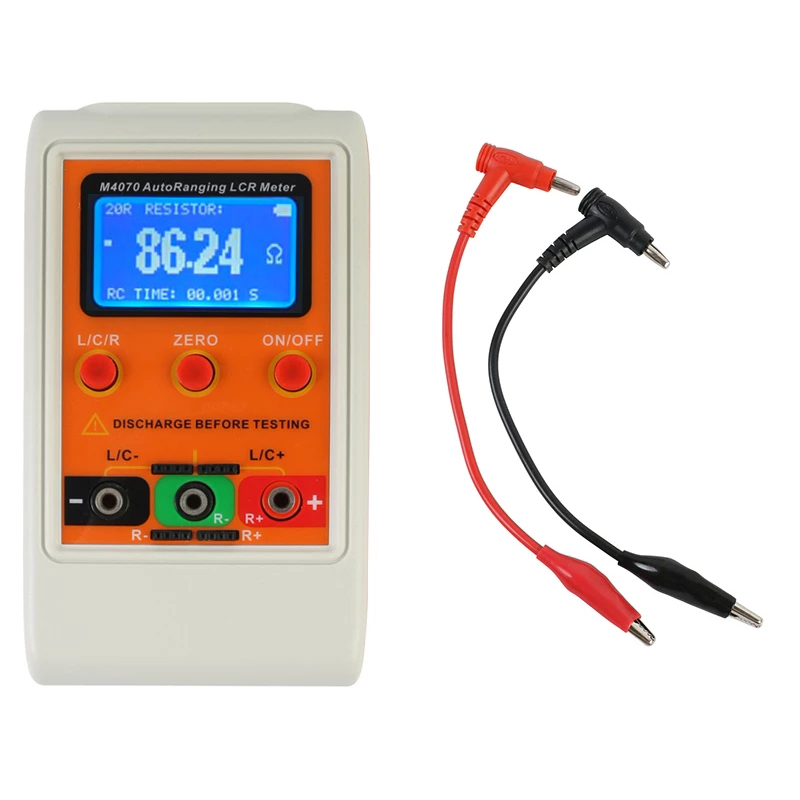

Package included:
1 x M4070 LCR Meter with CD-ROM
2 x Leads
1 x User Manual
