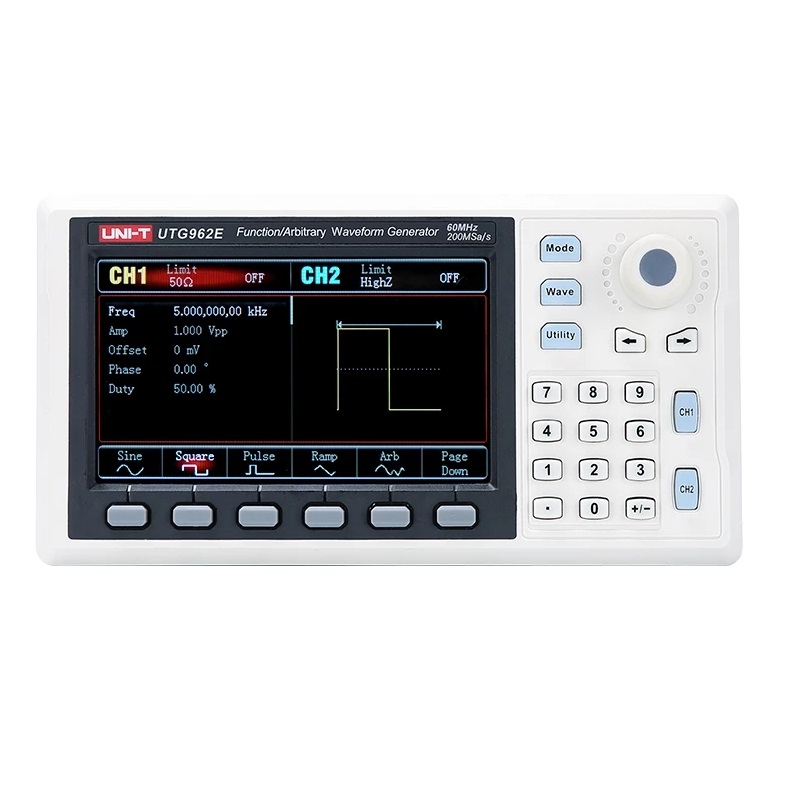

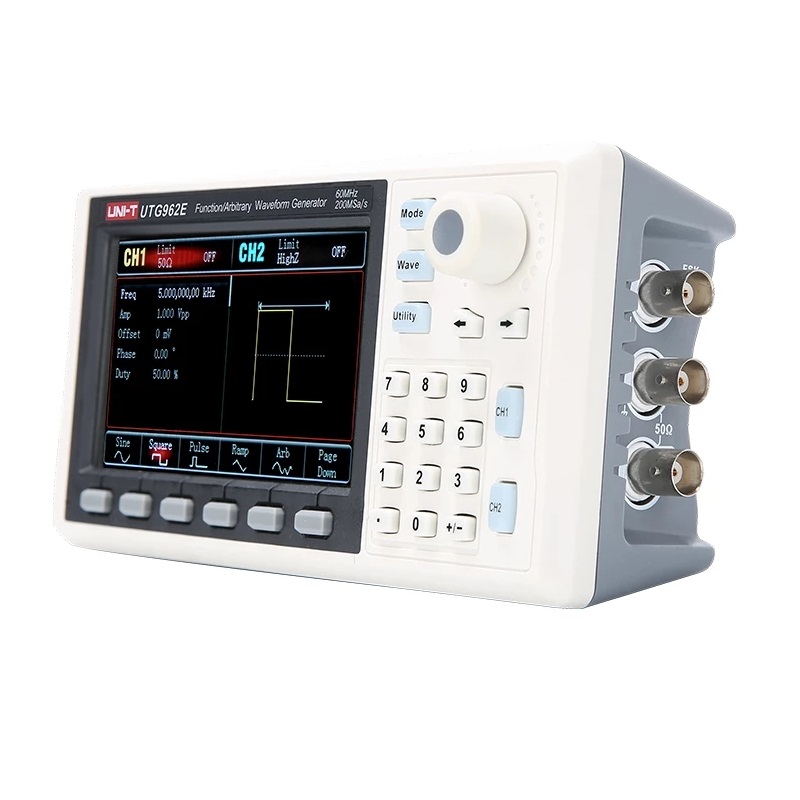

UTG932E UTG962E Function Arbitrary Waveform Generator Signal Source Dual Channel 200MS/s 14bits Frequency Meter 30Mhz 60Mhz

$169.99

Ex Tax: $169.99

frequency

Qty

Note: UTG932E UTG962E and UTG932 UTG962 have the same function, "E" means English version.

Main Features

Output Waveforms: Sine,square, pulse, ramp, noise, DC ,arbitrary

Output frequency range:1uHz-30MHz/60MHz

High accuracy, broad band 6 bit frequency ,counter,range:100mHz-100MHz

Two equivalent-performance channels

4.3 inches TFT LCD

Multi-language menu ,easy to operation

Specifications
Model	UTG932E---30MHz	UTG962E----60MHz
Channel	2
Max frequency	30MHz	60MHz
Sampling rate	200MS/s
Vertical resolution	14 bits
Waveforms	Sine, square, pulse, ramp, noise, DC, arbitrary
Sweep modes	Logarithmic, linear
Frequency Characteristics
Sine	1μHz~30MHz	1μHz~60MHz
Square	1μHz~15MHz	1μHz~20MHz
Ramp	1μHz~400kHz	1μHz~400kHz
Pulse	1μHz~15MHz	1μHz~20MHz
Arbitrary	1μHz~10MHz	1μHz~10MHz
Resolution	1μHz
Accuracy	Within 90 days ± 50ppm
	Within 1 year ± 100ppm
	18℃~28℃
Output Characteristics
Impedance	50Ω/High Z
Amplitude range	1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC oﬀset range (AC+DC)	±5V (50Ω); ±10V (high Z)
Amplitude resolution	1mV
General Characterisitics
Power	100~240VAC, 50Hz/60Hz
Display	4.3”TFT LCD (480×272)
Product color	White and grey
Product net weight	0.33kg

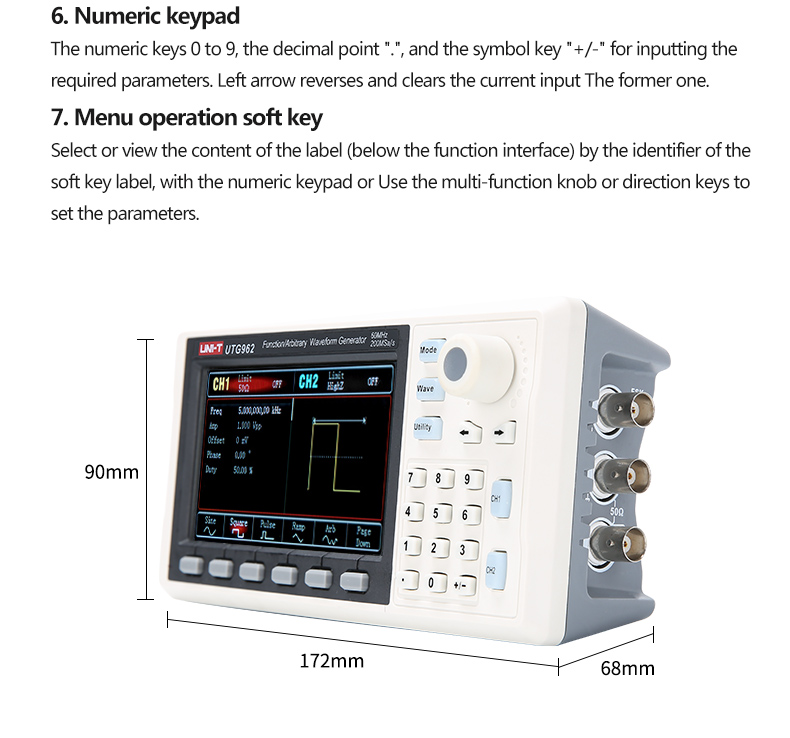

Product size	172mm x 90mm x 68mm
Standard accessories	USB interface cable, power cord, BNC cable with alligator clips
Standard individual packing	Carton box
