UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample

UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
UTD2102e PLUS Digital Oscilloscope with 7inch LCD Display Scopemeter with 100MHz Bandwidth 2 Channels 500MS/S Real Time Sample
$299.99
Ex Tax: $299.99
  • Stock: In Stock
  • Model: MZ004964
  • Weight: 594.00g
  • SKU: MZ004964
  • UPC: 621240663833


Model

UTD2102e (Old version)

UTD2102e PLUS (New version)

Storage depth

Single channel is 25K; dual channel is 12.5K

64K

Waveform capture rate

≥2000wfms/s

≥5000wfms/s

Time base range (s/div)

5ns/div~50s/div

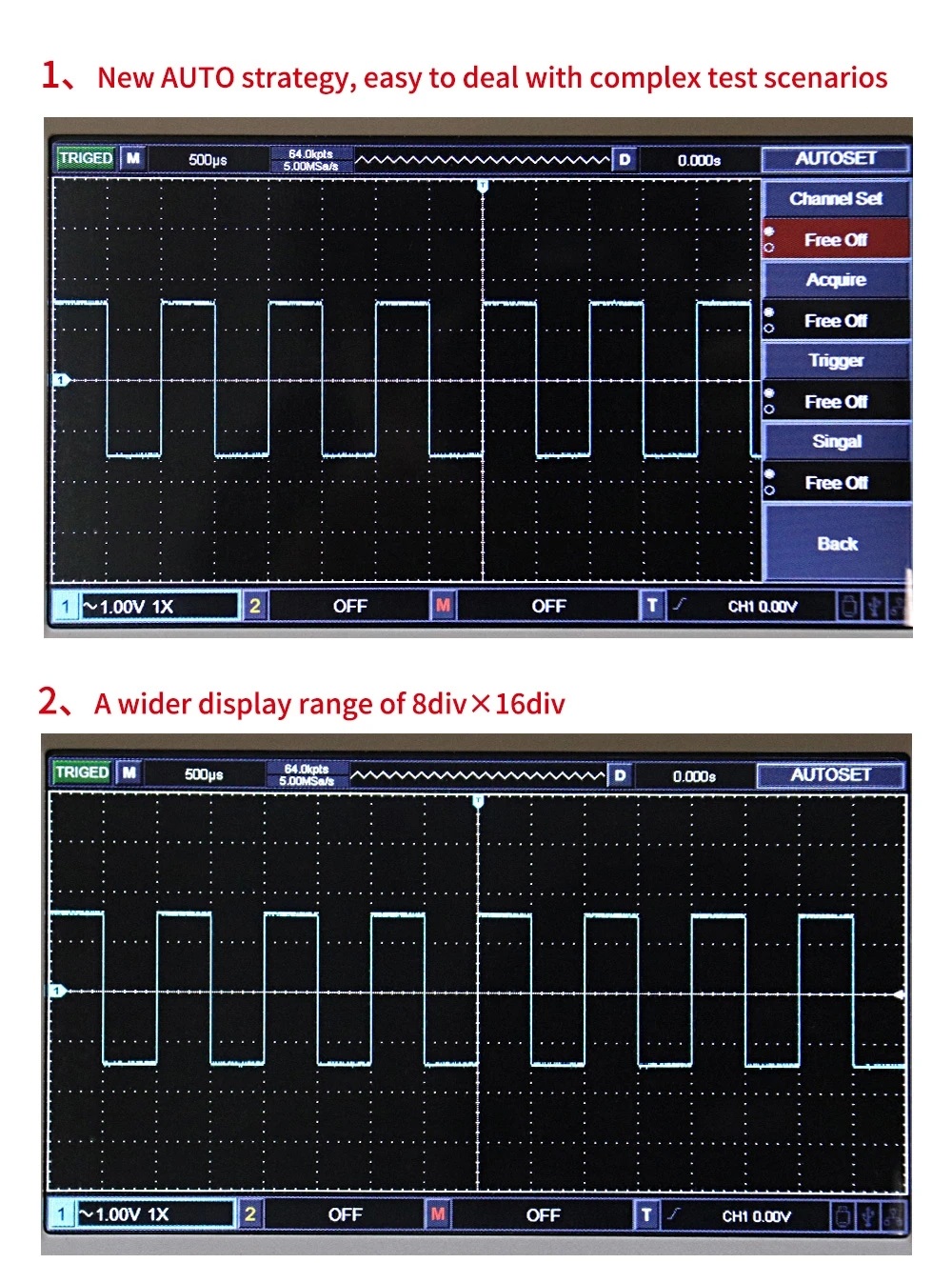

8div~16div

Screen resolution

400x240

800x480


Descriptions:

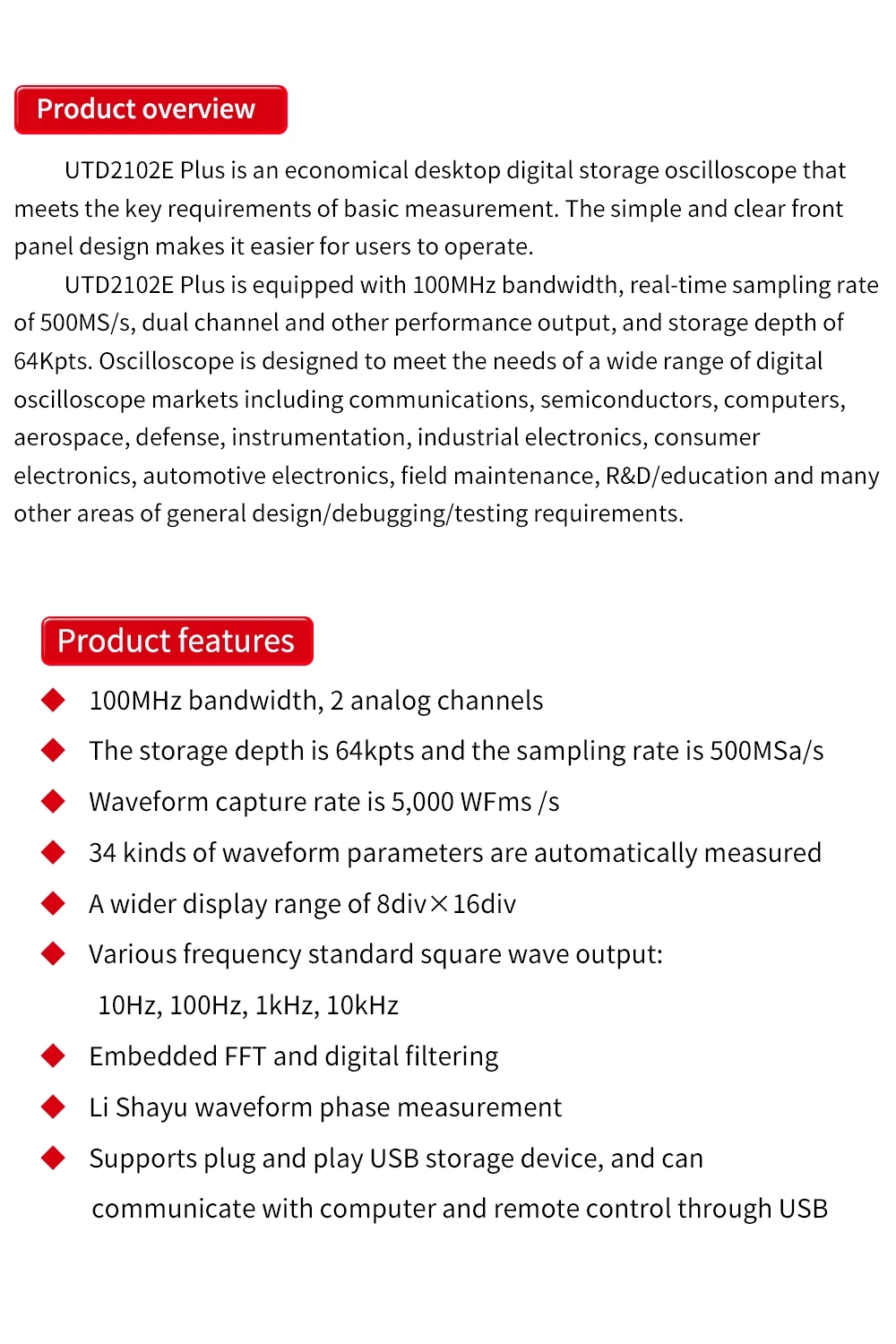

With the characteristics of large 7-inch display, 100MHz band width, dual channel, max. 500MS/s real-time sampling rate, 64kpts storage length and 5 types of trigger mode, this fine-quality Moonzite UTD2010e plus Digital Oscilloscope features complete functions, convenient operation, long service life and high cost performance. It can transform the invisible electric signals into visible images, which is convenient for people to study the changing process of various electrical phenomena, widely used in communication, embedded systems, computer, research, education and other industries and fields.

Features:

[Humanized Design] The foot stool with adjustable tilt angle design and the hidden handle require less space.
[Large LCD Screen] 7-inch color TFT LCD screen with 800*480 pixels high resolution, more vivid and clearer, making monitoring and analyzing work much easier.
[Wide & Sensitive Scopemeter] 100MHz bandwidths; 500MS/s real-time sample rate; dual analog channel with wide vertical range (1mV/div~20V/div). High accuracy and wide measurement range meet different analyzing demands.
[Easy to Use] Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device. Multilingual menu available, with multiple functional button for fast operation.
[Trigger Control] The oscilloscope provides 5 trigger types: Edge trigger,  Slope trigger, Video trigger and Alternating trigger. Each type of trigger owns different sub menus.

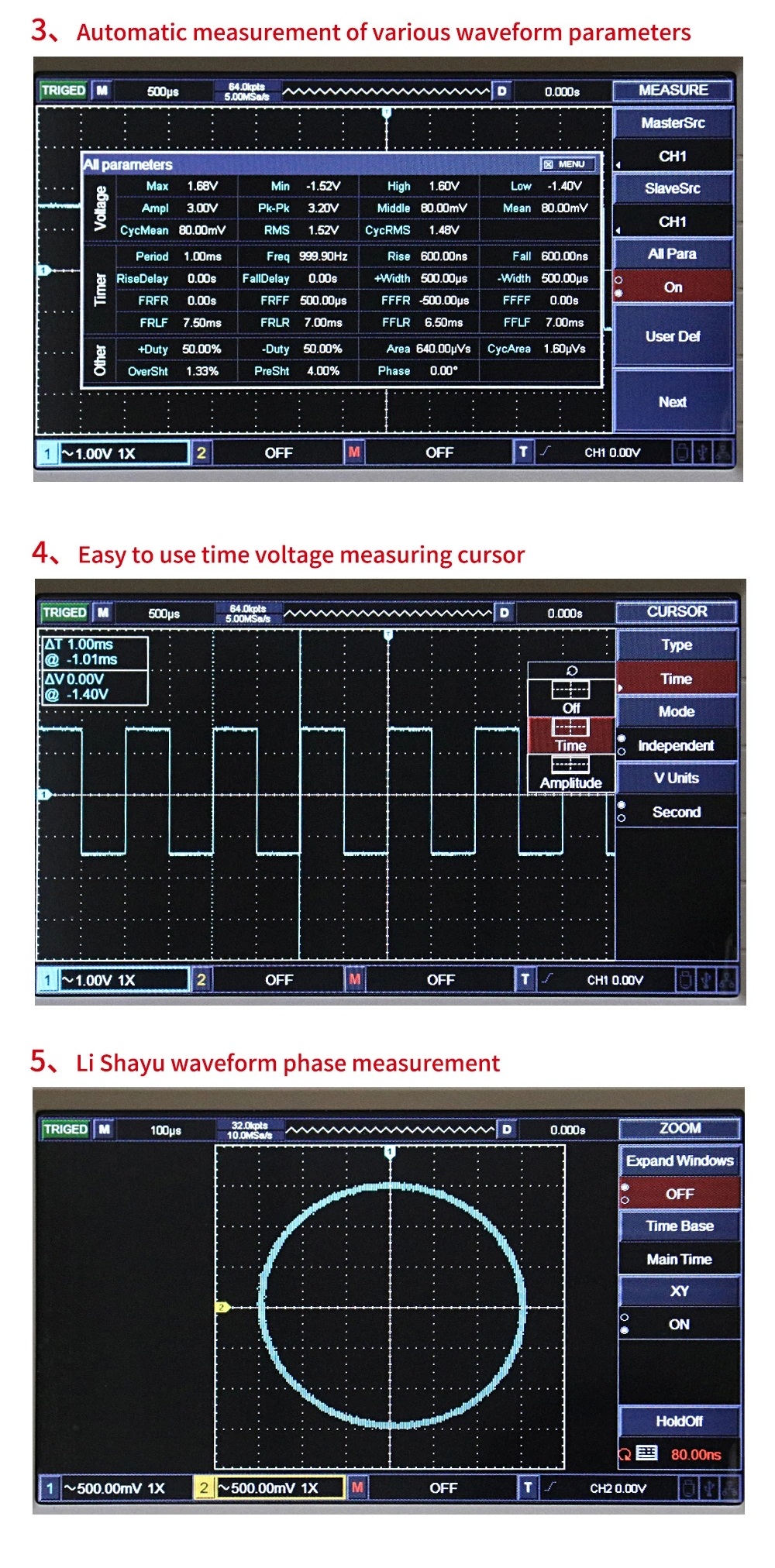

[One-click Measurement] It display 34 waveform parameters in one-click, much more convenient and efficient to view the waveform information.
[Auto Cursor Function] Quickly measure the difference between two points of the waveform, helping engineers analyze the real-time measurement waveform.

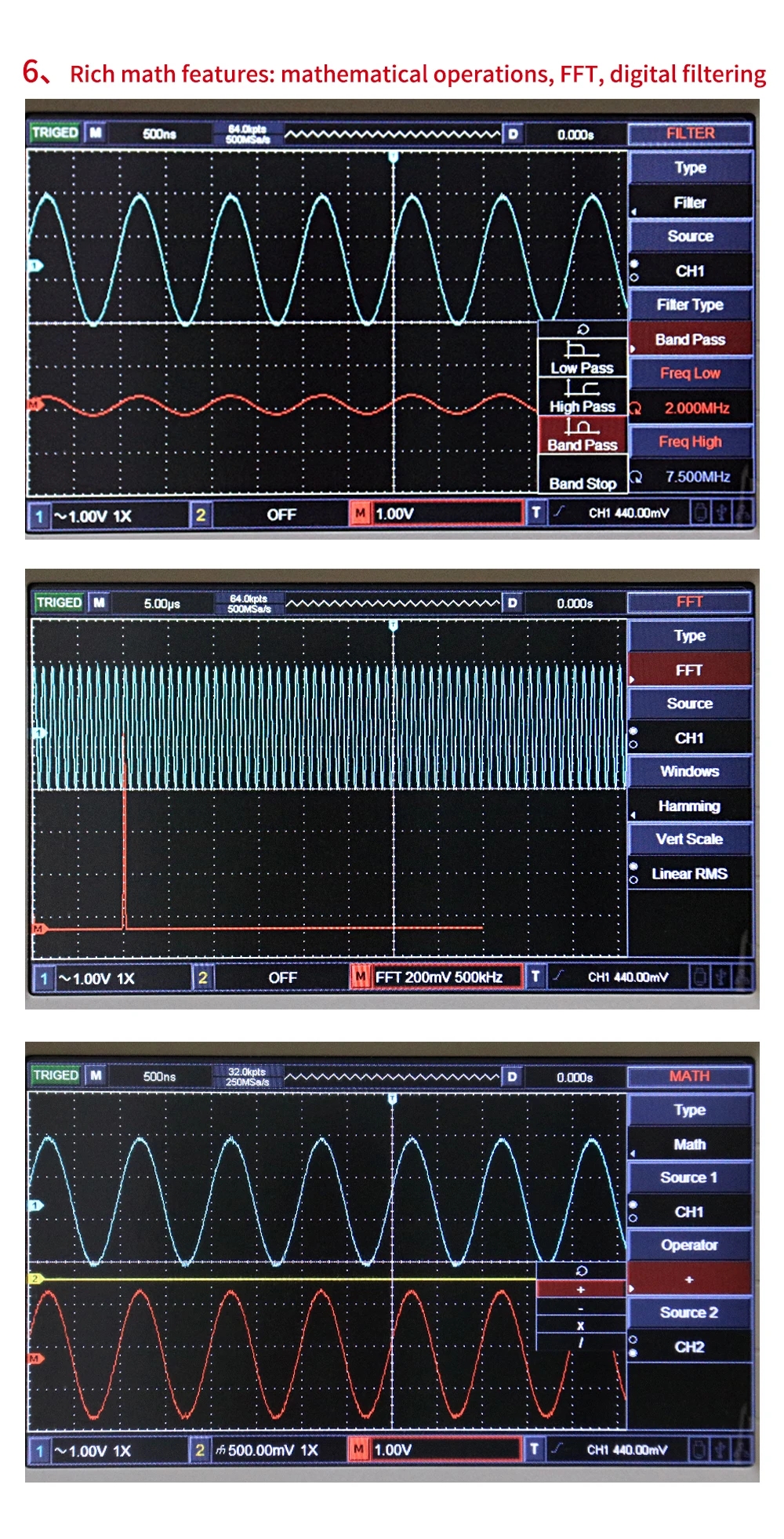

[Waveform Math Function] Contains +, -, *, /, FFT, digital filtering, easy to deal with problems.
[Fast Capture] Features copy function for fast storage information; capable of recording length up to 64kpts, and waveform record up to 1000 screen.
[Storage Medium] DSO and USB Selectable storage location. DSO can store 20 groups, USB can store 200 groups.
[Wide Applications] Applicable to electronic circuit debugging, circuit testing, design and manufacture, education and training, automobile maintenance and testing.

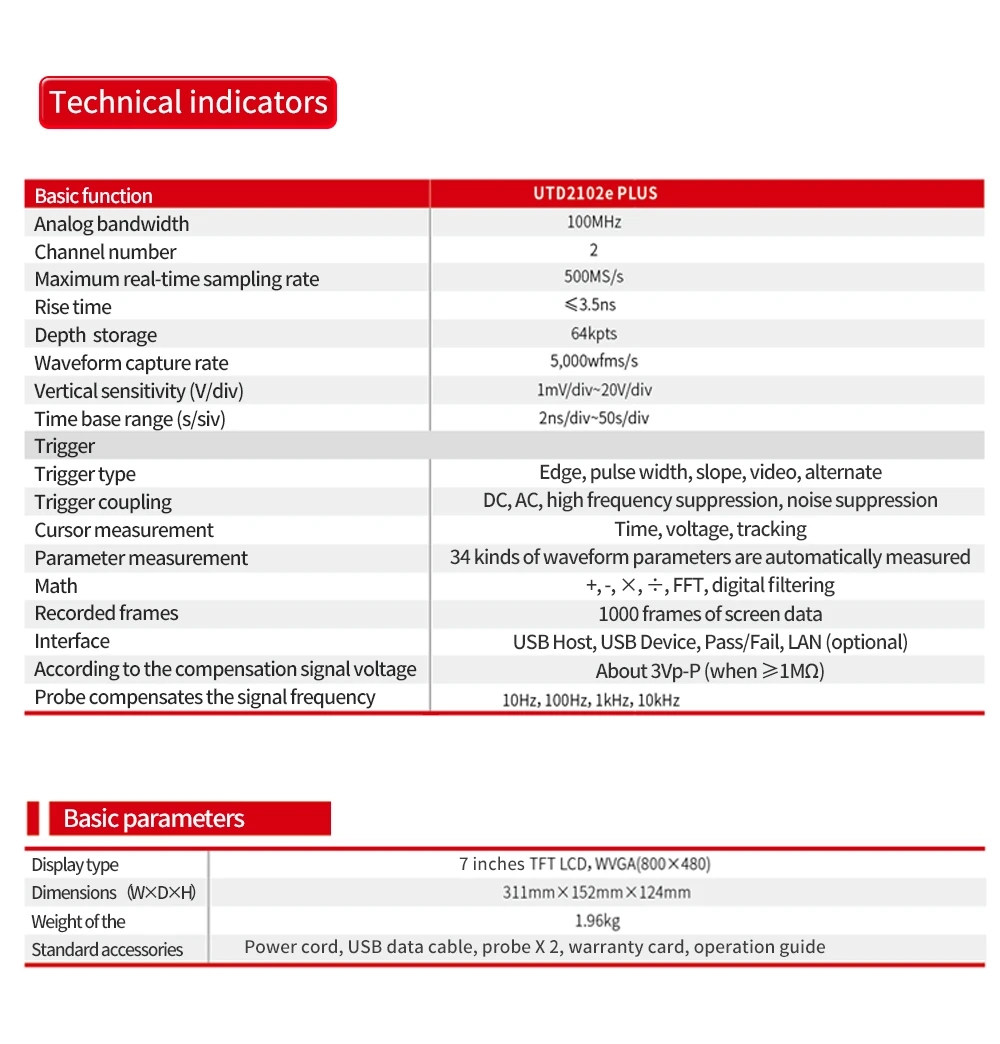

Specifications:

Model: UTD2010e plus
Material: ABS
Color: White
Plug: AU
Power Supply: 220V (EU plug), 110V (US plug), 50/60Hz
Display: 7-inch TFT LCD, WVGA(800×480 pixels)
Basic Function
Bandwidth: 100MHz
Channel: 2
Max. Real Time Sample Rate: 500MS/s
Rise Time (BNC typical): ≤3.5ns
Storage Depth: 64kpts
Waveform Capture Rate: 5000wfms/s
Vertical Sensitively Range (V/div): 1mV/div~20V/div
Time Base Range (s/div): 2ns/div~50s/div
Trigger
Trigger Mode: Edge, Slope, Video, Alternating
Trigger Coupling: AC, DC, HF, LF, Noise
Cursor Measurement: Time, Voltage, Tracking
Parameter Measurement: automatic measurement of 34 kinds of waveform parameters
Waveform Math: +, -, ×, ÷, FFT, digital filtering
Recorded Frames: 1000 frames of screen data
Interface: USB Host, USB Device, Pass/Fail, LAN (Optional)
Probe Compensation Signal Output Voltage: Approx. 3Vp-p(≥1MΩ)

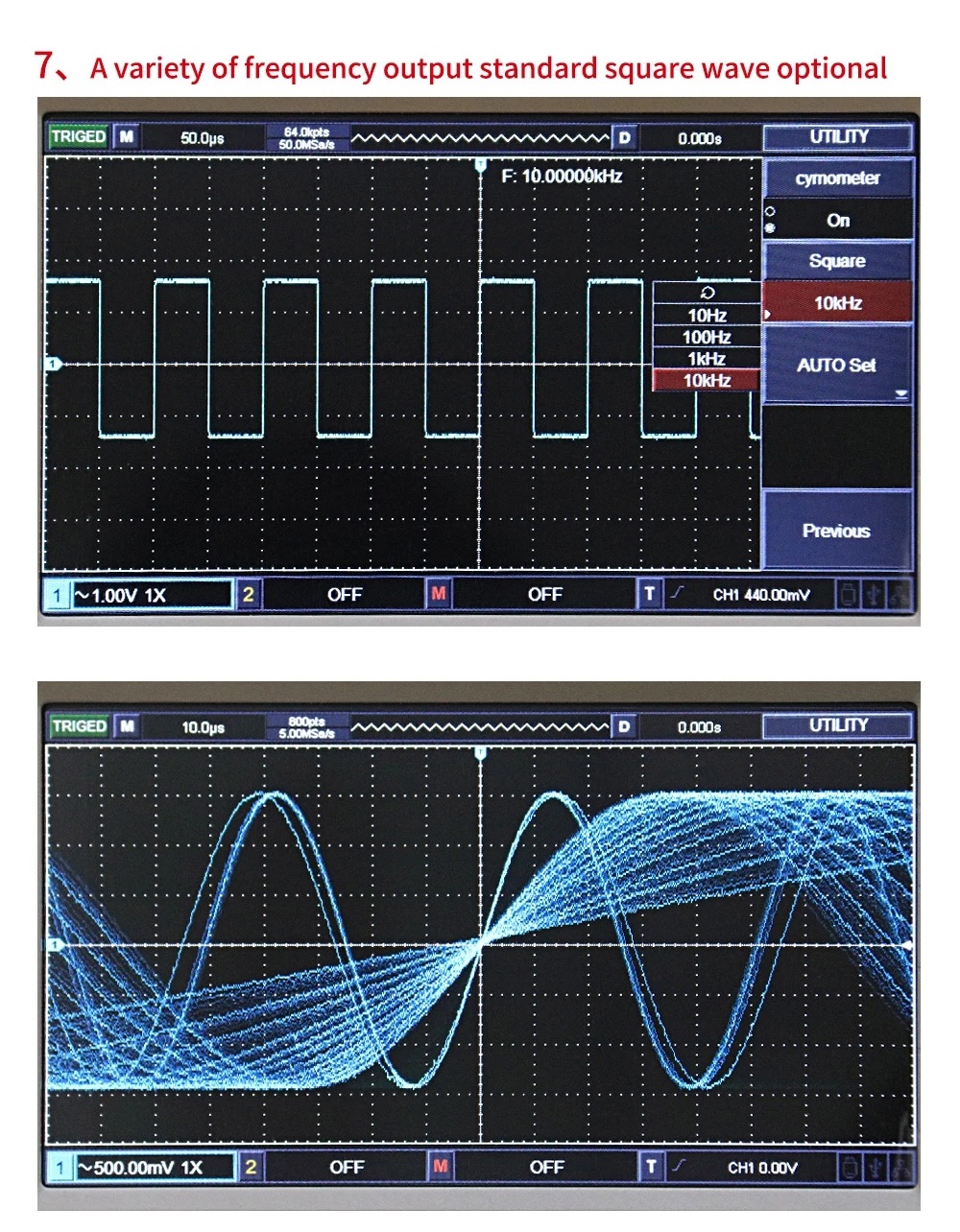

Probe Compensation Signal Frequency: 10Hz, 100Hz, 1kHz, 10kHz
Item Size: Approx. 31*15*13cm / 12.2*5.91*5.12in
Item Weight: Approx. 1965g / 69.31oz
Package Size: Approx. 39.5*21*24.5cm / 15.55*8.27*9.65in
Package Weight: Approx. 2846g / 100.39oz

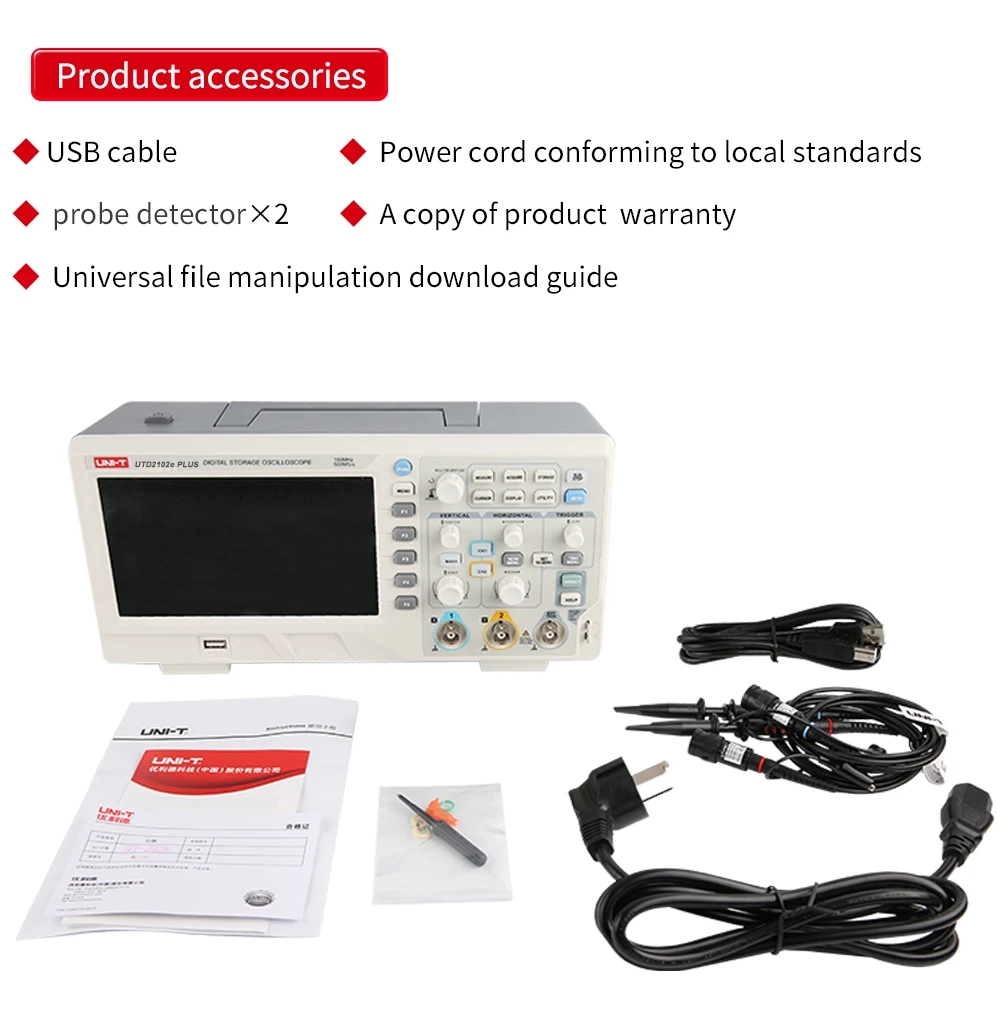

Package Includes:

1 * Digital Oscilloscope
1 * Oscilloscope Passive Probe Kit
1 * Power Cable(AU Plug)
1 * USB Cable

Note:
- We will send the appropriate adapter according to your country.
- Please read the User's Manual before use.
- Scan the QR code on the machine, you can directly enter the official website to download the users manual.
