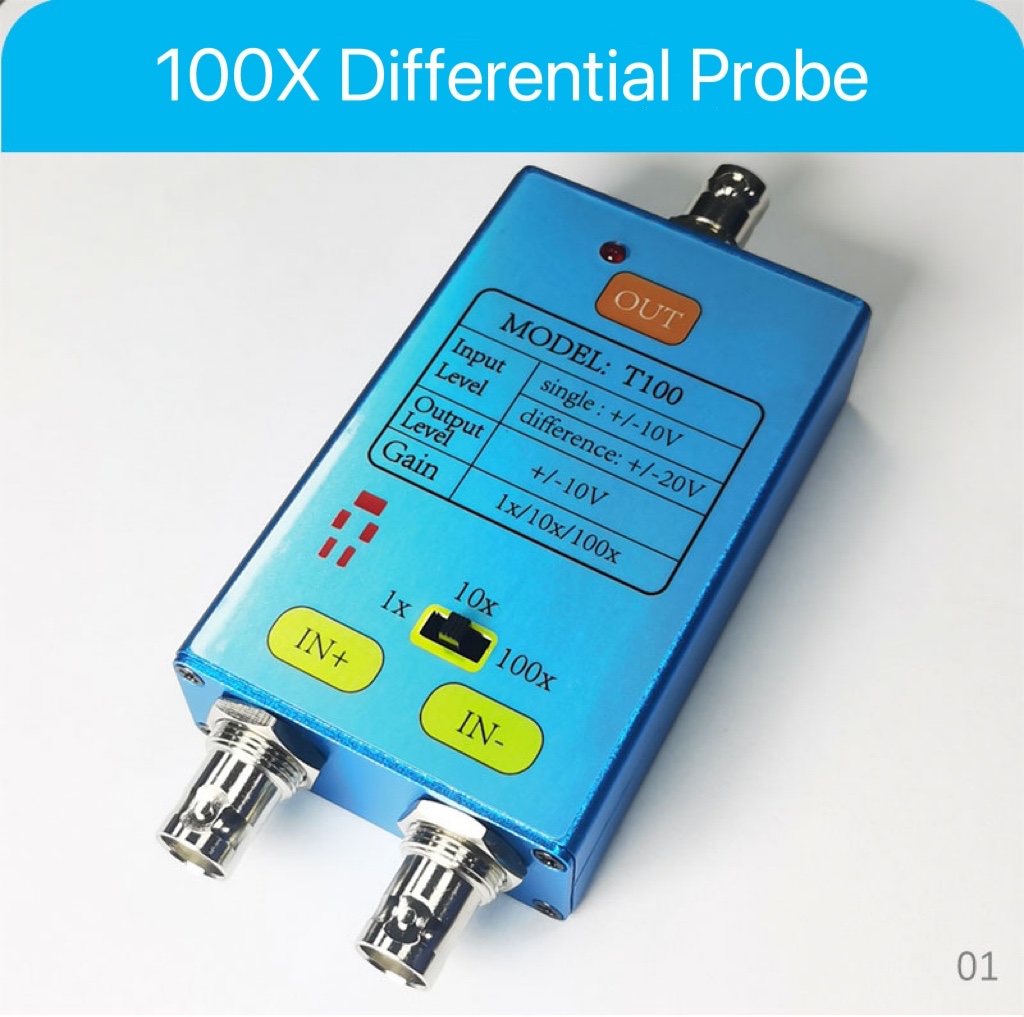

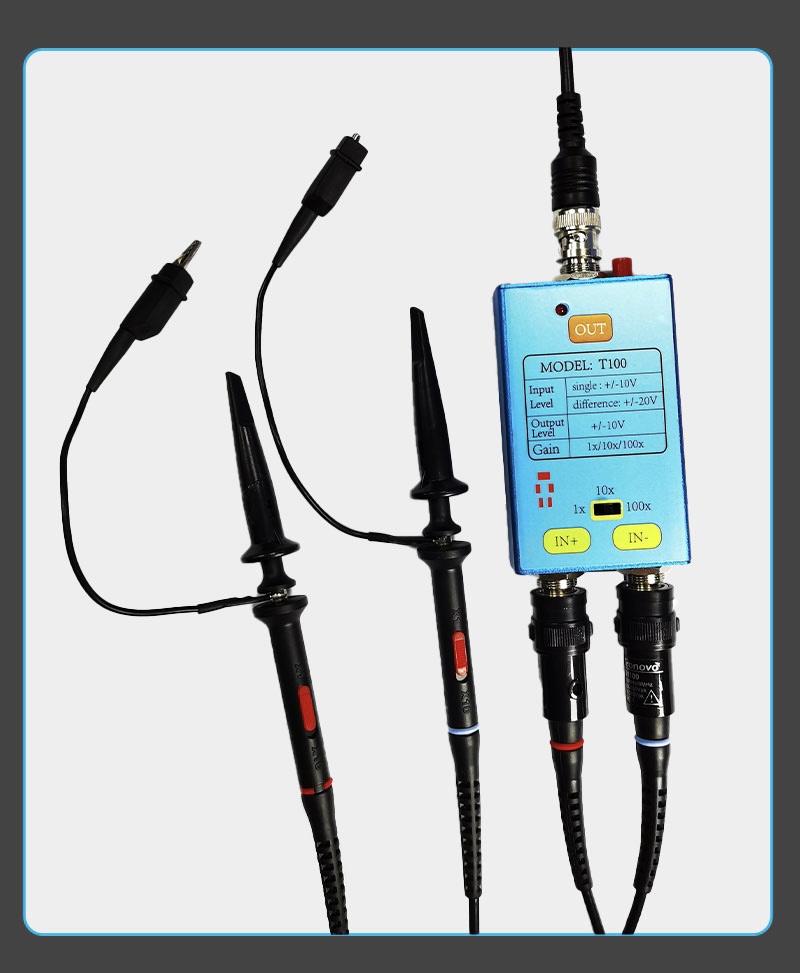

10M Bandwidth Oscilloscope Differential Signal Amplifier for Weak Electrical Signal Measurement with Metal Shell
10M Bandwidth Oscilloscope Differential Signal Amplifier for Weak Electrical Signal Measurement with Metal Shell
$85.99
Ex Tax: $85.99
- Stock: In Stock
- Model: MZ004275
- Weight: 0.15kg
- SKU: MZ004275
Description:
This product is specially designed to amplify weak signals. For weak current, the noise is small, the precision is high, and the original signal is restored well.
Oscilloscopes are unable to measure small signals, and the instrument needs to be amplified before measuring.
Application:
Electronic engineers, maintenance, R&D personnel, college students and other.
It can also be used in industrial automation measurement and control, because the sensor signal is very weak and needs to be amplified before output.
Note: This product is not a high voltage . The high-voltage is for high-voltage operation. For strong electricity, it is generally used to measure high-voltage electricity, and the accuracy requirements are not high.
Features:

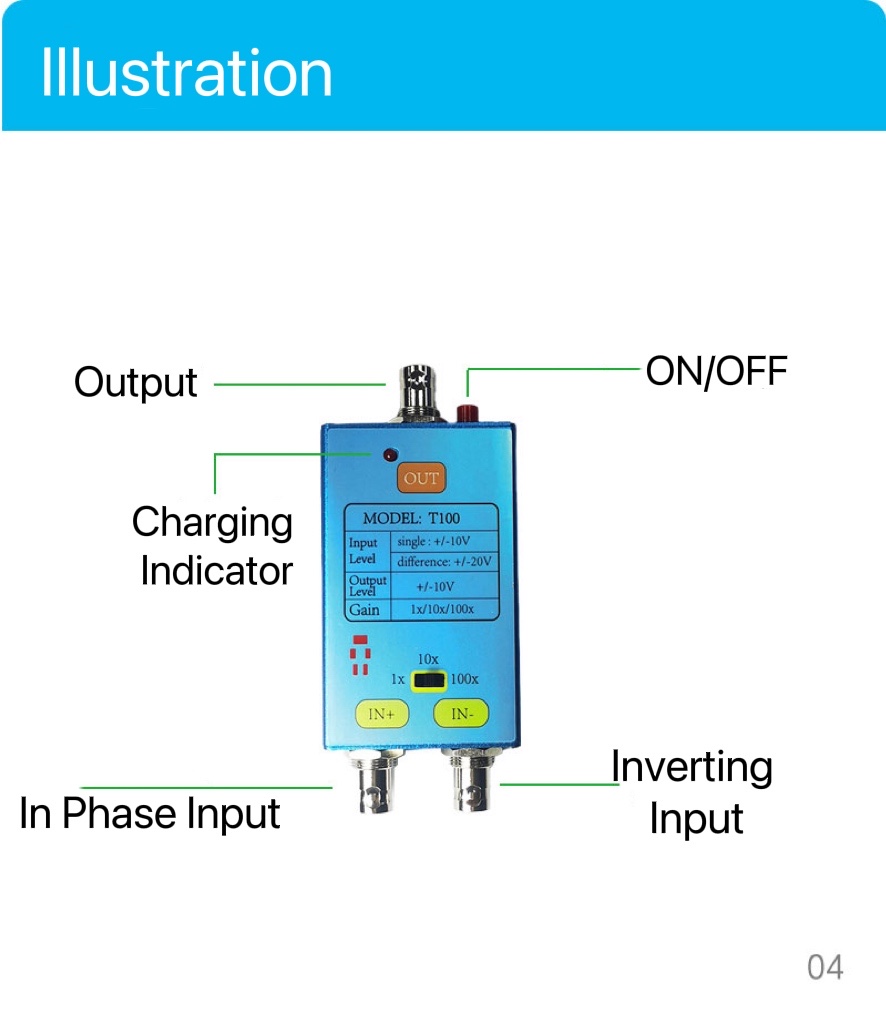

- Support differential input and single-ended input
- Wide input voltage range, up to +/-10V
- 1x/10x/100x optional magnification
- Up to 10M bandwidth
- Battery powered, support USB TYPEC interface charging

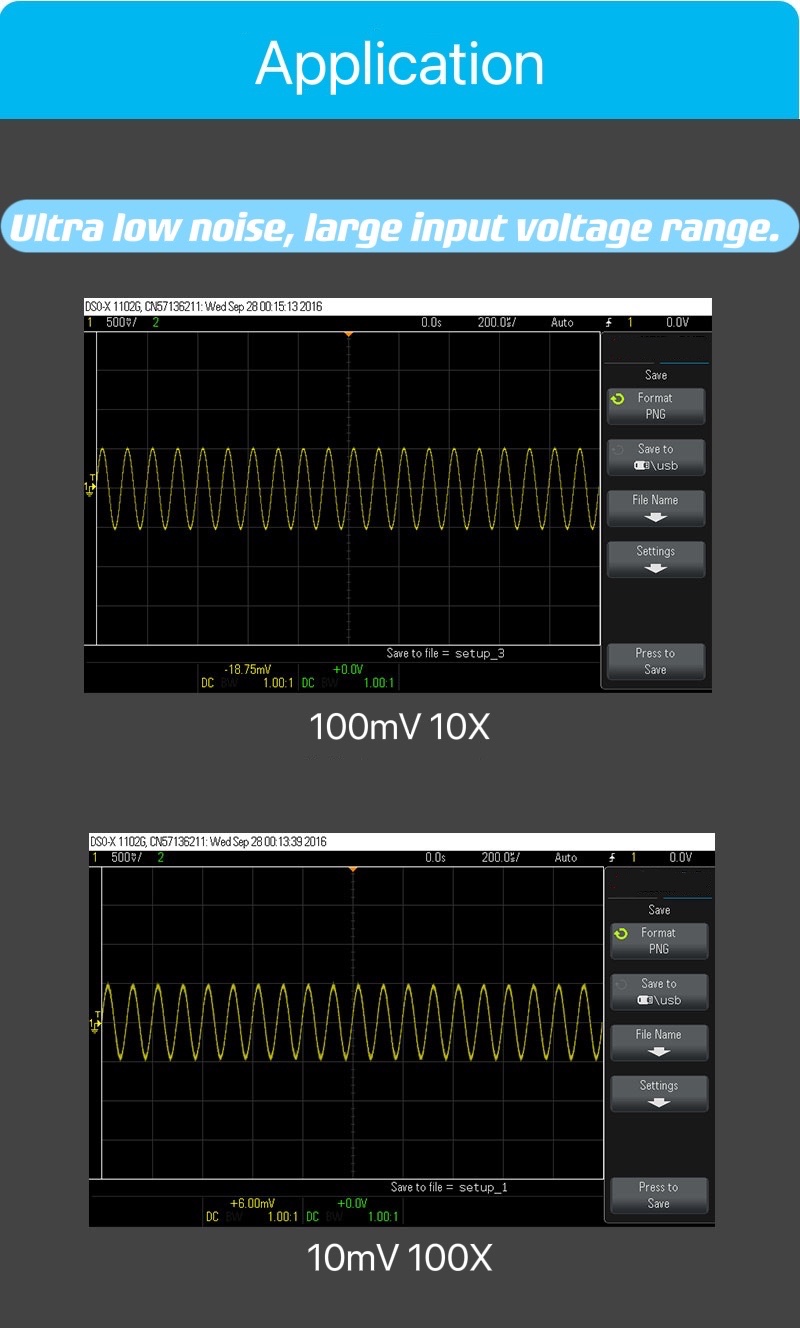

- Ultra low noise, high common mode rejection ratio
- long battery time

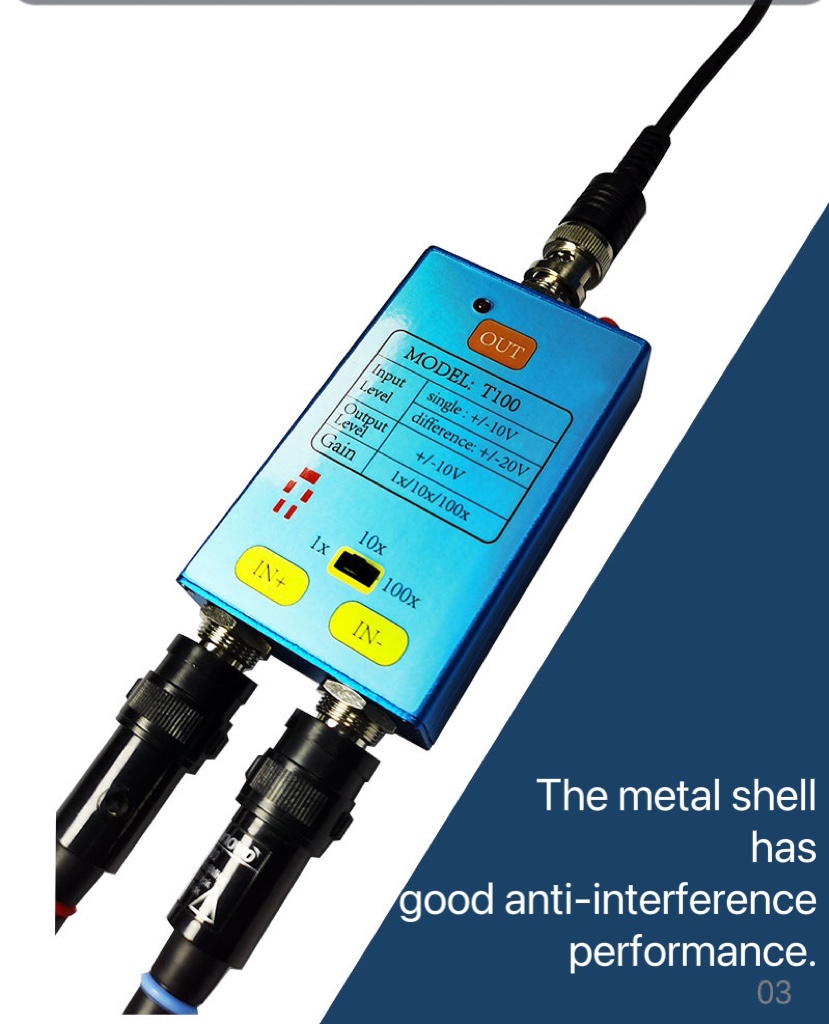

- Exquisite metal shell, strong anti-interference ability
Specification:
Single-ended input voltage: -10V to +10V
Differential Input Voltage: -10V to +10V
Single-ended input impedance: 2M
Differential input impedance: 4M
Output Voltage: -10V to +10V

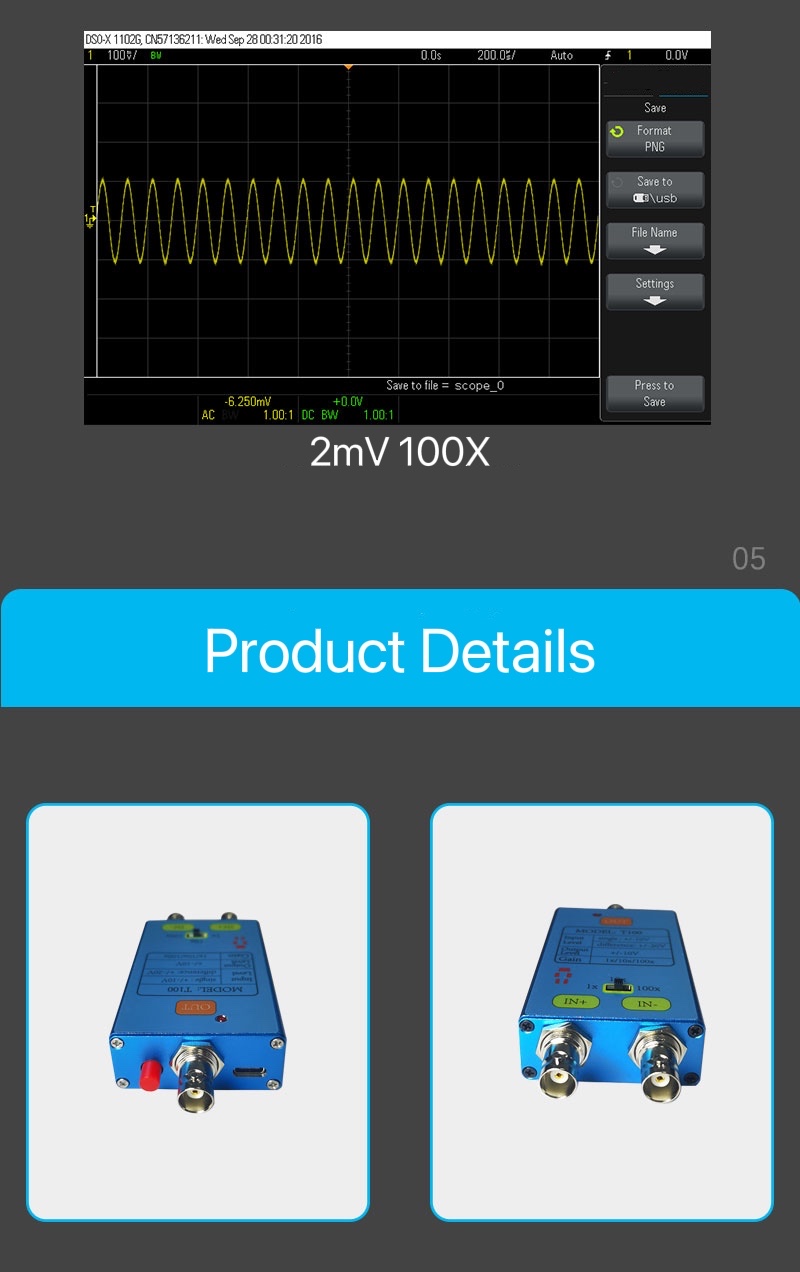

Magnification: 1x/10x/100x
Bandwidth:
G=1 -- 10M
G=10 -- 10M
G=100 -- 2M
Common mode rejection ratio: >80DB
Noise : 5nV/√ @1KHz
Power supply: built-in rechargeable lithium battery
Charging interface: USB TYPEC
Battery time: about 5 hours
Working temperature: 0°C-40°C
Working humidity: ≤90%RH
Power consumption: ≤0.2W
Volume (L×W×H): 115*50.5*21 mm
Host weight: 150g

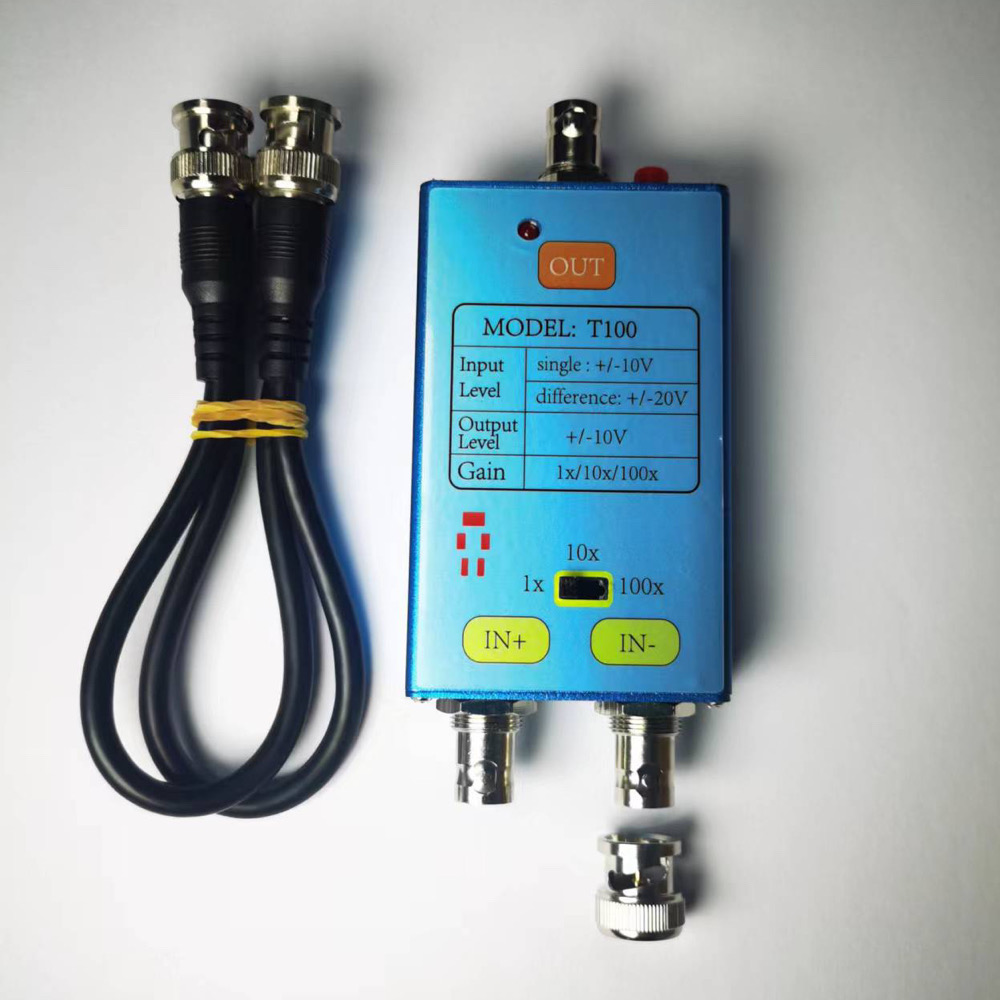

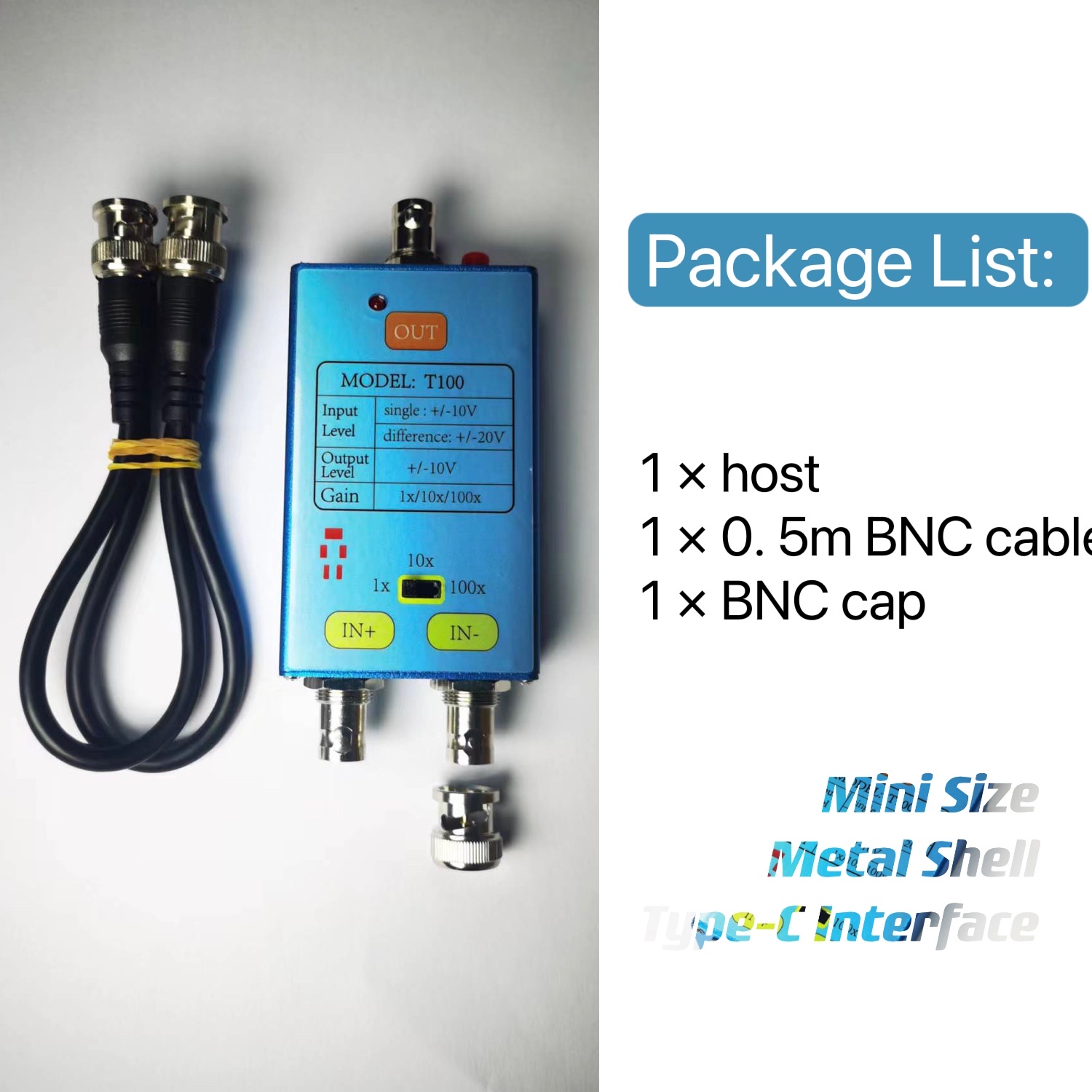

Shipping list:
1 * Host
1* 0.5m BNC straight cable
1 * BNC shorting cap
