DL24M-H 2-200V 600W 3mA-40A Electronic Load Voltage Indicator Power Bank Battery Tester 18650 Pack Capacity Monitor Checker Tool
DL24M-H 2-200V 600W 3mA-40A Electronic Load Voltage Indicator Power Bank Battery Tester 18650 Pack Capacity Monitor Checker Tool
$43.99
Ex Tax: $43.99
- Stock: In Stock
- Model: MZ001544
- Weight: 523.00g
- SKU: MZ001544
Introduction to the key operation of frequently used functions:
1)Short press the "ON/OFF" button to start and stop, short press the upper left corner of the "M" button to move the cursor and then adjust the corresponding value with the "+/-" button
2) Long press the "+/- " button at the same time to clear all accumulated data such as the current capacity, battery time, etc. (Long press the "ON/OFF" button to enter the background, also can be cleared in the background menu)
3) Long press the “M” button and the function mode starts to flash, then short press the “+/-” button to select the function (CC/CV/CR/CP/BRT/PT)
4) In OFF mode, long press the "ON/OFF" button to enter the background interface, then short press the "M" button to switch the setting column, and the "+/-" button to adjust the number
5) Short press the "+/-" button in the constant current accuracy column of the background setting interface to switch the constant current accuracy (10mA Or 1mA)

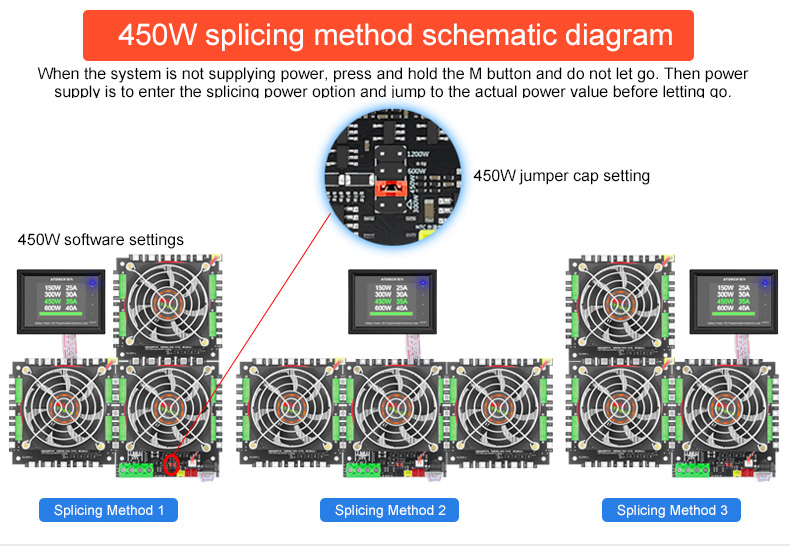

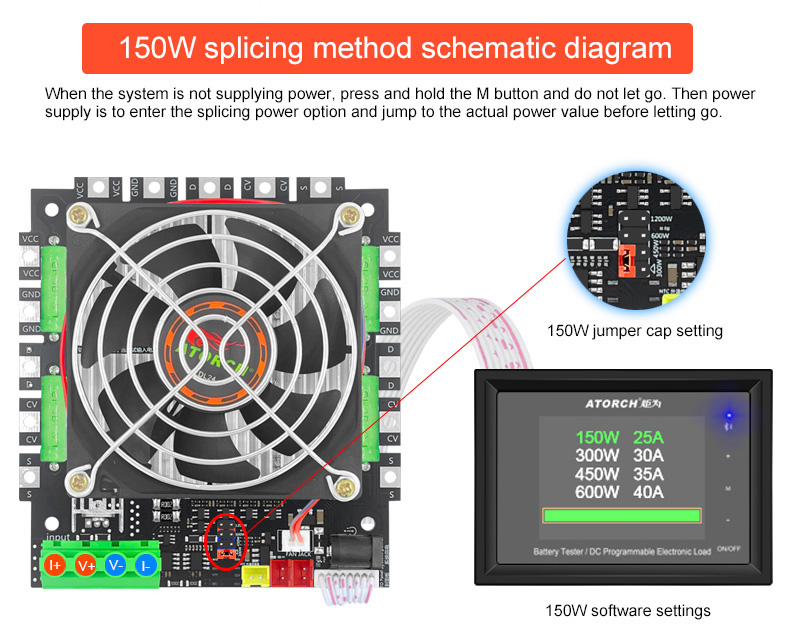

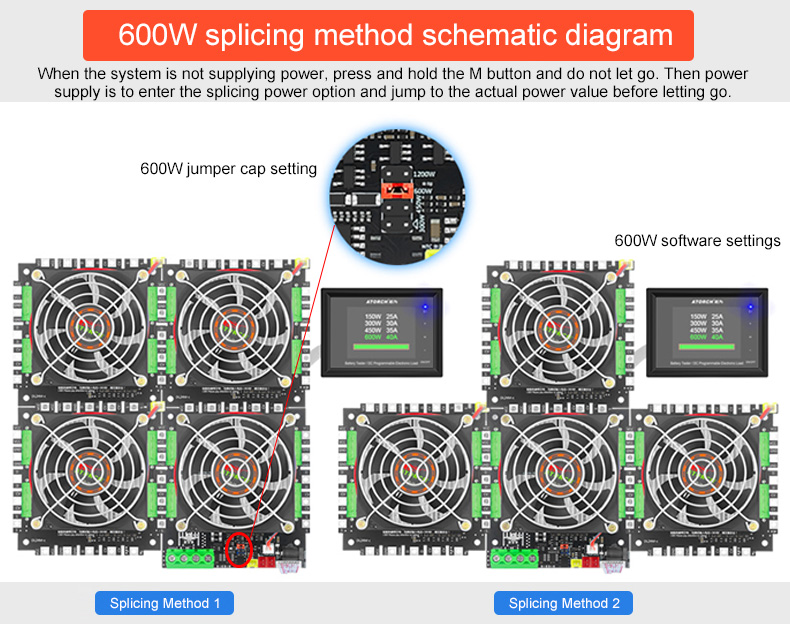

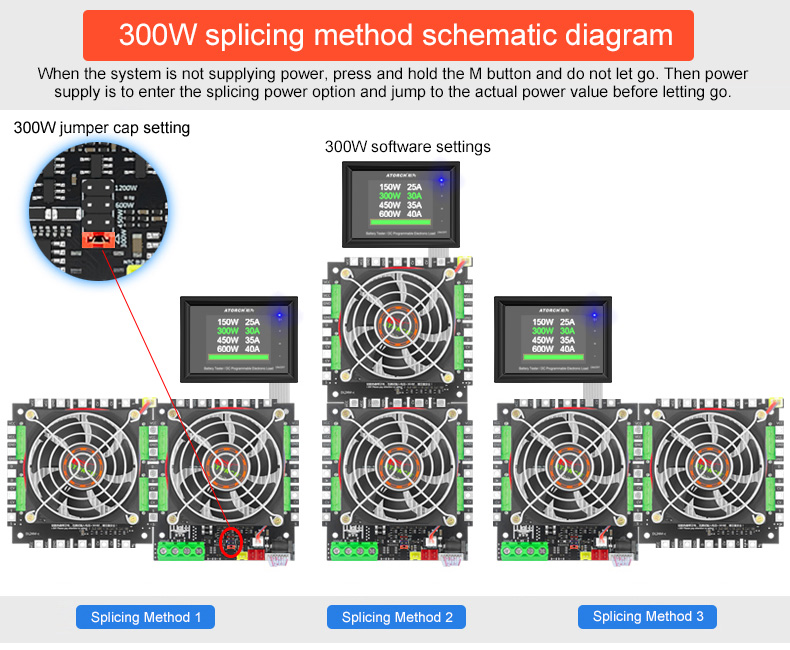

6) When the system is not supplying power, press and hold the "M" button and do not let go. Then power on again. Enter the splicing power option and jump to the actual power value before let go
7) Long press the "M" button the function mode starts to flash, short press the "M" button again to enter the setting adjustment value of the time-limited discharge and Cut off voltage column value.

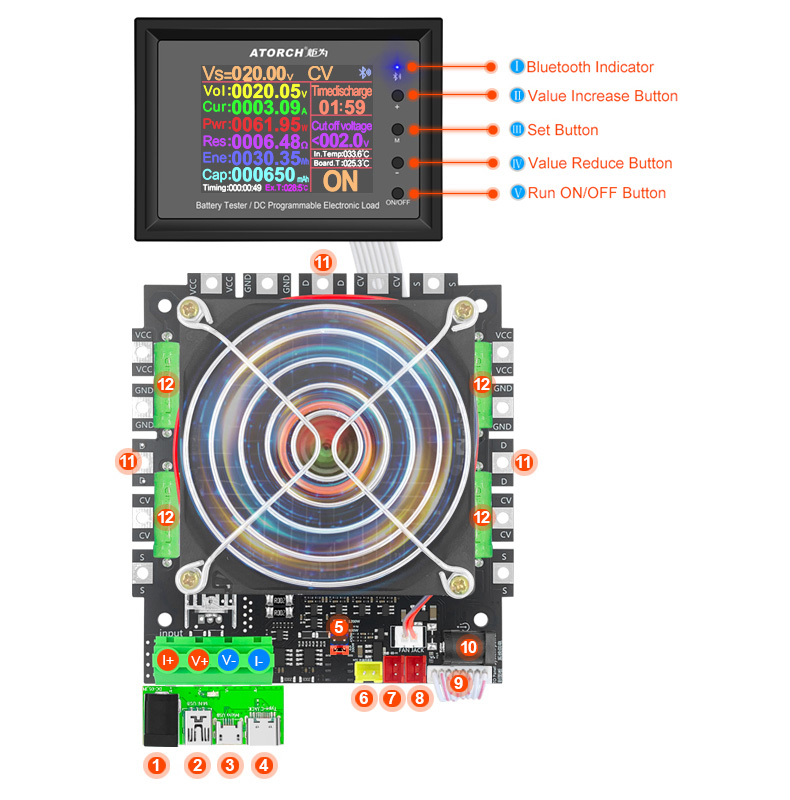

Panel Main buttons and description:
Ⅰ: Bluetooth indicator (Flashing waiting for Bluetooth connection, Long light indicates successful connection)
Ⅱ: "+" Vave Increase Button (Short press the button to increase the number, long press the button to increase continuously, When the mode is flashing, short press the button to cycle backwards)
Ⅲ: "M" Set Button (Long press "M" key to start function mode, press "+" or "-" key to switch CC/CV/CP/CR/BRT/PT mode, long press "M" key to start function mode, short press "M" again Key to switch between Time Discharge and Cut off voltage. Press the "+" or "-" key to set the value, the default is OFF)
Ⅳ: "-" Value Reduce Button (Short press the button to decrease the number and long press the button to decrease continuously. When the mode is flashing, short press to cycle forward)
Ⅴ: "ON/OFF" Run ON/OFF Button (Short press the button, it is ON or OFF
Long press the button to enter the product background settings, and use the "M" button and "+" or "-" button to set the parameters)
Four operating modes of operation:
1. Constant current operation (CC)
2. Constant resistance operation (CR)
3. Constant power operation (CP)
4. Constant voltage operation (CV)
Host Parameters and description:
1. Test various DC power inputs
2. MiNi USB detection port inputs
3. Micro USB detection port inputs
4. Type-c USB detection port inputs

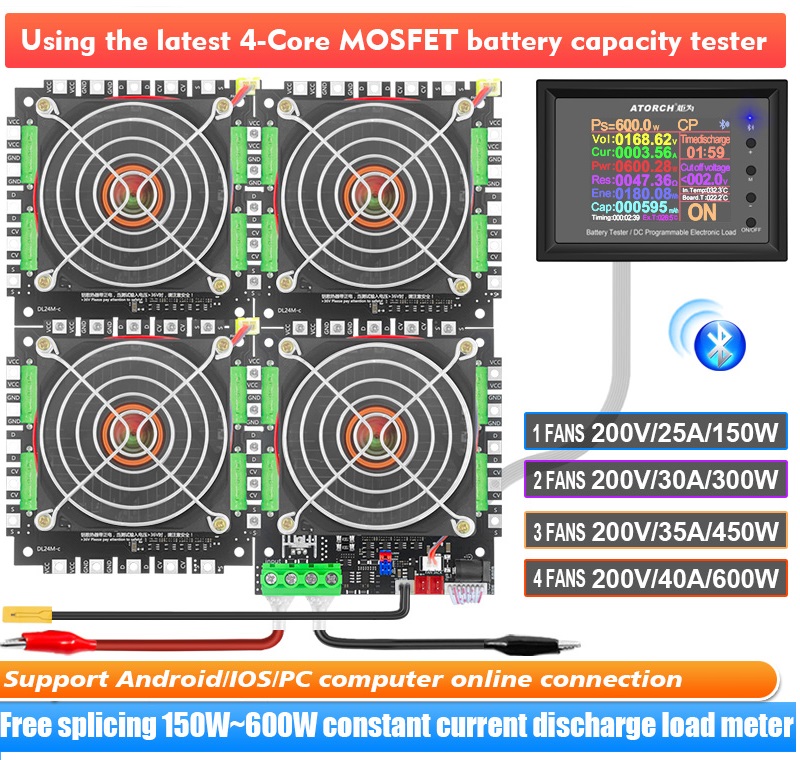

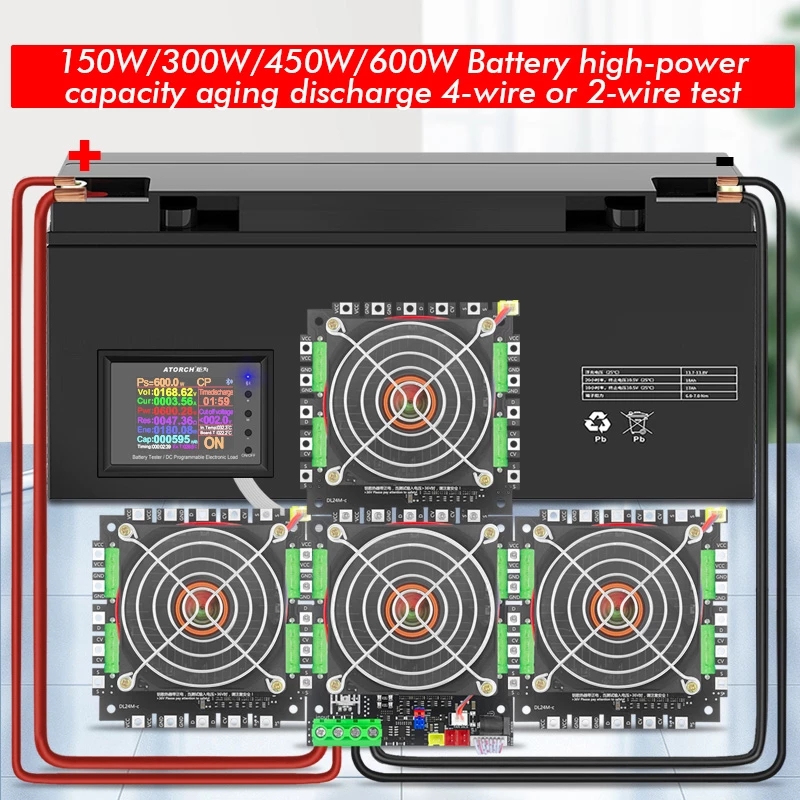

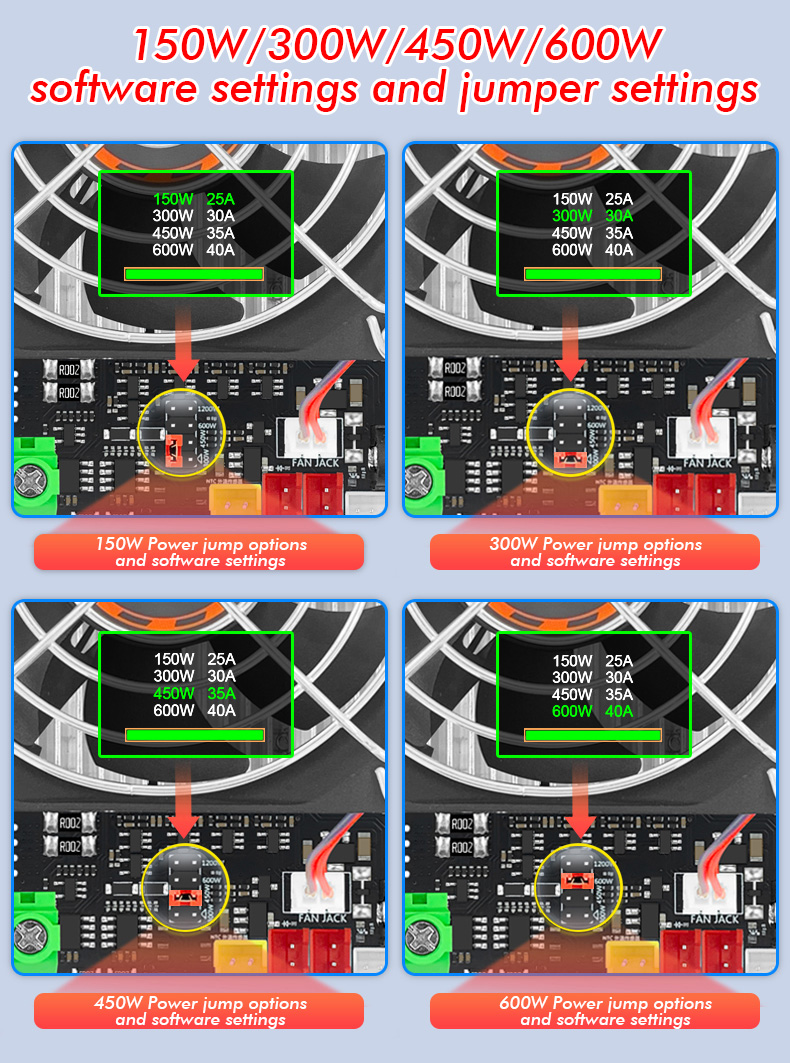

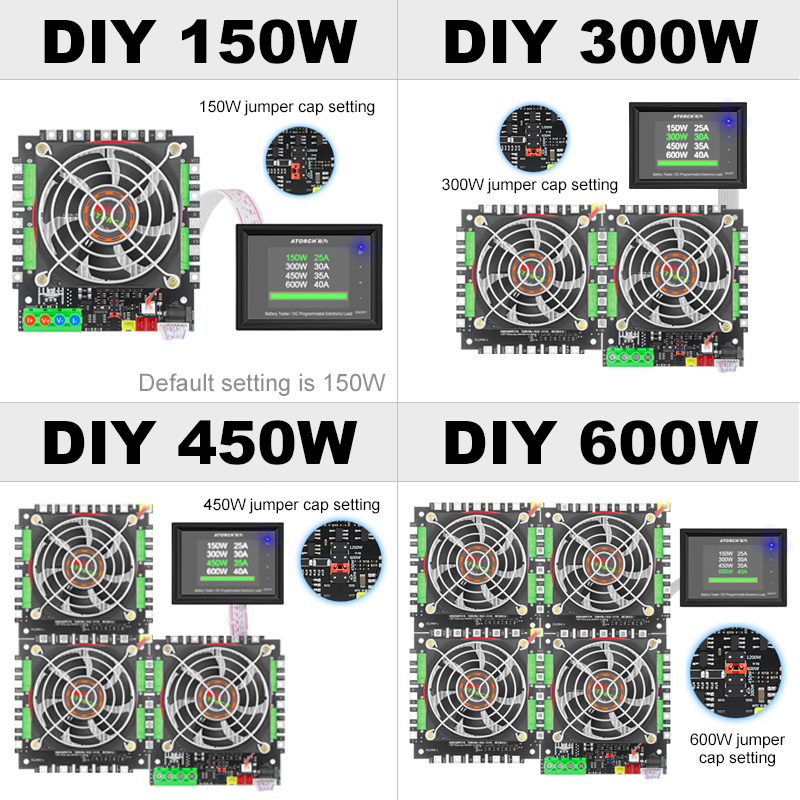

5. DIY assembly Different power reserve jumper positions (150W/300W/450W/600W)
6. External NTC temperature probe
7. Straight needle seat XH2.54-2P(Please ignore, no match)
8. Straight needle seat XH2.54-2P(Please ignore, no match)
9. 8p cable connected to the panel
10. DC5.5 system power supply (must supply DC12V 1A)
11. Increase the power and expand the interface
12. Resistance X4pcs
Package included: (optional)
150W Type#1:
1 x DL24M -150W Color Display Bluetooth Digital Control Curve Version Load Tesr
1 x DC12V 1A power supply
1 x 5 set of Male and female screws
1 x Temperature probe
1 x Red and black single line crocodile clip line
1 x US to EU adapter
1 x Adapter test board
300W Type#2:
1 x DL24M-150W Host Color Display Bluetooth Digital Control Curve Version Load Tesr
1 x DC12V 1A power supply
2 x 5 set of Male and female screws
1 x Temperature probe
1 x Red and black single line crocodile clip line
1 x US to EU adapter
1 x 150W fan accessories
1 x Adapter test board
450W Type#3:
1 x DL24M-150W Host Color Display Bluetooth Digital Control Curve Version Load Tesr
1 x DC12V 1A power supply
3 x 5 set of Male and female screws
1 x Temperature probe
1 x Red and black single line crocodile clip line
1 x US to EU adapter
2 x 150W fan accessories
1 x Adapter test board
600W Type#4:
1 x DL24M-150W Host Color Display Bluetooth Digital Control Curve Version Load Tesr
1 x DC12V 1A power supply
4 x 5 set of Male and female screws
1 x Temperature probe
1 x Red and black single line crocodile clip line
1 x US to EU adapter
3 x 150W fan accessories
1 x Adapter test board
