GM12-N30VA DC 6V 12V Gear Motor Miniature Large Torque Permanent Magnet Gear Motor
GM12-N30VA DC 6V 12V Gear Motor Miniature Large Torque Permanent Magnet Gear Motor
$10.99
Ex Tax: $10.99
- Stock: In Stock
- Model: MZ006374
- SKU: MZ006374
Description:

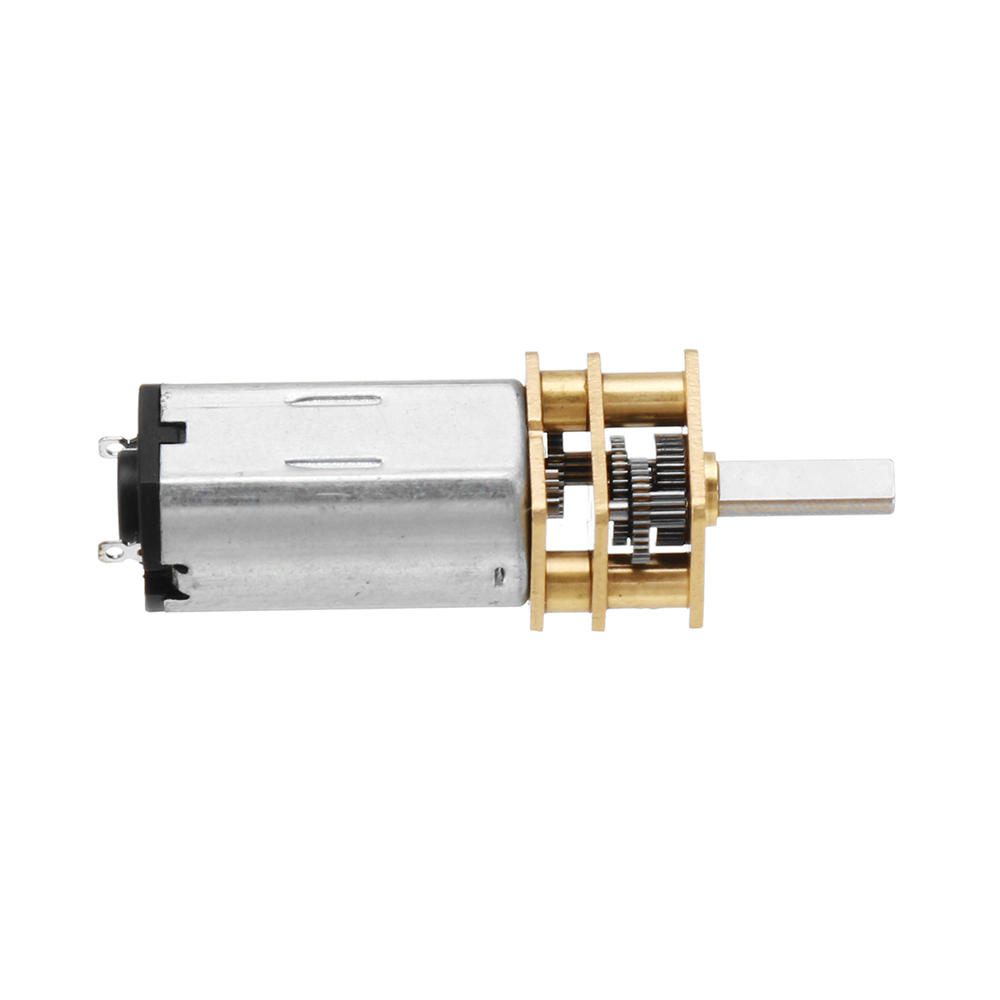

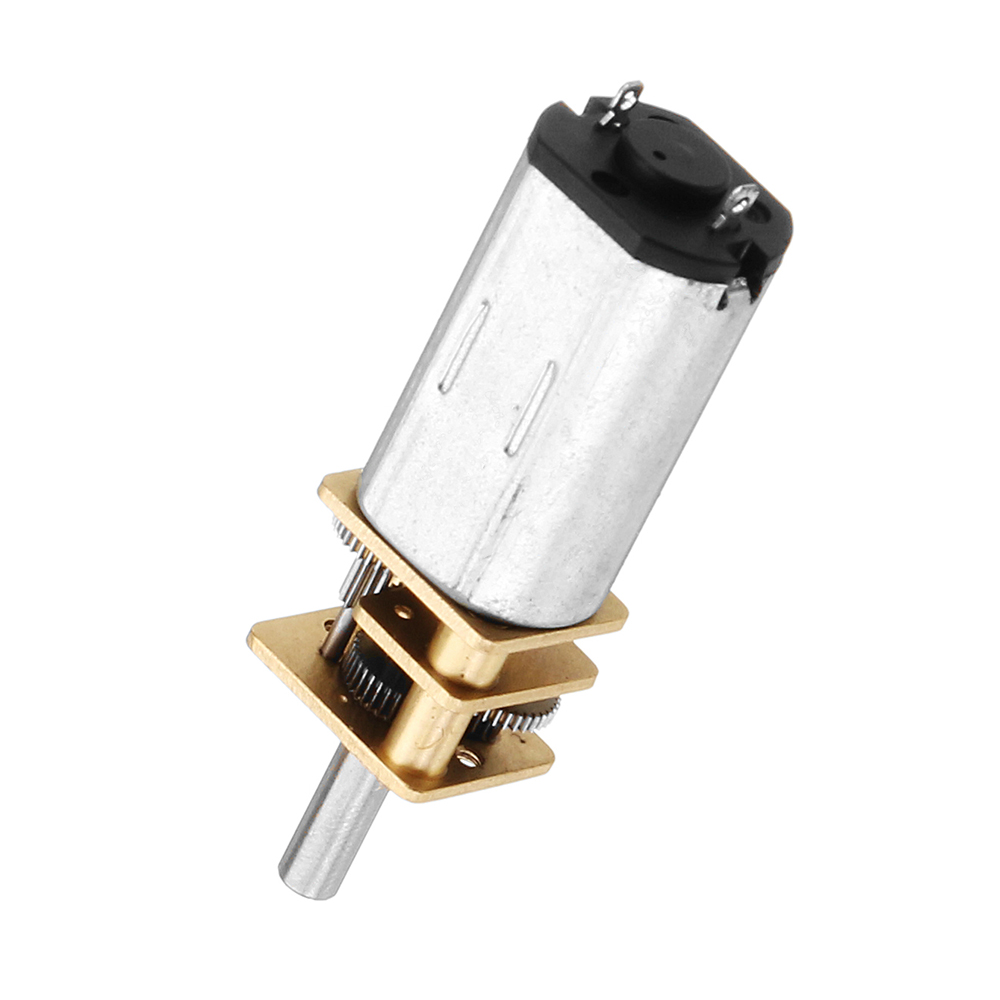

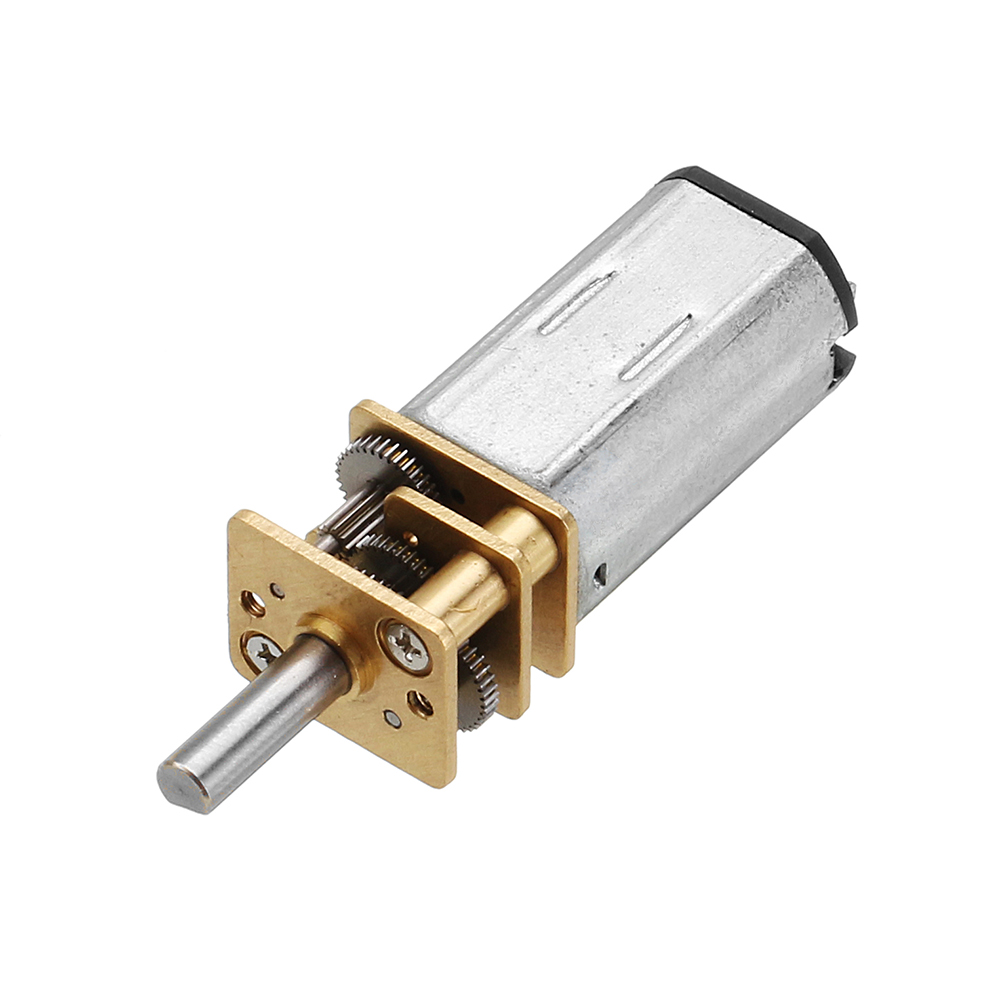

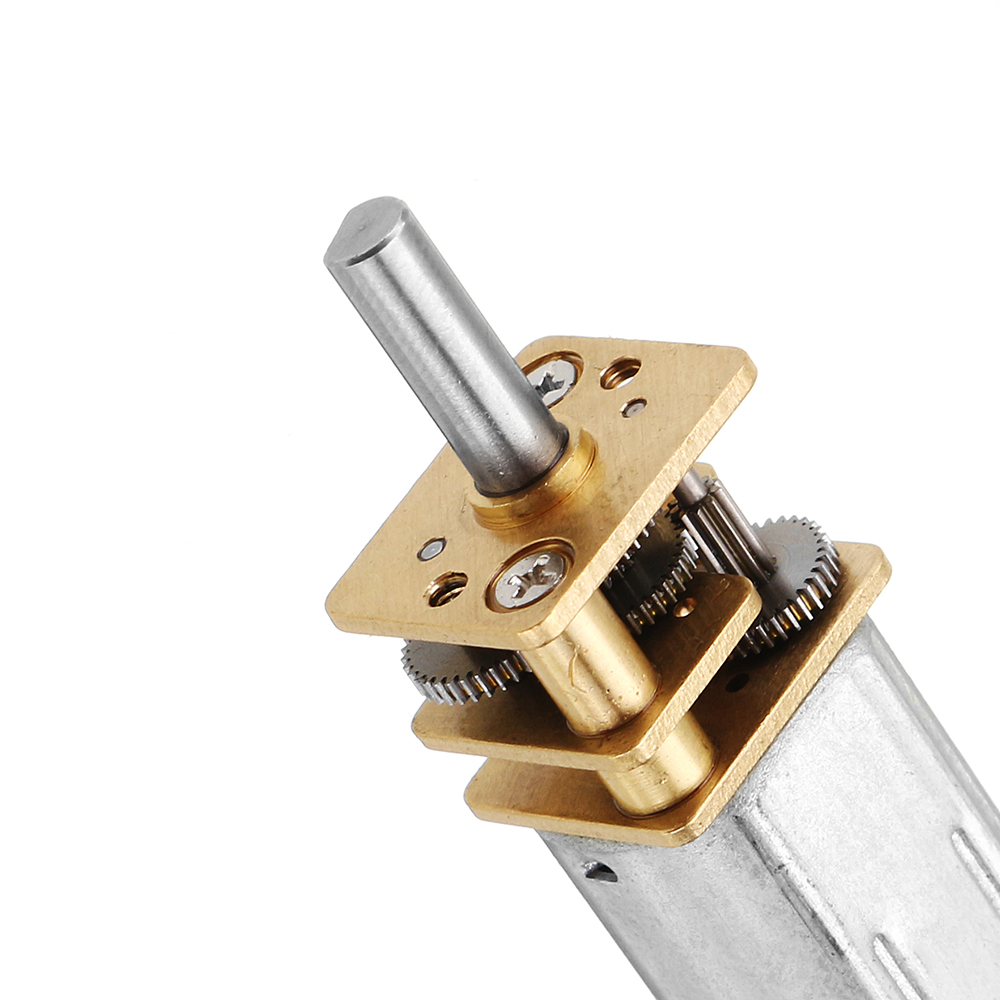

Moonzite GM12-N30VA DC 6V 12V Gear Motor Miniature Large Torque Permanent Magnet Gear Motor
Specifications:
| Product Name | Permanent Magnet Gear Motor |
| Model | GM12-N30VA |
| Voltage | DC 12V |
| Axle Diameter | 3mm D axis |
| Quantity | 1pcs |
| Voltage (V) | Gear Ratio | No-Load Speed (rpm) | No-Load Current (MA) | Load Torque Speed (rpm) | Load Torqued Current (MA) | Load Torqued Torque (g.cm) | Stall Current (A) | Stall Torque(Kg.cm) |
| 6V | 1:298 | 30 | ≤40 | 28 | ≤60 | 540 | ≤1.1 | 3.80 |
| 6V | 1:298 | 60 | ≤70 | 48 | ≤100 | 440 | ≤1.1 | 4.20 |
| 6V | 1:100 | 100 | ≤50 | 83 | ≤100 | 320 | ≤1.1 | 3.50 |
| 6V | 1:50 | 300 | ≤150 | 240 | ≤200 | 140 | ≤1.1 | 4.00 |
| 6V | 1:30 | 500 | ≤50 | 450 | ≤100 | 65 | ≤1.1 | 2.25 |
| 12V | 1:298 | 60 | ≤80 | 55 | ≤90 | 720 | ≤1.1 | 5.60 |
| 12V | 1:298 | 120 | ≤100 | 100 | ≤90 | 880 | ≤1.1 | 5.80 |
| 12V | 1:100 | 200 | ≤150 | 180 | ≤100 | 550 | ≤1.1 | 5.50 |
Features:
- Large torque and stable.
- Durble and long service life.
- Low noise, low power consumption, small size.
- Suitable for equipment, robot, camera, hosehold machine, etc.
Package Included:
1 x | Gear Motor |
