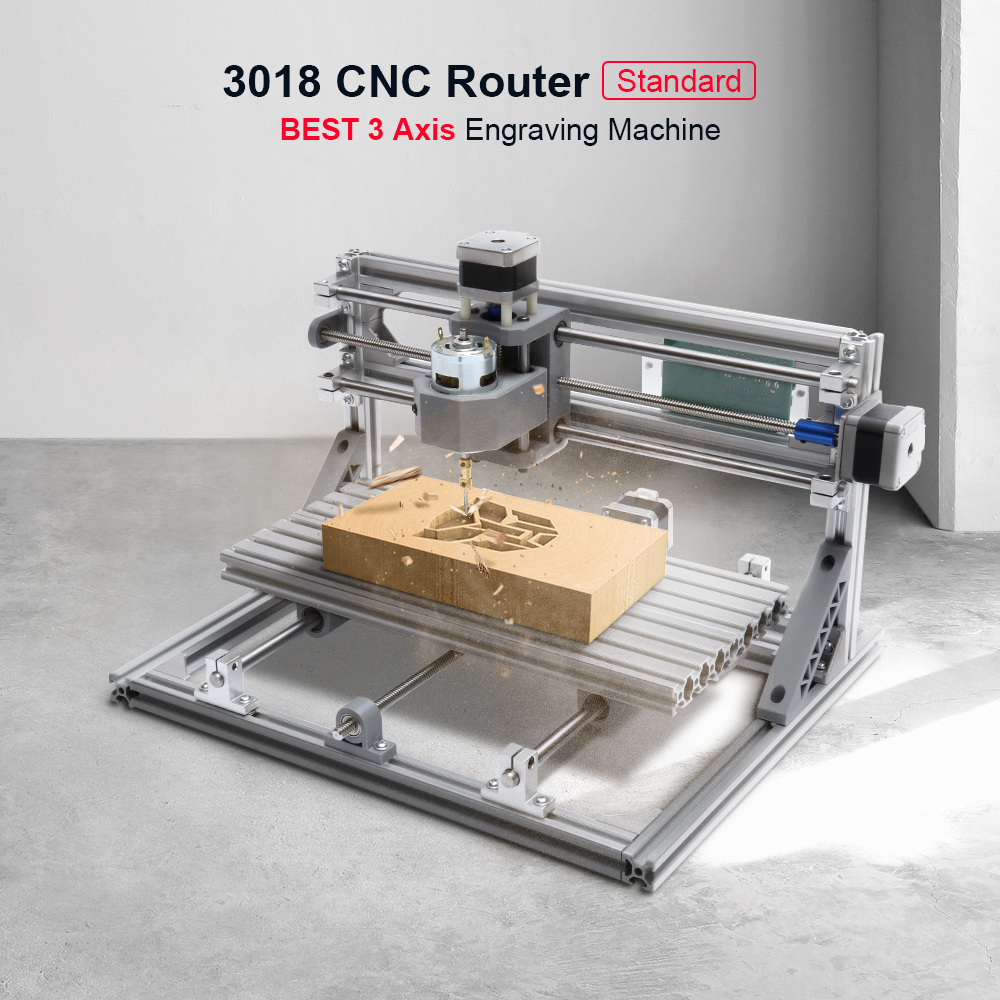

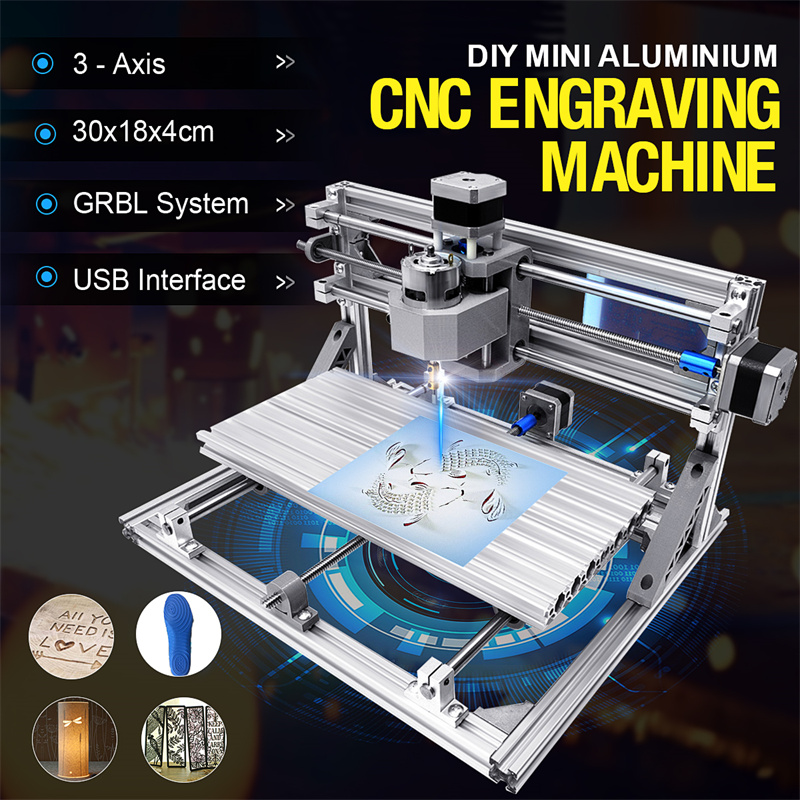

3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Woodworking Engraver
3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Woodworking Engraver
$149.99
Ex Tax: $149.99
- Stock: In Stock
- Model: MZ001684
- Weight: 7.50kg
- SKU: MZ001684
Specification:
Features:
| General Specification | |
| Model | Mini CNC3018 (Without Laser Module) |

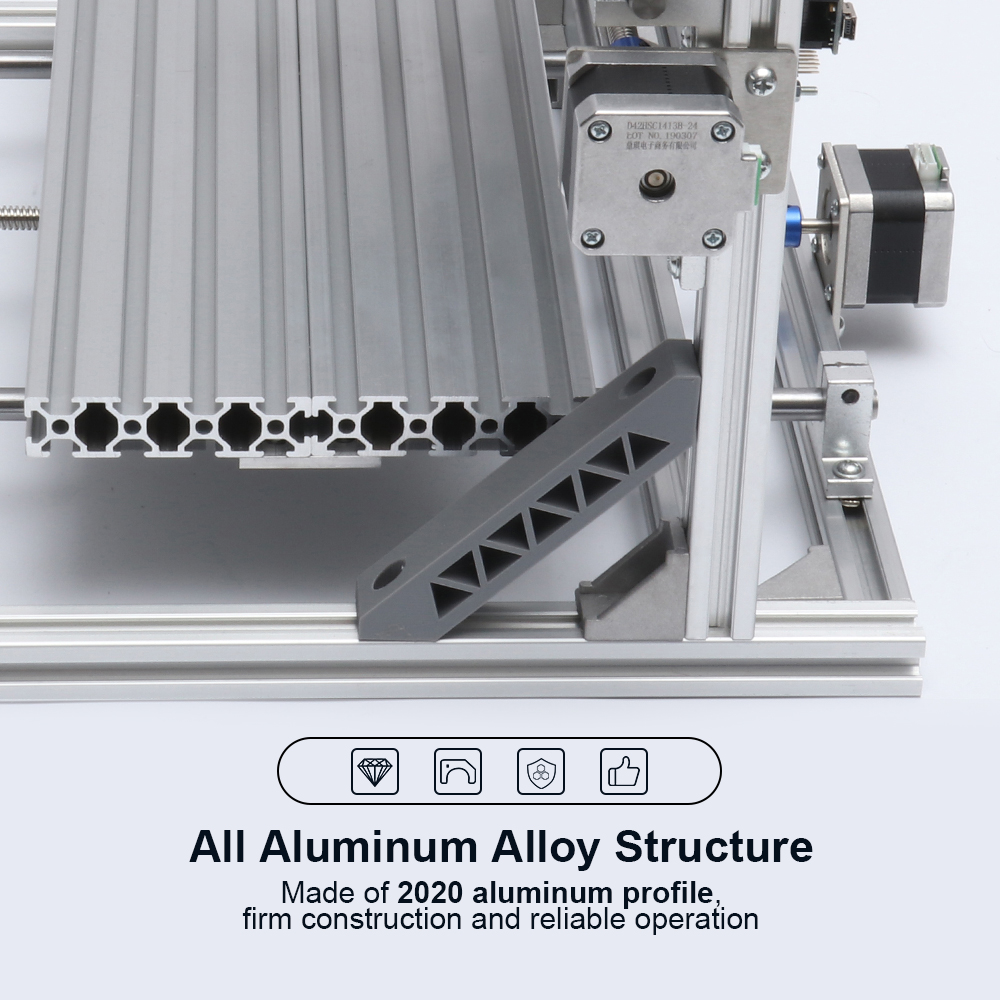

| Frame Material | Aluminum Alloy |
| Color | Silver |
| Table Area | Approx. 340x160mm |

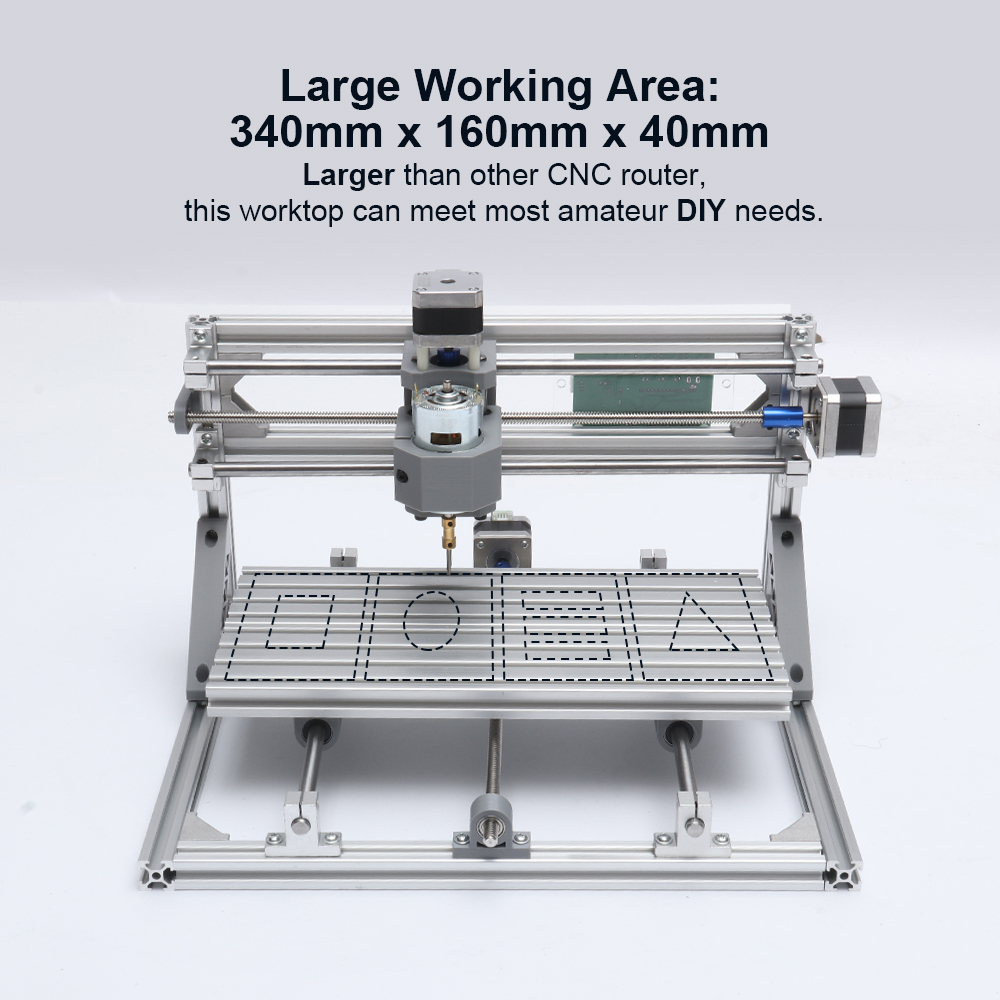

| Working Area | Approx. 340x160x40mm |
| Product Weight | 7.5kg |
| Control Software for Spindle | GrblControl |
| Control Software for Laser | Litefires |
| System Requirements | Windows XP SP3, Win7, Win8, Win10. |
| Adapter Plug | 2-Pin US Plug |
| Adapter Input Voltage | AC 110-240V 50/60Hz |
| Adapter Output Voltage | DC 24V 4A |
| Features |
1. Aluminum Profile Stable Construction 2. 3 Axis Movable, Powerful Spindle Motor 3. Contains Quickstart Guide of GRBL Software 4. 340x160x40mm Working Area, Meet Most Amateur DIY Needs 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material Can Not Engrave Metal, Steel, Aluminum. |
| Technical Parameters | |
| Working Voltage | DC 24V |
| Interface | USB |
| Stepper Motor | 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m |
| Spindle Motor | 775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min |
| Spindle Motor Shaft Diameter | 5mm |
Features:
- Assembly requires a certain mechanical skill. All assembly components are included.
- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
Latest Event Page please Contact us.
Note:

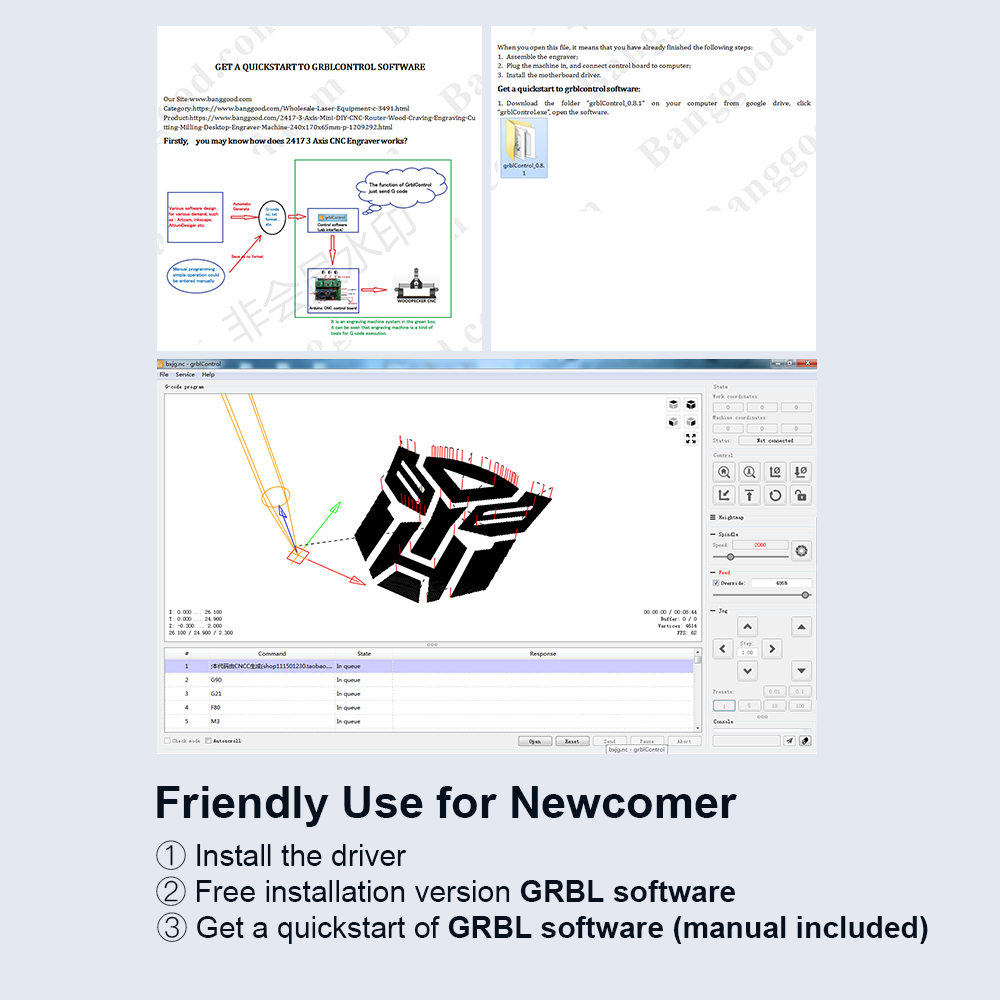

1. Instructions & Software: Assembly instructions, control software and further information please Contact us
2. This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the originals motor holder is round, please make sure the shape of your laser module is suitable for installation.
3.The software version should be version 0.9, version 1.1 is unstable, which will cause the engraving machine to run unsmoothly!
Package Included:

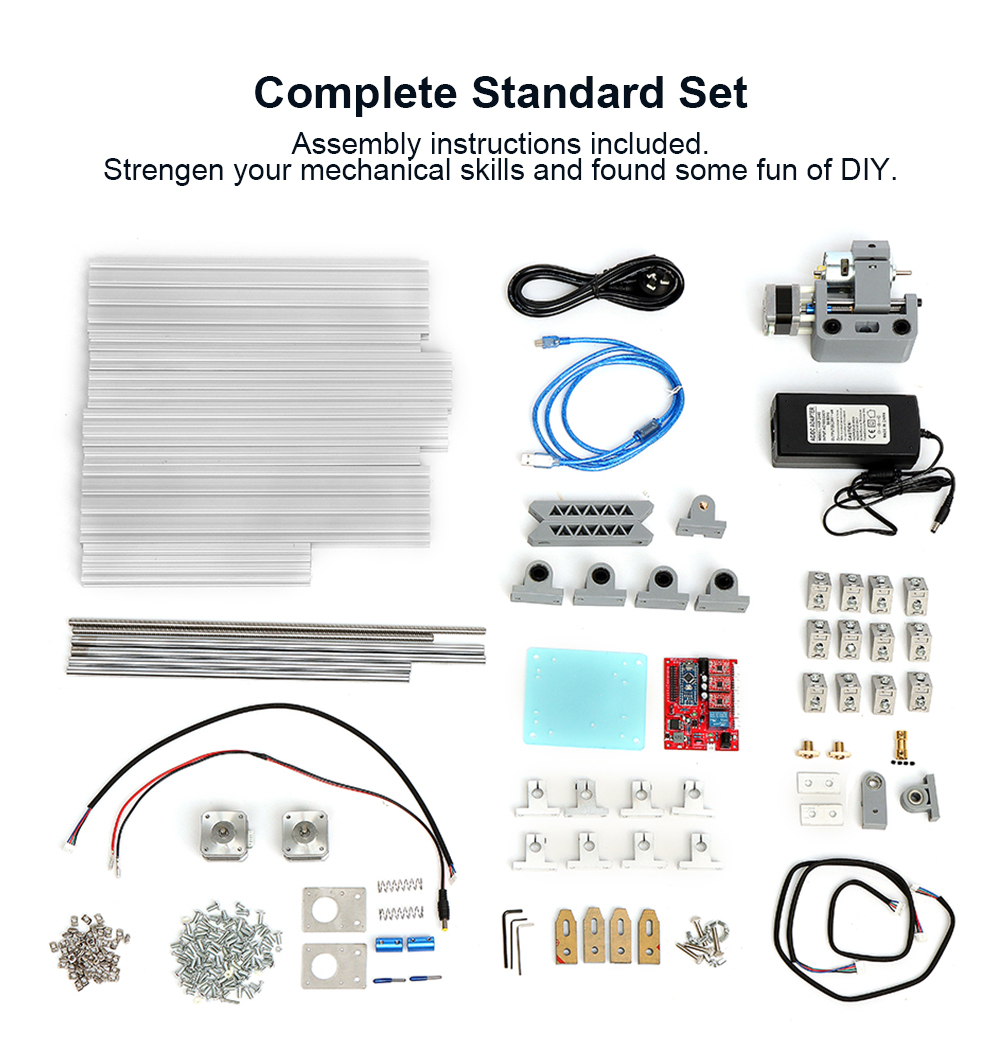

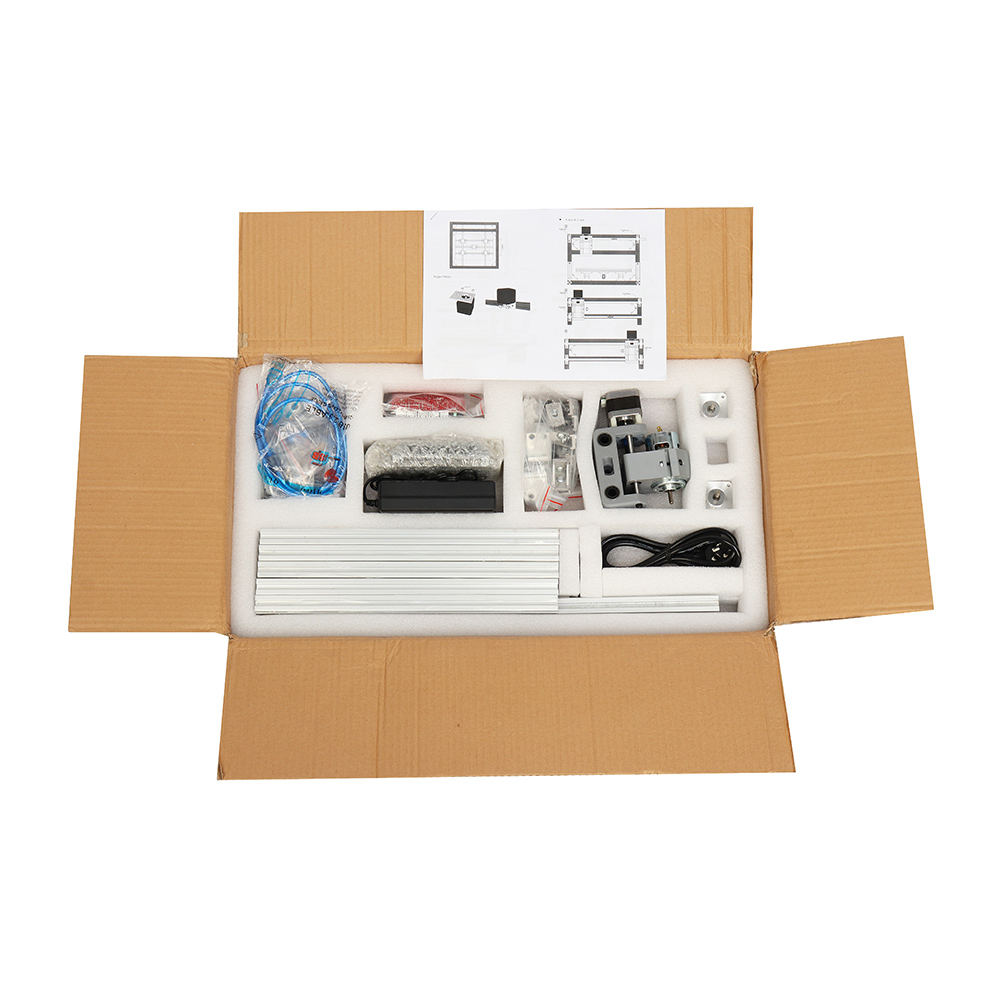

1 x Wood Engraving Machine Full Set (Unassembled Delivery)
