Large LCD Screen Network Cable Tester+Multimeter 2in1 400M/500M Cable Measure AC DC Current Voltage Measurement Anti-noise Line Tracker ET616/618
- Stock: In Stock
- Model: MZ004782
- SKU: MZ004782
>> Please Contact us to download the English manual <<
Description
This all-in-one tester integrates cable tracing, cable length measurement and multimeter functions. It features long tracing distance, clear audio signals, fast & precise cable length measurement and accurate multimeter testing performance.
Ideal for labs, factories, radio hobbyists, network installers and technicians. It can real-time test network cable length, short circuits and open circuits.
The cable tracing function quickly locates target cables among massive wiring bundles, compatible with telephone lines, computer network cables, BNC cables and other metal wiring.
Adopts latest digital noise-free tracing technology to deliver stable, interference-free testing experience.
Essential tool for computer network wiring, telecom cabling, BNC wiring and all metal cable engineering projects.

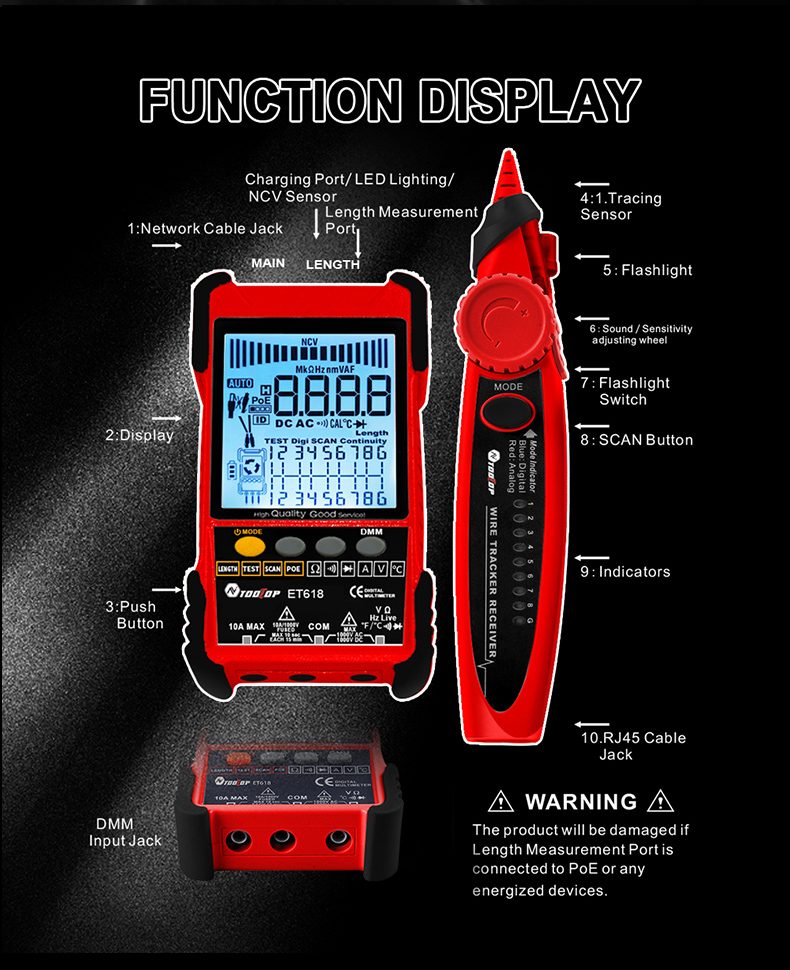

Features

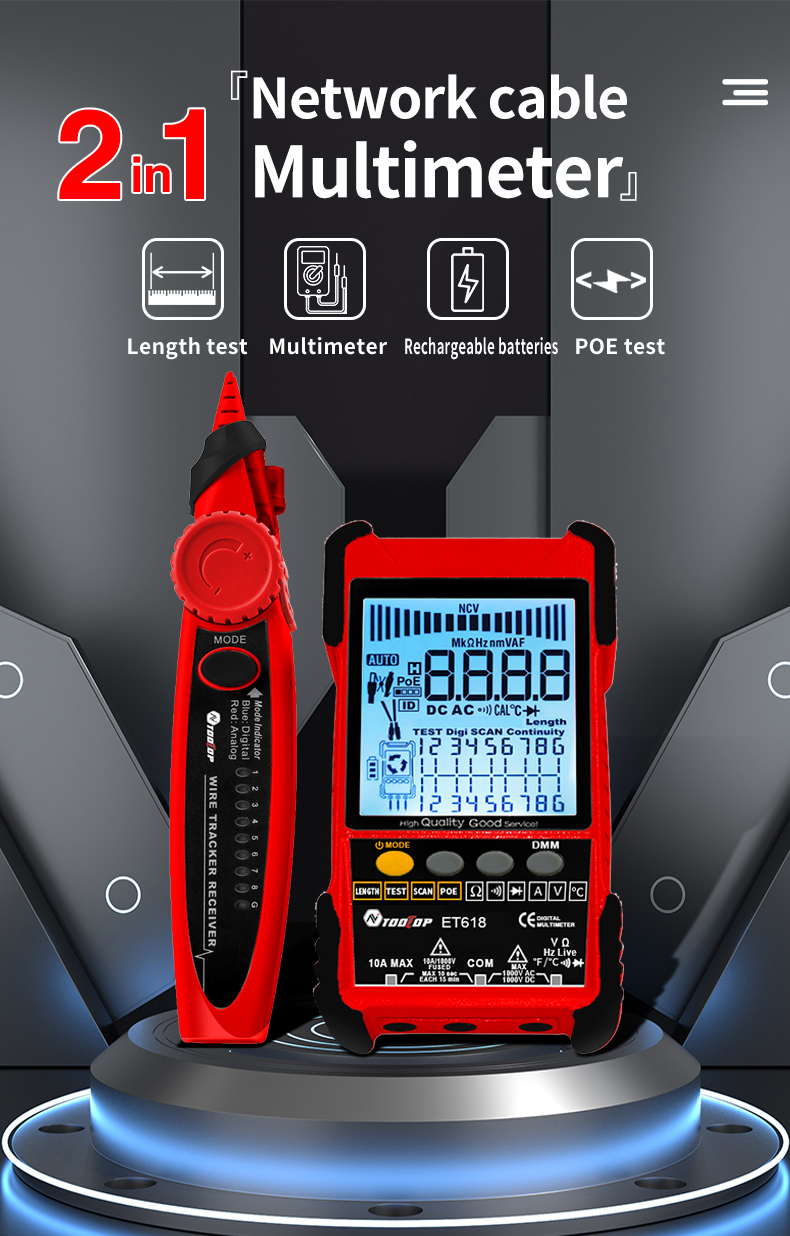

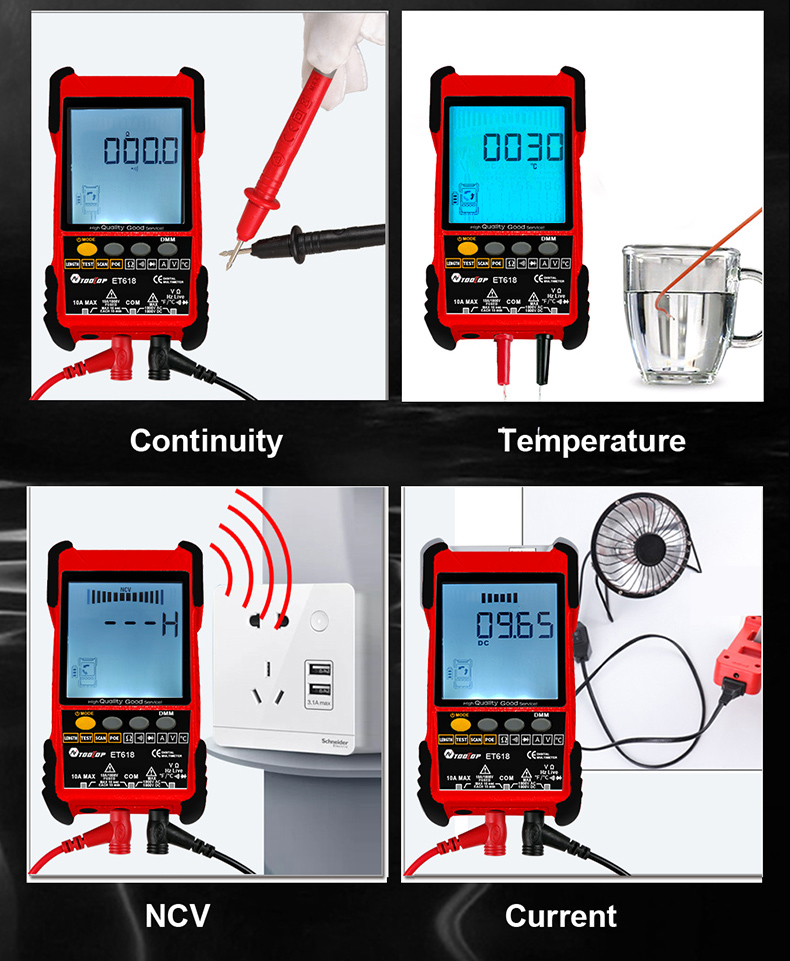

- 2-in-1: Network cable tester + multimeter (Only ET618)
- Supports 400M / 500M network cable length measurement
- Analog / Digital / POE line detection
- 60V anti-burning withstand voltage protection

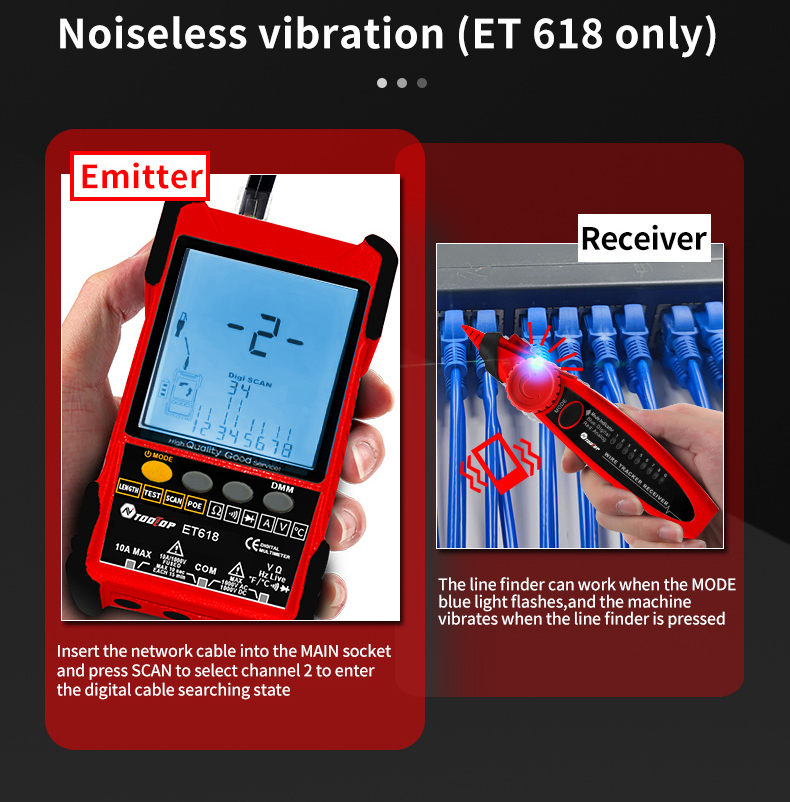

- Noiseless vibration line tracker (Only ET618)
- Large digital LCD display screen

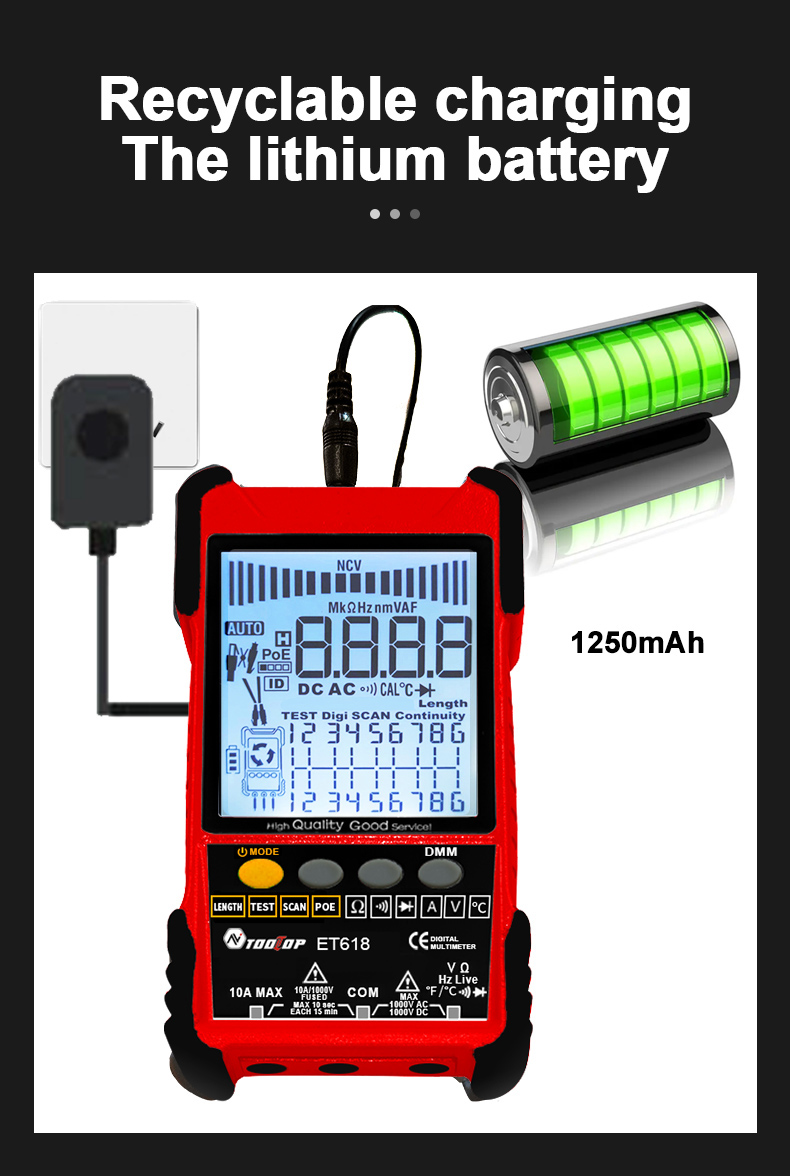

- Built-in rechargeable lithium battery
- Switch pairing & port flashing detection

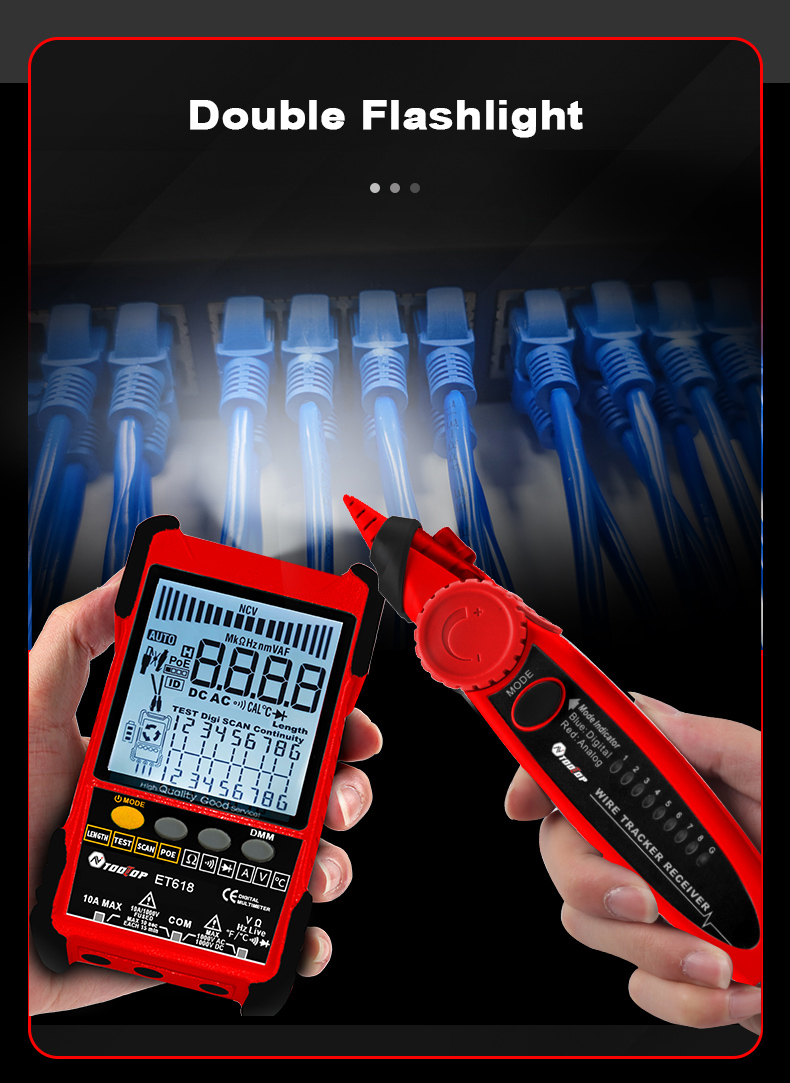

- Built-in flashlight
- Auto power-off function

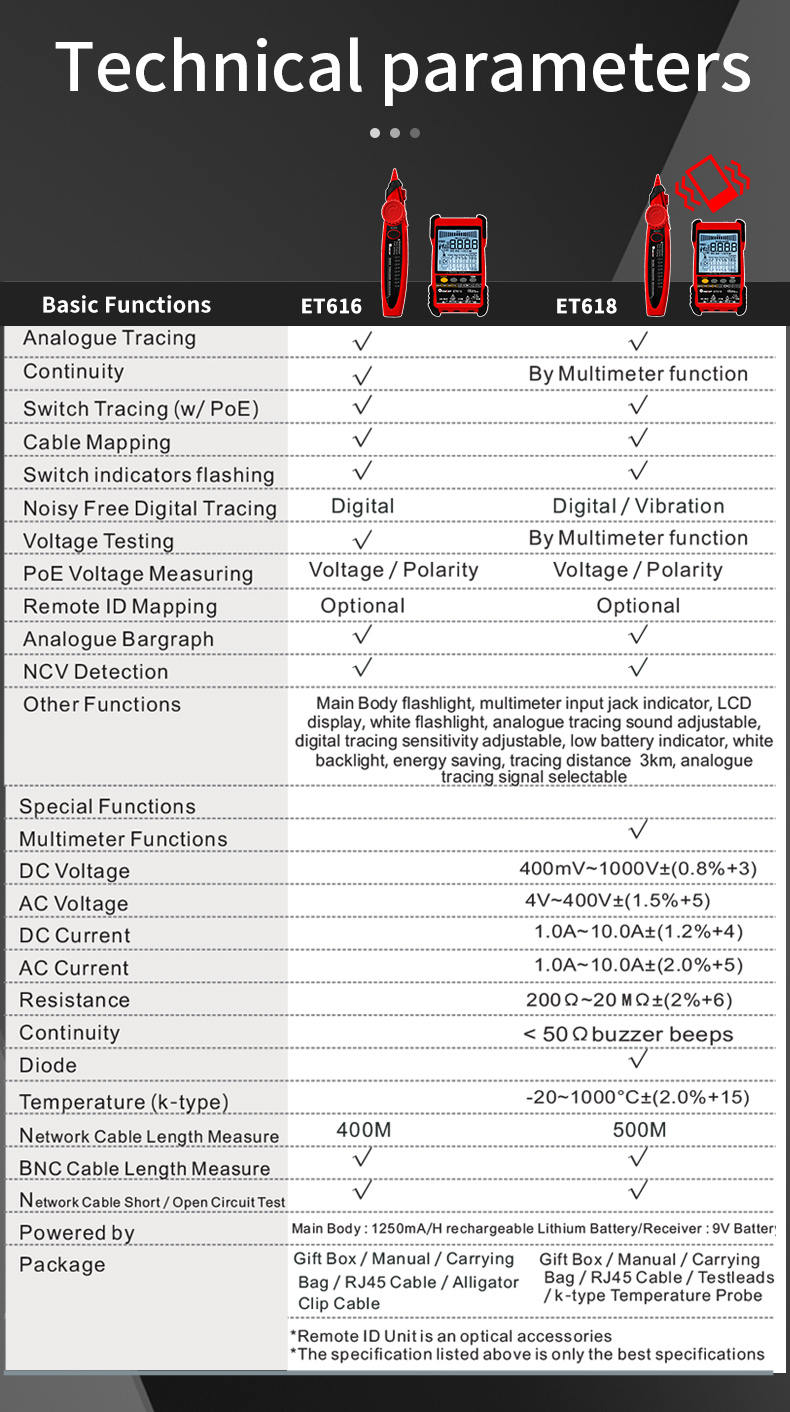

Specification
| Function Item | ET616 | ET618 |

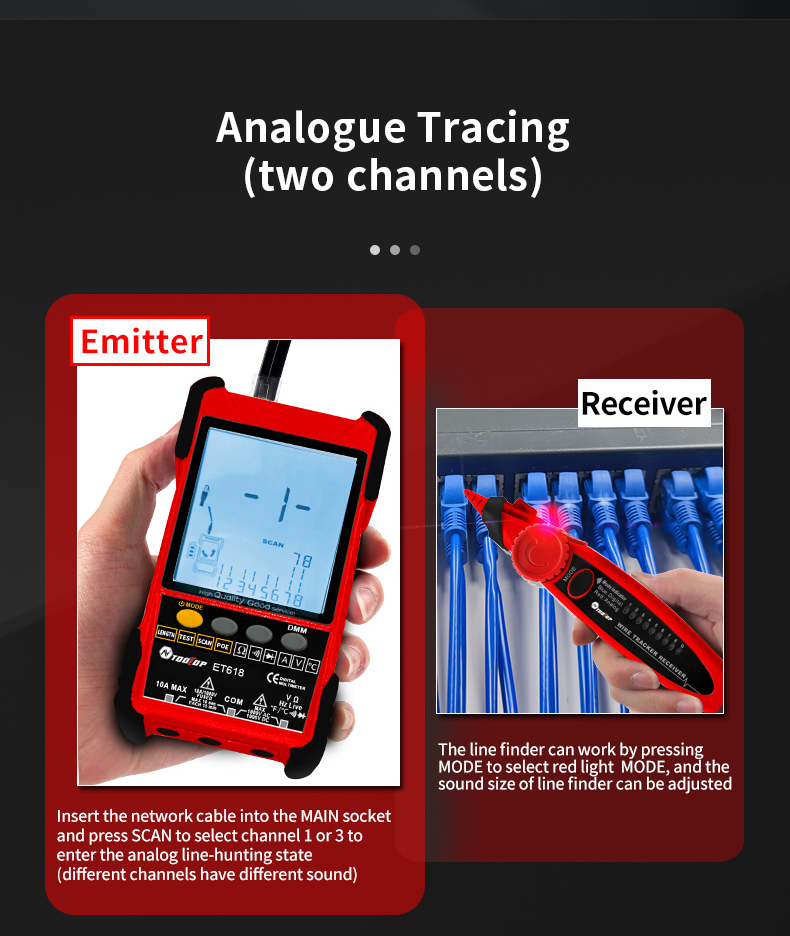

| Analogue Tracing | ✔ | ✔ |
| Continuity Test | ✔ | Multimeter function |
| Switch Tracing with PoE Detection | ✔ | ✔ |

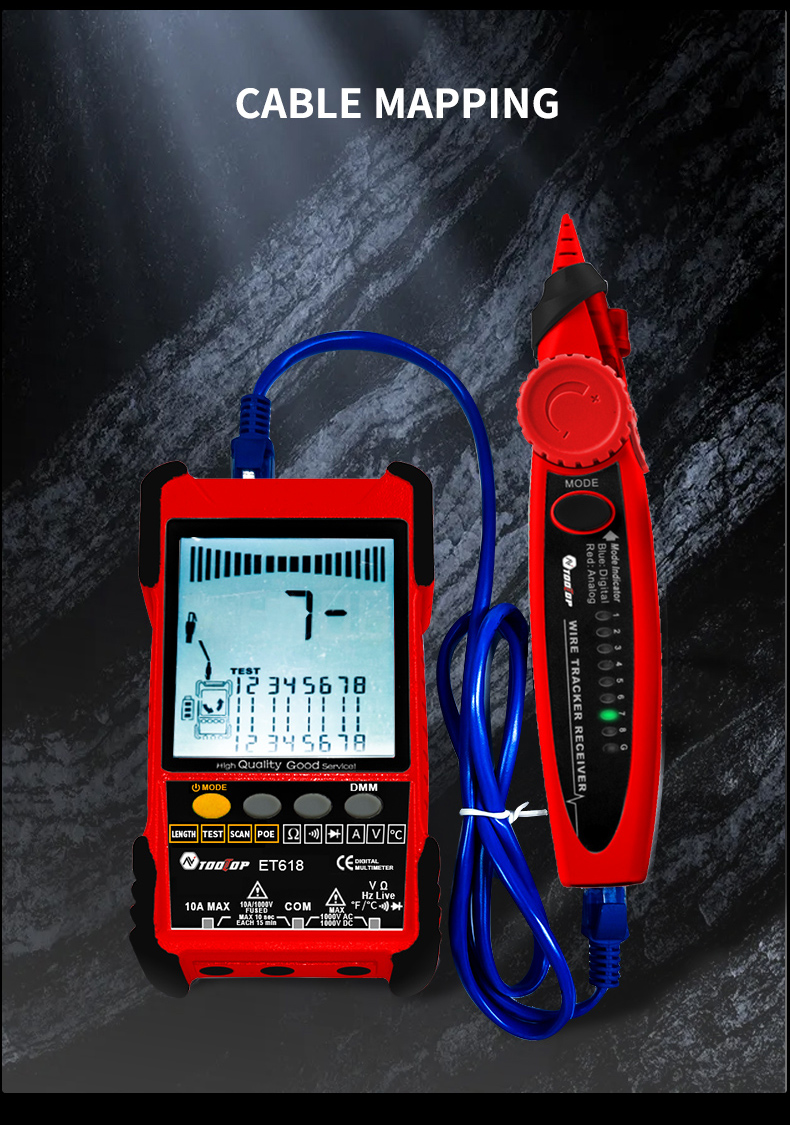

| Cable Mapping | ✔ | ✔ |

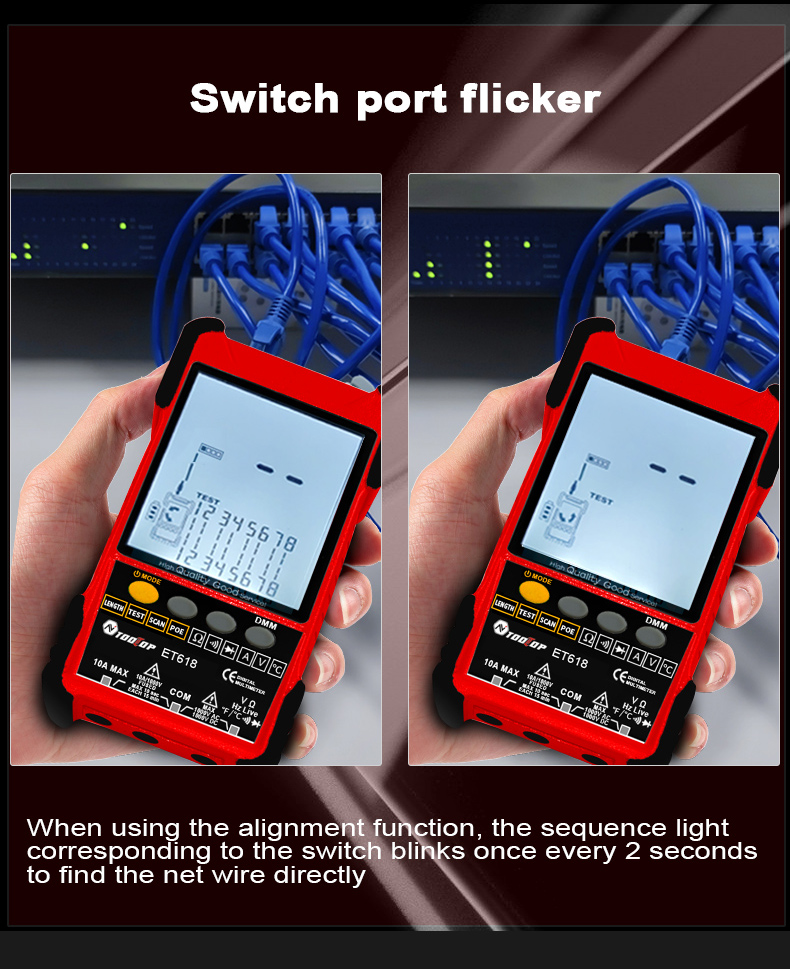

| Switch Port Flashing Indicator | ✔ | ✔ |

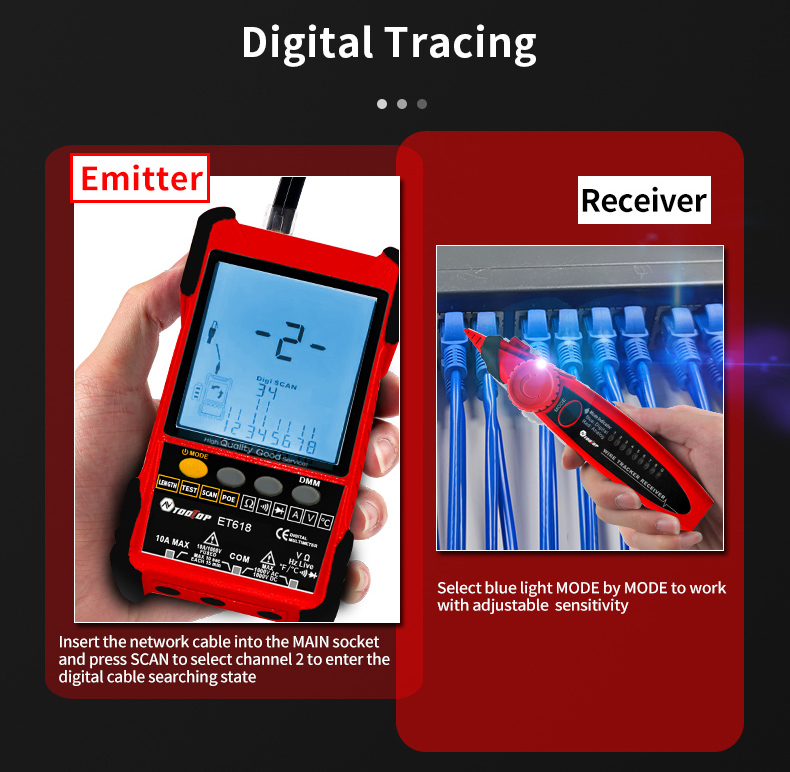

| Noise-Free Digital Tracing | Digital | Digital + Vibration Mode |
| Voltage Testing | Identify circuit faults | AC / DC Voltage measurement |

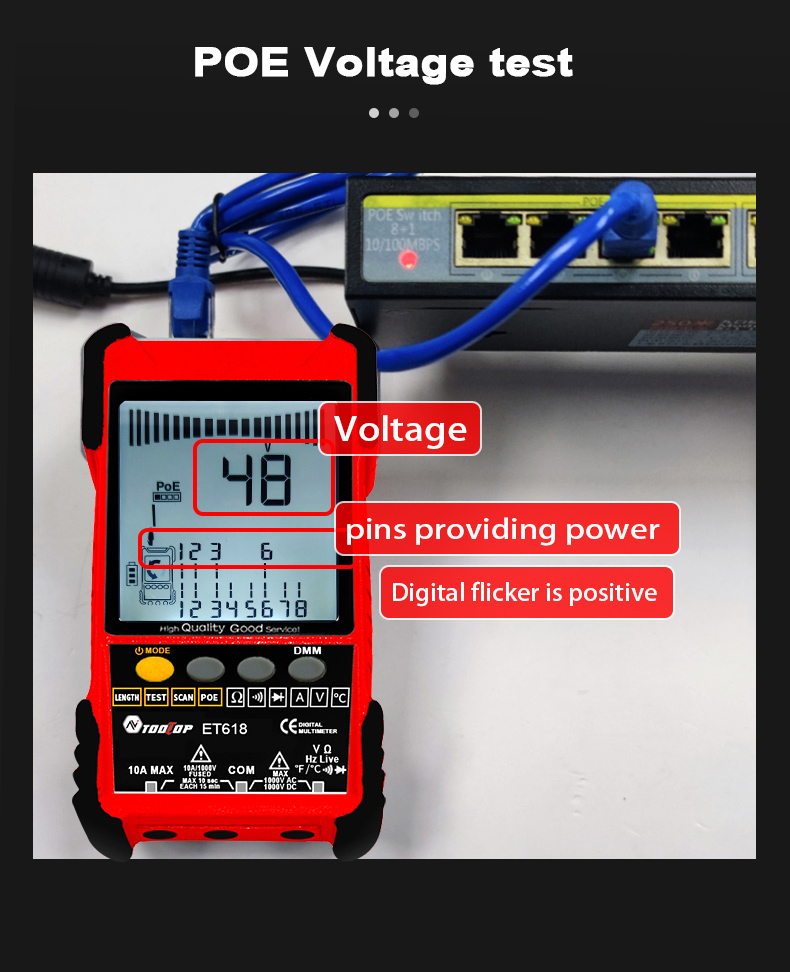

| PoE Voltage Polarity Detection | Voltage Polarity Test | Voltage Polarity Test |

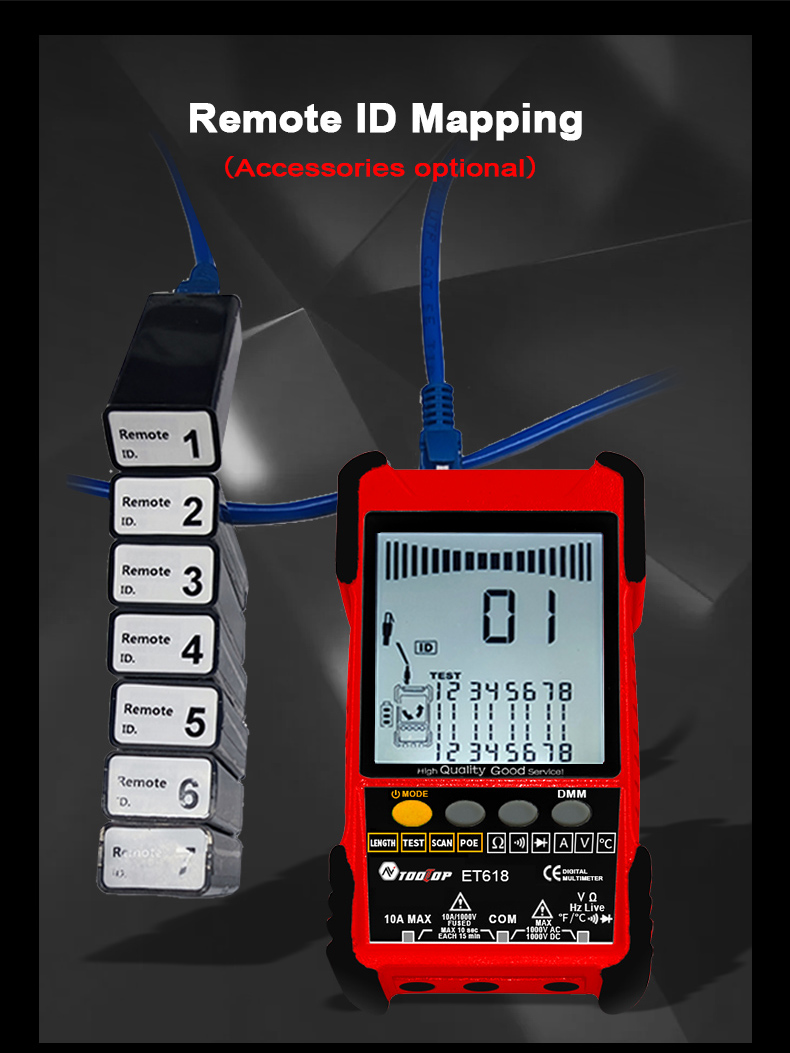

| Remote ID Mapping | Optional | Optional |
| Analogue Bargraph Display | ✔ | ✔ |
| NCV Non-contact Voltage Detection | ✔ | ✔ |
| Other Standard Functions | Main body flashlight, LCD white backlight, adjustable tracing sound & digital sensitivity, low battery indicator, energy-saving mode, max 3km analogue tracing distance, switchable analogue tracing signal | |
| Core Differences Between Two Models | ||

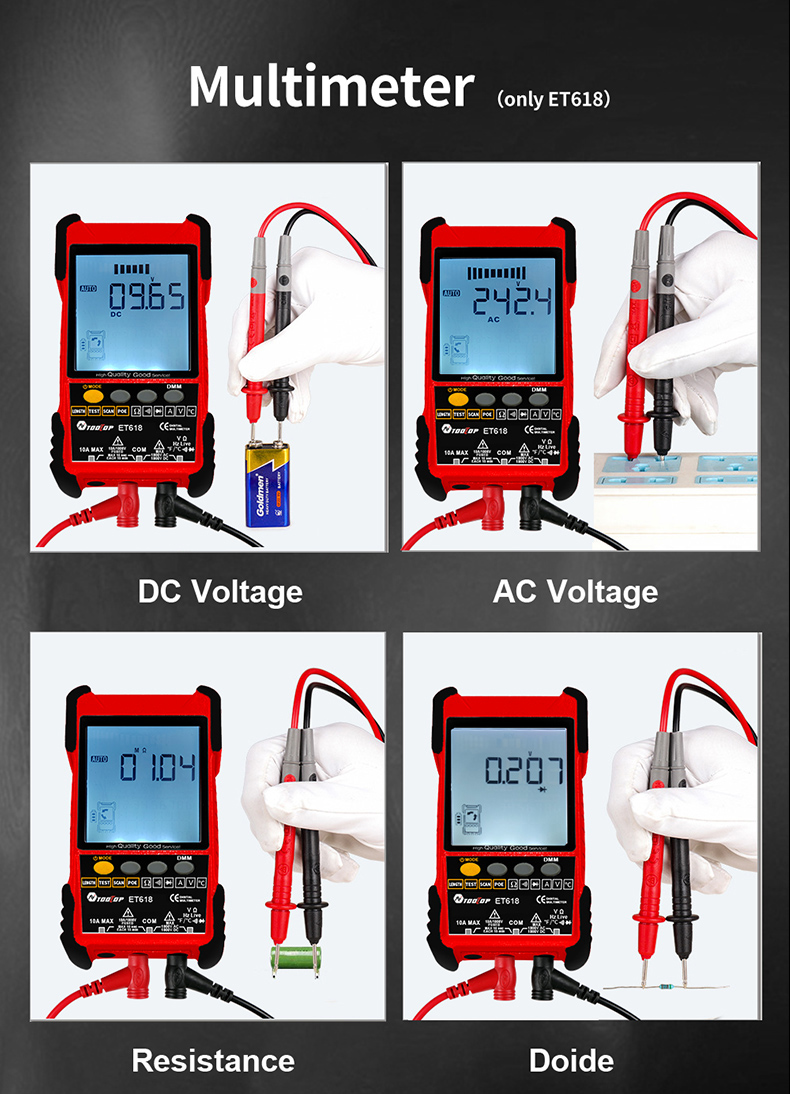

| Multimeter Full Functions | — | ✔ |
| Diode Test | — | ✔ |
| DC Voltage Range & Accuracy | — | 400mV ~ 1000V, ±(0.8% + 3 digits) |
| AC Voltage Range & Accuracy | — | 4V ~ 400V, ±(1.5% + 5 digits) |
| DC Current Range & Accuracy | — | 1.0A ~ 10.0A, ±(1.2% + 4 digits) |
| AC Current Range & Accuracy | — | 1.0A ~ 10.0A, ±(2.0% + 5 digits) |
| Resistance Range & Accuracy | — | 200Ω ~ 20MΩ, ±(2% + 6 digits) |
| Continuity Buzzer | — | Buzzer triggers below 50Ω |
| K-type Temperature Measurement | — | -20 ~ 1000°C, ±(2.0% + 15 digits) |

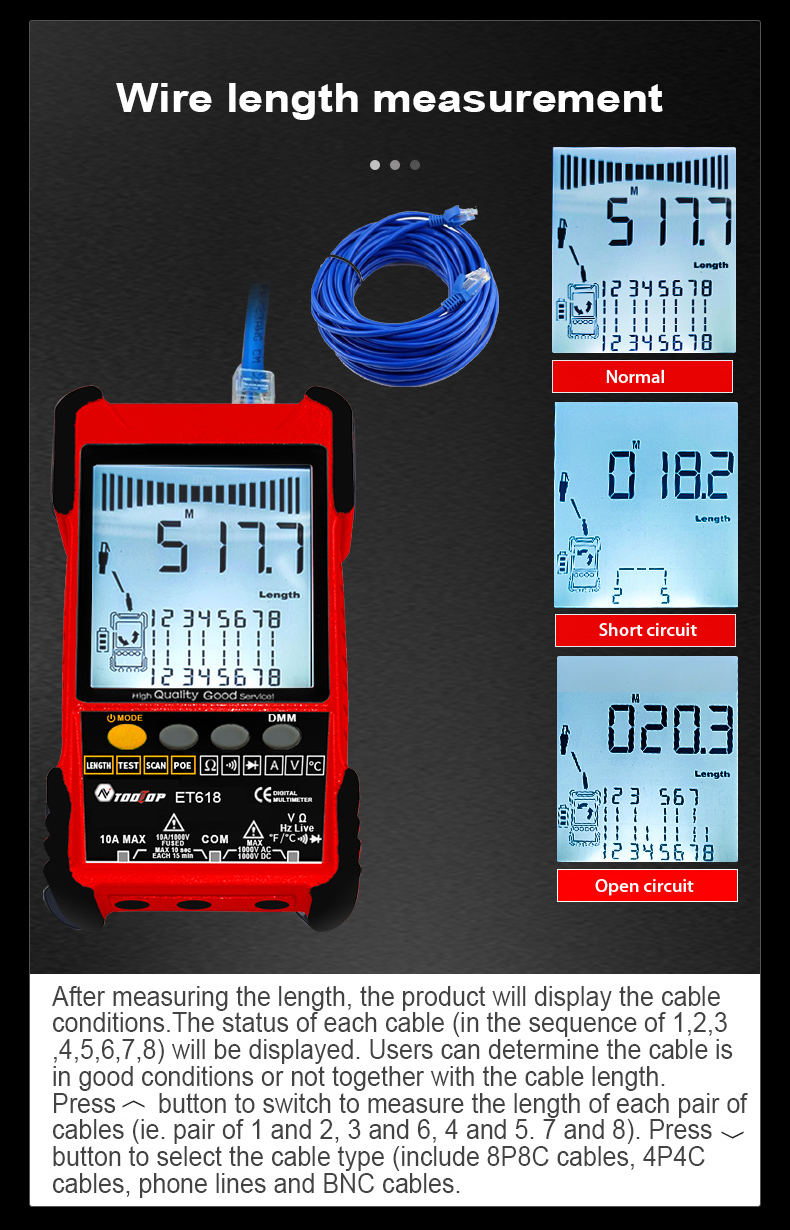

| Max Network Cable Test Length | 400M | 500M |
| BNC Cable Length Test | ✔ | ✔ |
| Cable Short / Open Circuit Test | ✔ | ✔ |
| Power Supply | Main unit: Built-in 1250mAh rechargeable lithium battery; Remote receiver: 9V battery | |
| Standard Accessories | Gift box, user manual, carry bag, RJ45 cable, alligator clip wire | Gift box, user manual, carry bag, RJ45 cable, test leads, K-type temperature probe |
Package Included
- 1 × Transmitter
- 1 × Receiver
- 1 × Alligator Clip Cable
- 1 × RJ45 Test Cable
- 1 × USB Charging Cable
- 1 × Carry Storage Bag
- 1 × User Manual
- Multimeter accessories (Test leads + K-type temperature probe) (Only included for ET618)
