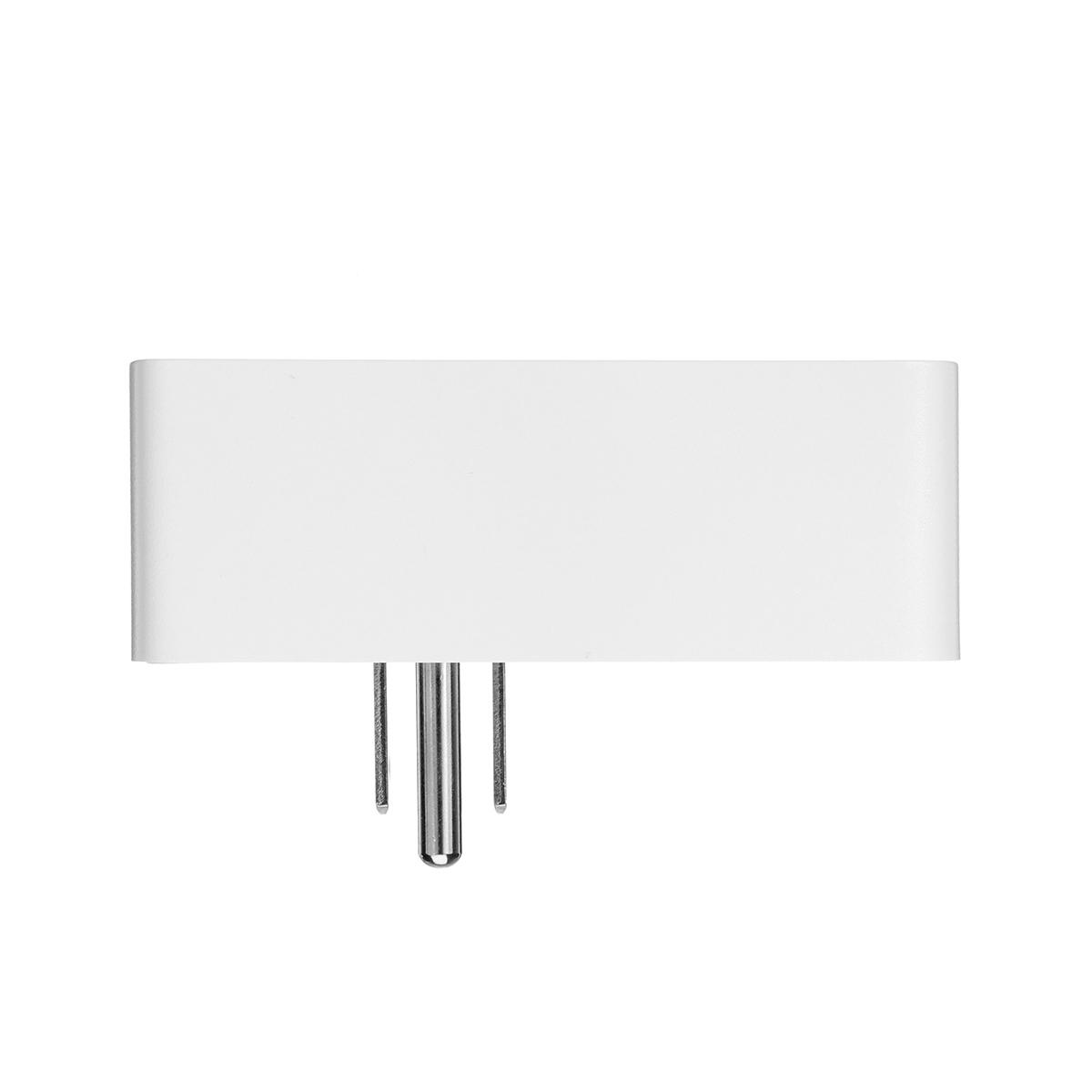

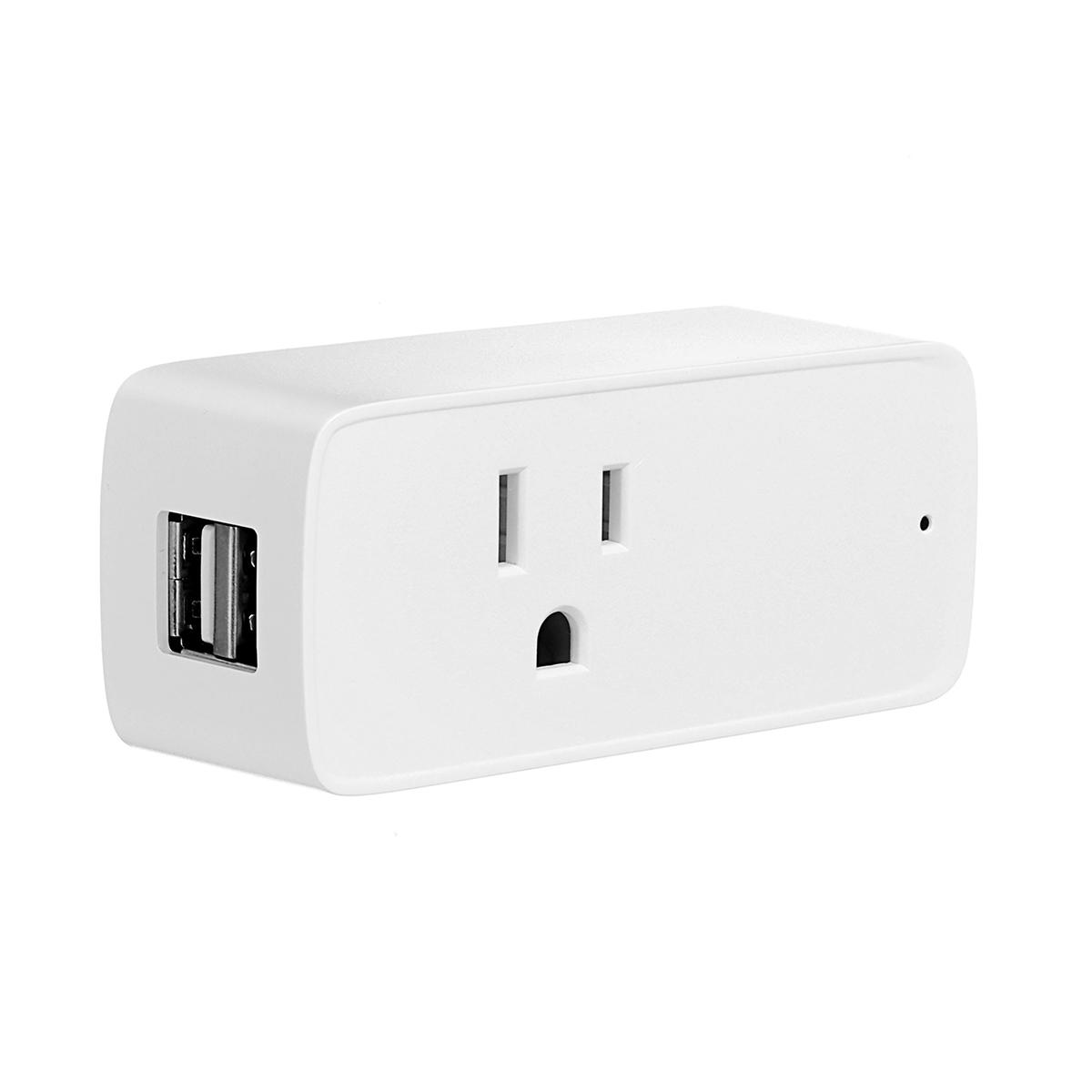

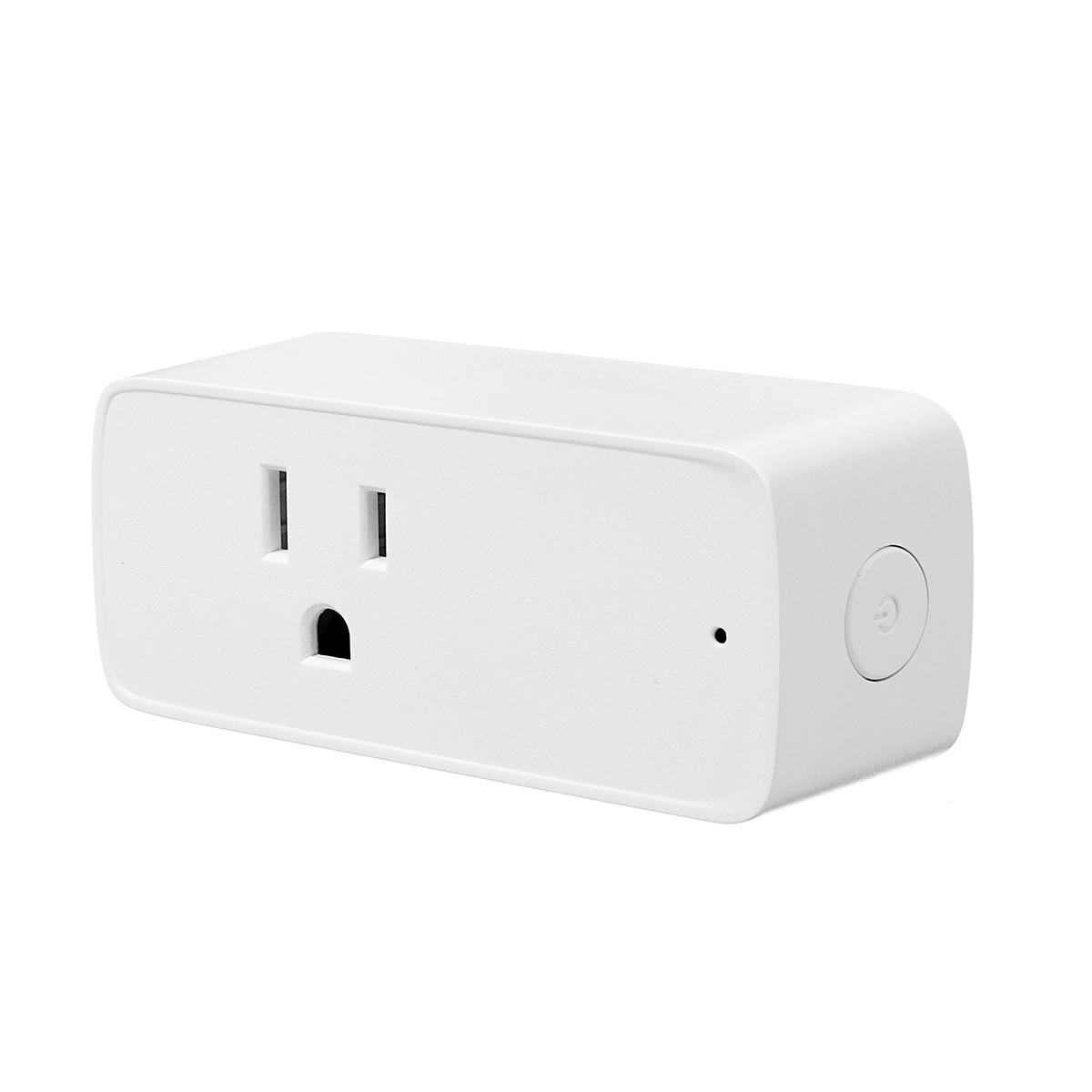

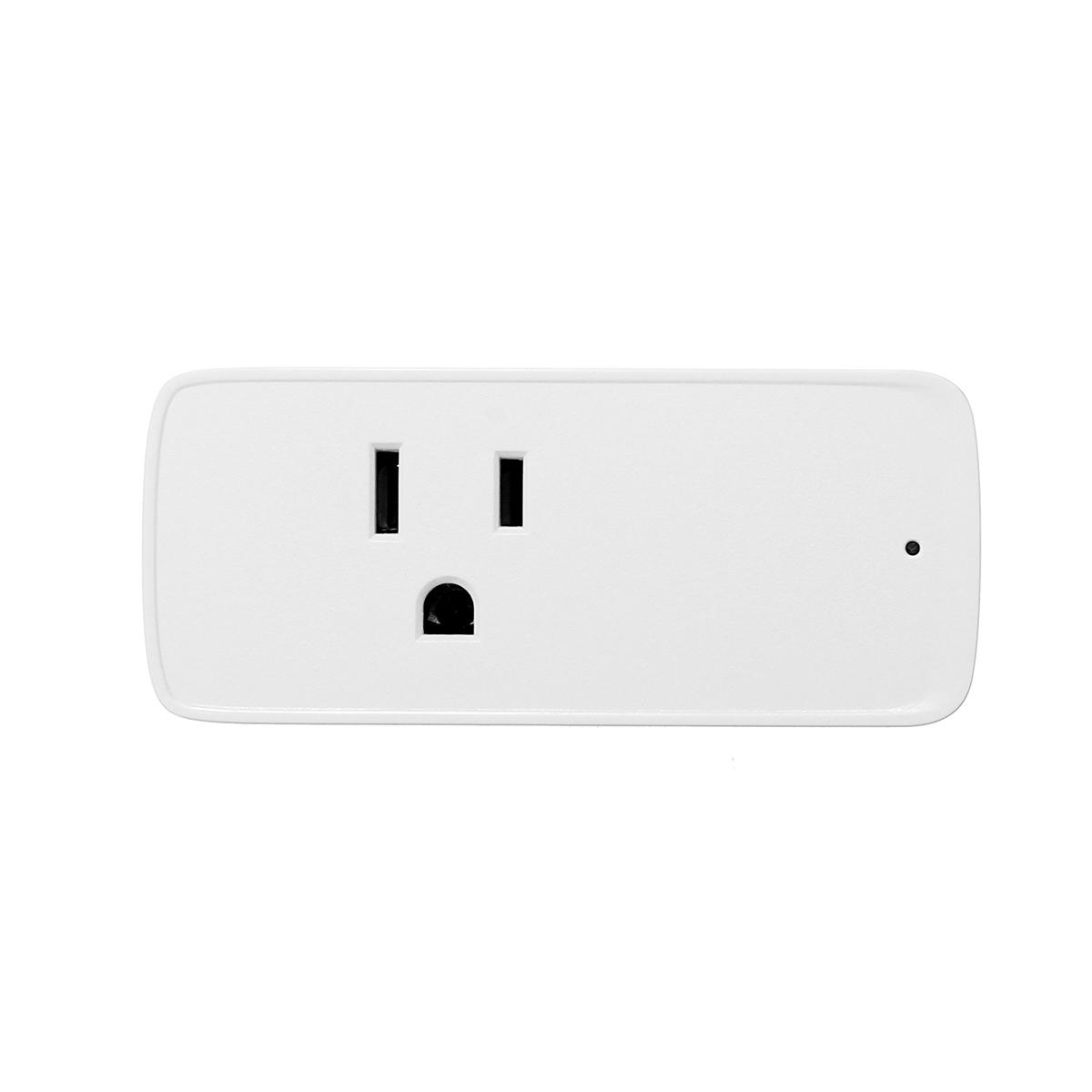

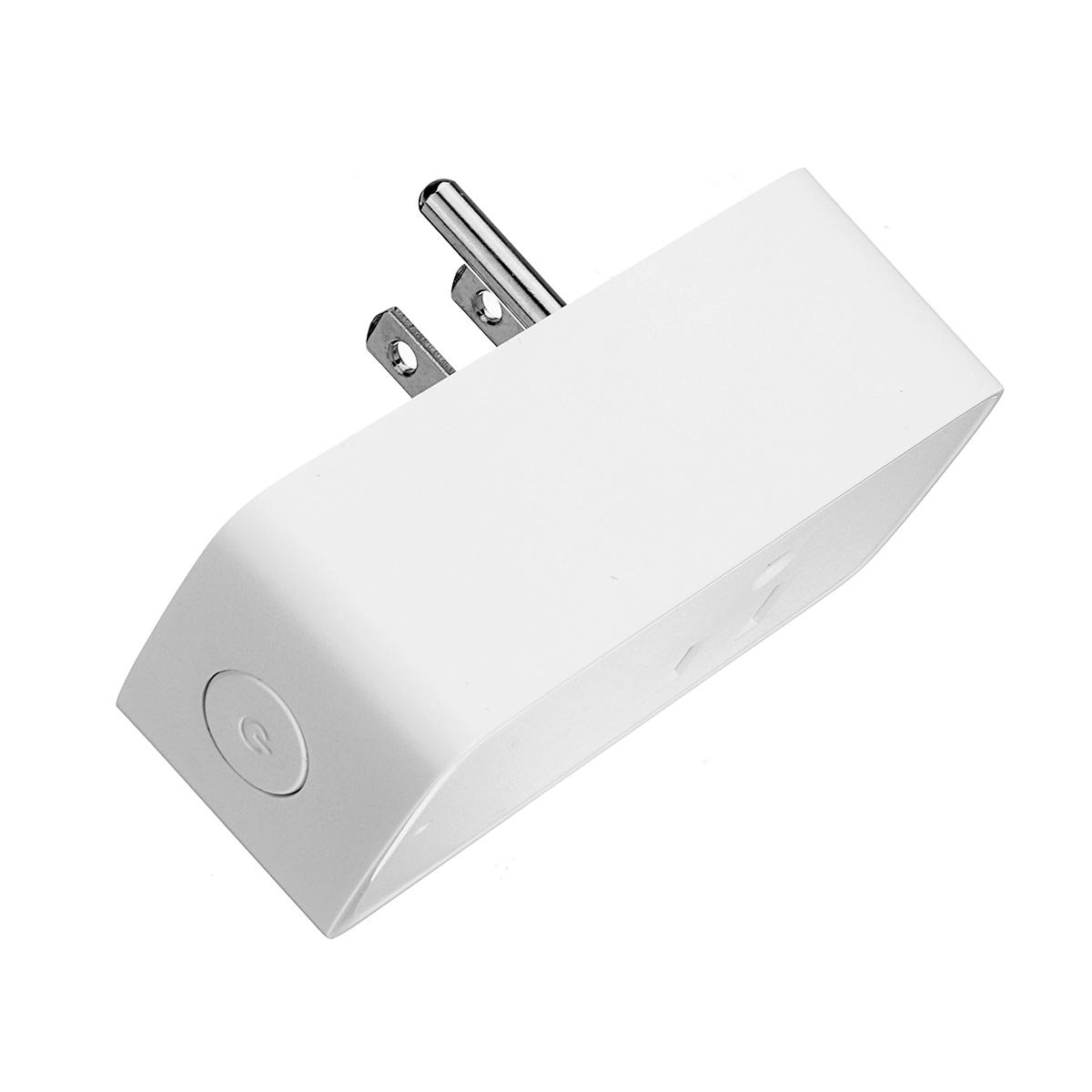

US NEMA5-15P Mini WiFi Smart Plug With Independent USB Charging Port

US NEMA5-15P Mini WiFi Smart Plug With Independent USB Charging Port

Important Installation Reminder

Only supports 2.4GHz Wi-Fi; 5GHz wireless cannot pair. Max 10A/1200W resistive load, heavy inductive heaters prohibited. Indoor use only.

Product Overview

This compact US standard smart socket integrates standard AC outlet and independent USB charging port, ultra-slim 48×42mm body will not block adjacent wall jacks. Wide AC100-240V global voltage, built stable 2.4GHz Wi-Fi module without extra smart hub. V0 flame retardant ABS material, passed official FCC certification. Equipped side manual button for offline operation; mobile APP supports remote switch, weekly timing, countdown and multi-user sharing, compatible with mainstream smart voice systems. Perfect for bedroom lamps, mobile charging, coffee makers and rental home energy control.

Core Key Advantages

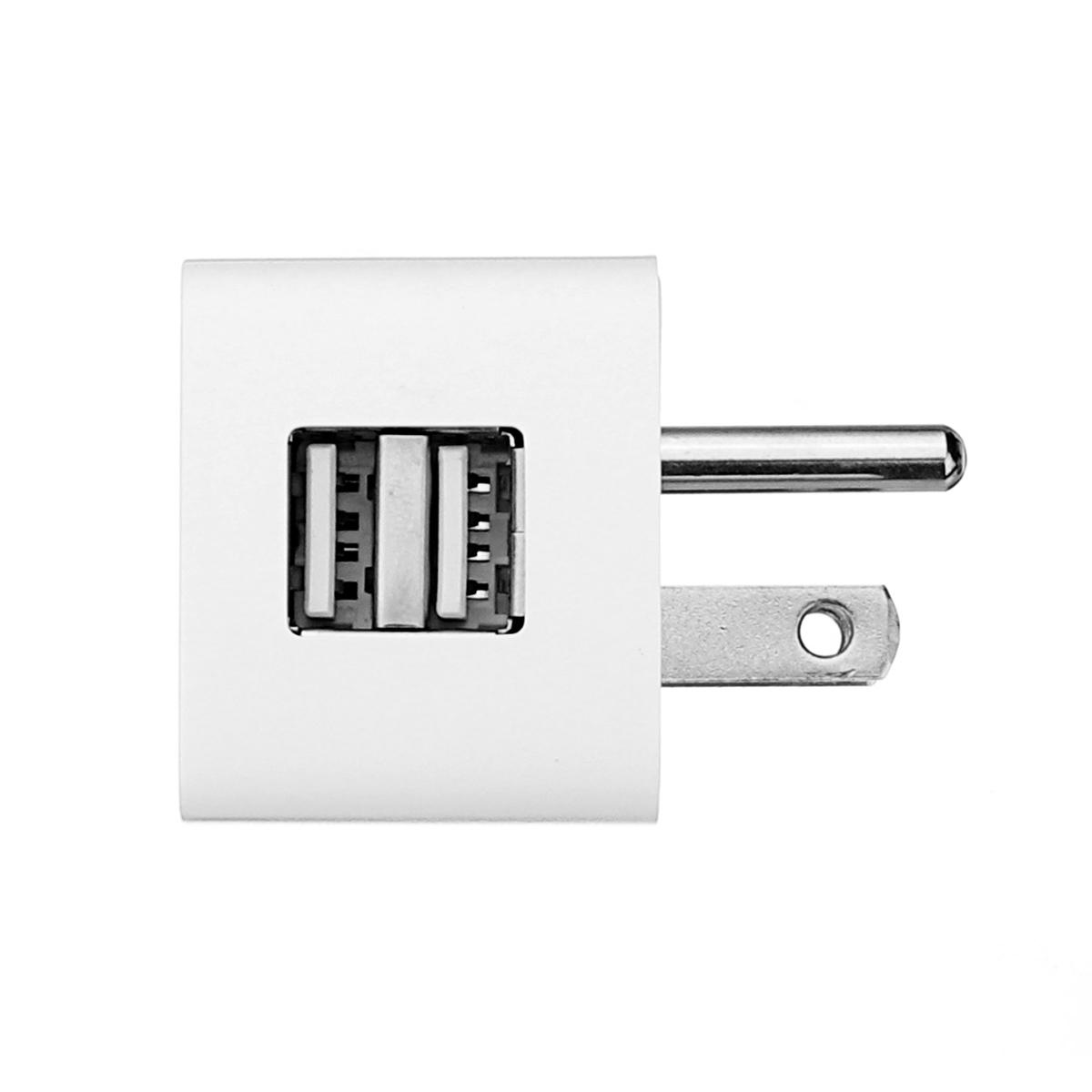

• AC + USB Dual Integrated Design One socket supplies power for appliances & charges phones/tablets simultaneously.
• Ultra-Mini Slim Body 48×42mm compact size avoids occupying neighboring wall outlets.
• 10A Max 1200W Safe Load Fits most small resistive household electronics.
• 2.4GHz Wi-Fi Direct Connection No gateway or monthly subscription fees required.

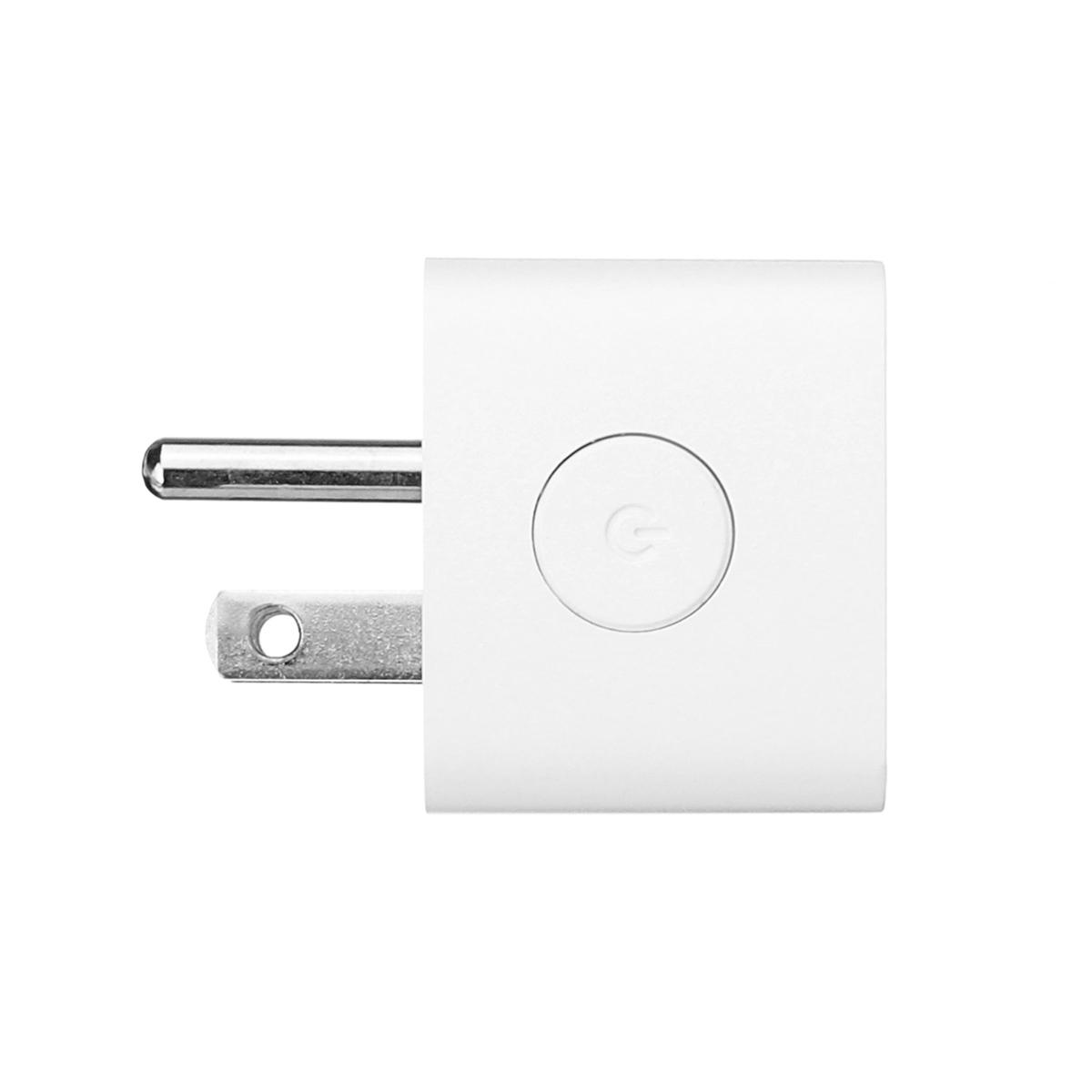

• Dual Operation Modes APP remote control + independent side offline power button.
• Full APP Functions: Timing, countdown, random away mode & family device sharing.
• V0 Flame Retardant Shell + FCC Radio Compliance Certification.

Full Technical Specifications

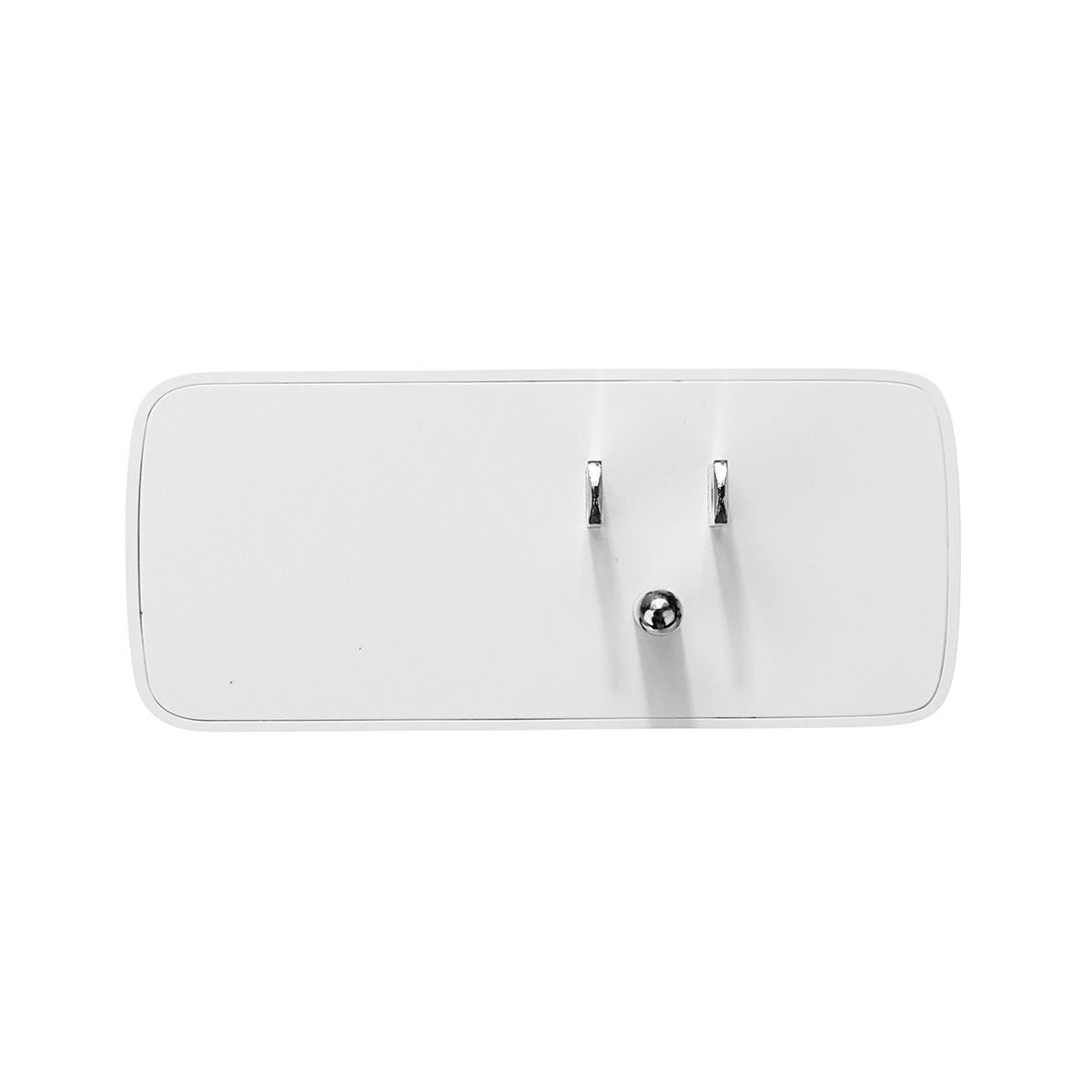

Plug Standard	US NEMA 5-15P 3-Prong
Input Voltage	AC 100V ~ 240V 50/60Hz
Rated Total Current	10A Max
Total Max Power	1200W Resistive Load
Wi-Fi Band	2.4GHz IEEE 802.11 b/g/n (5GHz Unsupported)
Housing Material	V0 Flame Retardant ABS
Dimension	48 × 42 × 30 mm
Net Weight	58g
Certification	FCC
Compatible APP	Tuya / Smart Life iOS & Android

Applicable Scenarios

• Family bedroom: bedside lamp + phone overnight charging
• Rental & homestay: timed power cut to save electricity
• Office: coffee maker, desk lamp, small electronic devices

Safety Usage Notes

1. Cut off power before disassembly; licensed electrician recommended for wiring check.
2. Do not connect air conditioners, space heaters over 1200W total power.
3. Avoid long-term damp bathroom environment without waterproof cover.
4. Stop use if shell feels abnormally hot during operation.

Package Contents

• 1 × US Mini WiFi Smart Plug with USB Port
• 1 × Multilingual English User Manual

Frequently Asked Questions

Q1 Does this smart plug need an extra smart hub?

A1 No hub required, directly connect to 2.4GHz home router via mobile APP.

Q2 What’s the maximum total load this socket can bear?

A1 Max 10A / 1200W resistive small appliances only.

Will the mini size block adjacent wall outlets?

A1 Slim 48mm width leaves enough space for neighboring plugs.

Can I turn the socket on/off without a phone?

A1 Equipped independent side physical button for offline manual control.
