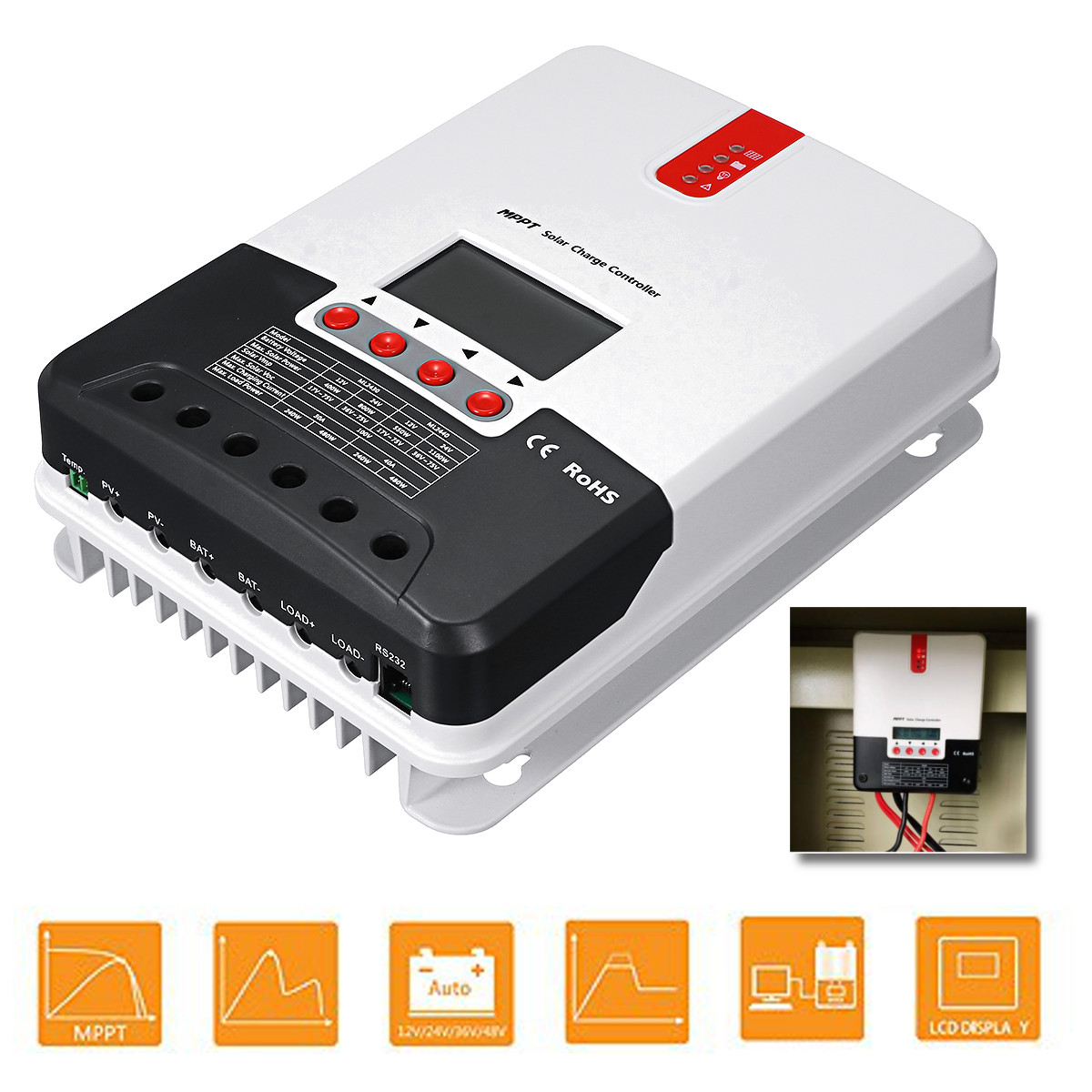

12V/24V Auto Solar Panel Charger Controller MPPT Battery Charge Regulator 20A/30A/40A
12V/24V Auto Solar Panel Charger Controller MPPT Battery Charge Regulator 20A/30A/40A
$119.99
Ex Tax: $119.99
- Stock: In Stock
- Model: MZ009107
- Weight: 546.00g
- SKU: MZ009107
Specification
Material: Aluminum alloy
Color: White+Black
Model: ML2420, ML2430, ML2440
System Voltage: 12V/24V Auto
Maximum panel voltage: 100V (25°C), 90V (-25°C)
Battery Voltage: 9V to 35V
No-load Loss: 0.7W to 1.2W
Charging current: 20A / 30A / 40A
Discharge current: 20A
Rated load current: 20A
Maximum capacitive load capacity: 10000uF
Maximum power point voltage range: Battery voltage → +2V ~ 75V
Conversion efficiency: ≤98%
MPPT tracking efficiency: >99%
Temperature compensation coefficient: -3mv / °C / 2V (default)
Operating temperature: -35 ° C ~ +45 ° C
Protection level: IP32

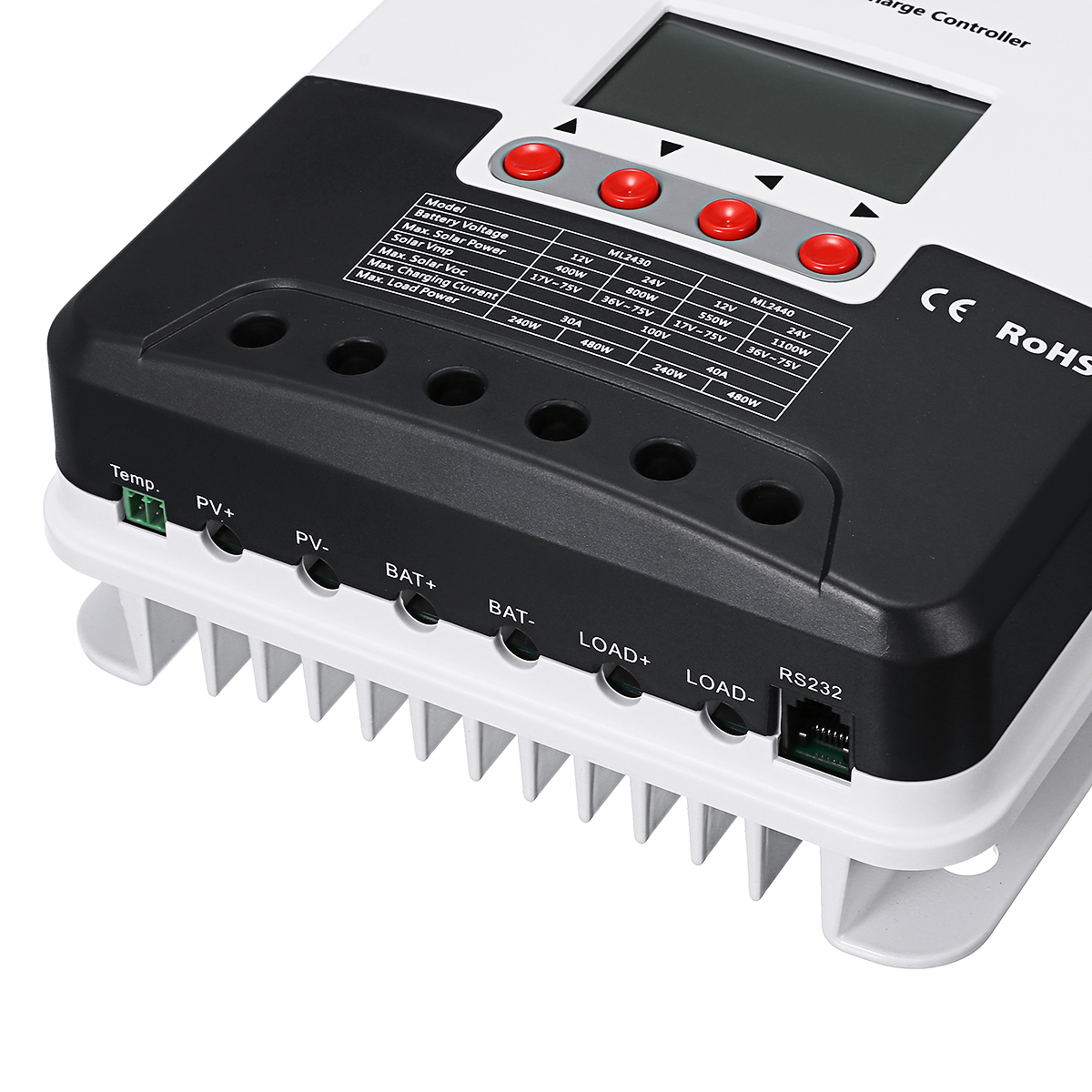

Communication method: RS232
Altitude: ≤ 3000 meters
Note: Battery is not included
ML2420 Size: (L)X(W)X(H) 20X14.5X6cm / 8''X6''X2"(appr.)
ML2430 Size: (L)X(W)X(H) 23X17X7cm / 9''X7''X3"(appr.)
ML2440 Size: (L)X(W)X(H) 23X17X7cm / 9''X7''X3"(appr.)
Maximum input power of PV system:
ML2420 → 260W/12V; 520W/24V
ML2430 →400W/12V; 800W/24V
ML2440 → 550W/12V; 1100W/24V
Features
■ Support battery voltage automatic identification.
■ Support historical data storage for up to 1 year.
■ Support standard modebus protocol to meet communication needs in different occasions.
■ Supports different types of battery charging procedures for gel batteries, sealed batteries, open batteries, lithium batteries, etc.

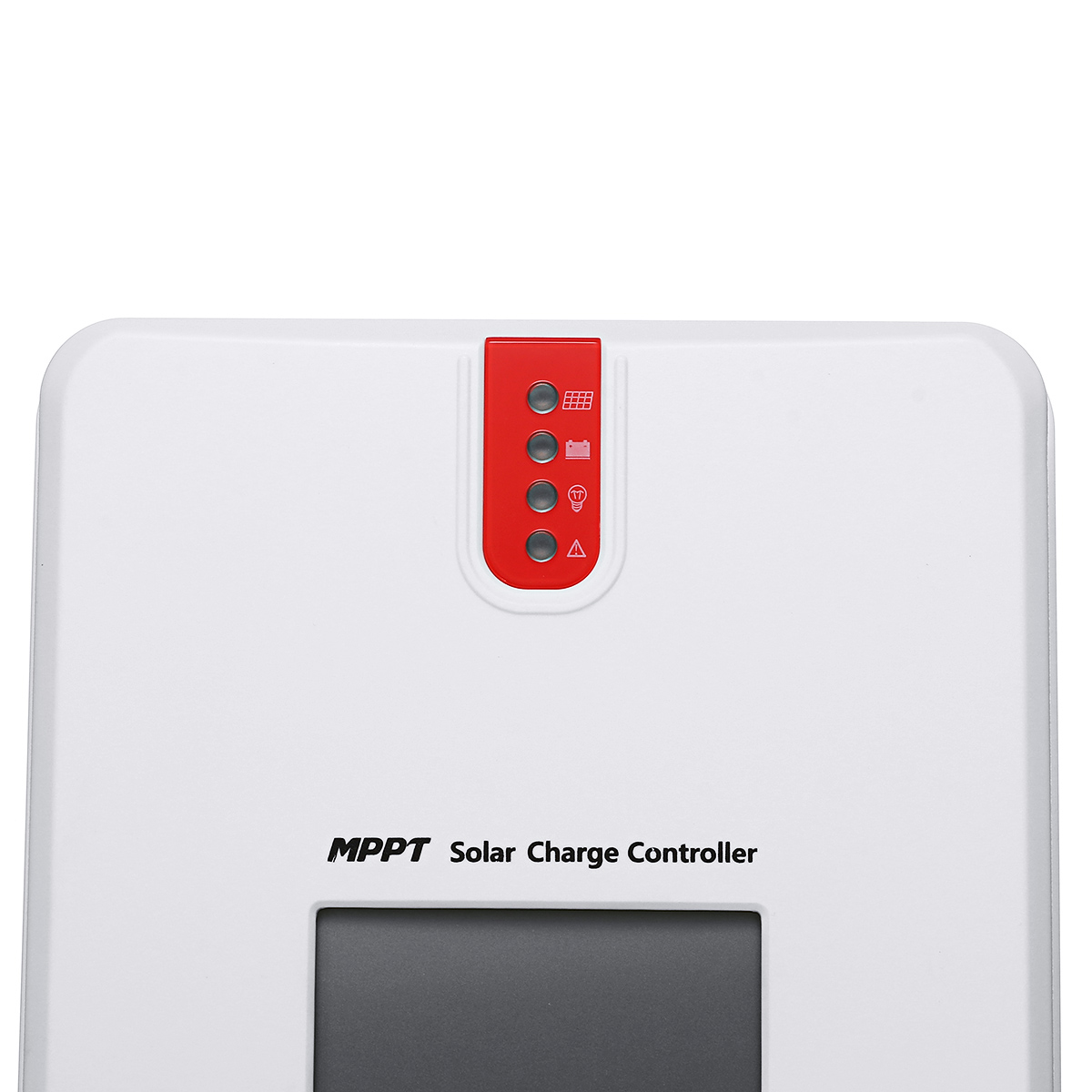

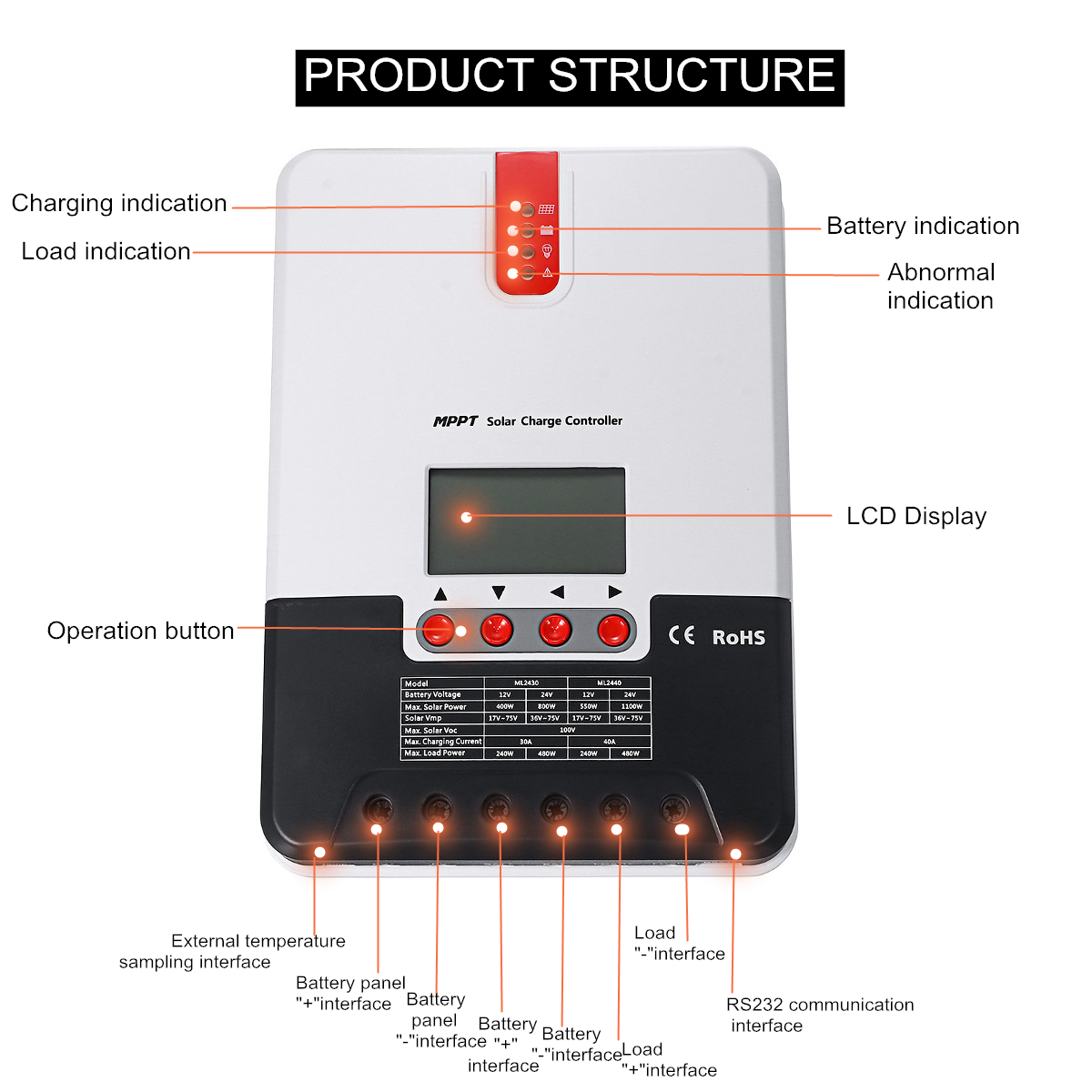

■ It has fault LED indication and LCD display abnormal information, which is convenient for the user to determine the system failure.

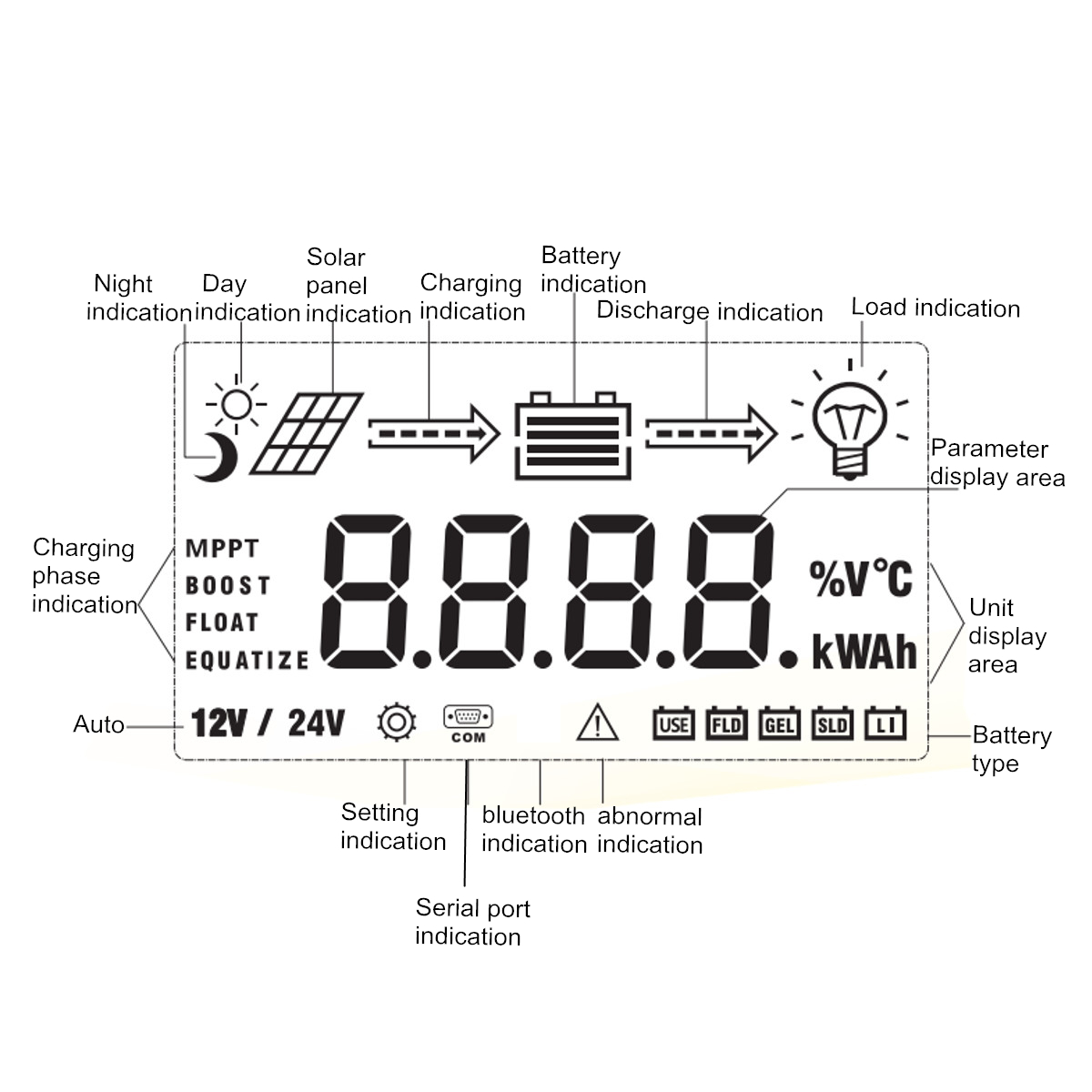

■ With LCD screen display function, you can have the vision of device operation data and status, and support controller parameter changes.

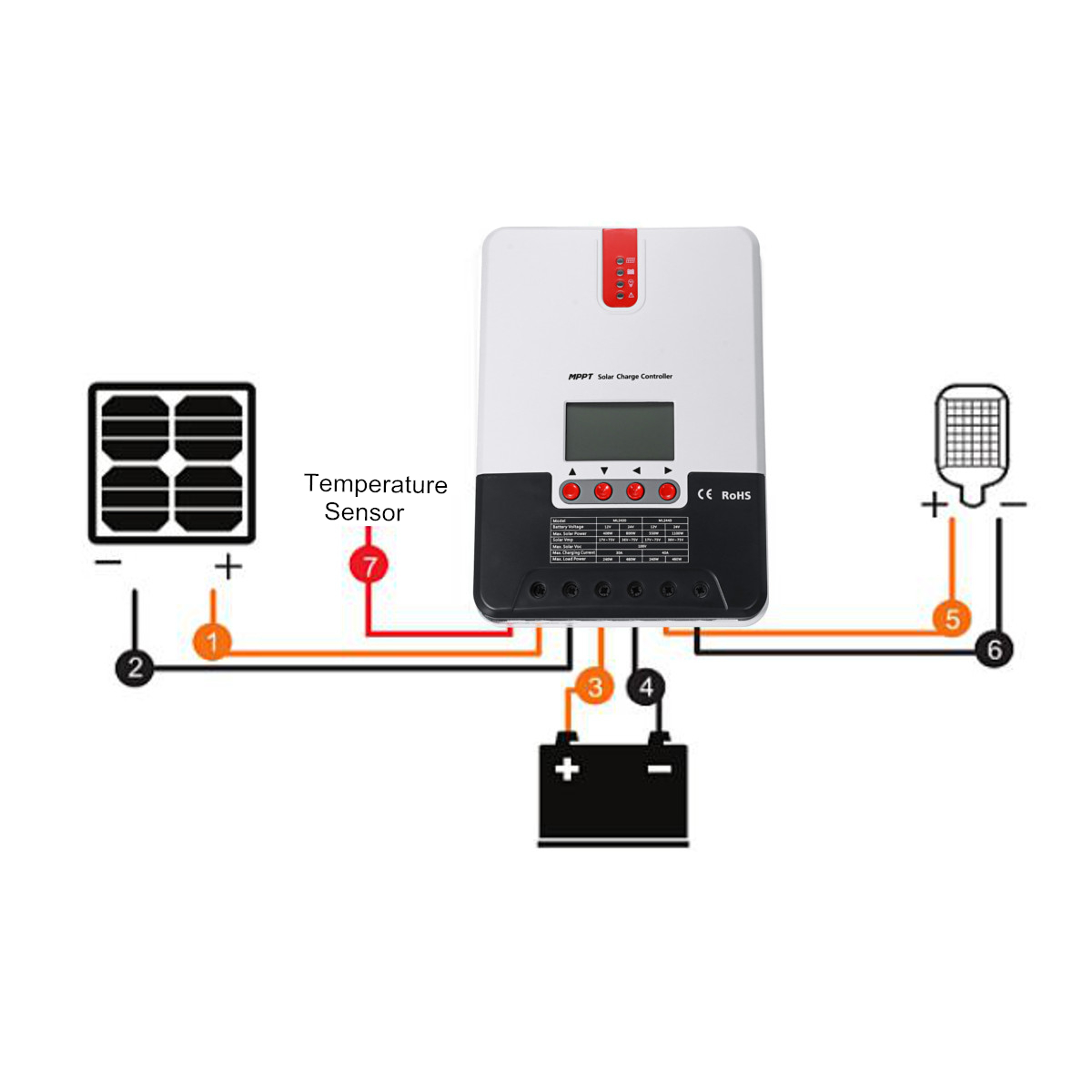

■ Used in solar off-grid photovoltaic systems, coordinating the work of solar panels, batteries, and loads, is the core control component of off-grid photovoltaic systems.
■ This product can detect the solar panel power generation in real time, and track the highest voltage current value (VI), so that the system can charge the battery at the maximum power output.
■ With current-limiting charging mode, when the power of the panel is too large and the charging current is greater than the rated current, the controller automatically reduces the charging power to make it work at the rated charging current.

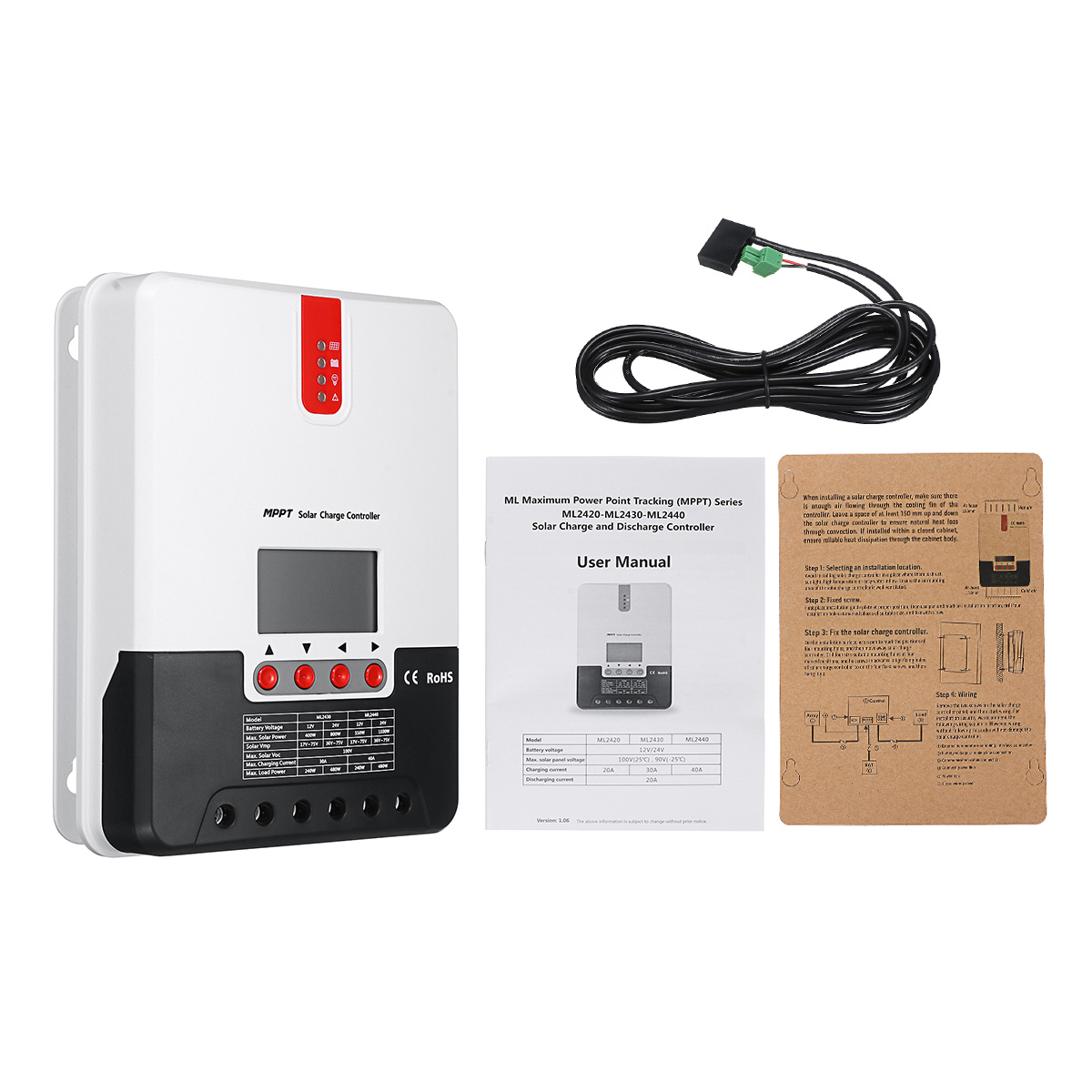

Package included
1 X Solar Controller
1 X User Manual
