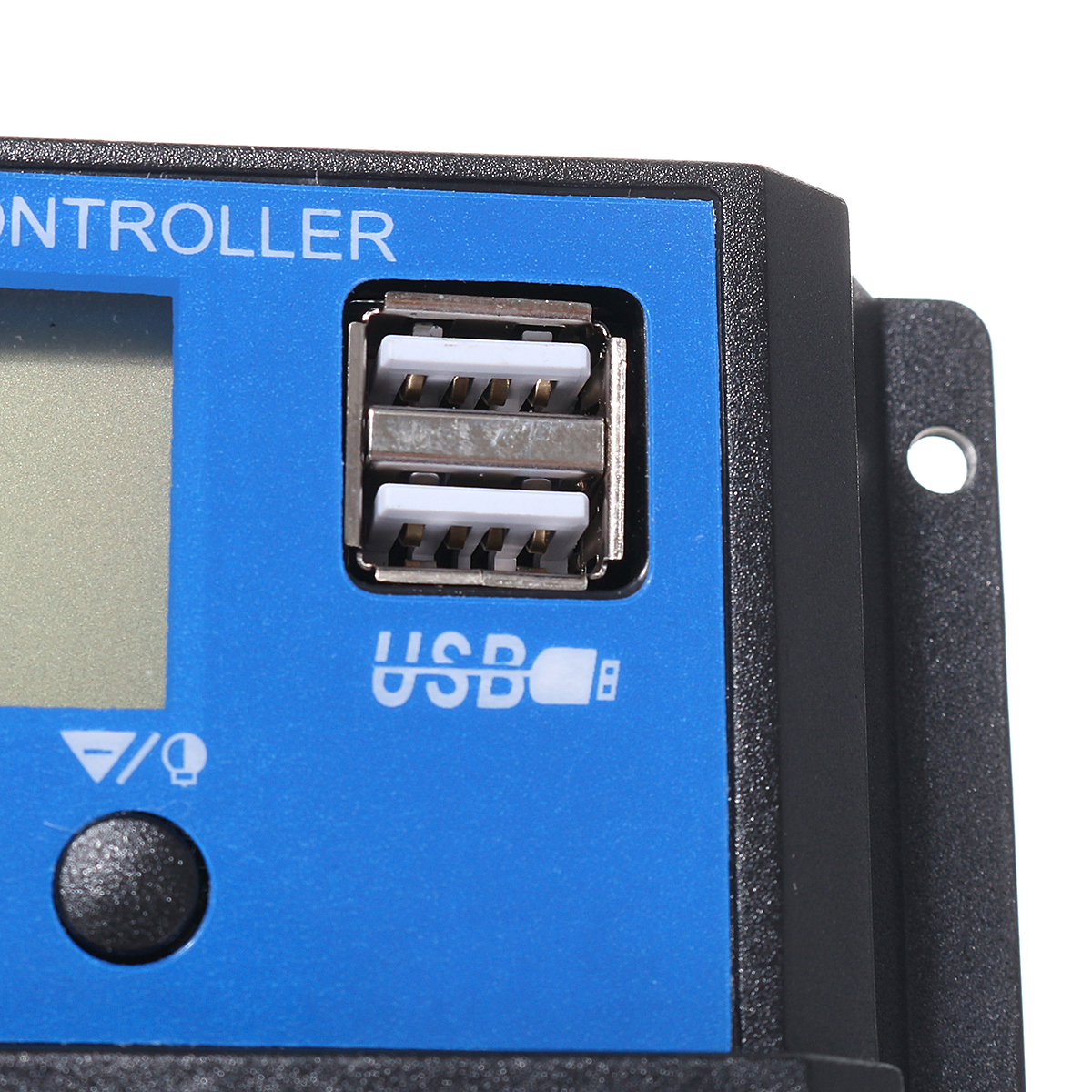

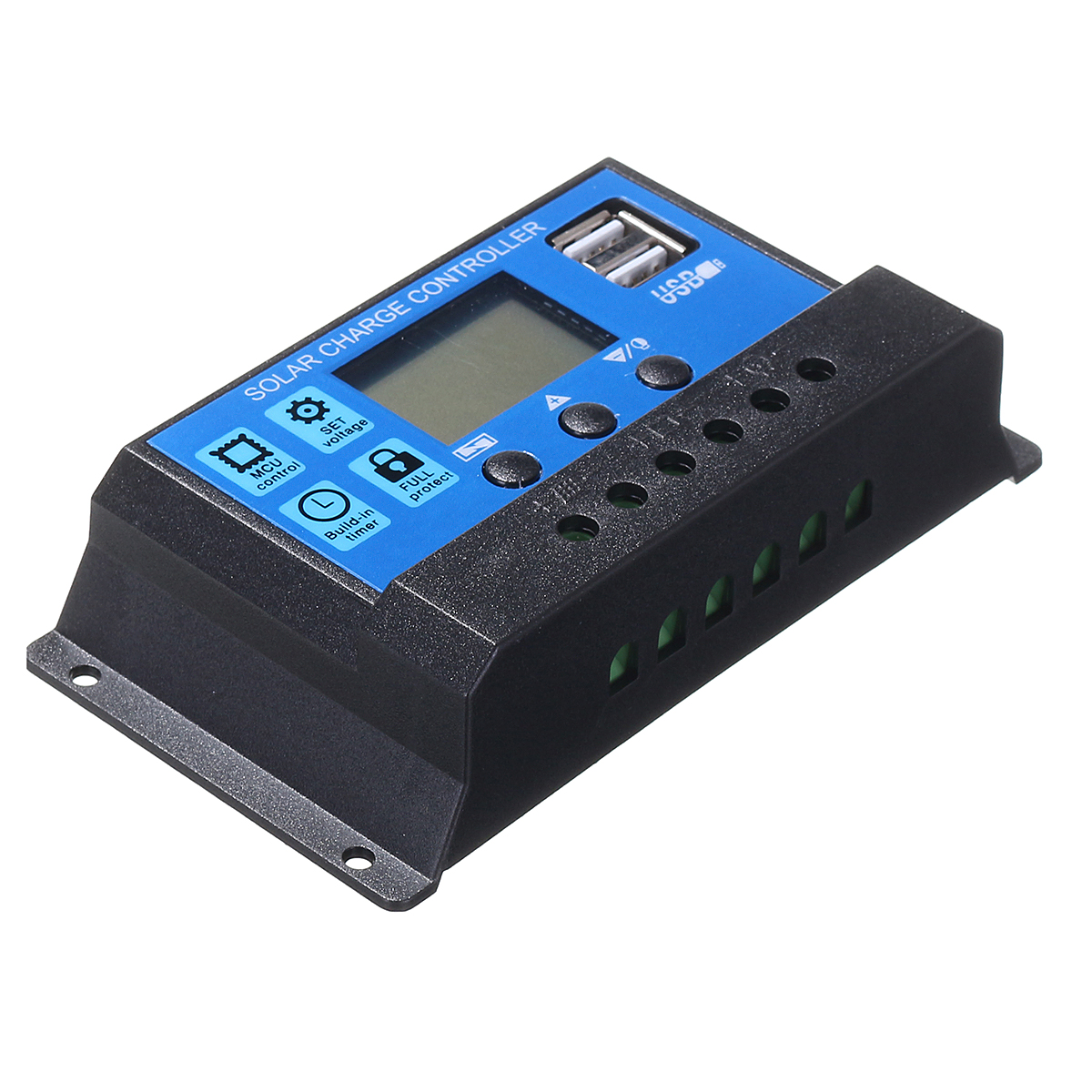

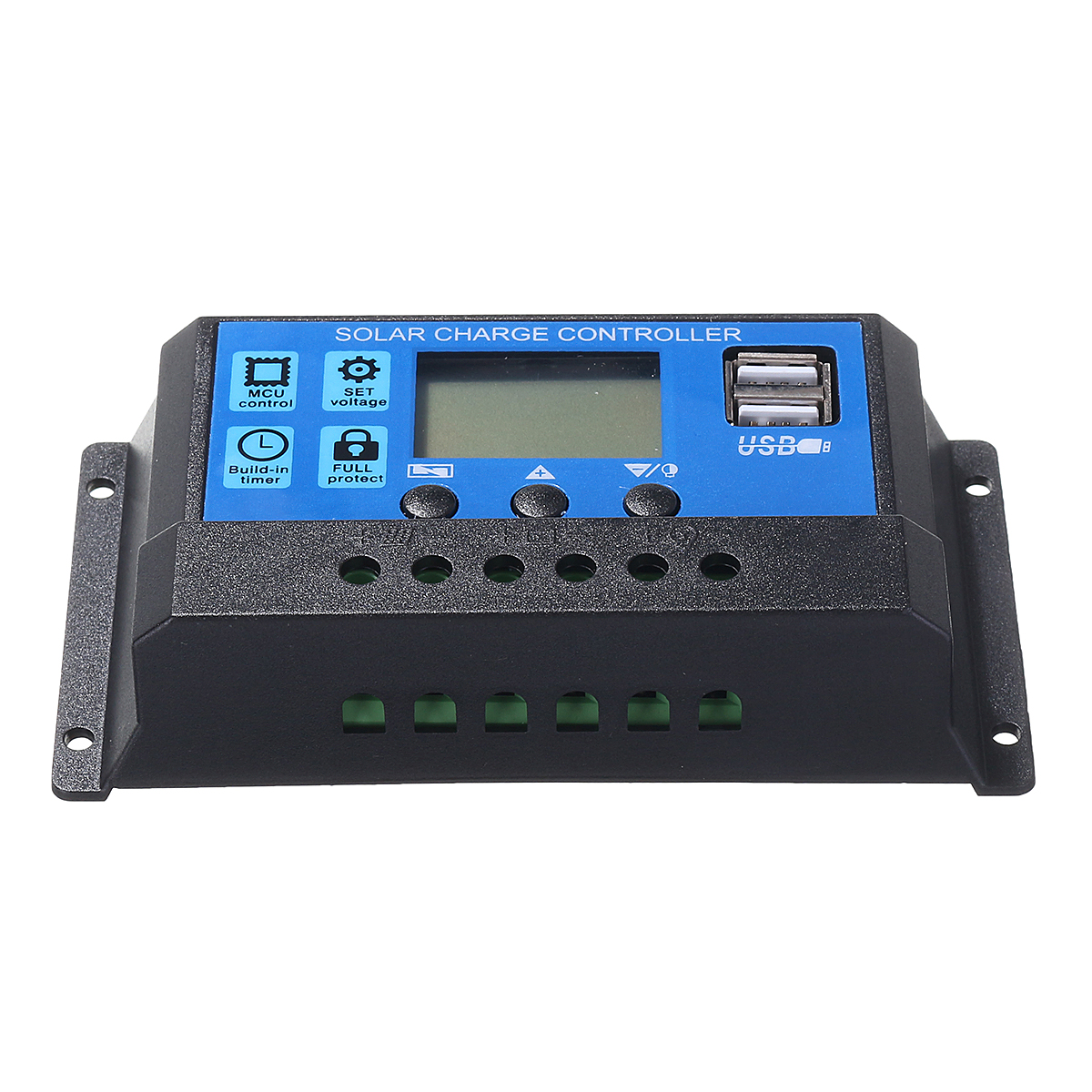

10A/20A/30A 12/24V LCD Display Photovoltaic Solar Controller with Dual USB Ports
10A/20A/30A 12/24V LCD Display Photovoltaic Solar Controller with Dual USB Ports
$11.99
Ex Tax: $11.99
- Stock: In Stock
- Model: MZ008984
- Weight: 600.00g
- SKU: MZ008984
- UPC: 681877469673

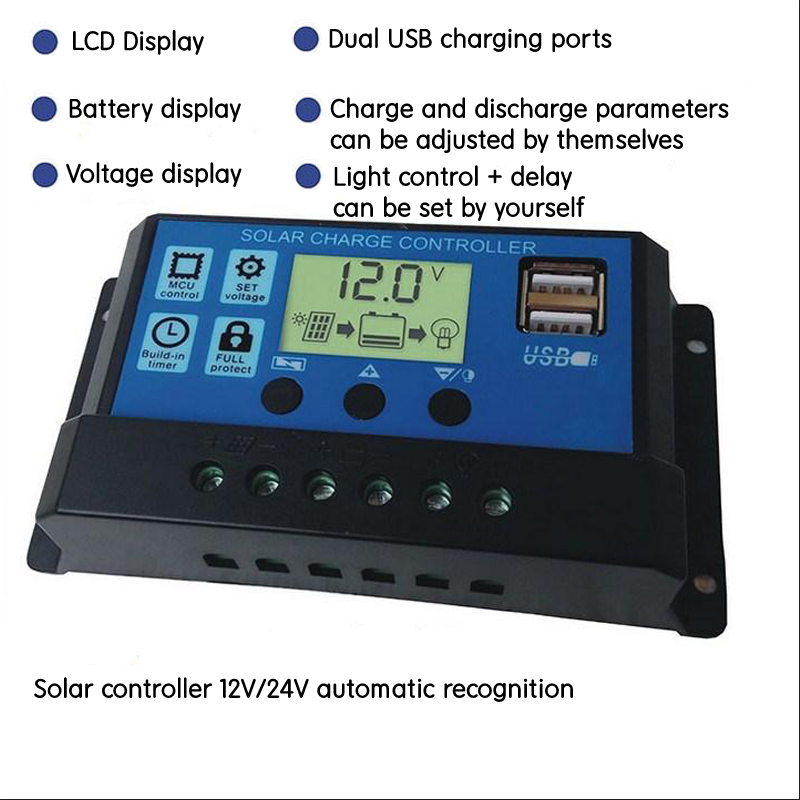

Description:
1. Build-in industrial micro controller.
2. Fully 4-stage PWM charge management.

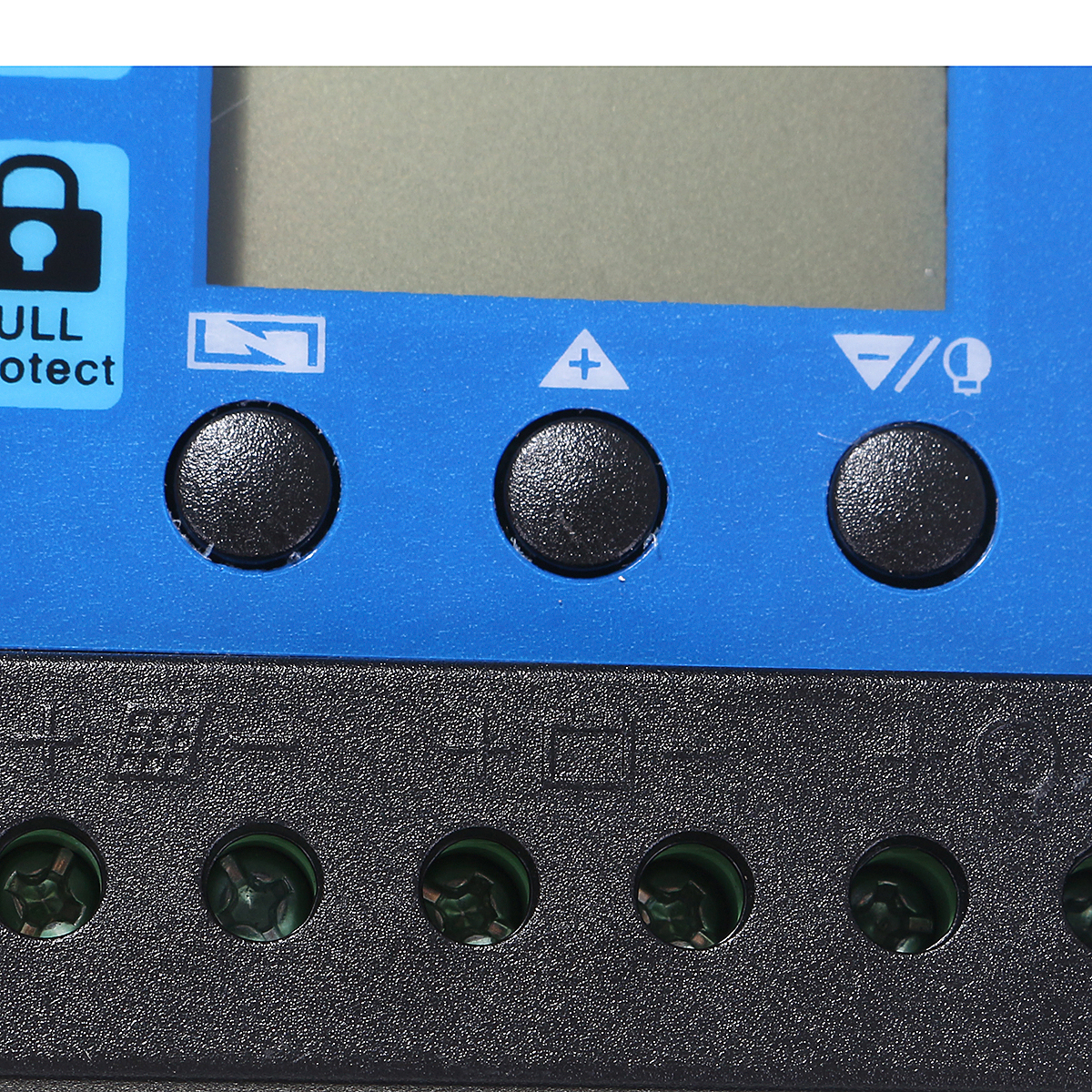

3. One-key setting,digital display, auto memory function.
4. Reverse current protections, low heat productions.
5. Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.
Specifications:
Buck charge | 22.8V |
Float charge | 21.4V |
USB output | 5V/3A |
Working current | 10A |
Self-consume | <10mA |
Discharge stop | 21.4V |
Voltage | DC 12V/24V |
Max solar input | <50V |
Rated working current | ≤20A |
Discharge reconnect | 25.2V |
Working temperature | -35℃~60℃ |
Output voltage | 12V/24V Automatically distinguish voltage |

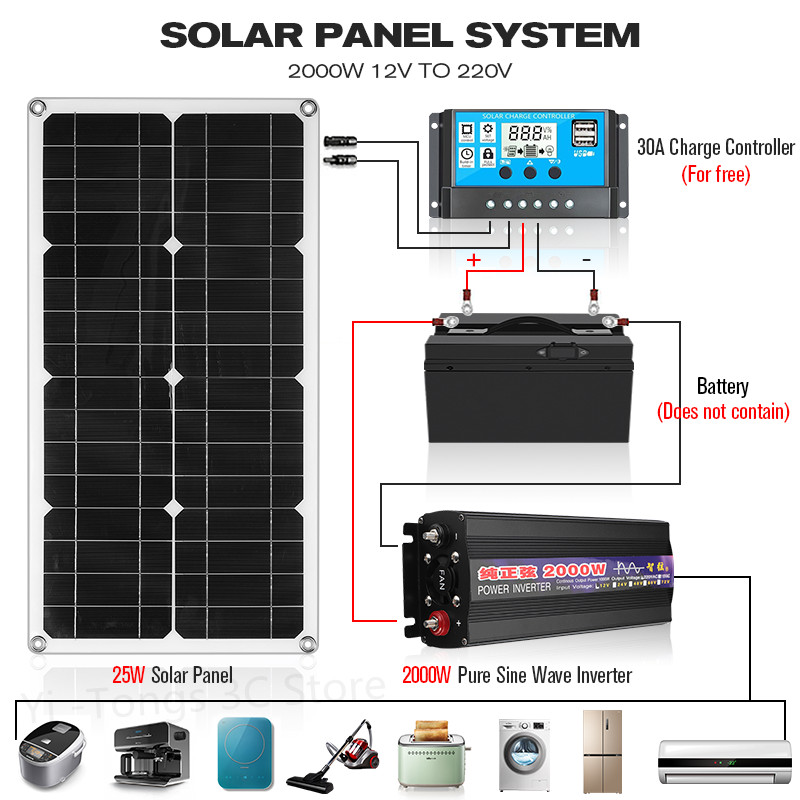

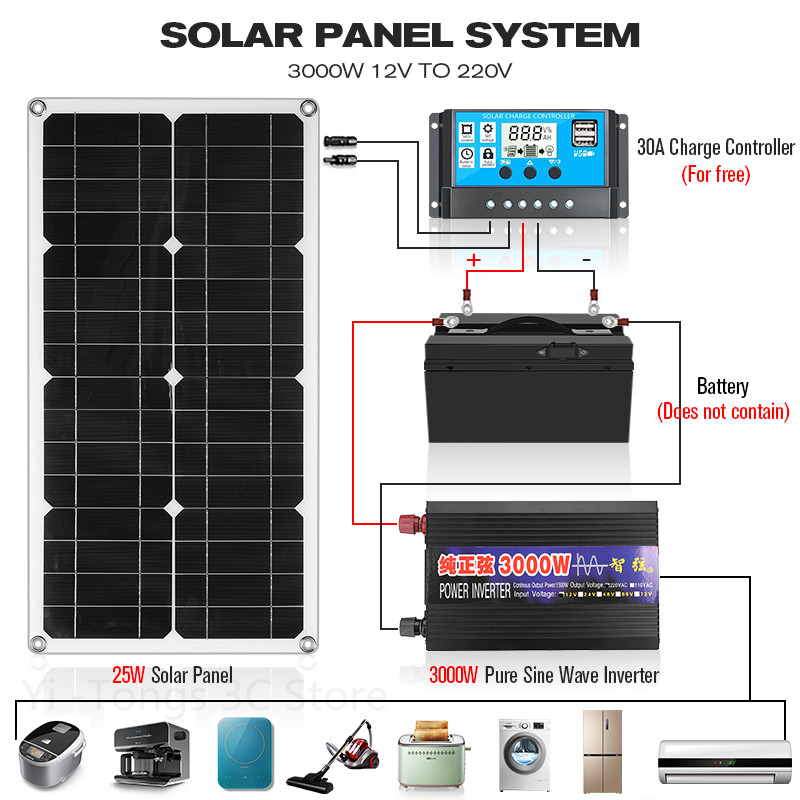

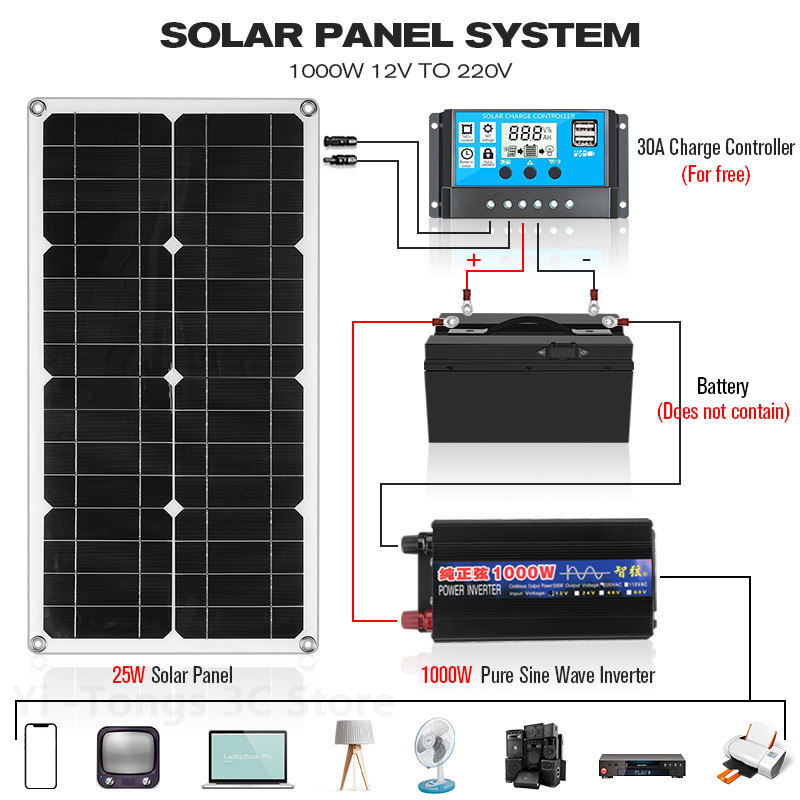

System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
Package Included:
| 1X | controller |
