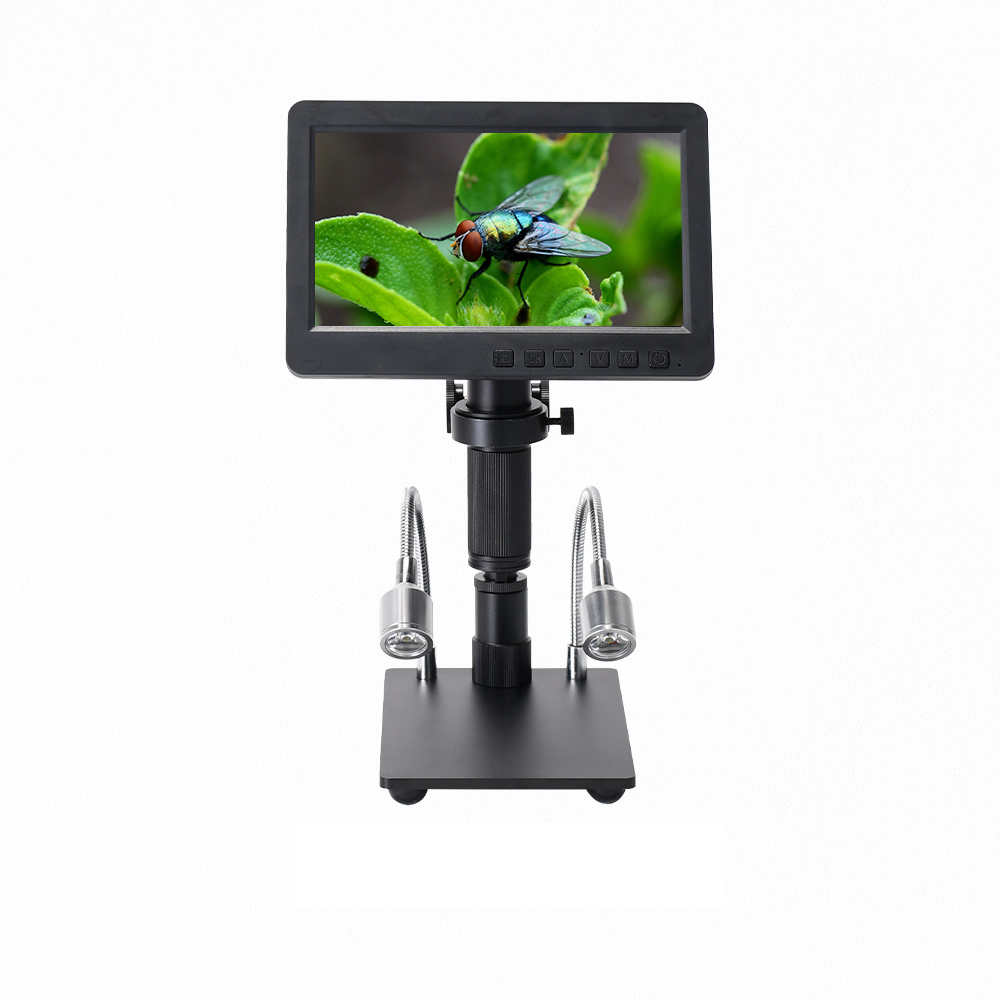

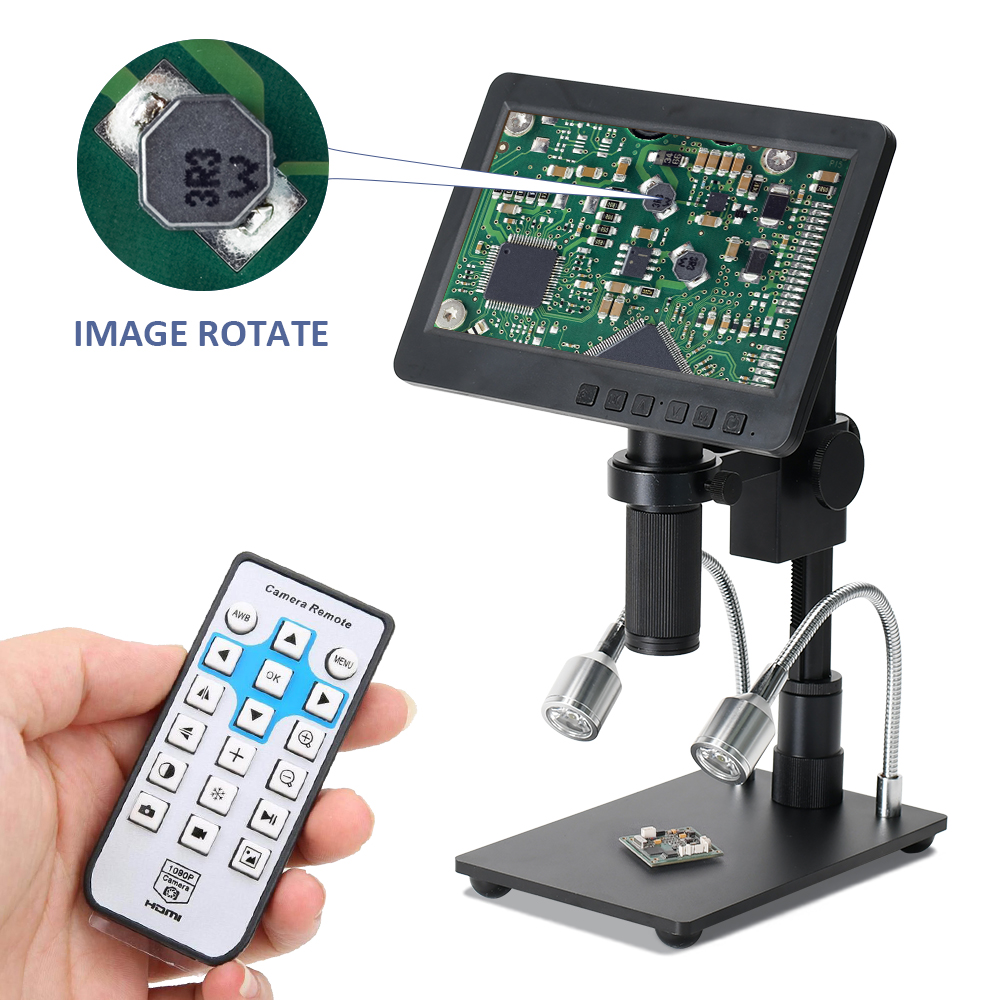

26MP HDMI Digital Microscope 60fps Hight Frames Rate Camera with HDR Mode Eliminate Metal Reflection For Solder 2100X Magnification Adjustable HY2070
26MP HDMI Digital Microscope 60fps Hight Frames Rate Camera with HDR Mode Eliminate Metal Reflection For Solder 2100X Magnification Adjustable HY2070
$165.99
Ex Tax: $165.99
- Stock: In Stock
- Model: MZ003768
- SKU: MZ003768
Significant Improvements & Core Advantages

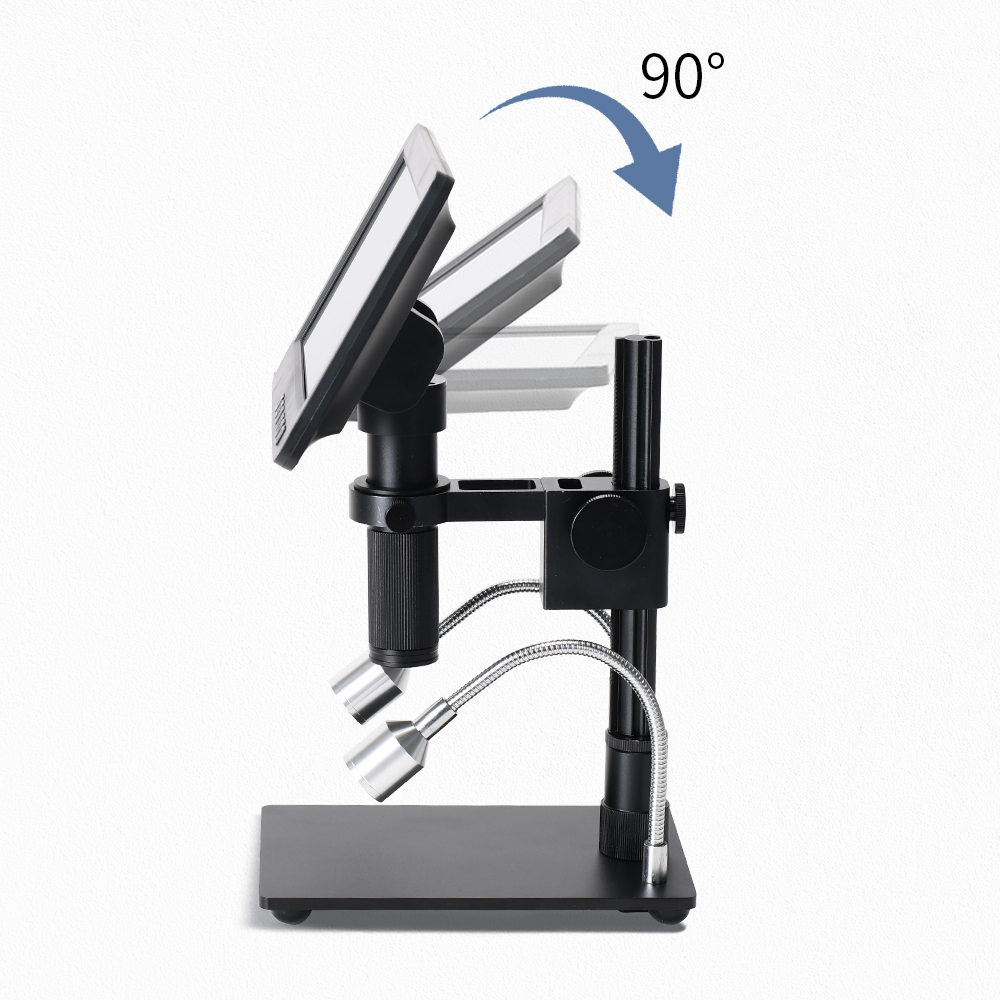

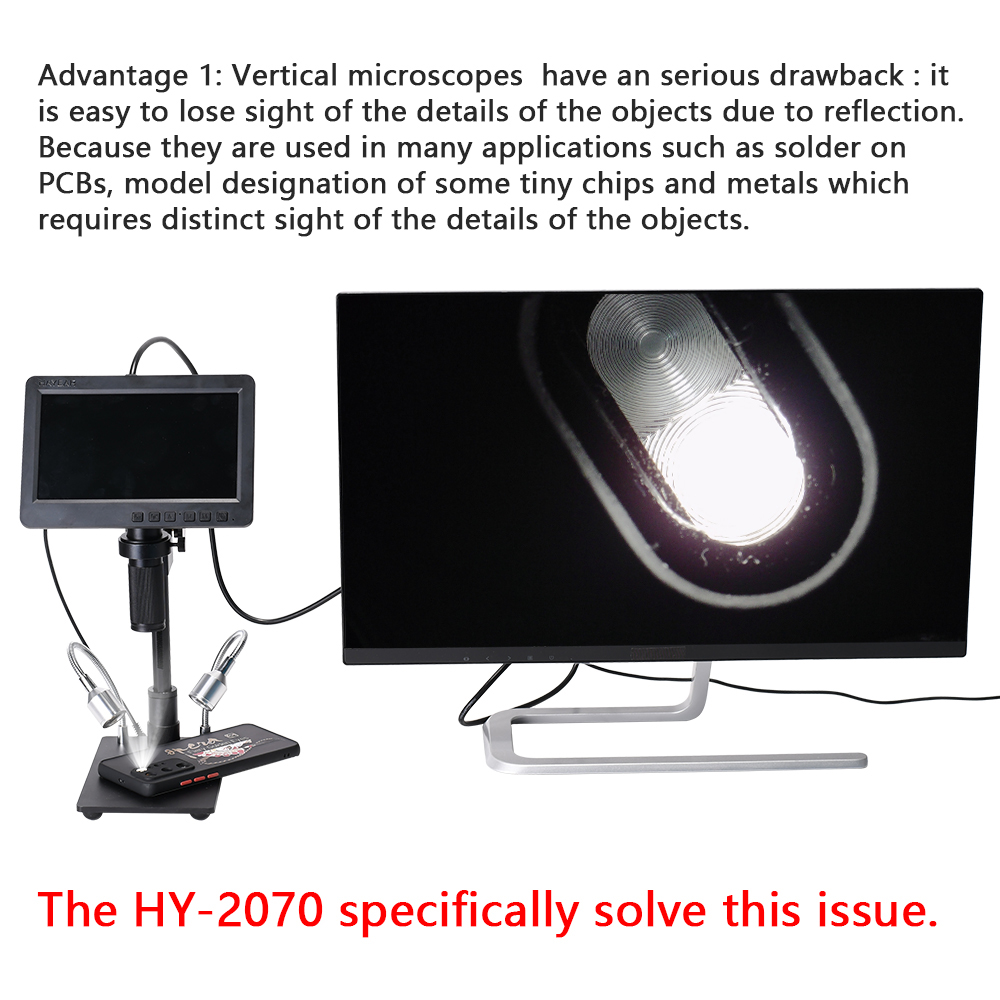

Advantage 1: Adjustable Angle Design Eliminates Light Reflection
Traditional vertical microscopes suffer severe light reflection, which blurs tiny chips and component details under illumination. The HY-2070 adjustable-angle digital microscope solves this pain point perfectly. It effectively suppresses metal surface reflections and delivers ultra-clear component details for inspection and repair.
Advantage 2: True Continuous Zoom with High Magnification & HD Resolution
This continuous zoom digital microscope delivers genuine 300X optical magnification (150X main lens + 2X auxiliary objective lens), with digital zoom up to 2100X. Equipped with a 26MP high-definition sensor, it fully meets industrial inspection, PCB repair, jewelry identification and other precision observation demands.
Main Features
• 26MP CMOS image sensor, HDMI 1080P @ 60fps real-time output, lag-free & smear-free image (most competing microscopes only support 30fps)
• Built-in HDR strong light suppression mode: Greatly suppresses metal surface reflection, protects eyesight and captures complete object details

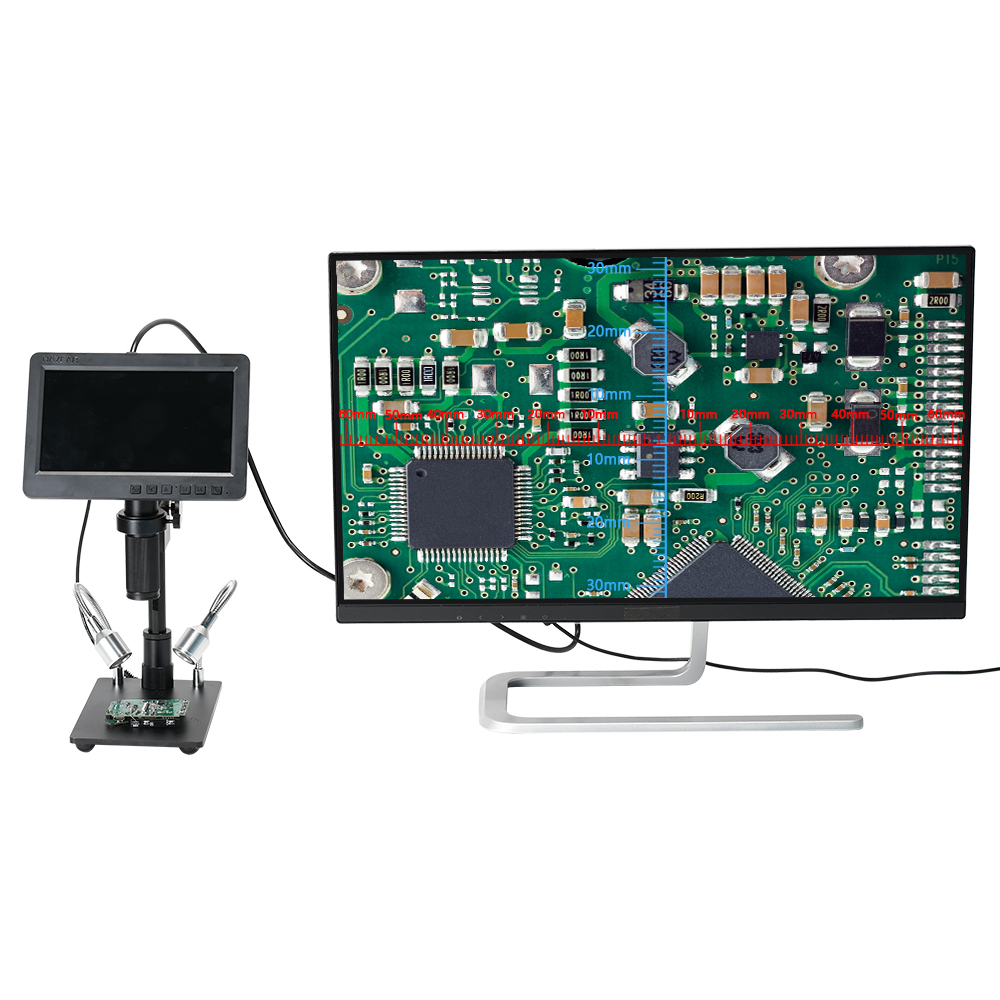

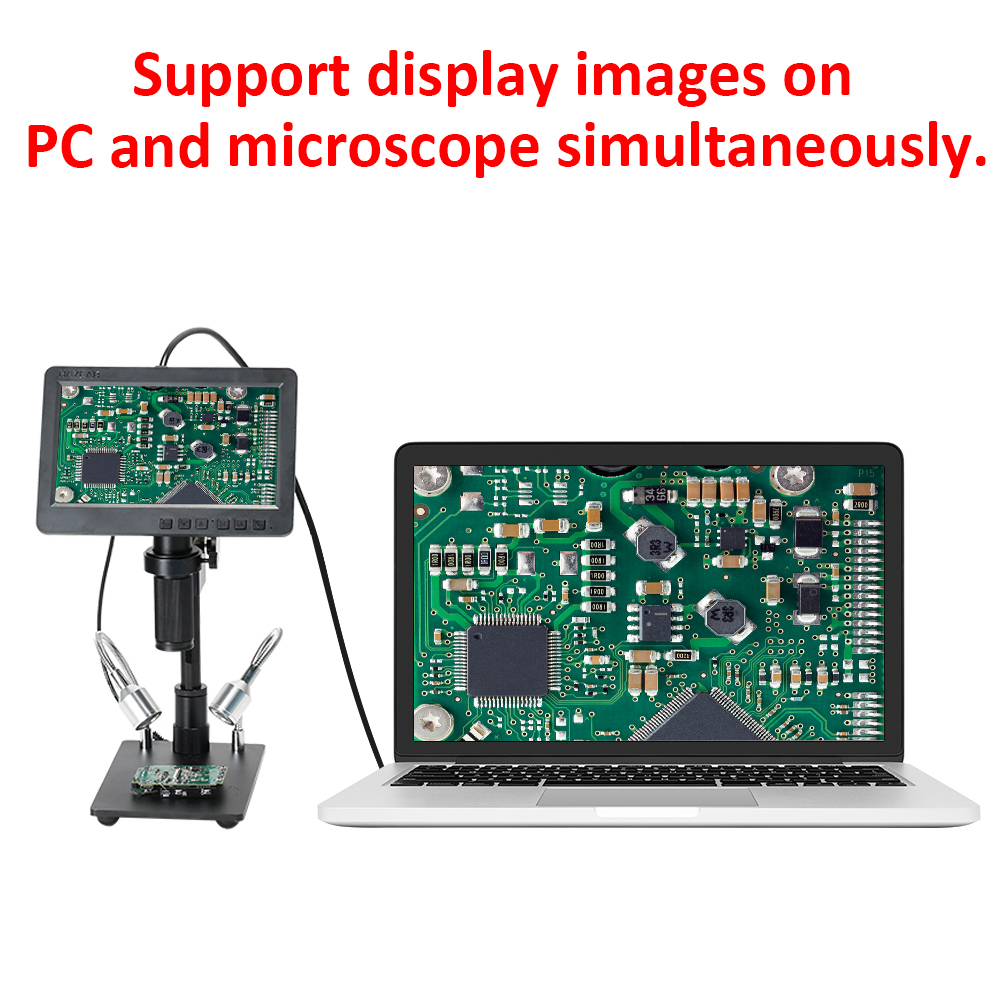

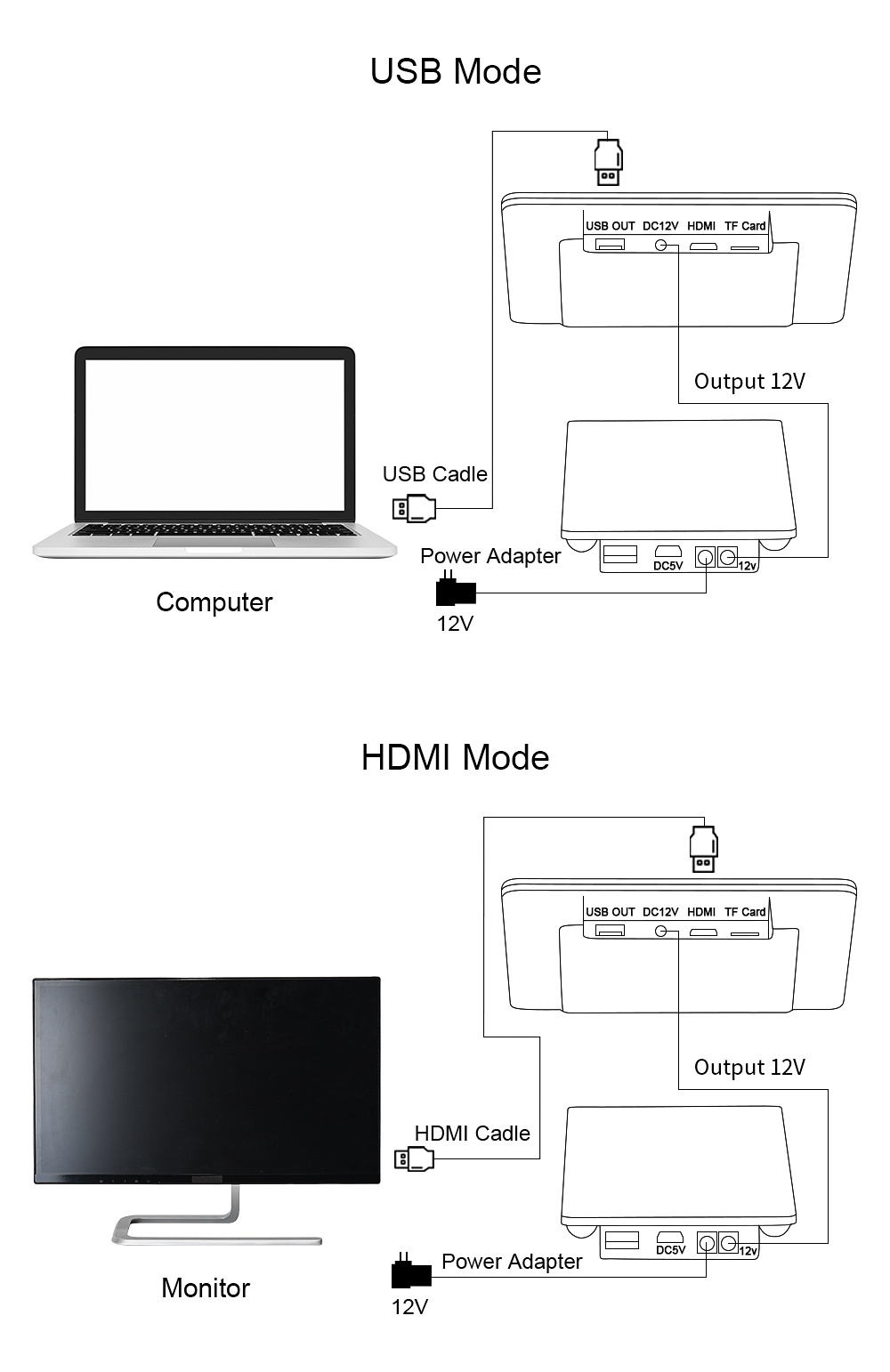

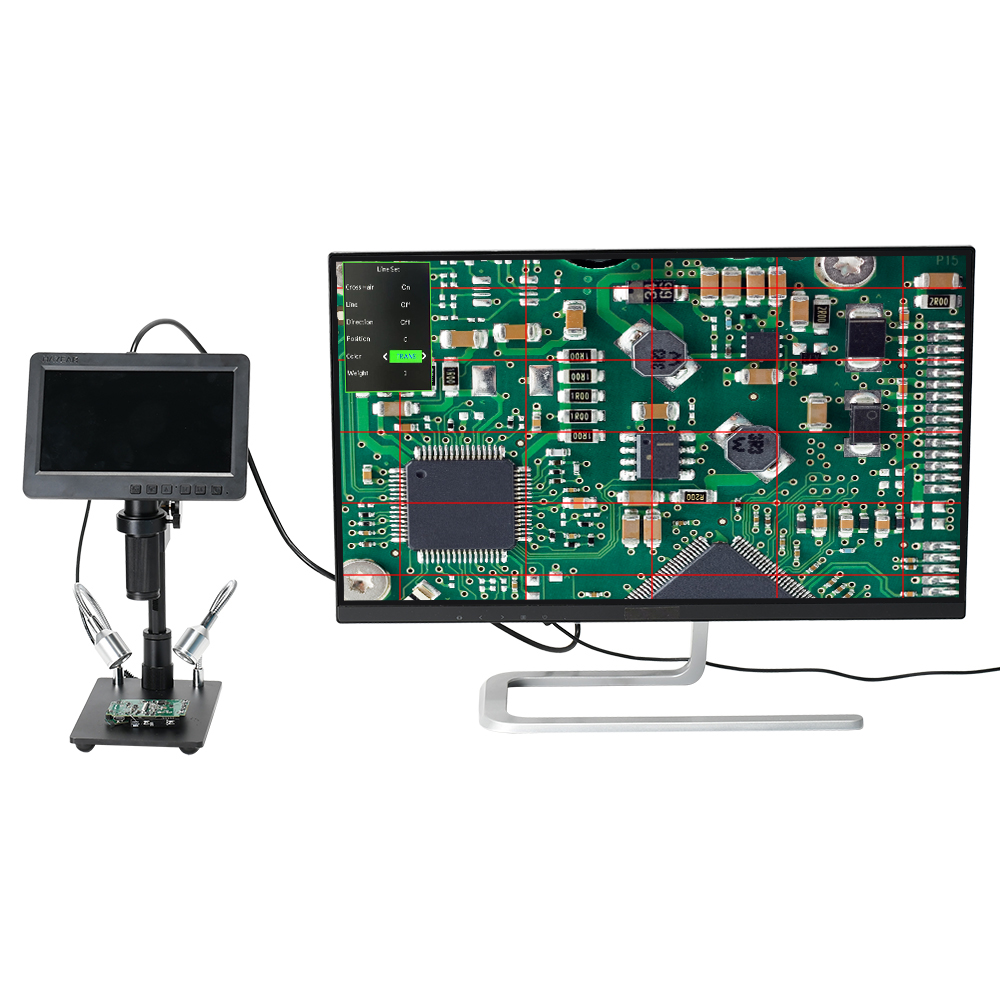

• Smooth continuous zoom, dual simultaneous output via USB computer & HDMI monitor, supports professional measurement software on PC

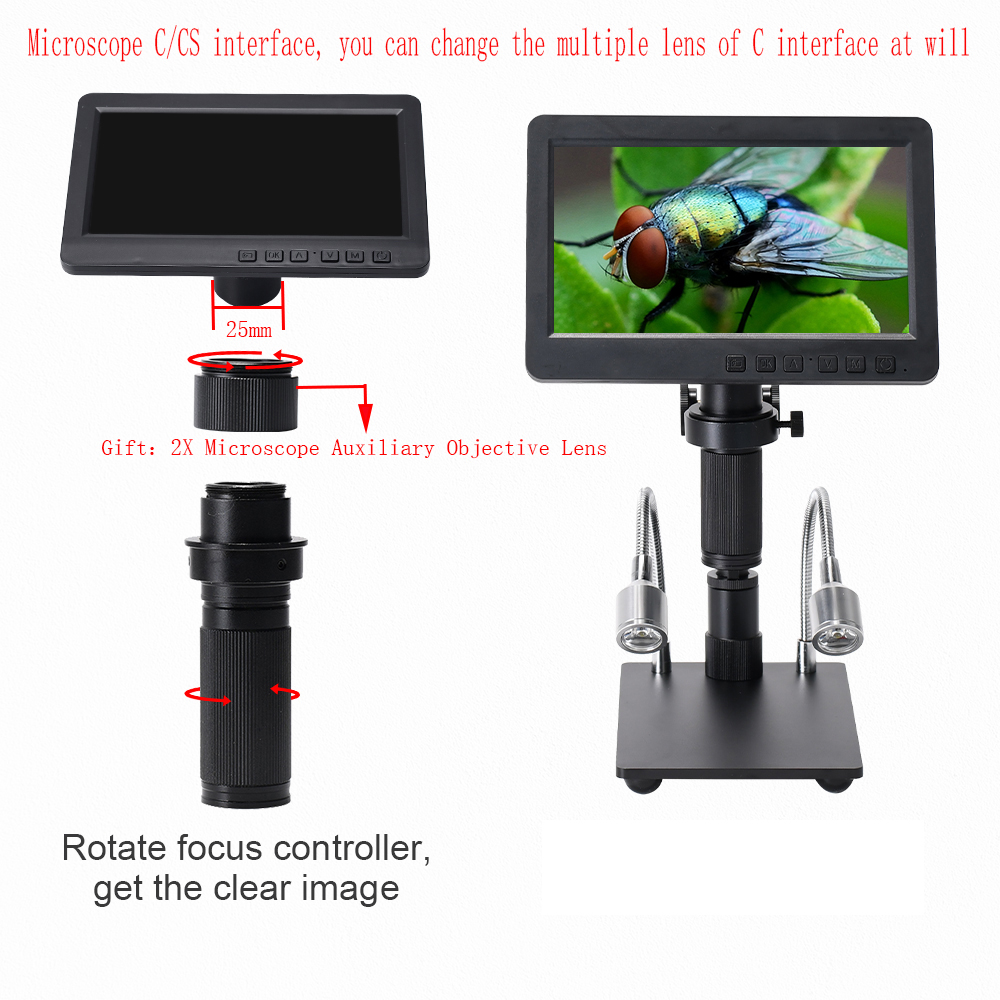

• High expandability with standard 25mm C-mount interface: Native true 300X optical magnification, digital max 2100X. Interchangeable C-mount lenses of different magnifications available (contact customer service for custom lens options)
• Multi-system & multi-language support: Compatible with Windows XP/7/8/10; UI languages include English, Simplified Chinese, French, Spanish, Japanese, German and more
• Wide 50mm~350mm working distance: Enough operating space for tweezers, electric soldering iron and other maintenance tools

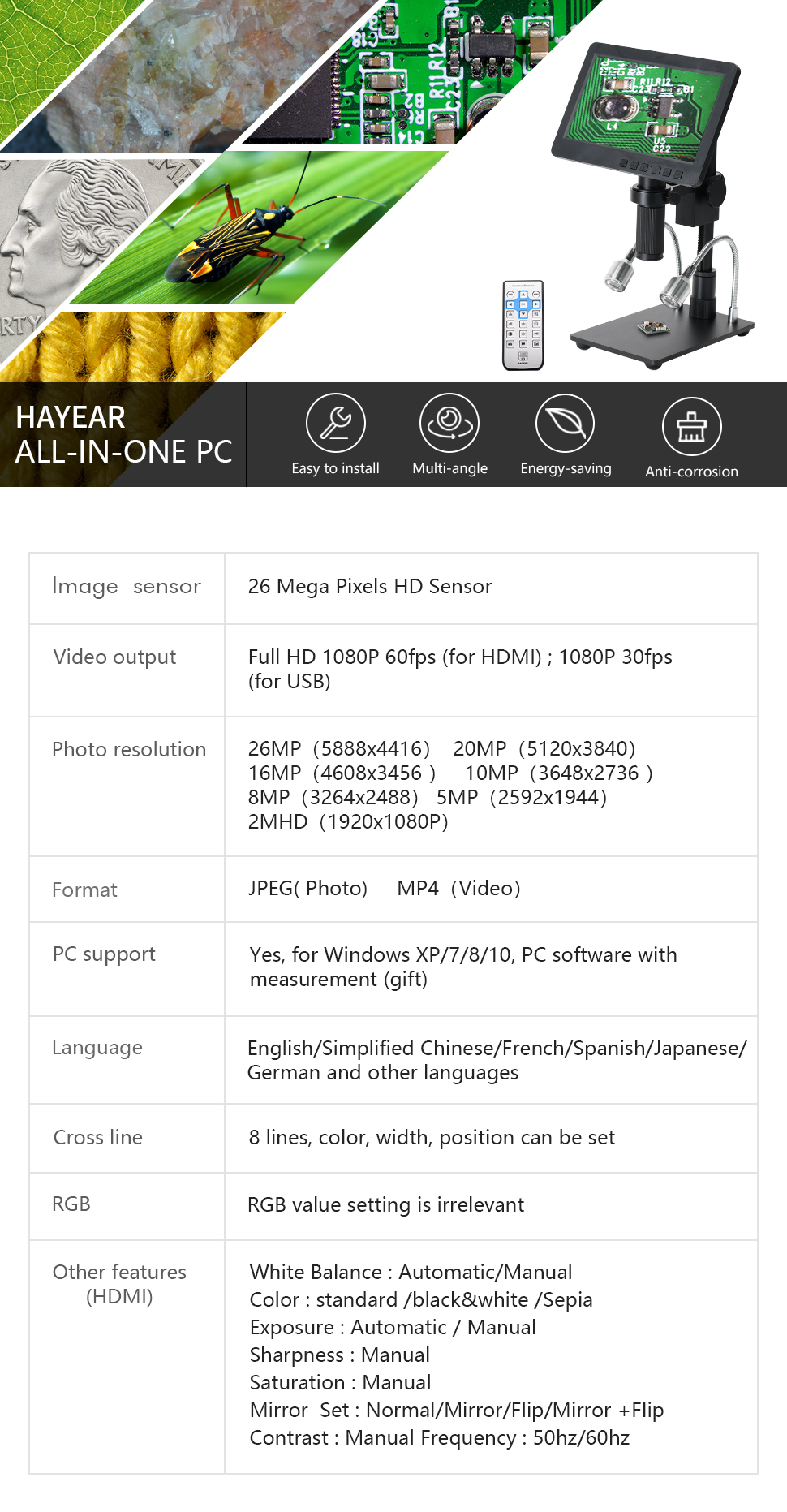

Specifications
| Item | Parameter |
| Image Sensor | 26 Megapixel CMOS HD Sensor |
| Video Output | HDMI 1080P Full HD; USB 1080P |
| Video Format | MP4 |
| Magnification | Standard optical 150X (Max optical 300X), digital up to 2100X |
| Available Photo Resolutions | 26MP (5888×4416), 20MP (5120×3840), 16MP (4608×3456), 10MP (3648×2736), 8MP (3264×2488), 5MP (2592×1944), 2MP HD (1920×1080) |
| Supported Languages | English, Simplified Chinese, French, Spanish, Japanese, German and more |
| Crosshair Lines | 8 adjustable lines; customizable color, width and position |
| Photo Format | JPEG |
| Working Distance | 50mm ~ 350mm (5cm ~ 12cm) |
| Storage | TF card, max support 128GB |
| Built-in Microphone | Supported |
| PC Compatibility | Windows XP / 7 / 8 / 10; free measurement software included |
| White Balance | Auto / Manual adjustable |
| Color Modes | Standard / Black & White / Sepia |
| Exposure | Auto / Manual adjustable |
| Adjustable Parameters | Sharpness, Saturation, Contrast, Mirror flip mode, 50Hz/60Hz anti-flicker |

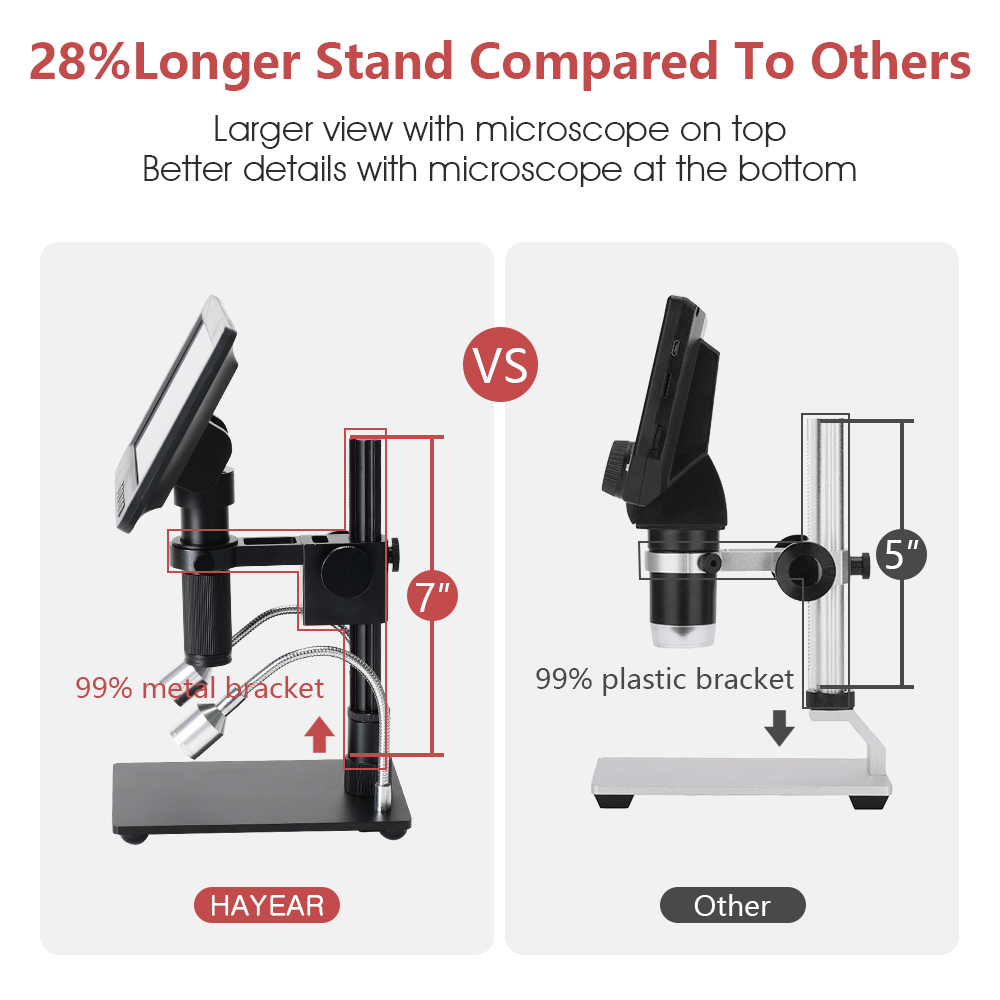

| Stand Dimension | 17 × 11 × 20 cm (L×W×H) |

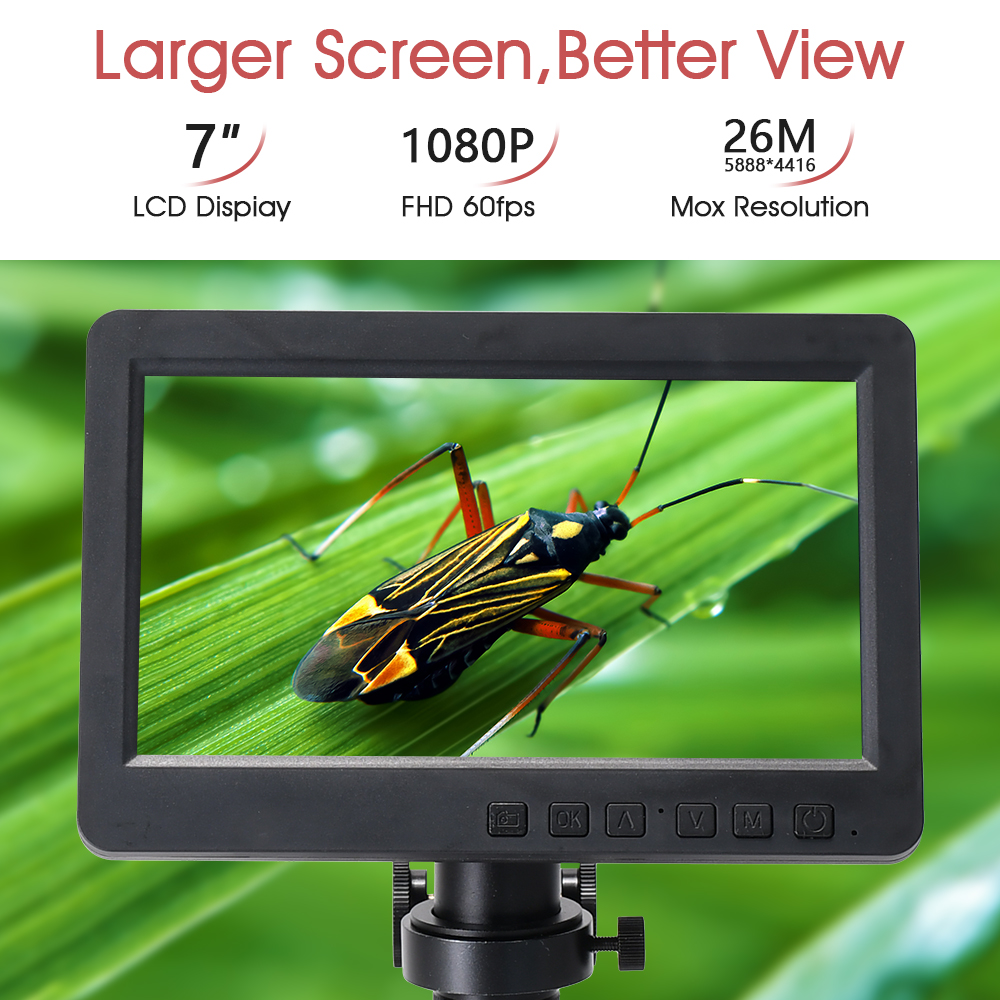

| Display Screen | 7-inch HD built-in screen |
| Package Size | 25.5 × 15.5 × 18 cm |
| Package Weight | 1.5 KG |
| Remote Control Battery | Built-in CR2025 button battery |

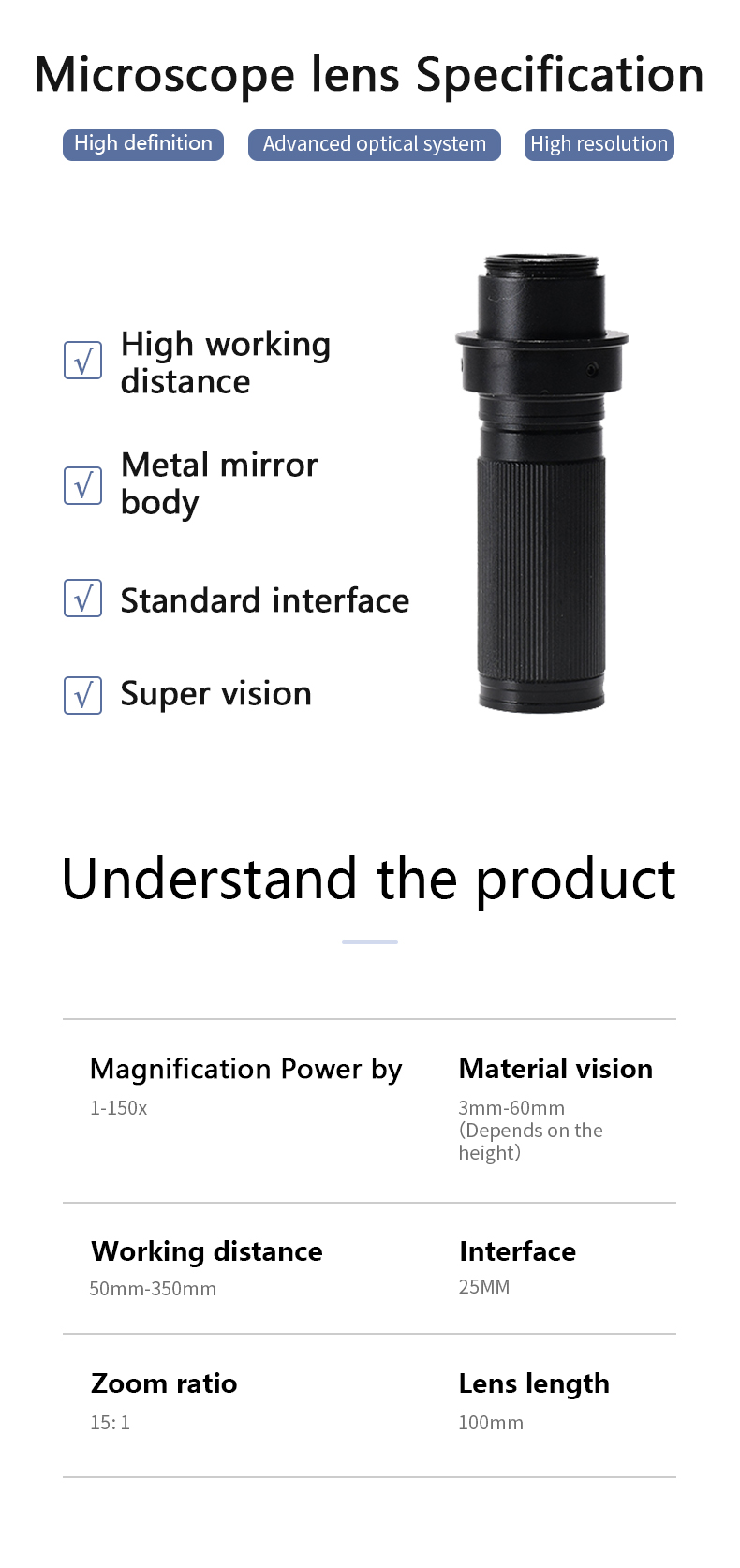

8X–150X C-Mount Zoom Lens Specs
• Working distance: 50mm–350mm
• Field of view: 3.1mm–66mm
• Zoom ratio: 15:1 continuous zoom
• Magnification range: 0.11X–2X (8X–150X displayed on monitor)
• Lens size: 100mm (Length) × 28mm (Diameter)

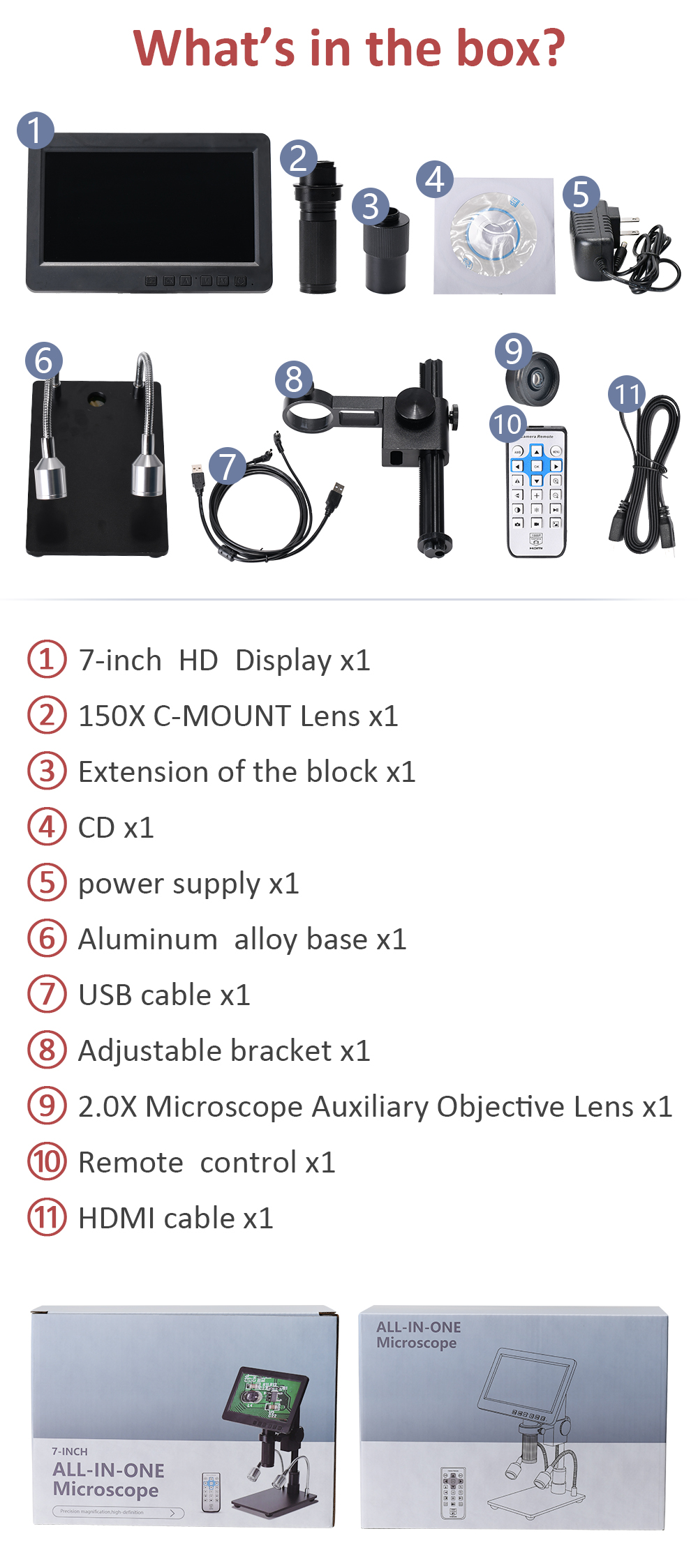

Package Included
1 × 7-inch HD Display
1 × 150X C-MOUNT Main Lens
1 × Extension Block
1 × Driver CD (Measurement Software)
1 × Power Adapter
1 × Aluminum Alloy Base Stand
1 × USB Data Cable

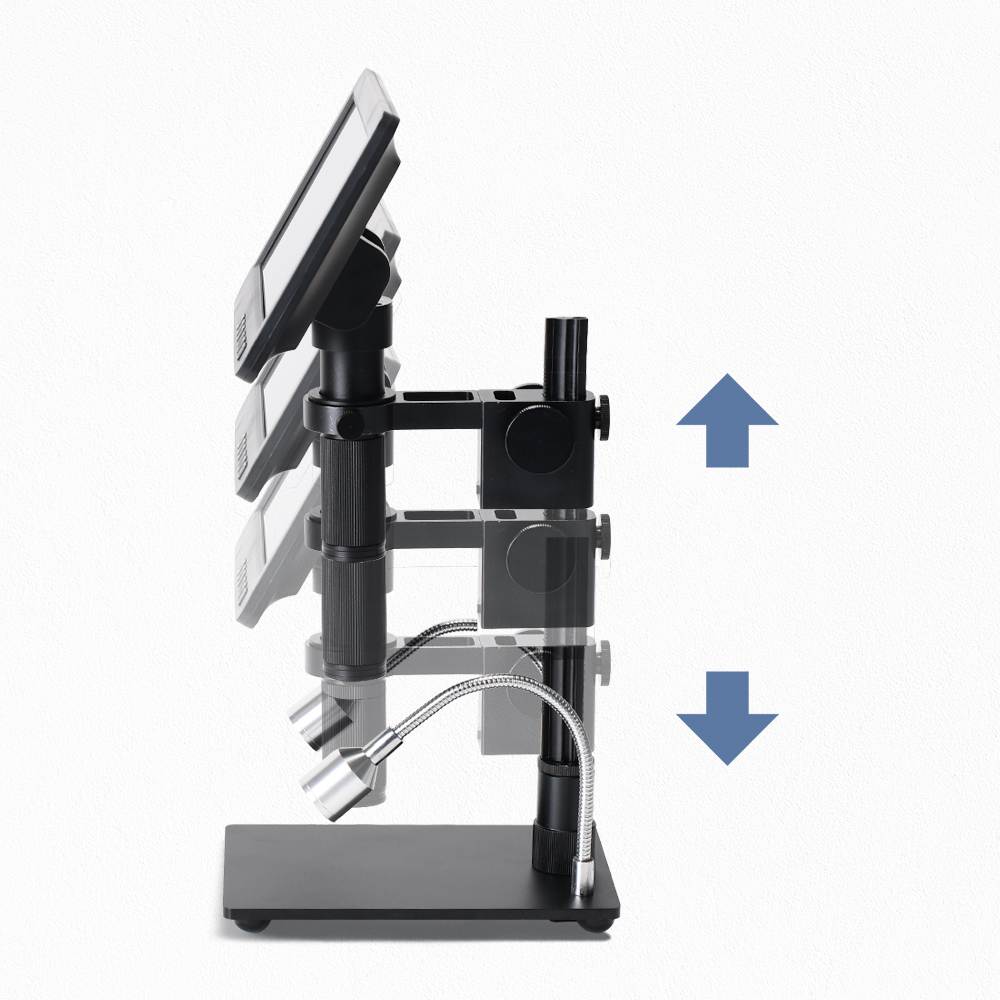

1 × Height Adjustable Bracket
1 × 2.0X Auxiliary Objective Lens
1 × IR Remote Control
1 × HDMI Output Cable
