DT71 Digital Mini Tweezers SMD Tester Portable LCR Meter Diode Resistor Capacitor Multimeter Frequency Signal Generator
DT71 Digital Mini Tweezers SMD Tester Portable LCR Meter Diode Resistor Capacitor Multimeter Frequency Signal Generator
$99.99
Ex Tax: $99.99
- Stock: In Stock
- Model: MZ003683
- SKU: MZ003683
Features
- DT71 Mini Digital Tweezers is a multi-function measuring tool with full differential input measurement. It adopts a unique three-piece separable structure, consisting of main controller, test arms and interchangeable tweezer tips for flexible replacement and combination.

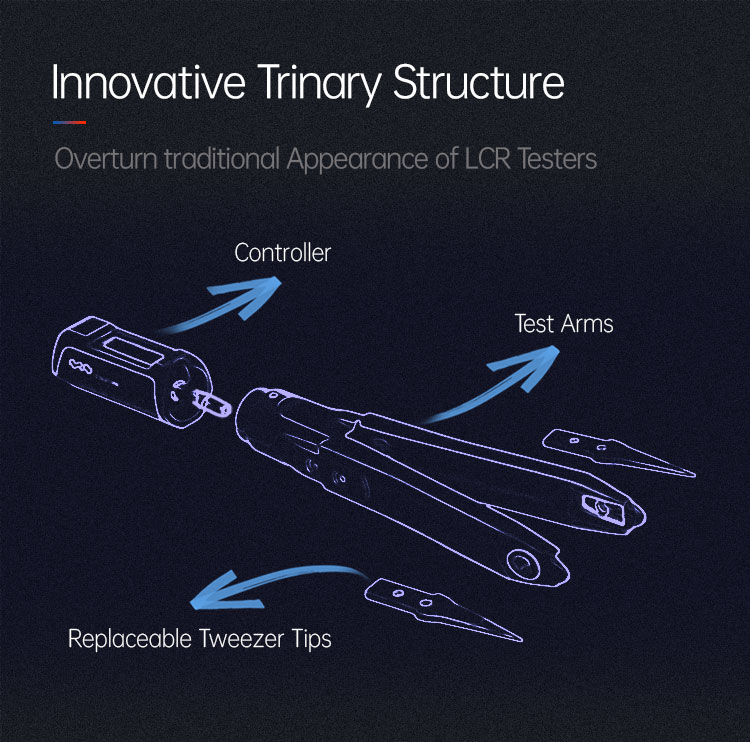

- Innovative detachable three-part structure: separate controller, test arms and replaceable tweezer tips for easy assembly and replacement.
- 360° rotatable main controller with built-in OLED screen for wide viewing angles.
- Smart gesture recognition, automatically detects left/right hand operation and flips screen orientation accordingly.
- Hidden touch button on the top of controller, lightweight tap operation for simple control.
- Test arms with magnetic elastic design for comfortable clamping, ergonomic and long service life.

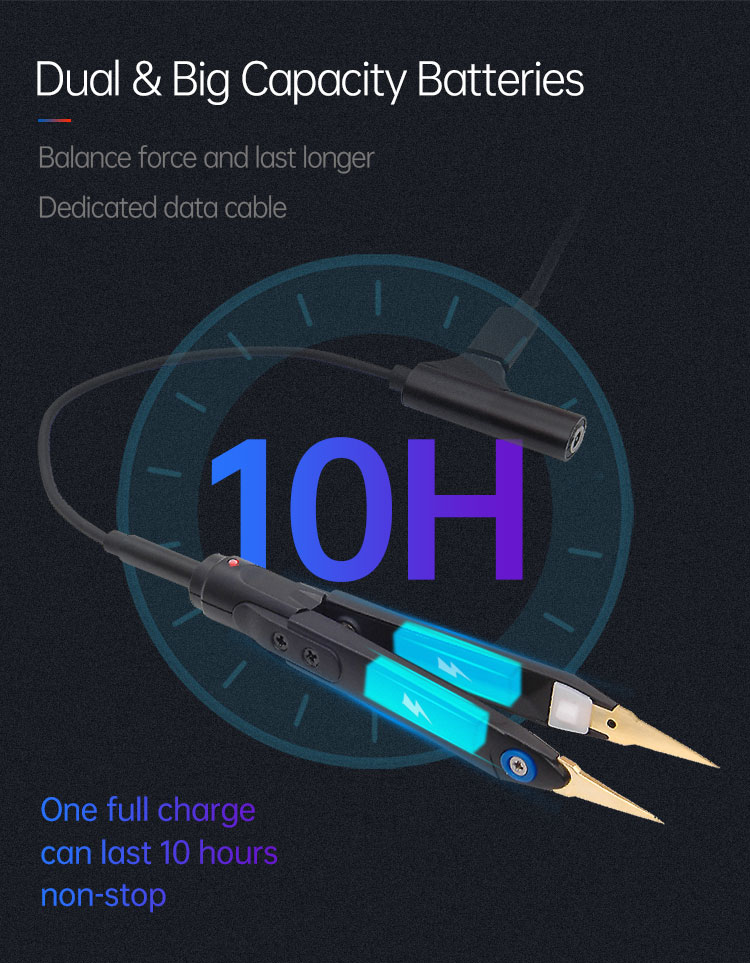

- Dual built-in lithium batteries inside test arms, balanced weight for both sides and longer standby time.
- Multiple gold-plated interchangeable tweezer tips, improve measurement accuracy for various testing scenarios.
- Auto identifies SMD components including resistors, capacitors, inductors and diodes, displays primary & secondary parameters simultaneously.
- Built-in signal generator outputs multiple types of waveform signals.
Specifications
Basic Product Parameters
| Item | Parameter |
| Continuous Operation Time | 10 Hours |
| Full Charging Time | 2 Hours |
| Display Screen | 96*16 OLED Display |
| Controller Size | 47mm |
| Test Arm Length | 106mm |
| Net Weight | 22g |
| Operation Mode | Hidden Touch Button Control |
Measurement Technical Specifications
| Measurement Item | Range | Resolution | Accuracy |
| Resistance | 0.1Ω ~ 1KΩ | 0.1Ω | ±(0.5% + 2 digits) |
| 1KΩ ~ 2000KΩ | 1KΩ | ±(0.5% + 2 digits) | |
| Capacitance | 0.1pF ~ 1000pF | 0.1pF | ±(2% + 3 digits) |
| 0.001µF ~ 400µF | 0.001µF | ±(2% + 3 digits) | |
| Inductance | 1µH ~ 1000µH | 1µH | ±(5% + 3 digits) |
| 1mH ~ 50mH | 1mH | ±(5% + 3 digits) | |
| Voltage | 1mV ~ 100mV | 1mV | ±(2% + 5 digits) |
| 0.1V ~ 40V | 0.1V | ±(1% + 3 digits) | |
| Frequency | 10Hz ~ 1KHz | 10Hz | ±(0.1% + 3 digits) |
| 1KHz ~ 20000KHz | 1KHz | ±(0.1% + 3 digits) | |
| Diode Test | Silicon / Schottky / LED (0.1~3V forward voltage) | 0.1V | ±1% |
| Max Input Voltage | -5V ~ +50V | ||
| Input Source Impedance | 1MΩ | ||
Built-in Core Functions
| Function Item | Description |
| Auto SMD Component Identification | Supported |
| Custom Targeted Measurement Mode | Supported |
| Continuity & Diode Test | Supported |
Signal Generator Waveform Support
| Waveform Type | Supported Frequency Points |
| SINE Sine Wave | 10KHz, 5KHz, 2KHz, 1KHz, 500Hz, 200Hz |
| NOISE Noise Wave | 100KHz |
| USER Custom Wave | 10KHz, 5KHz, 2KHz, 1KHz, 500Hz, 200Hz |
| PULSE Pulse Wave | 100KHz, 20KHz, 10KHz, 5KHz, 2KHz, 1KHz, 500Hz, 200Hz |
Package Includes
- 1 × DT71 Main Controller
- 1 × Pair of Test Arms
- 2 × Gold-plated Tweezer Tips
- 1 × Data Communication Cable
- 1 × USB Charging Cable
- 1 × Protective Carry Case
- 1 × English User Manual
>> Please Contact us to Download Full English User Manual <<
Detail Pictures
