8204 Intelligent Automatic True RMS Clamp Meter DC Current Measurement with Temperature Measurement AC/DC Multimeter
8204 Intelligent Automatic True RMS Clamp Meter DC Current Measurement with Temperature Measurement AC/DC Multimeter
$33.99
Ex Tax: $33.99
- Stock: In Stock
- Model: MZ003619
- SKU: MZ003619
- UPC: 621240664427

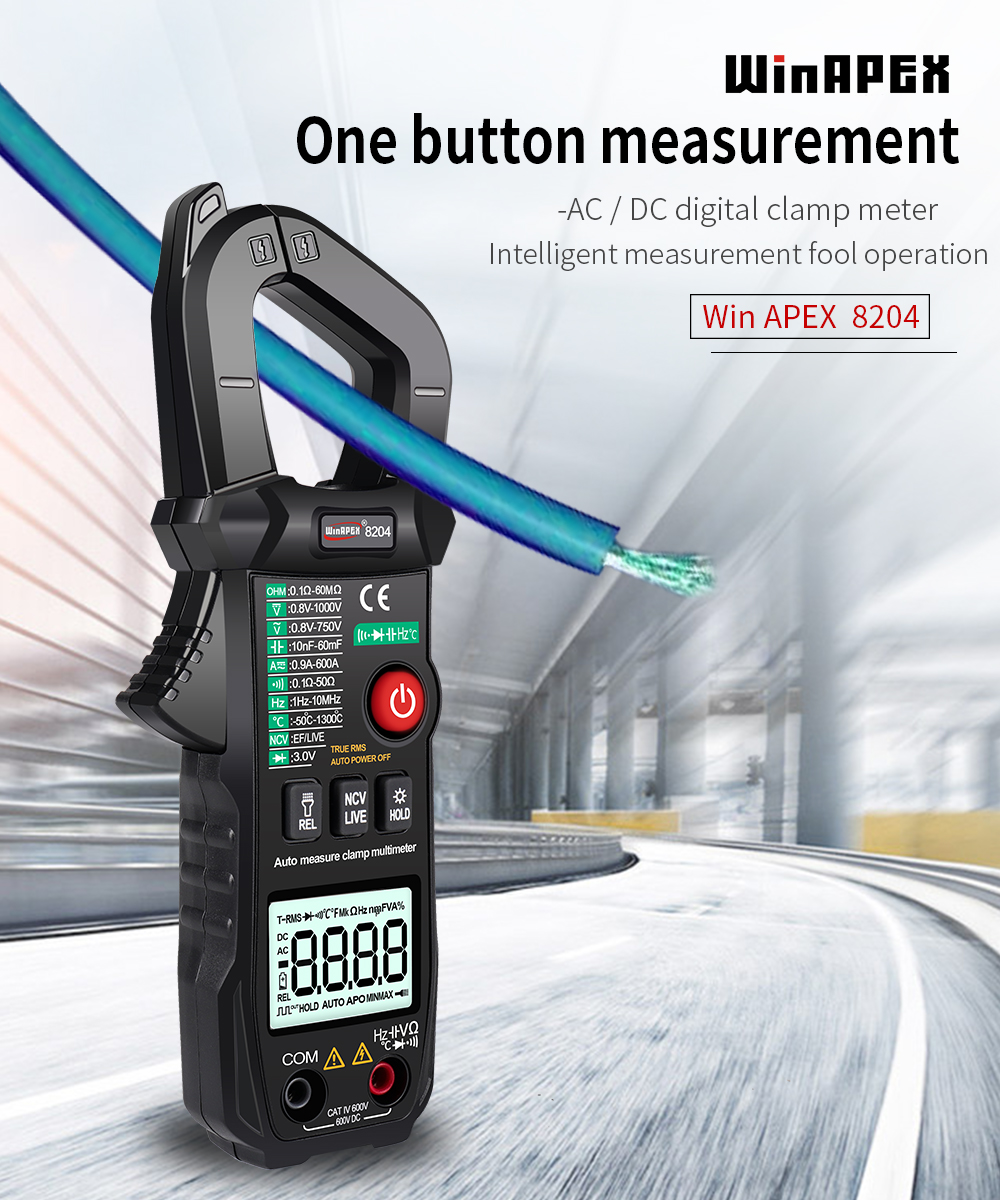

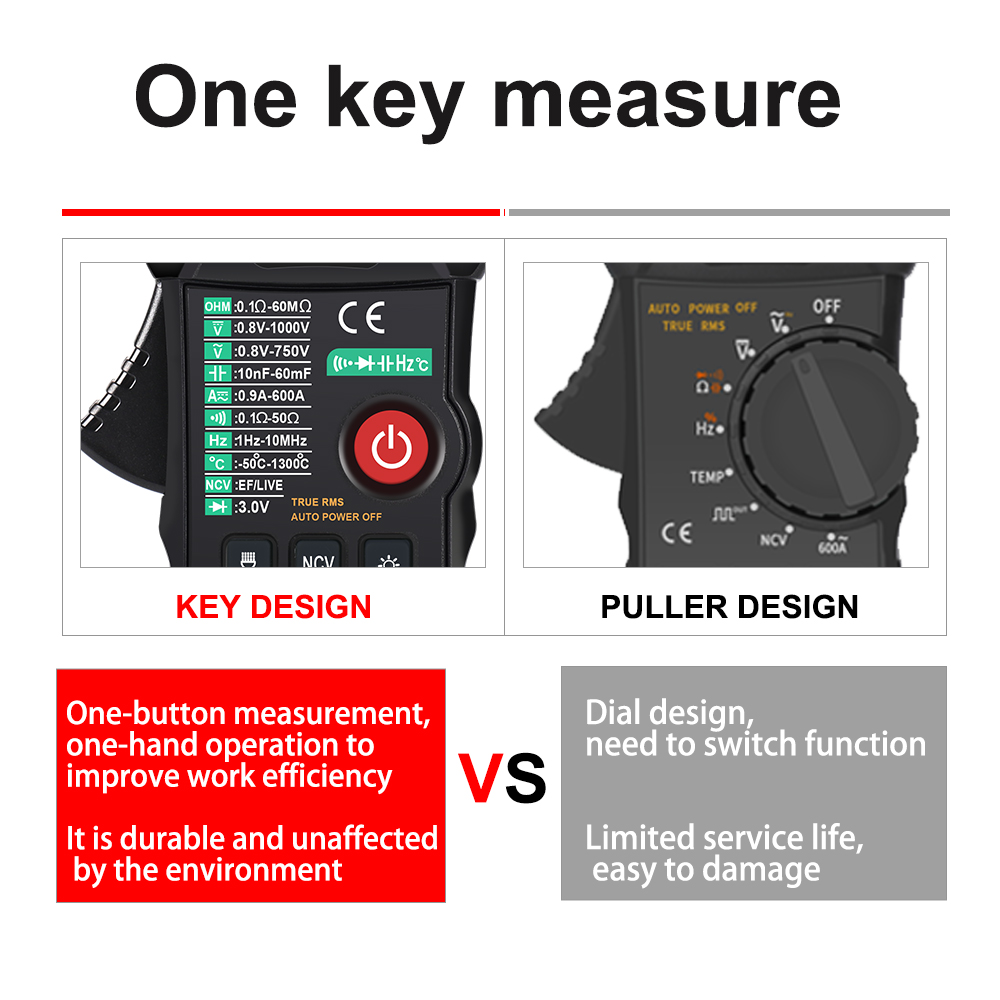

This clamp meter supports DC current measurement, featuring intelligent auto-ranging that requires no manual gear selection.
Features
- • DC & AC Current Measurement
- • DC & AC Voltage Measurement
- • Temperature Measurement
- • Resistance Measurement
- • Capacitance Measurement
- • Frequency Measurement
- • True RMS Reading
- • Backlight LCD Screen
- • Data Hold Function
- • Continuous Buzzer Test
- • Diode Test Mode
- • NCV Non-contact Voltage Detection
- • Live Fire Wire Identification
Specifications

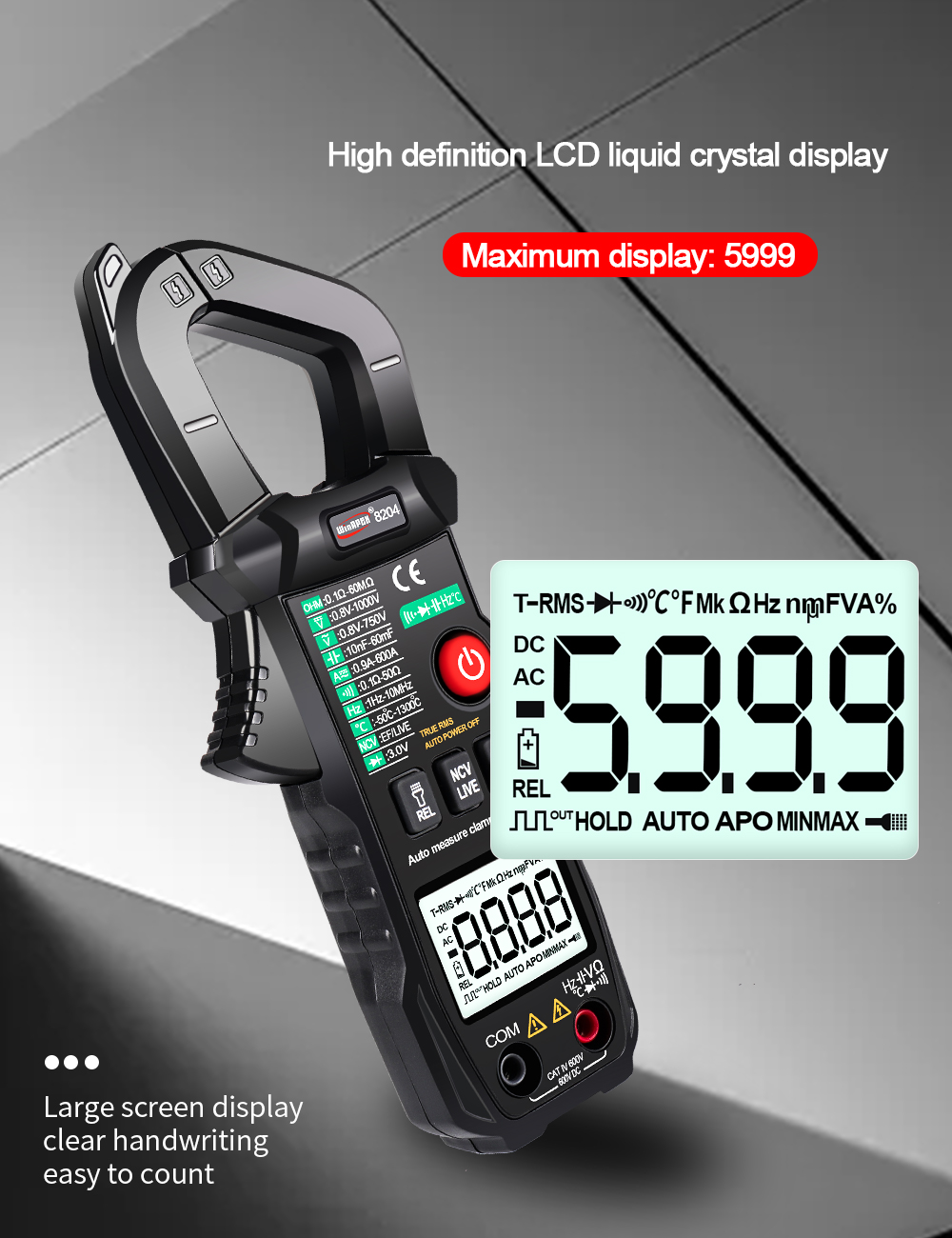

Display Count: 6000 Counts
DC / AC Voltage
| Range | Accuracy | Resolution |
| DC/AC 6V | ±(0.5% + 3 digits) | 0.001V |
| DC/AC 60V | 0.01V | |
| DC 700V | 0.1V | |
| AC 500V | ±(0.8% + 10 digits) | 1V |
Resistance
| Range | Accuracy | Resolution |
| 600Ω | ±(0.8% + 5 digits) | 0.1Ω |
| 6kΩ | ±(0.8% + 3 digits) | 1Ω |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1kΩ | |
| 60MΩ | ±(2.5% + 3 digits) | 10kΩ |
Diode & Continuity Test
| Mode | Display / Response | Test Condition |
| Diode Test | Forward voltage drop value | Forward DC current ~1mA, open circuit voltage ~3V |
| Continuity Buzzer | Continuous beep when resistance ≤ (50±20)Ω | Open circuit voltage ~0.4V; short press power key to switch dual modes |
Capacitance
| Range | Accuracy | Resolution |
| 10nF | ±(3.5% + 20 digits) | 10pF |
| 100nF | 100pF | |
| 1μF | 1nF | |
| 10μF | 10nF | |
| 100μF | 100nF | |
| 1mF | 1μF | |
| 10mF | 10μF | |
| 60mF | ±(5% + 3 digits) | 100μF |
Clamp Current (AC/DC)
| Range | Accuracy | Resolution |
| 60A | ±(2.5% + 30 digits) | 0.01A |
| 600A | 0.1A |
Temperature Measurement
| Range | Accuracy | Resolution |
| -20℃ ~ 1000℃ | ±(1.0% + 5) for <400℃; ±(1.5% + 15) for ≥400℃ | 1℃ |
| 0℉ ~ 1832℉ | ±(0.75% + 5) for <750℉; ±(1.5% + 15) for ≥750℉ | 1℉ |
Frequency
| Range | Accuracy | Resolution |
| 10Hz | ±(0.1% + 3 digits) | 0.01Hz |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHz | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1kHz | |
| 10MHz | 10kHz |
Error Prompt Description
| Screen Prompt | Troubleshooting Solution |
| No display on screen | Battery disconnected or dead; replace battery |
| Low battery icon shown | Replace battery immediately |
| No current reading / zero input | Internal fuse blown, need fuse replacement |
| Incorrect resistance reading | Poor contact between probes and test object |
>> Contact us to download full English user manual <<
Package Includes
- 1 × Digital Clamp Meter
- 1 × Temperature Test Probe
- 1 × Storage Carry Bag
- 1 × English User Manual
Note: Battery is NOT included in the package.
Detail Pictures
