80m Digital Mini Laser Rangefinder Electronic Angle Sensor M/In/Ft Unit Switching USB Charging Pythagorean Mode Distance Area Volume Measure Meter
80m Digital Mini Laser Rangefinder Electronic Angle Sensor M/In/Ft Unit Switching USB Charging Pythagorean Mode Distance Area Volume Measure Meter
$23.99
Ex Tax: $23.99
- Stock: In Stock
- Model: MZ004404
- SKU: MZ004404
Product Descriptions
- ★HIGH ACCURACY: Adopted laser precision measuring technology, accuracy up to ±2mm, max measuring distance up to 80m; freely switchable measurement units: M / In / Ft.

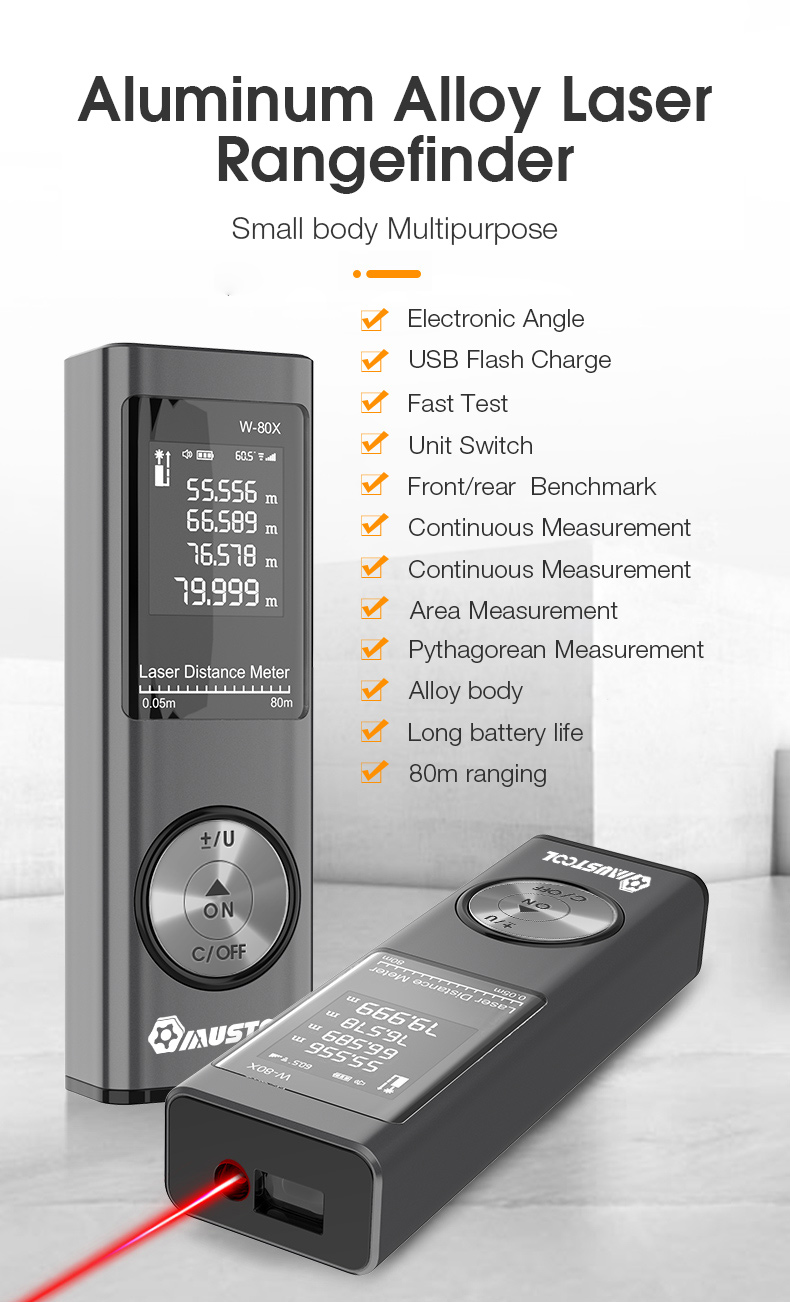

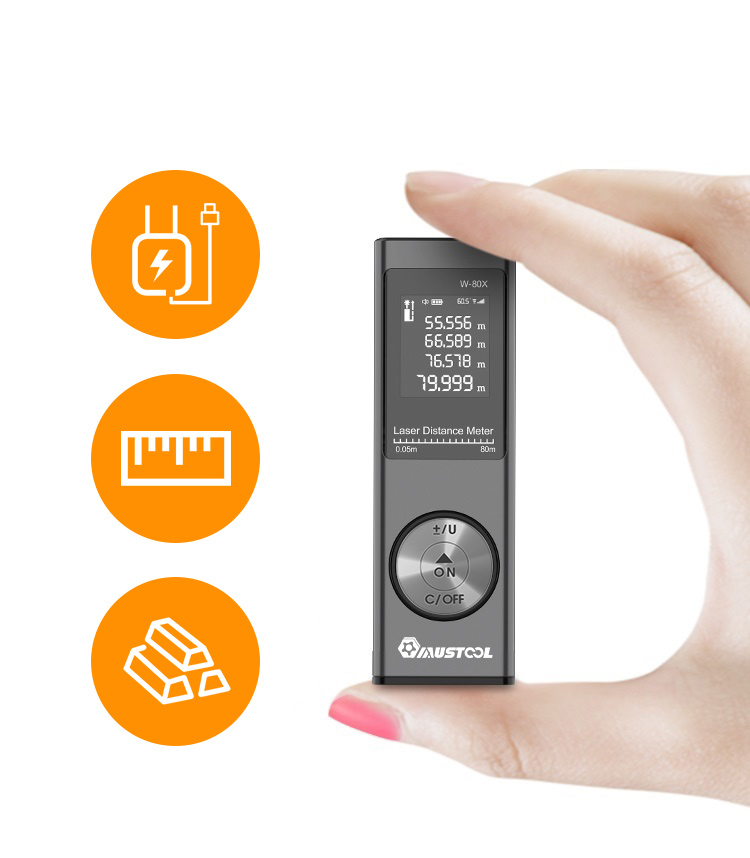

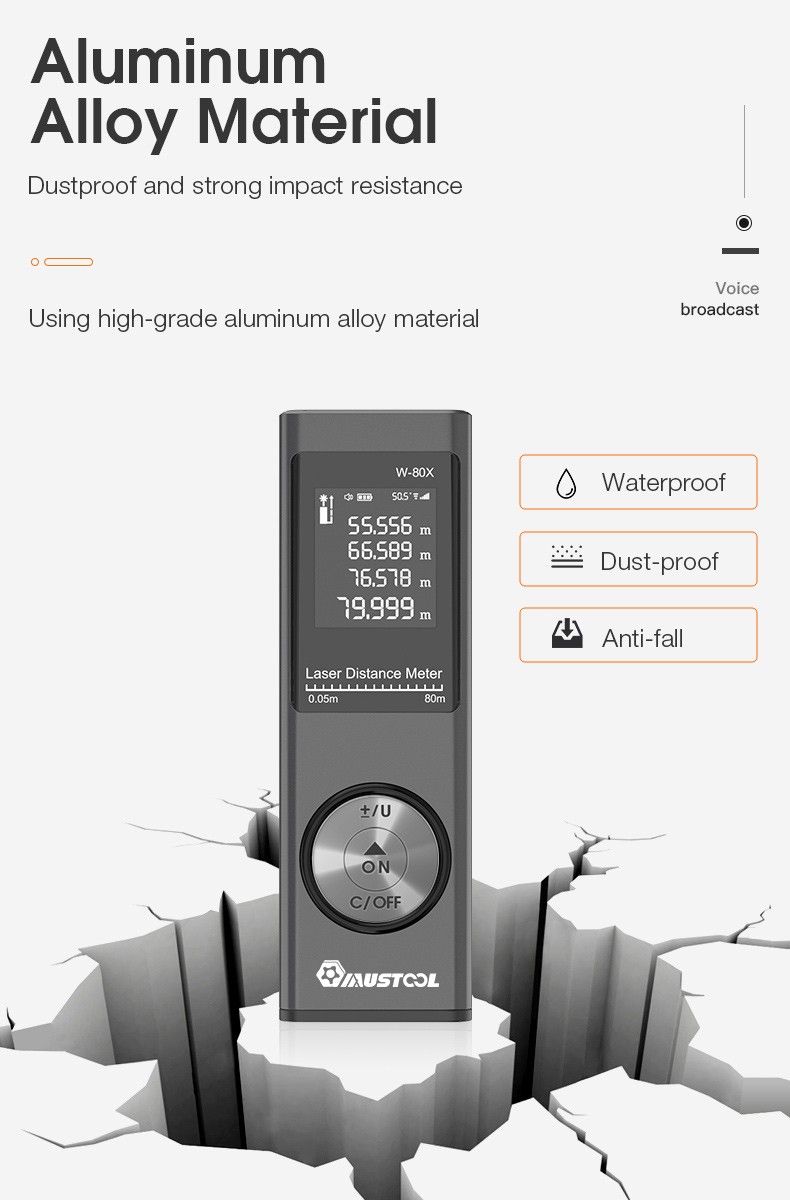

- ★DURABLE & PORTABLE: IP54 waterproof & dustproof rating fully protects the laser rangefinder. Pocket mini size with premium aluminum alloy body, lightweight and easy to store.

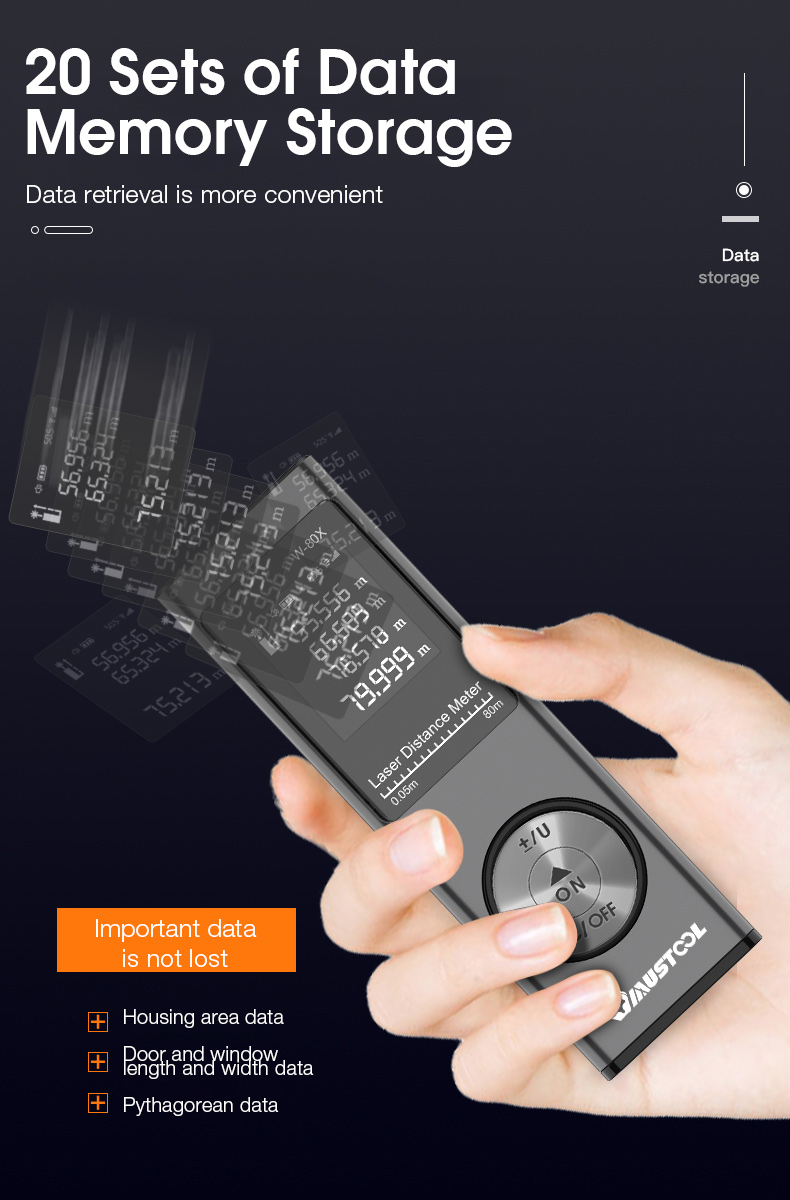

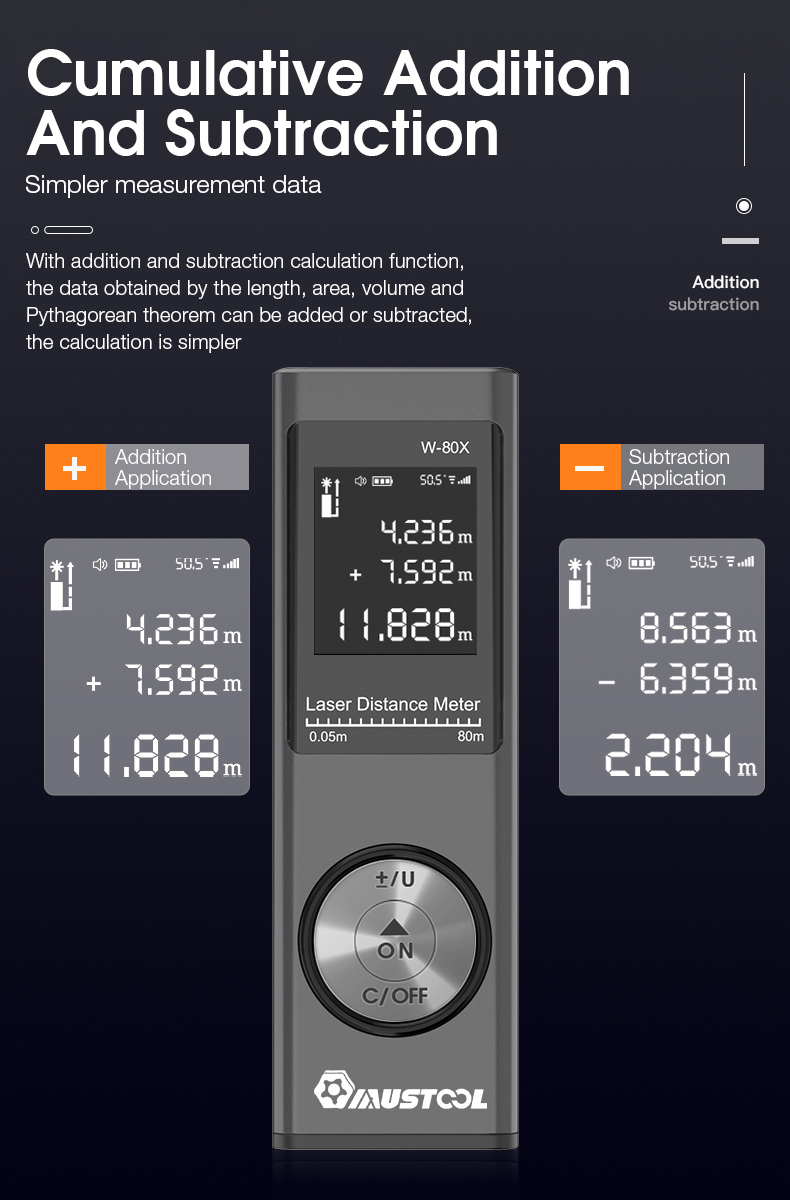

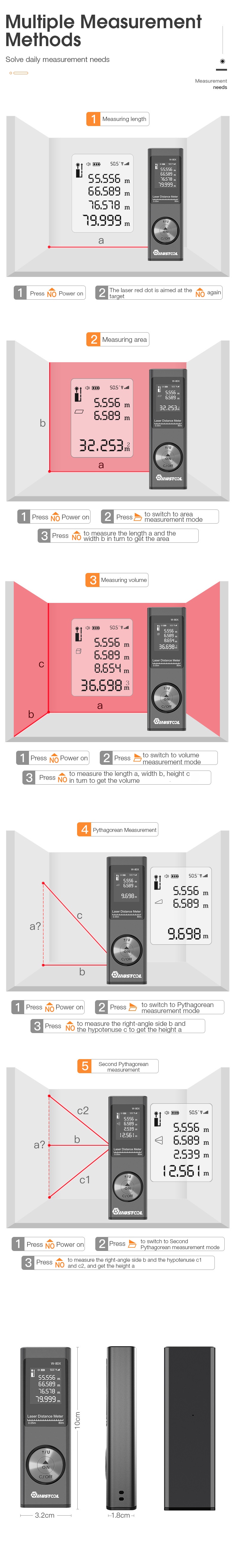

- ★MULTIPLE MEASUREMENT Modes: Length, width, height, area, volume, continuous tracking, 3-point Pythagorean measurement; addition & subtraction calculation; low battery reminder; 20 groups data storage & manual data clear; auto power off after 150 seconds idle for power saving.
- ★EASY & FAST OPERATION: Far smaller measuring error than manual tape measure. Built-in electronic angle sensor delivers more precise & intuitive data, making all measurements quick and effortless.
- ★BACKLIGHT LCD + MUTE MODE: Large backlit screen ensures clear reading in dark environments. Adjustable beep mute function, perfect for quiet scenarios like library, classroom and office.

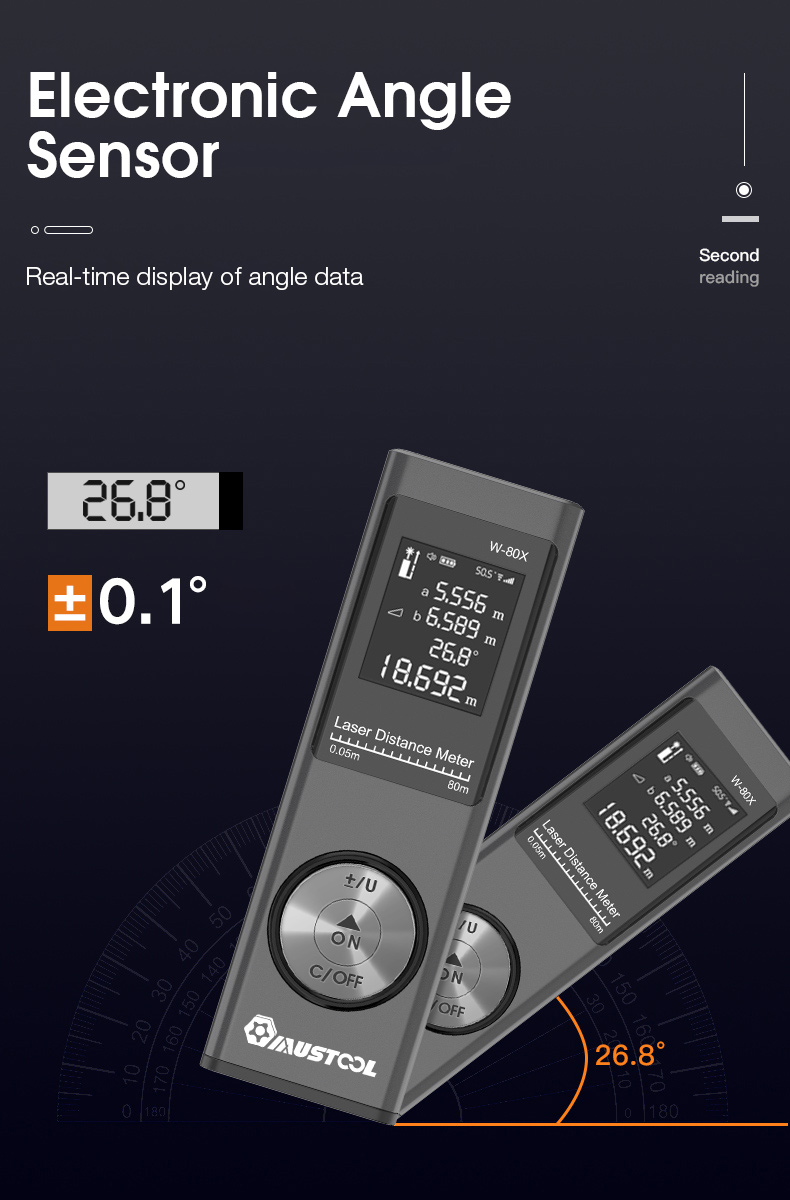

- ★ELECTRONIC LEVEL (Real-Time Angle Display): Built-in electronic angle sensor, real-time angle value displayed on screen when tilting the device, measuring range 0° ~ 90°.
Specifications
| Item | Parameter |
| Electronic Level Range | 0° ~ 90° |
| Measurement Accuracy | ±0.002 m (±2 mm) |
| Resolution | 0.001 m |
| Measuring Distance Range | 0.05 m ~ 80 m |
| Switchable Units | M / In / Ft |
| Power Supply | Built-in rechargeable battery, USB Type-C charging |
| Max / Min Value Capture | Supported |
| Length / Width / Height Measurement | Supported |
| Continuous Tracking Measurement | Supported |
| Area Calculation | Supported |
| Volume Calculation | Supported |
| 3-Point Pythagorean Measurement | Supported |
| Electronic Angle Level | Supported |
| Single Measuring Time | 0.1 ~ 3 seconds |
| Display Screen | LCD with adjustable backlight |
| Laser Class | Class II |
| Laser Wavelength | 635 nm |
| Laser Output Power | < 1 mW |
| Waterproof & Dustproof Rating | IP54 |

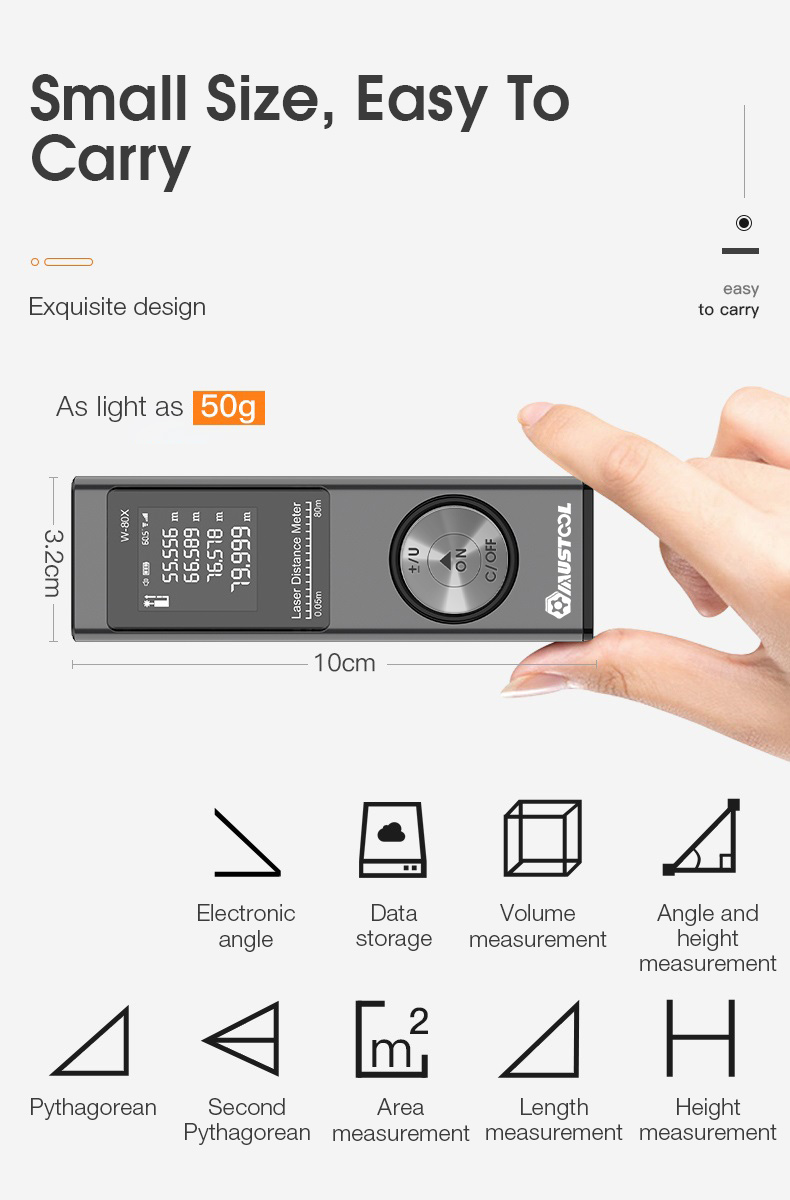

| Net Weight | 50 g |

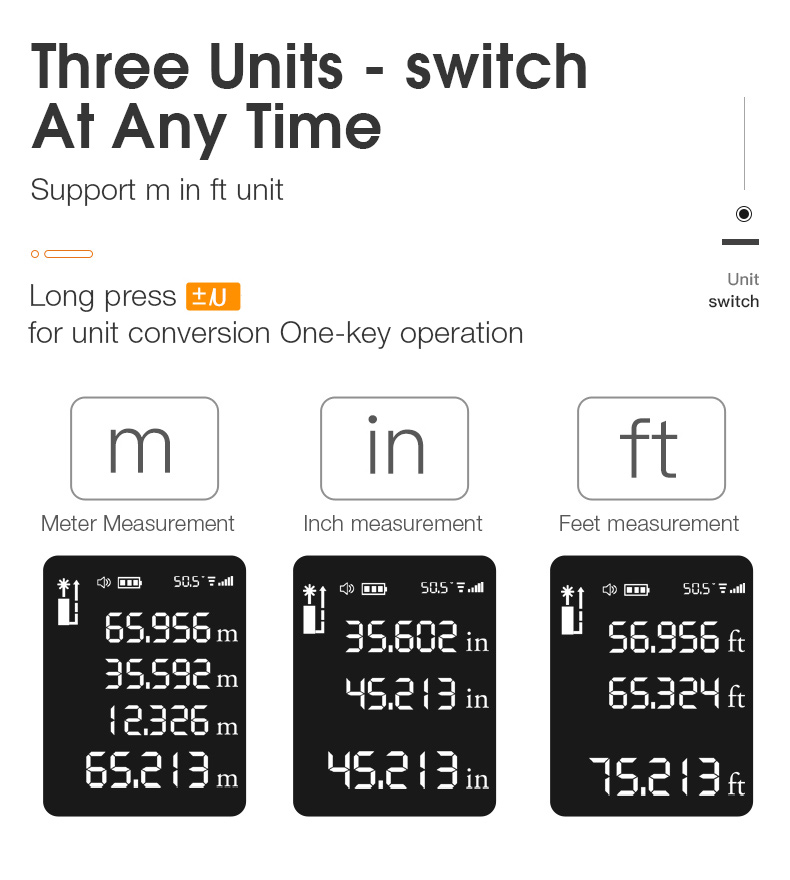

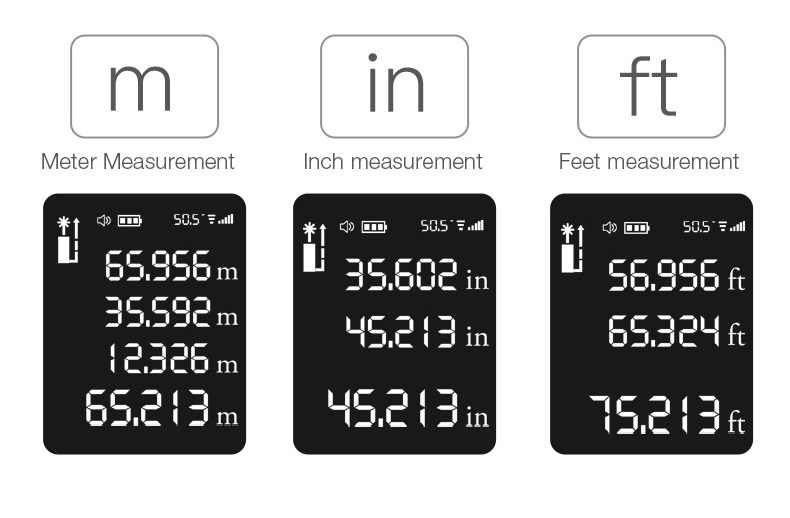

Support M / In / Ft unit free switching.
>> Please contact our customer service to download the English user manual <<
Self-Calibration Operation Guide
- Turn off the rangefinder.
- Long press power button until "book" flashes on screen.
- Long press power button again until "CRL.0" appears.
- Short press power button to adjust offset value, adjustable range: -7 ~ 7 mm.
- Press power off button to save calibration settings after finishing.
Beep Mute / Unmute Setting Steps
- Keep the device powered off.
- Long press power button until "book" flashes on screen.
- Long press power button again until "CRL.0" appears.
- Long press power button a third time to enter tone setting page "bp.on".
- Short press power button to switch to mute mode, screen shows "bp.off".
- Short press power off button to save the mute setting.
Package Includes
- 1 × Laser Rangefinder
- 1 × English User Manual
- 1 × USB Charging Cable
Detail Pictures
