2pcs 1/2 inch Quarter Turn Tap Valve Cartridge Brass Ceramic Disc Hot Cold Replace
2pcs 1/2 inch Quarter Turn Tap Valve Cartridge Brass Ceramic Disc Hot Cold Replace
$8.99
Ex Tax: $8.99
- Stock: In Stock
- Model: MZ003977
- Weight: 551.00g
- SKU: MZ003977
Features :
BSP 1/2" thread.
Rubber O ring at the bottom.
The discs are made of brass and ceramic.
Both discs are suitable for both hot and cold water.
Will fit most double handles kitchen and bathroom basin taps.
20 teeth on spline which is also drilled and threaded to fit for a 4mm screw.
Red colour rubber disc valve is turning clockwise for tap on and, turning anti-clockwise for tap off. This valve with red rubber O ring is usually used on the right hand side.
Blue colour rubber disc valve is turning anti-clockwise for tap on and, turning clockwise for tap off. This valve with blue rubber O ring is usually used on the left hand side.
Blue colour rubber disc valve is turning anti-clockwise for tap on and, turning clockwise for tap off. This valve with blue rubber O ring is usually used on the left hand side.
Specification :
Total height: 45mm
Width: 23mm
Waist to base distance:24mm
Spline diameter: 8.2mm
Number of teeth on spline: 20
Base diameter: 18mm
Waist diameter: 23mm
Turn on: Counterclockwise
Turn off: clockwise
Package includeds :
1 x 1/2" BSP Brass Ceramic Disc valve left side
1 x 1/2" BSP Brass Ceramic Disc valve right side

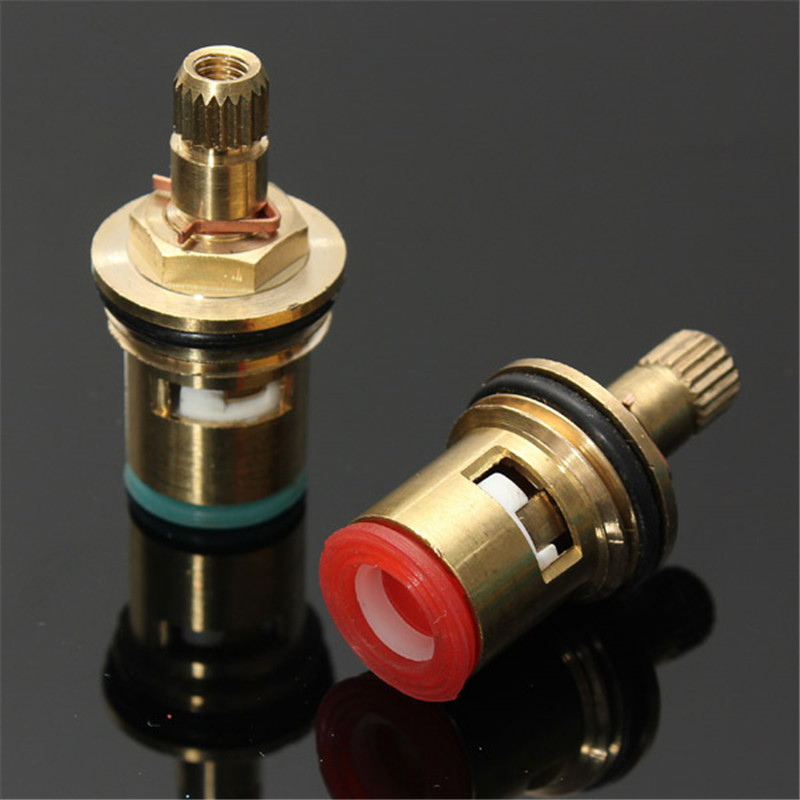

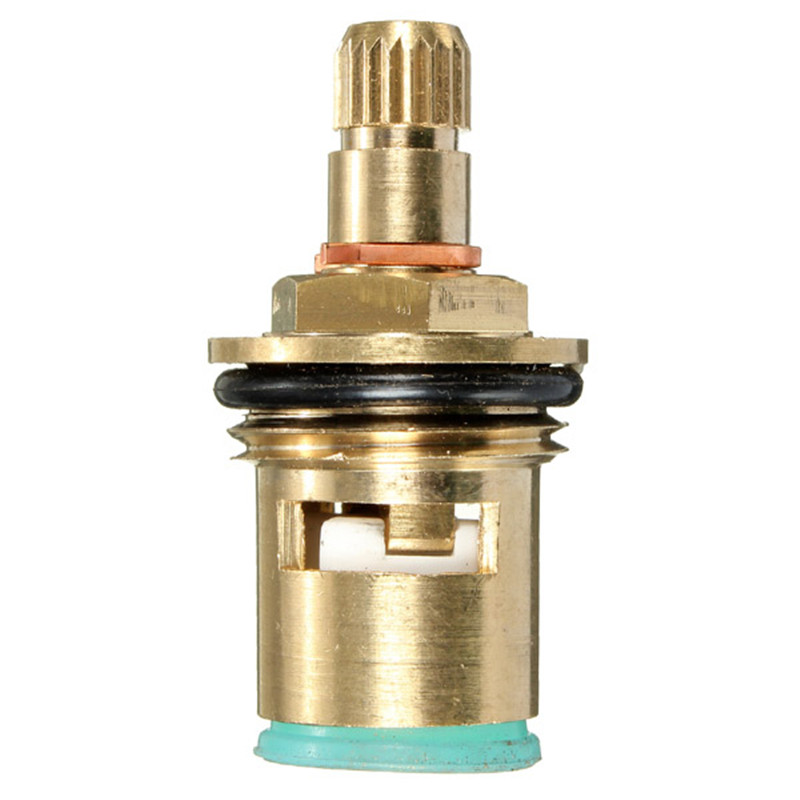

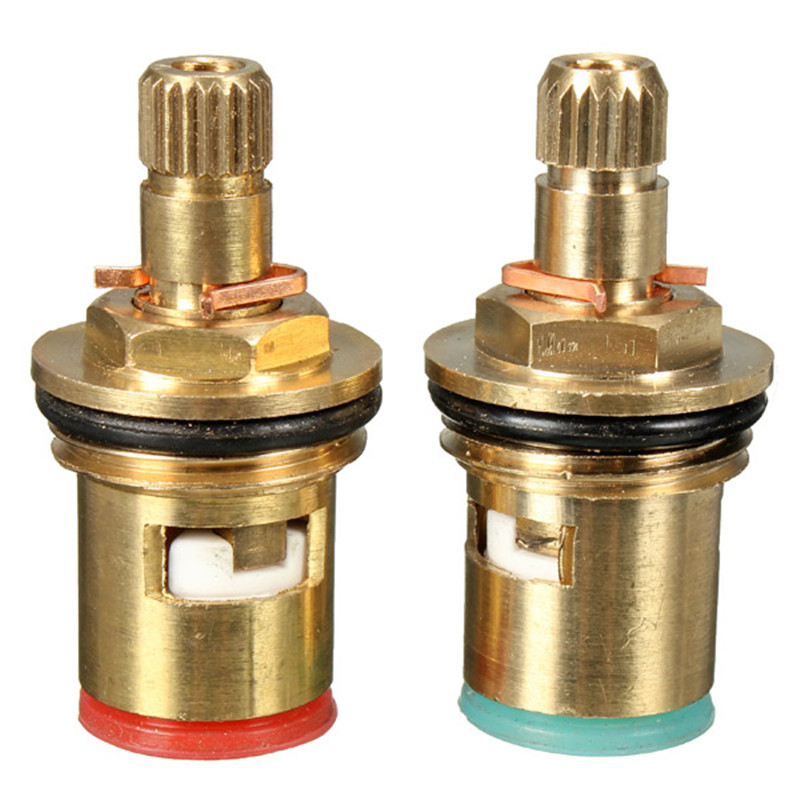

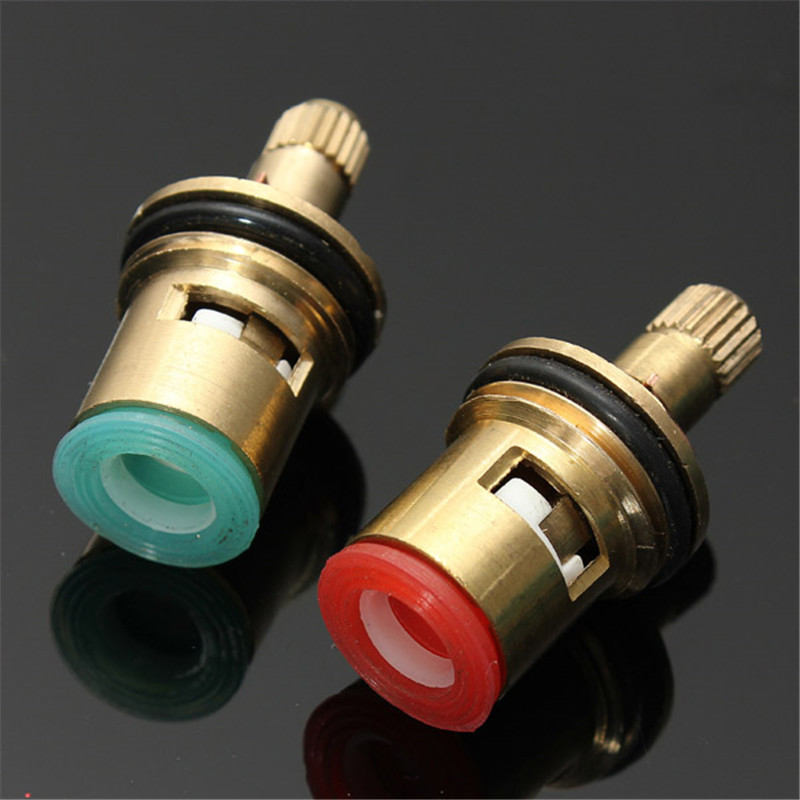

Details pictures :
,
,
,
