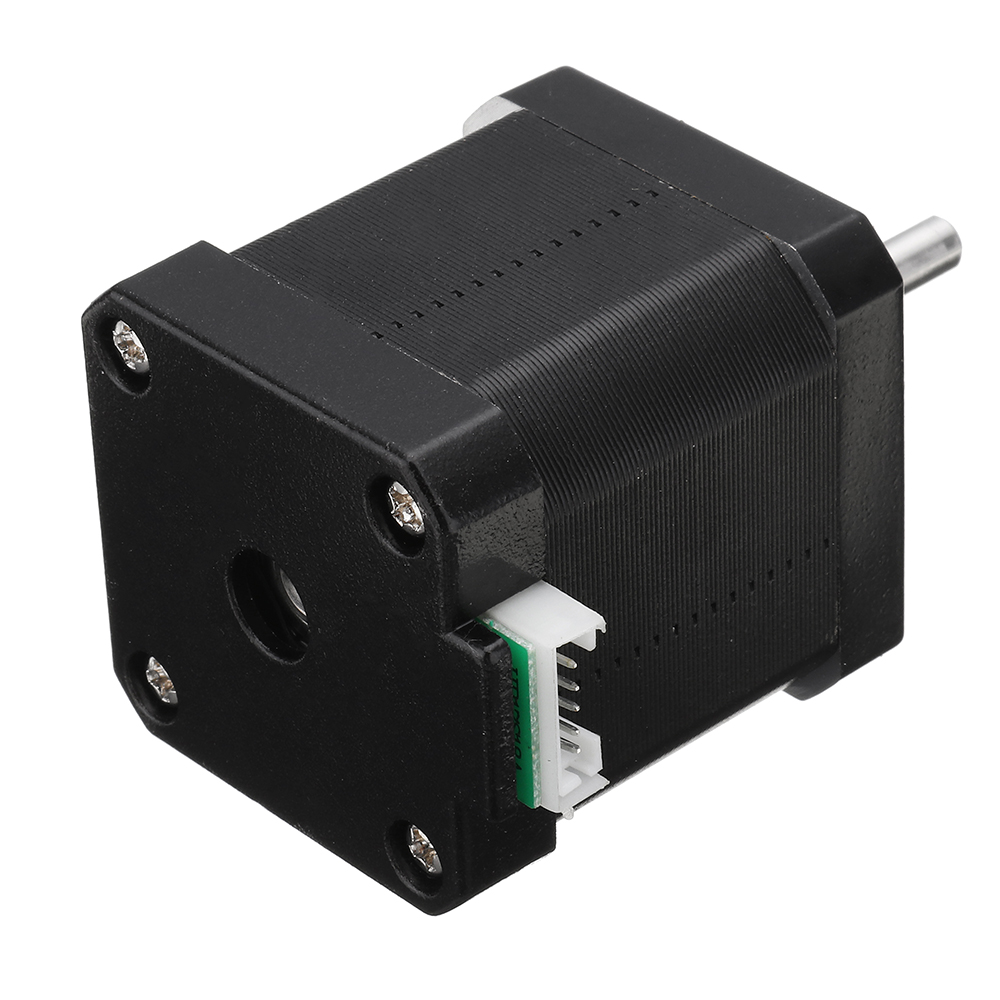

17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
$16.99
Ex Tax: $16.99
- Stock: In Stock
- Model: MZ009170
- SKU: MZ009170
Description:
HANPOSE 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
Certification: CE, ROSH, ISO, FCC
Color: Black(Surface Treatment)
Specification:
Electrical Specifications:
General Specification:
Features:
Package Included:

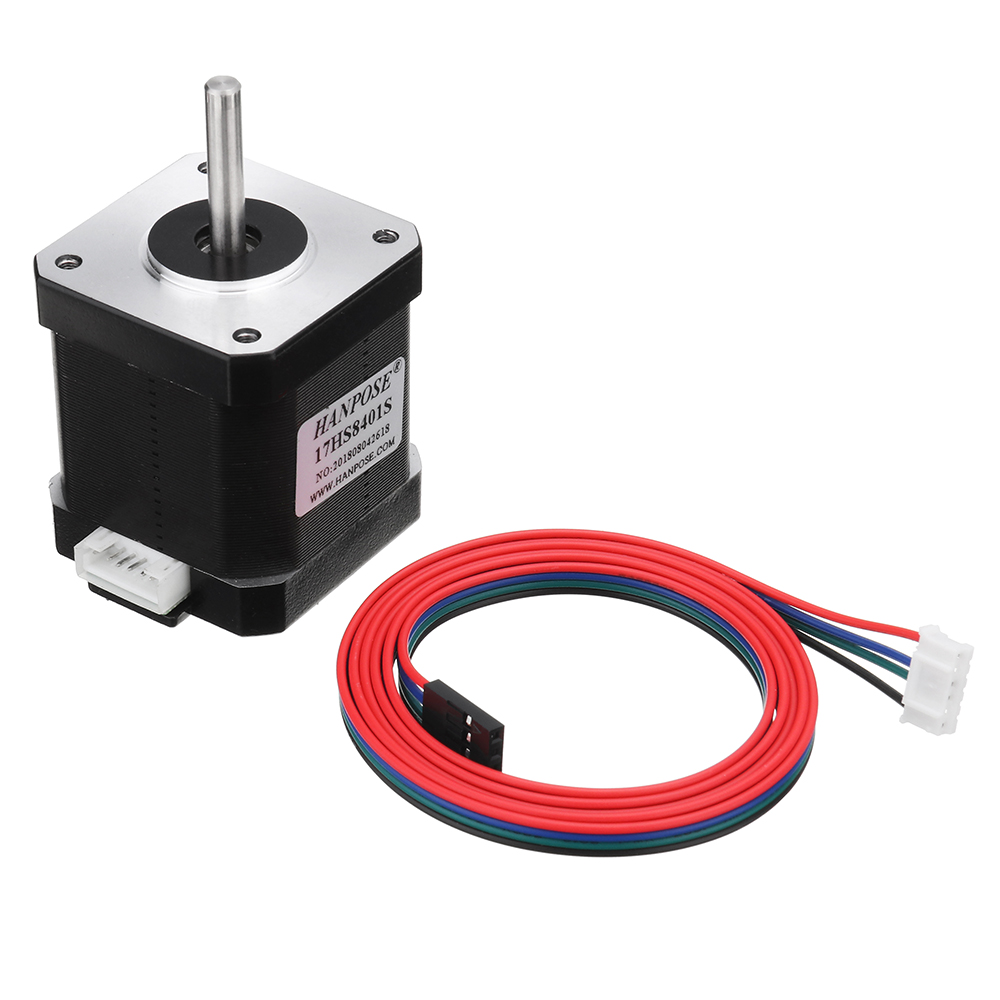

1 X 17HS8401-S Stepper Motor
More Details:
HANPOSE 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
Certification: CE, ROSH, ISO, FCC
Color: Black(Surface Treatment)
Specification:
| Model | 17HS8401-S |
| Type | Hybrid |
| Phase | 2 |
| Step Angle | 1.8° |
| Motor Size | 42 *48 mm |

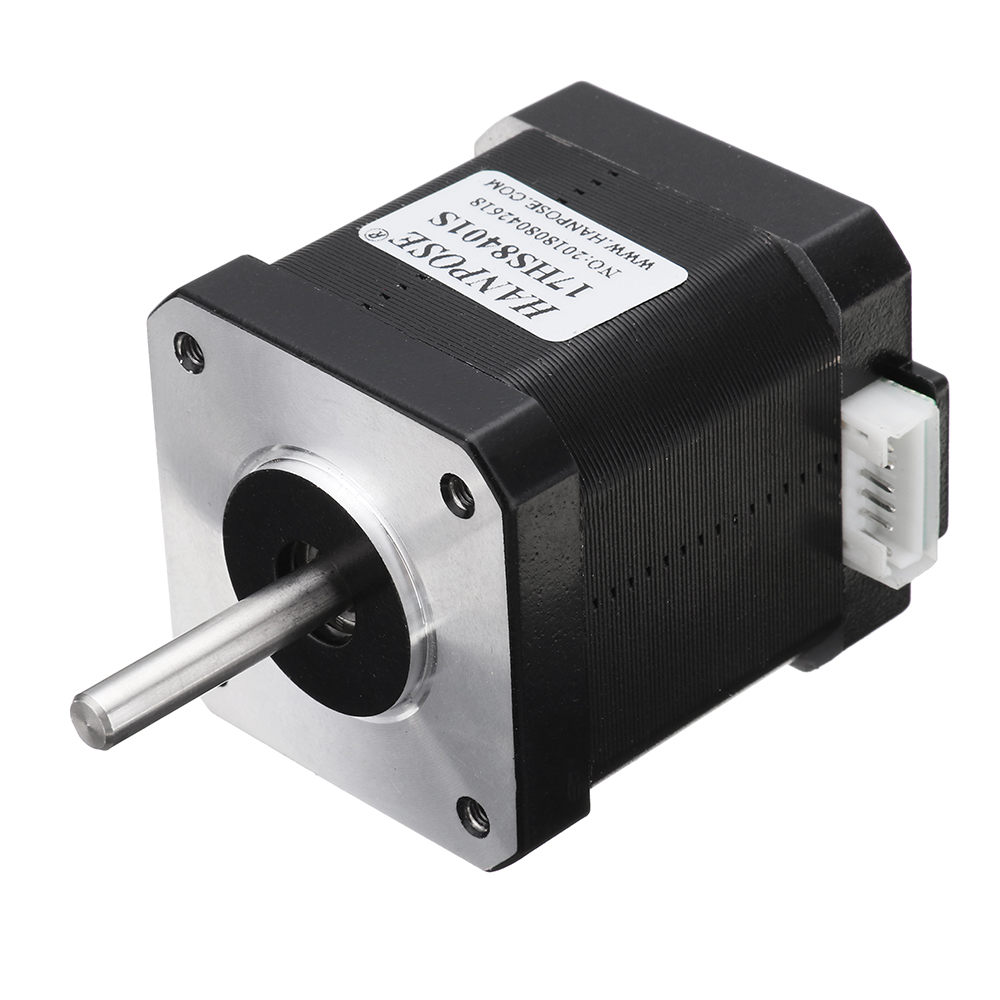

| Shaft | "D" shaft 21 x Ф5mm |

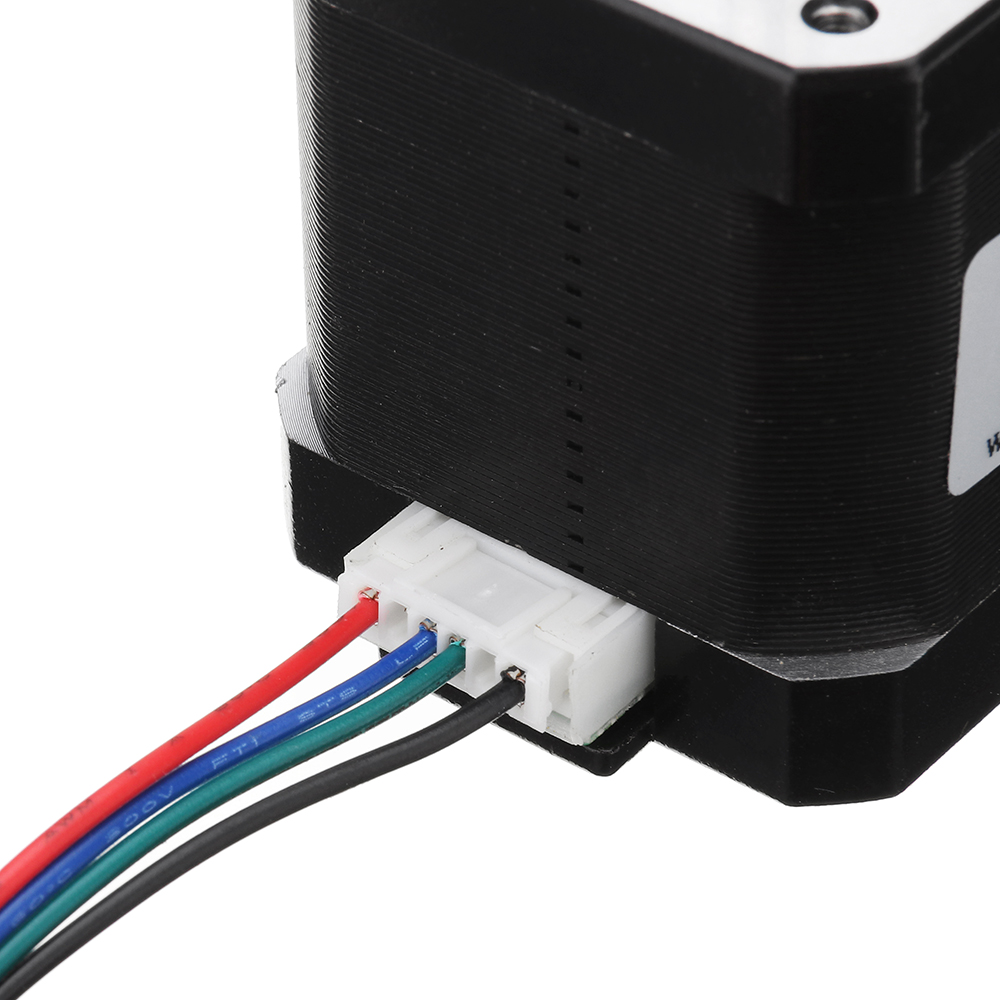

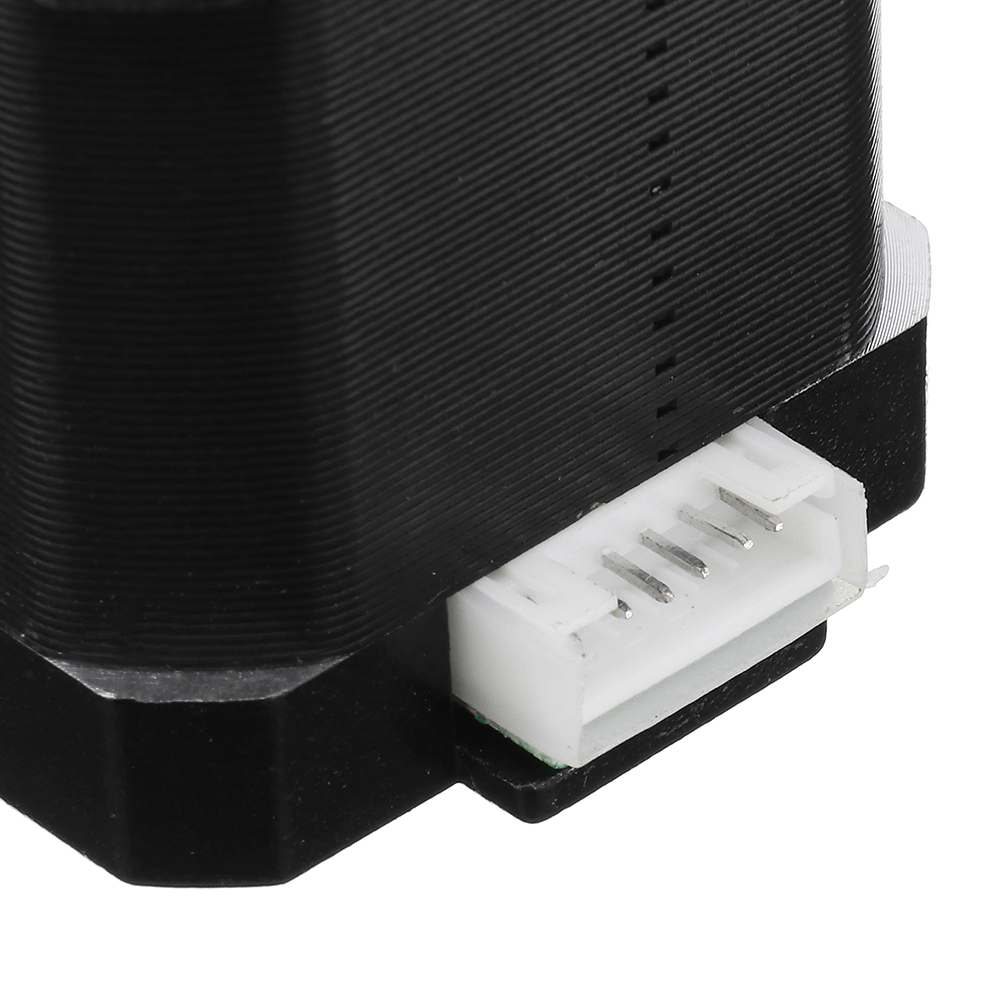

| Outlet way | "4" plug line |

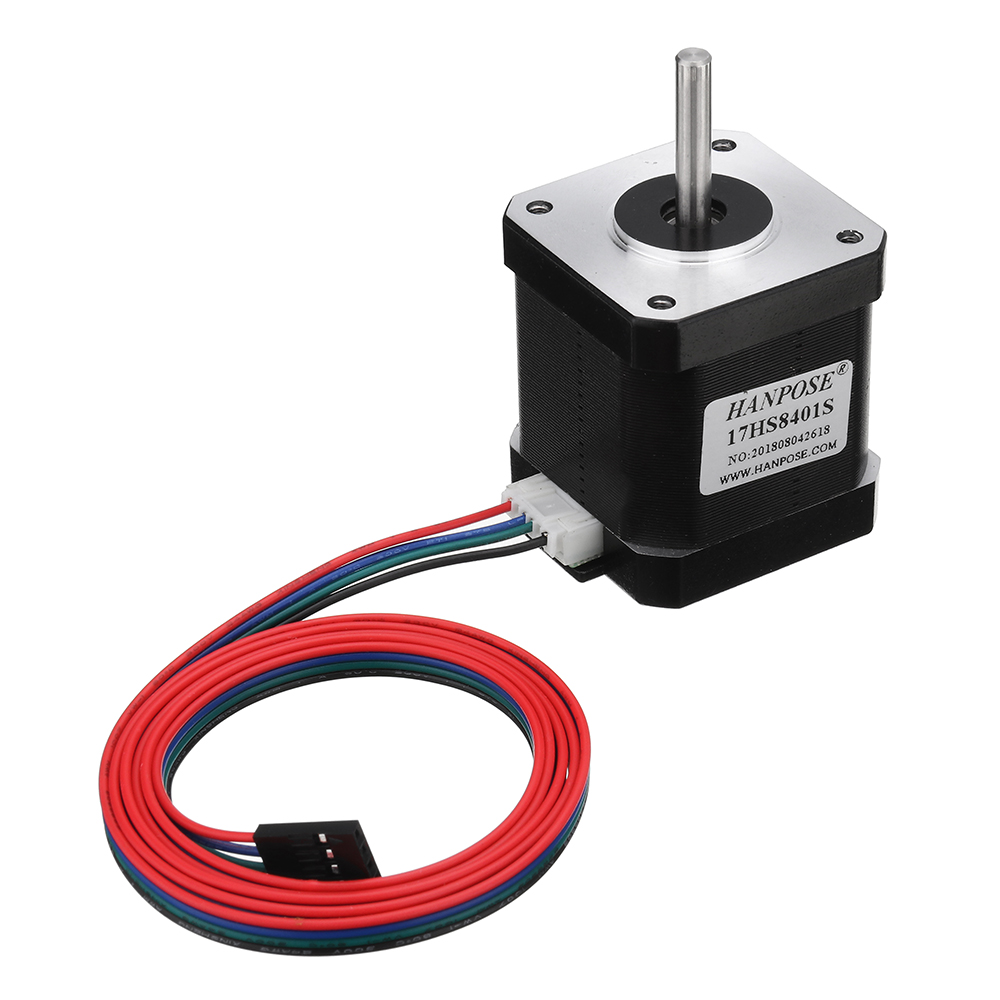

| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Scope |
3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle | Motor Length |
Rated Current |
Resistance /Phase |
Inductance /Phase | Holding Torque |
Detent Torque |
Inertia Of Rotor | Lead |
| ( °) | (L)mm | (A) | (Ω) | (mH) | (N.cm) | (N.cm) | (G. cm²) | (No.) | |
| 17HS8401-S | 1.8 | 48 | 1.8 | 1.8 | 3.2 | 52 | 2.6 | 68 | 4 |
General Specification:
| Precision angle step | ±5% (full step, no charge) |
| Resistance accuracy | ±10% |
| Precision inductance | ±20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20°)-(+ 50°) |
| Insulation resistance | 100MΩ Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Color: Black(Surface Treatment)
5. Color: Black(Surface Treatment)
