$10.99
Ex Tax: $10.99
  • Stock: In Stock
  • Model: MZ001700
  • SKU: MZ001700

Available Options

Description:

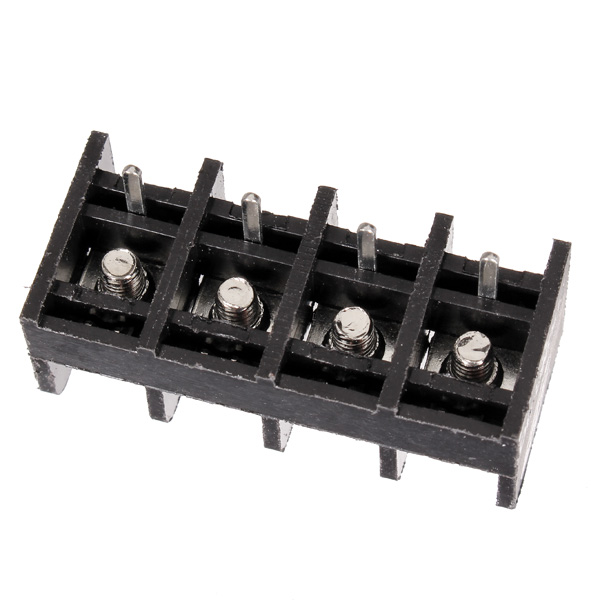

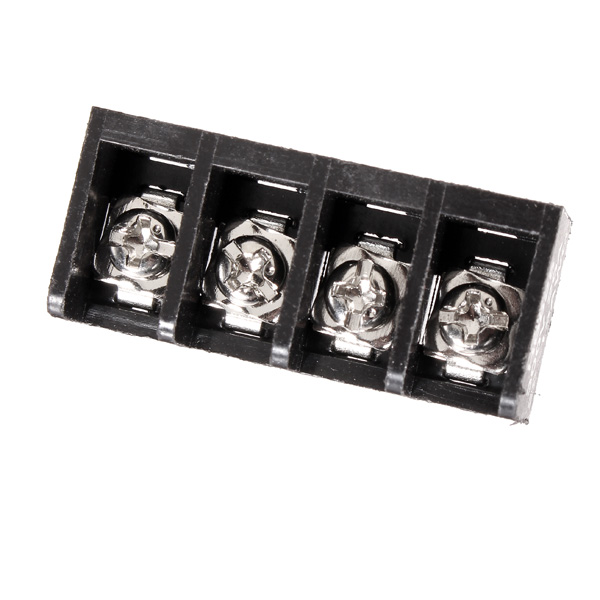

10pcs 2-4 Pin 8.25mm Barrier Screw Terminal Blocks Connectors Black

Specifications :
Product Name: Barrier Screw Terminal Blocks
Material: Plastic
Rated Value: 300V, 20A
Poles: 2pin, 4pin
Quantity: 10
Color: Black

Parameter:
ELECTRICAL
Rated Voltage 300V
Rated Current 20A
Wire Range 22-12AWG
Withstanding Voltage AC1600V/ 1min
The Insulation Resistance 500MΩ/ DC500V
Certification UL
MECHANICAL
Temp range -40℃-- +105℃
Torque 0.5N.m 4.4Lb.in
Max Soldering +250℃for 5s.
MATERIAL

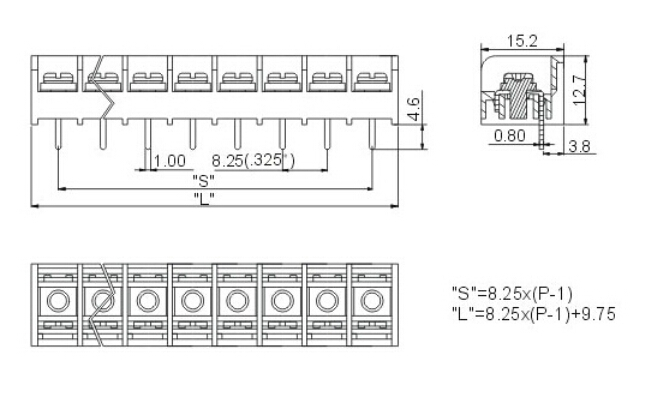

Pitch 8.25mm
Poles 2P, 4P
Pin Header Brass, 0.8mm thickness , Tin Plated
Housing PA66.UL94V-0
Screw Steel, M3 Nickel Plated

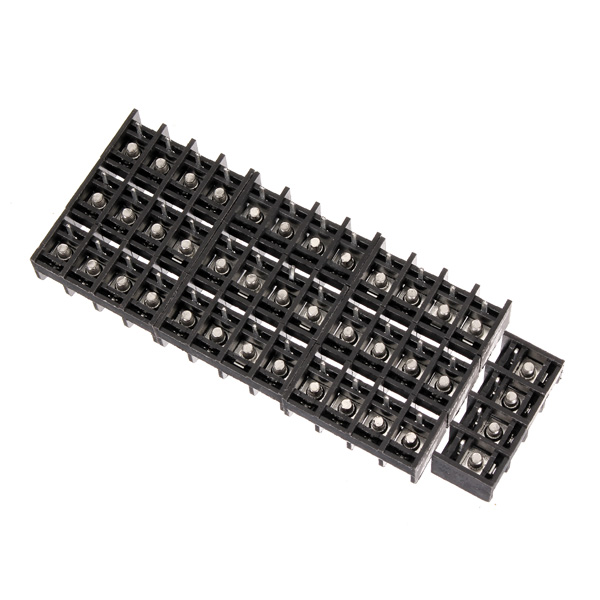

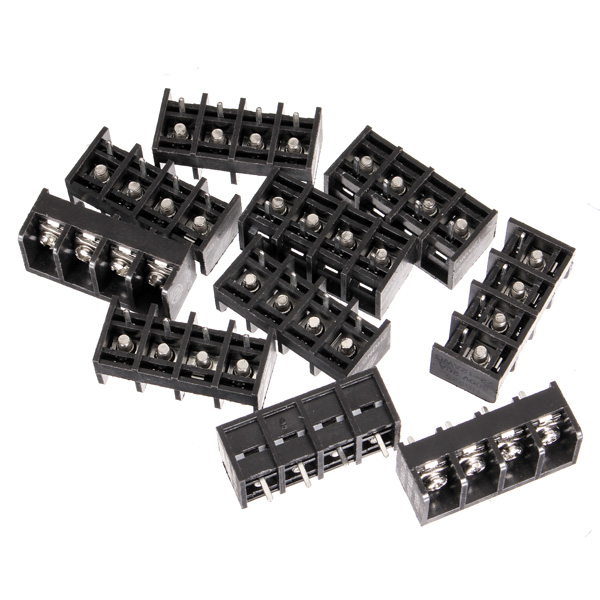

Package included: 10X 2 Pin/ 4 Pin Barrier Screw Terminal Blocks
