ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Governor
ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Governor
$79.99
Ex Tax: $79.99
- Stock: In Stock
- Model: MZ003645
- SKU: MZ003645
Description:
ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and AC 110-220V Power Supply Speed Governor For CNC Machine
It is a upgraded AC 110-220V one and now it can be used in AC 110-220V±10% 50/60Hz power supply.
Specification:

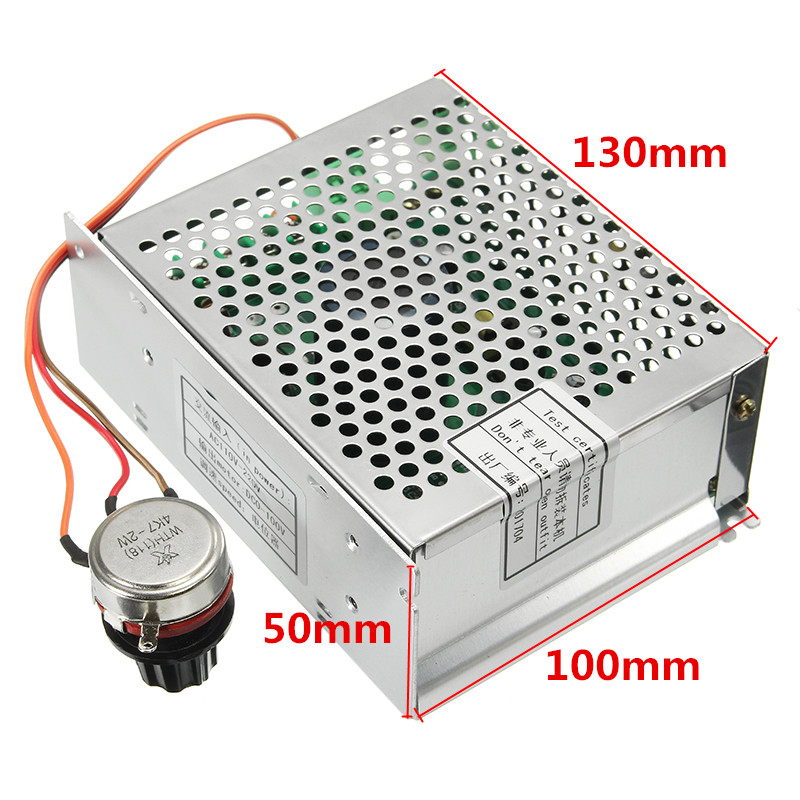

| Dimension | 130mm×100mm×50mm (L*W*H) |
| Input | AC110-220V±10% 50/60Hz |
| Spindle Motor | 500w |
| Spindle Speed | 3000-12000r/min |
| Motor Diameter | 52mm |
| Motor Length | 208mm |
| Operating Voltage (Output Voltage) | 100V DC |
| Current | 6A |
| Speed | Up to idle up to 15,000 rev / min |
| Torque | 5000G/CM |
| Insulation Resistance | > 2 megohms |
| Dielectric Strength | 400V |
| High precision spindle runout 0.01-0.03 | |

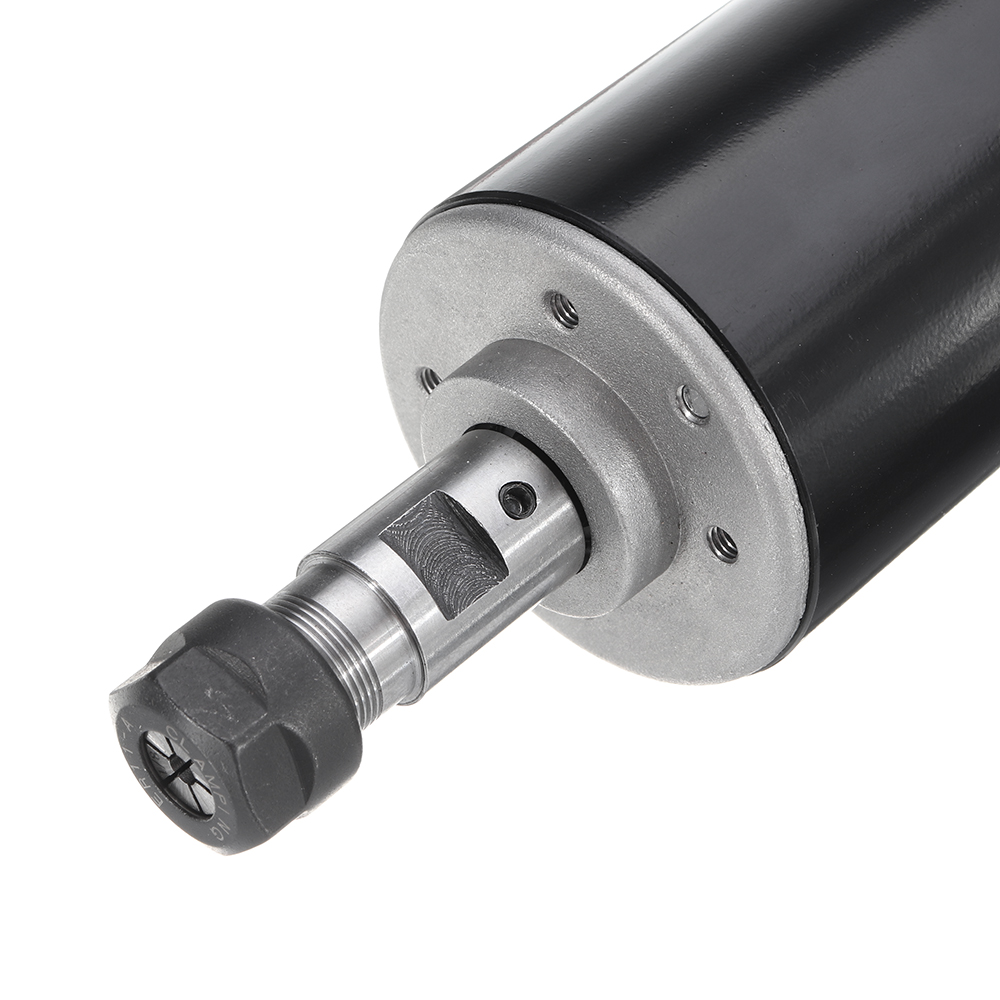

Chuck size:
Style: ER11
Chuck Size: 1/8"
Chuck Size: 1/8"
Material: High Grade 45 Carbon Steel
Total height: 18mm
Outer diameter(Max.): 11.5mm
Gripping Range: 3mm
Small diameter: 7.8mm
Fits metric shank size(s): 3mm metric shank
Nut Size:
Inner Diameter: 8.7mm
Height: 13mm
Diameter: 17mm
Outer Diameter:19mm
Package Included:

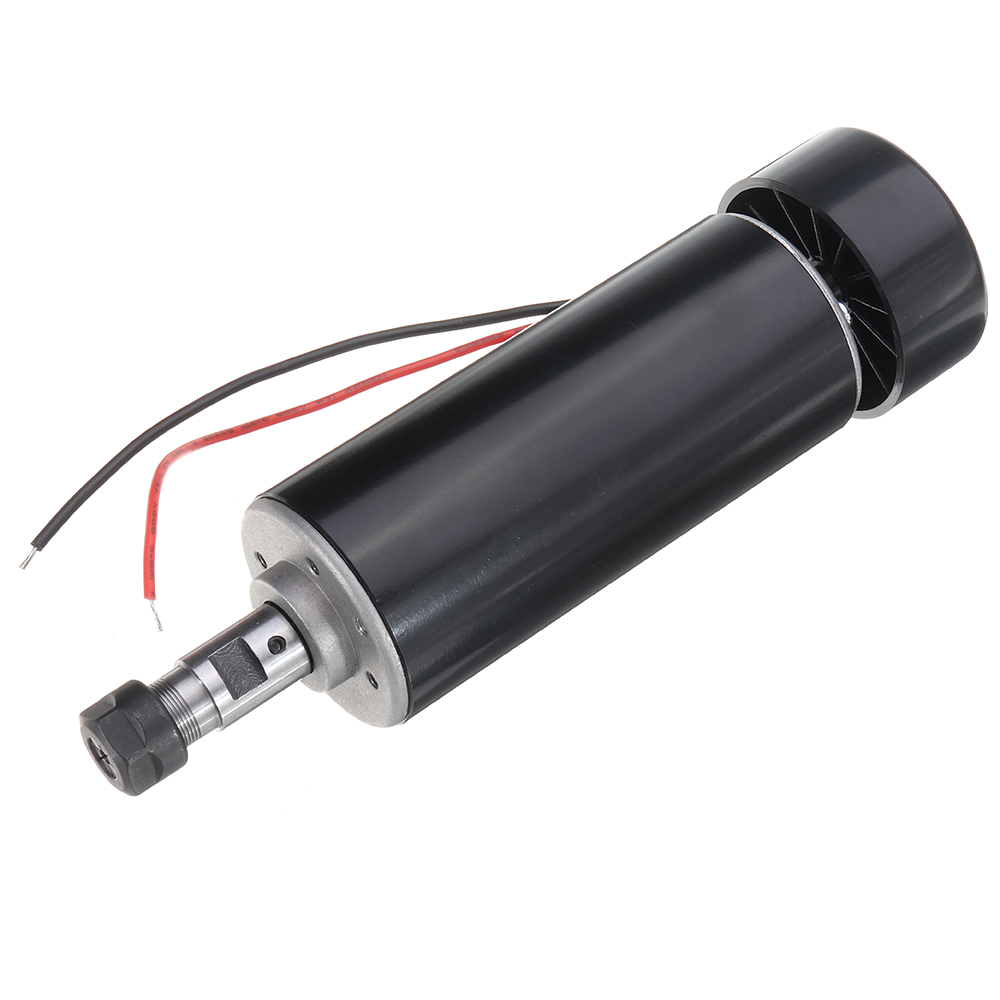

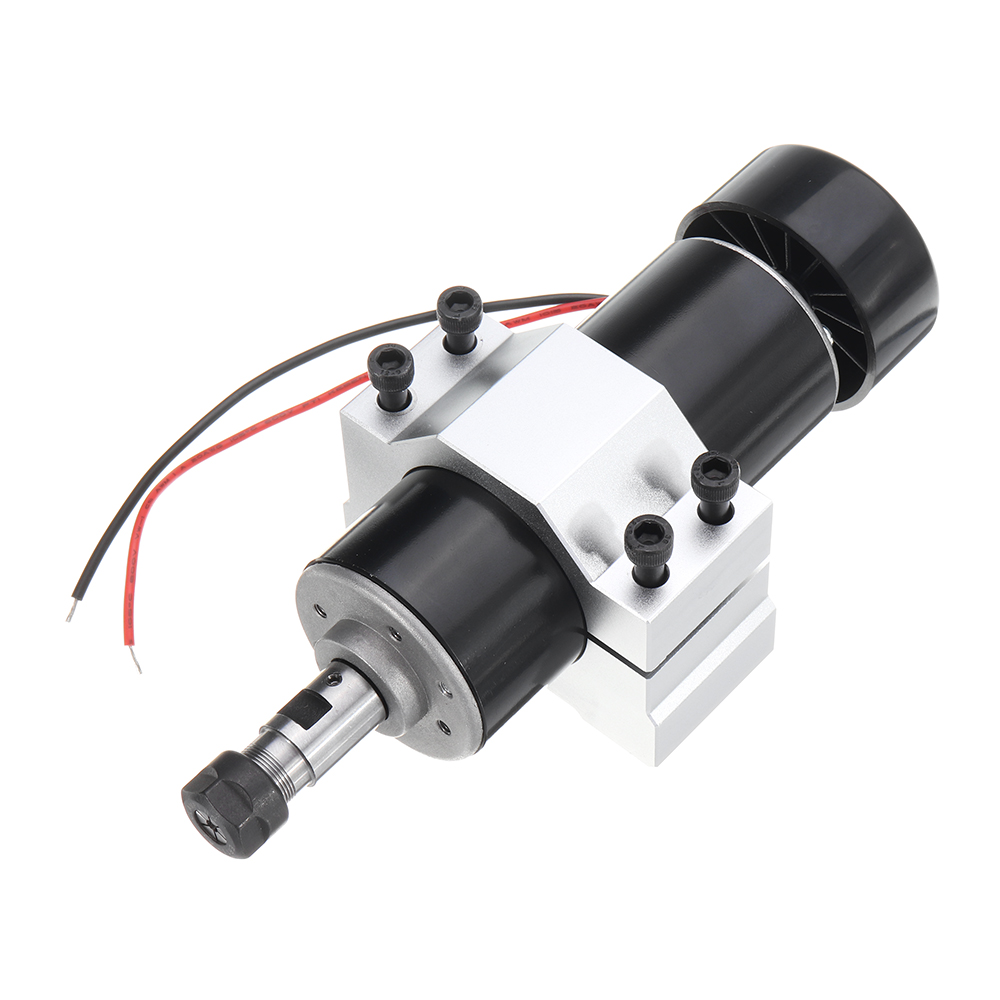

1 x 500W Spindle Motor

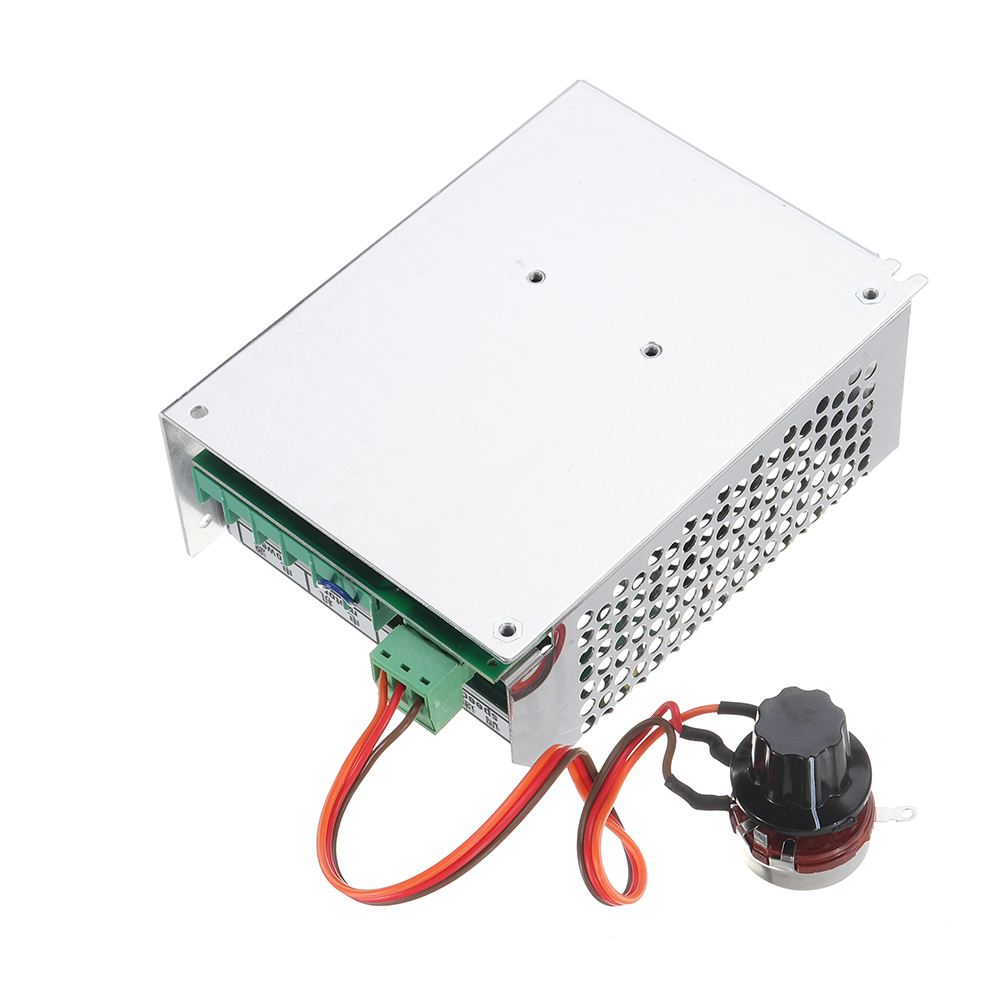

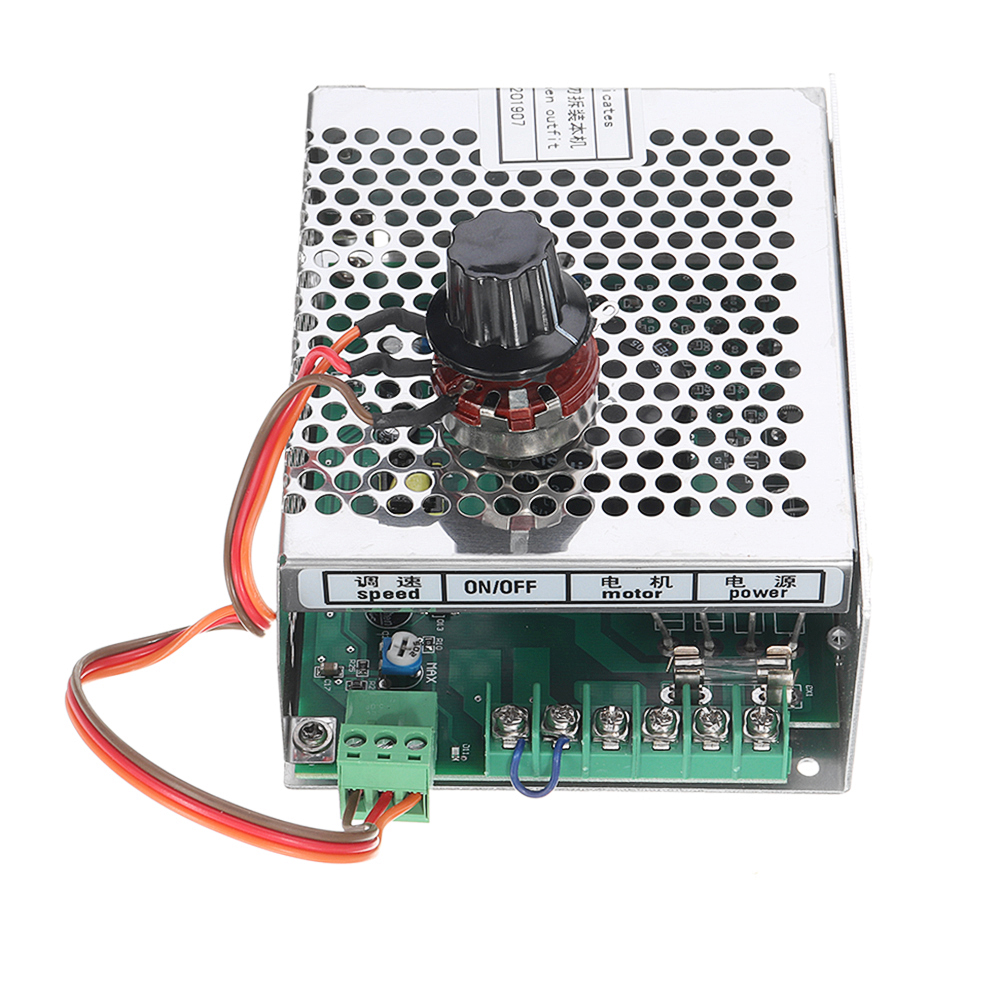

1 x Power Supply

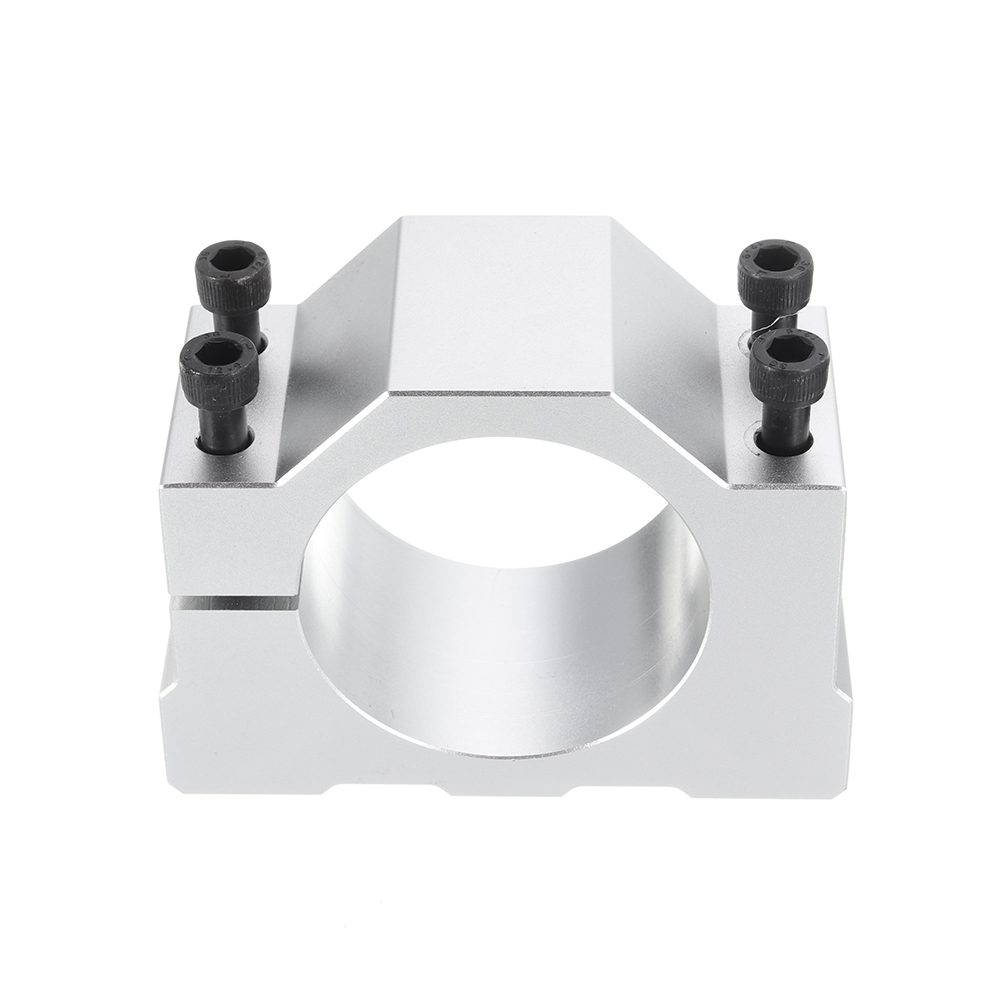

1 x 52MM Mount Bracket
1 X ER11 Collect
4 x Screws
Note:
the wire + and - could be connected in both position as you want but make sure the output and input voltage position to be correct.
Note:
the wire + and - could be connected in both position as you want but make sure the output and input voltage position to be correct.
